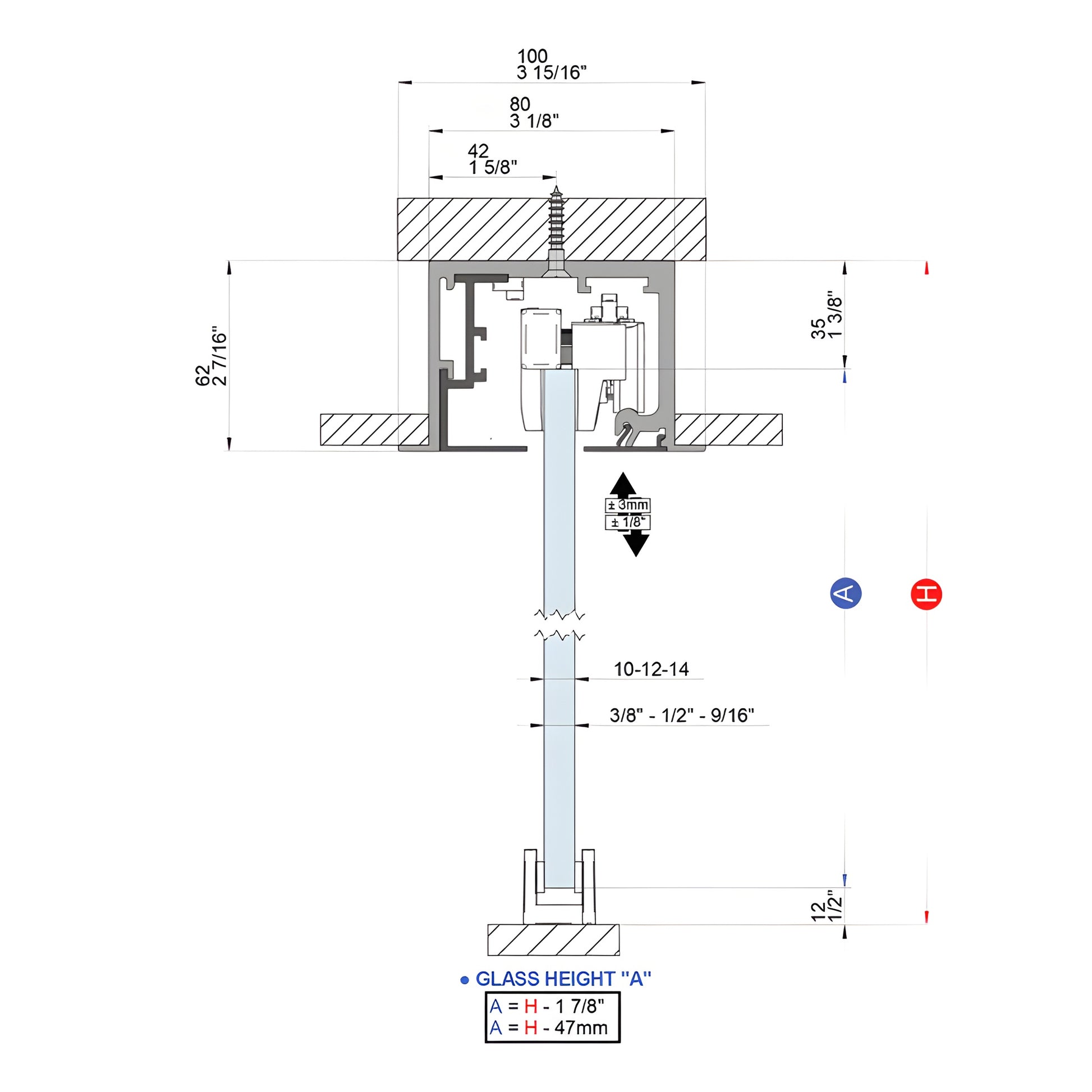

• Matte black CRL 695 sliding door track and hanger with top-mounted 3/8-1/2" tempered glass panel, 118" track

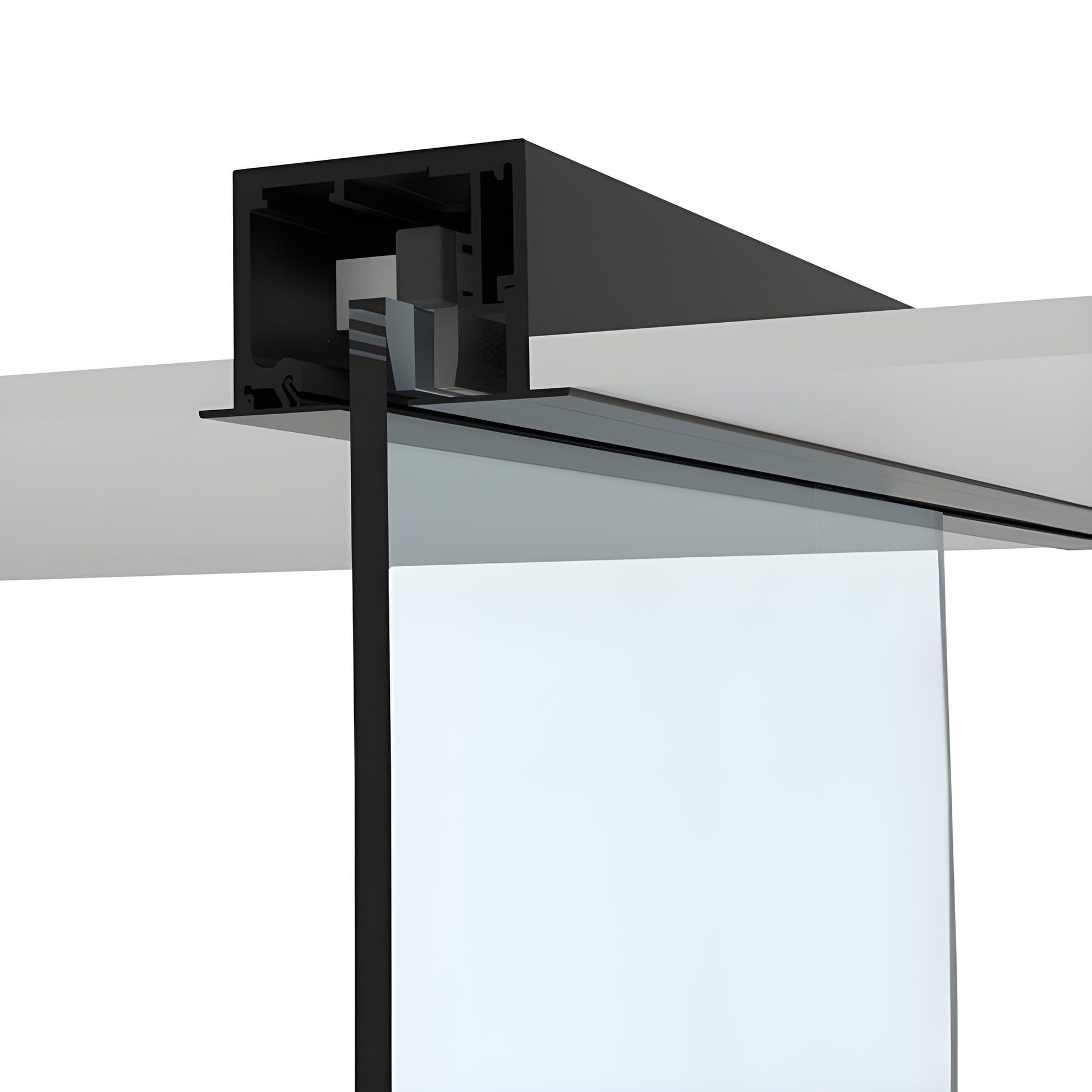

  • Matte black CRL 695 sliding door track and hanger with top-mounted 3/8-1/2" tempered glass panel, 118" track

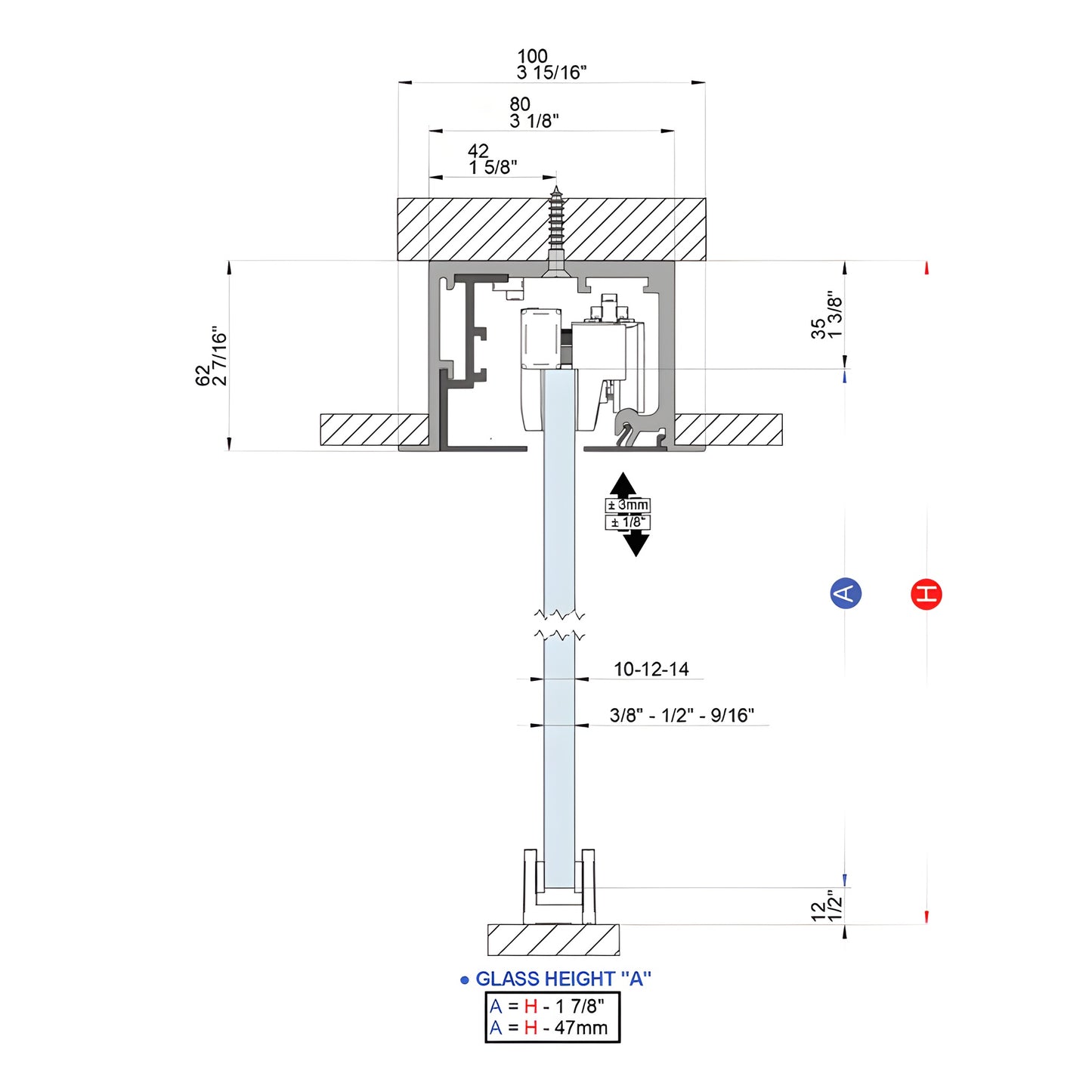

  • Matte black CRL 695 sliding door track and hanger with top-mounted 3/8-1/2" tempered glass panel, 118" track
1 3

CRL

CRL 695 Matte Black Drop Ceiling Sliding Door Kit with Softbrake

CRL 695 Matte Black Drop Ceiling Sliding Door Kit with Softbrake

$2,571.40 CAD
$2,571.40 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL695DMBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (3000 mm)

Overview

  • Intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
  • Supports properly installed doors up to 330 lb (150 kg) — heavy-duty commercial glass sliding door kit
  • Rollers provide up to 1/4" (6 mm) vertical adjustment for post-installation door alignment
  • Track length: 118" (3 m)
  • Use monolithic tempered glass only

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and optional "Softbrake" braking system. Kits include all hardware required for installation except the tempered glass and pull hardware. Available finishes: satin anodized, brushed stainless anodized, and matte black; special-order cladding or powder coat finishes are available. For kit selection or installation assistance, contact CRL Technical Sales for Commercial Products.


Minimum sliding panel width: 30-7/8" (785 mm) for single-direction control; 42-1/2" (1080 mm) for bi-directional control. Existing CRL690 Series installations can be upgraded easily by ordering replacement kits.

Kit Contains:
  • 118" (3 m) CRL4932EXT Track Set
  • 1 set CRL6939 Top Hangers
  • 1 set CRL6942 Roller Stops
  • 1 each CRL2940 Bottom Guide
  • 1 set CRL2945 Door Edge Guards
  • 1 set CRL2929 Dropped Ceiling Adapter Brackets
  • 1 each CRL695SBK Softbrake Kit

Most shipping weights are approximate. If exact weight is required to determine shipping costs, please request this information from CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor.


SKU: CRL695DMBL

Why choose this kit: Heavy-duty capacity (up to 330 lb), vertical roller adjustment for precise alignment, multiple mount options and finish choices, and optional Softbrake for controlled closing — ideal for commercial glass sliding door installations.

Ready to order? Contact CRL Technical Sales or CRL Customer Service to confirm configuration and finish options.
