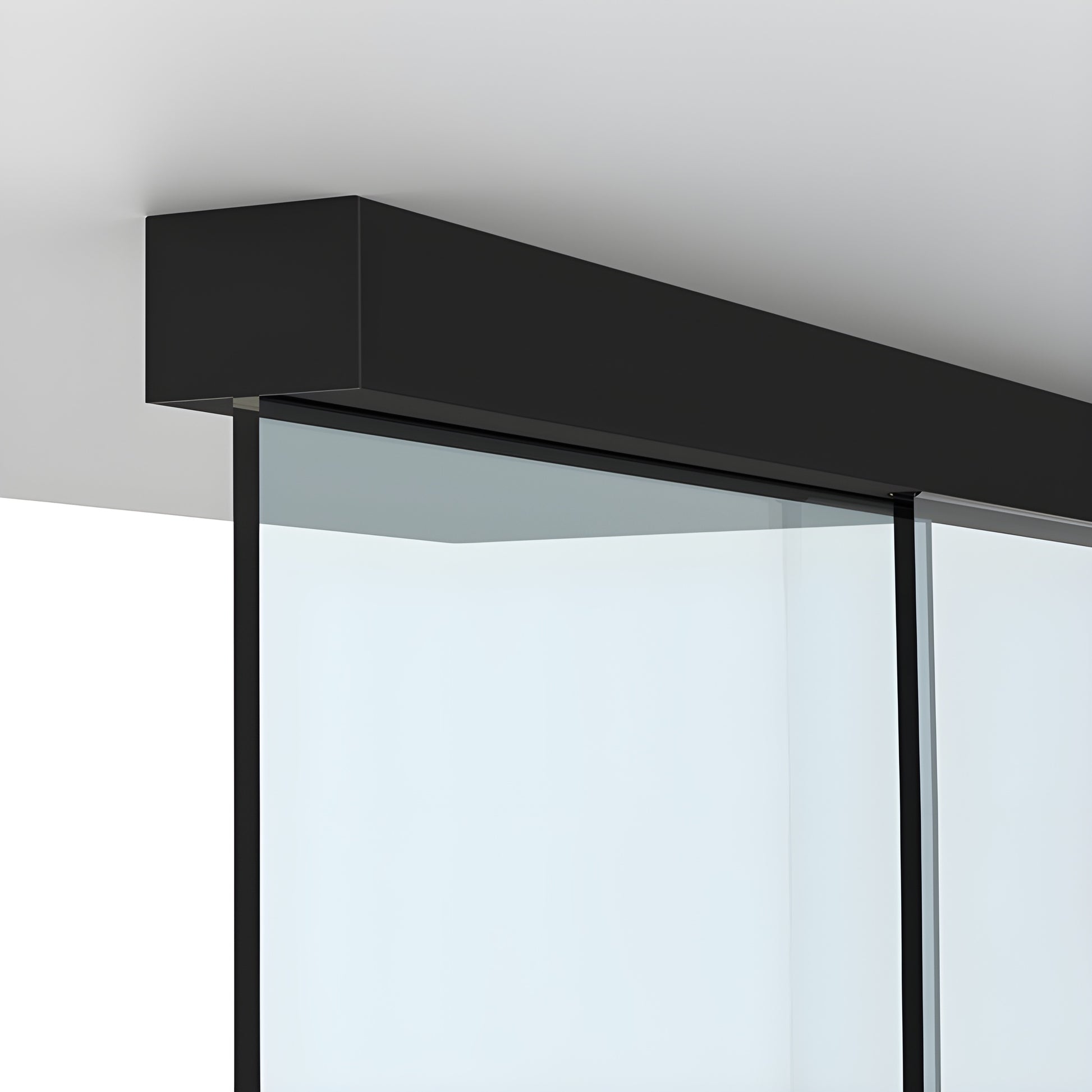

• Matte black CRL6951MBL frameless sliding door top track and glass panel.

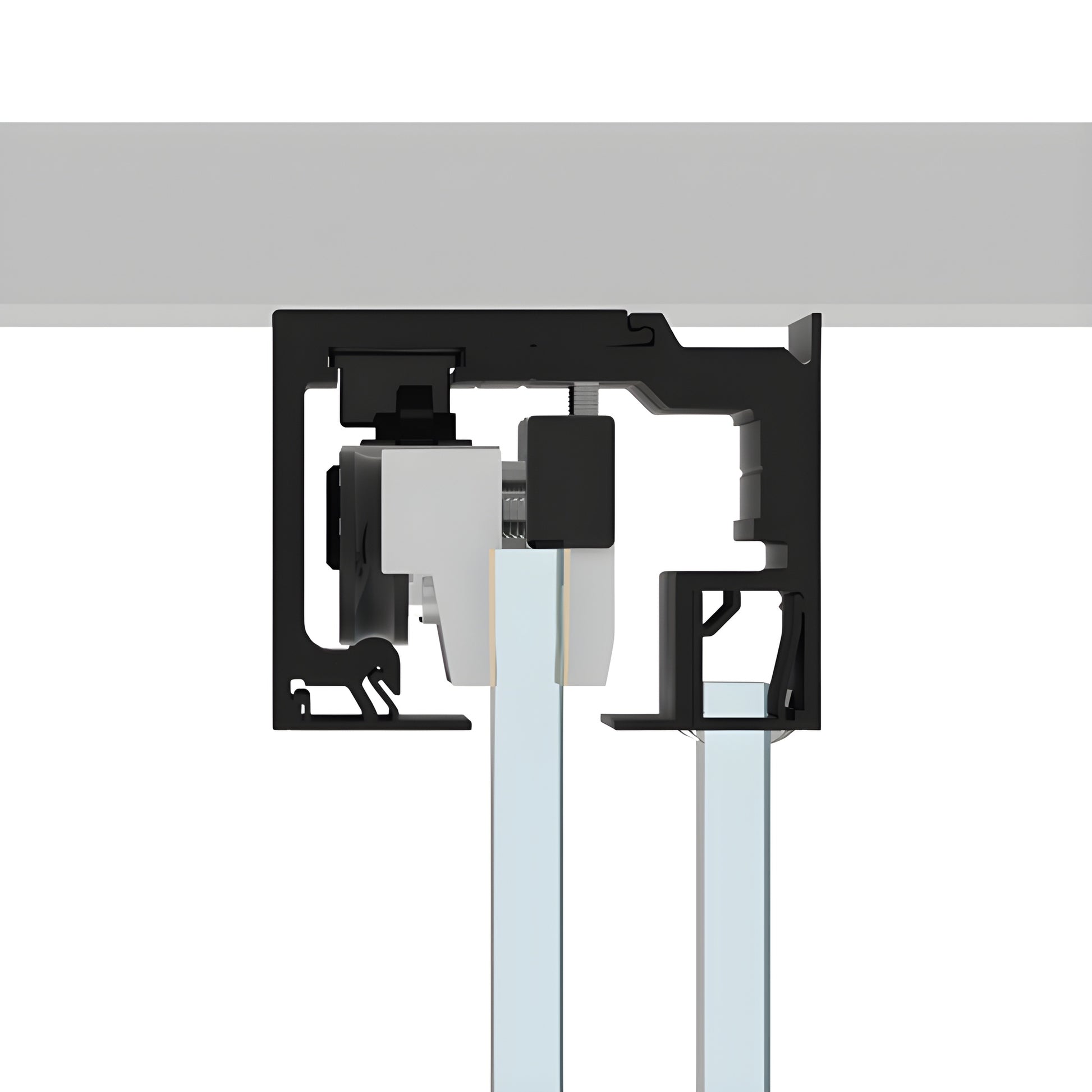

  • Matte black CRL6951MBL frameless sliding door top track and glass panel.

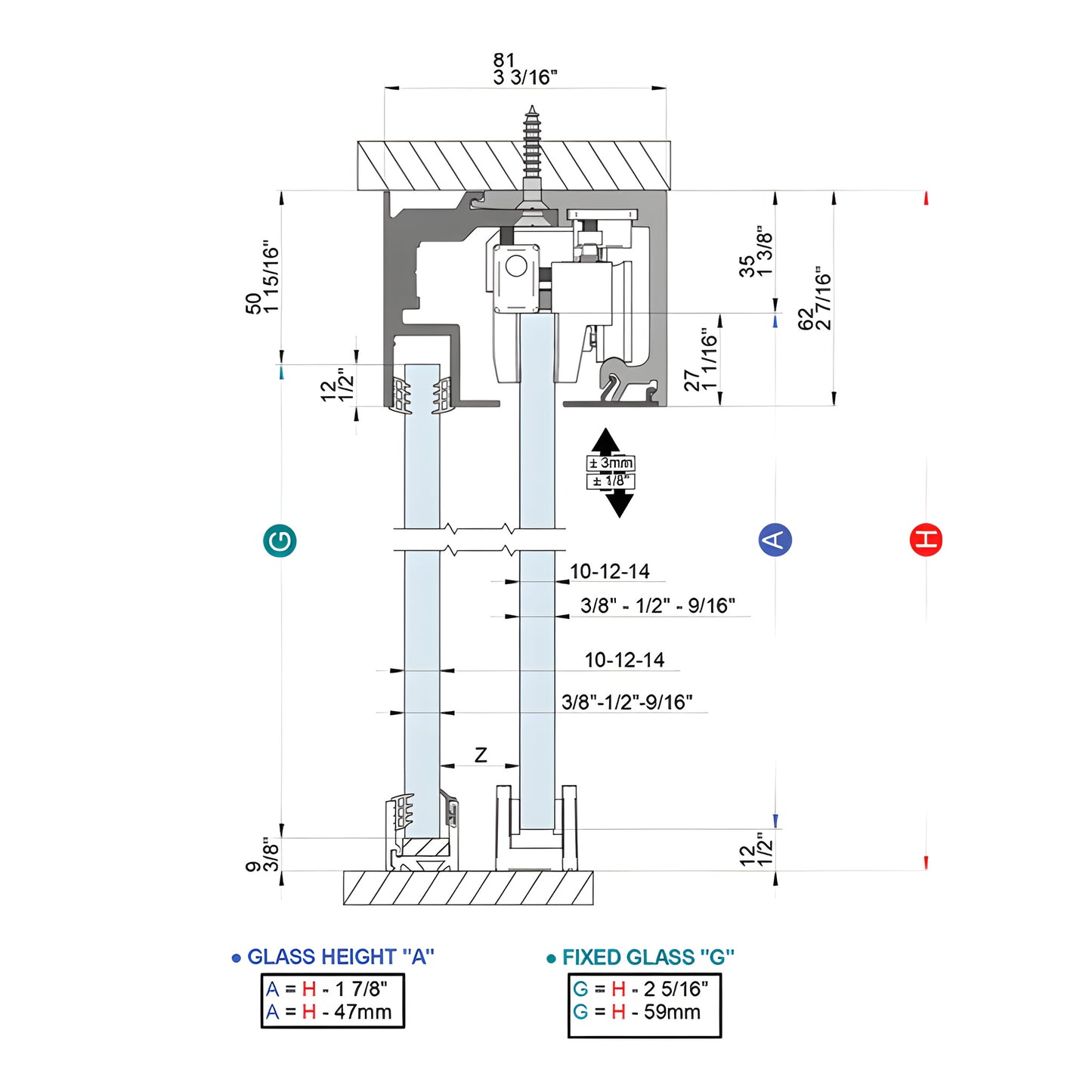

  • Matte black CRL6951MBL frameless sliding door top track and glass panel.
1 3

CRL

CRL 695 Matte Black Sliding Door Kit with Fixed Panel & SoftBrake

CRL 695 Matte Black Sliding Door Kit with Fixed Panel & SoftBrake

$2,931.33 CAD
$2,931.33 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL6951MBL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (3000 mm)

Overview

  • Kits intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
  • Supports properly installed doors up to 330 lb (150 kg)
  • Rollers offer up to 1/4" (6 mm) vertical adjustment for post-install door alignment
  • Track length: 118" (3 m) — ideal for commercial and residential frameless sliding door installations

CRL 690 Series Sliding Door Kits (SKU: CRL6951MBL) — complete frameless sliding door hardware kits for tempered glass. Available in wall mount, ceiling mount, and drop ceiling mount configurations, with optional sidelite and the patented "Softbrake" braking system for smooth, controlled closing. Kits include all hardware except glass and pull hardware and come in satin anodized, brushed stainless anodized, and matte black finishes; special-order cladding or powder coating available. Contact CRL Technical Sales for commercial kit selection and installation assistance.

  • Minimum sliding panel width: 34-1/4" (800 mm) for controlled single- or bi-directional operation

Kit contains:
  • 118" (3 m) CRL4931EXT track kit
  • 118" (3 m) CRL6979A bottom channel
  • Glazing vinyl for 3/8" to 1/2" (10 to 12 mm) glass
  • 1 set CRL6939 top hangers
  • 1 set CRL6942 roller stops
  • 1 CRL2940 bottom guide
  • 1 set CRL2945 door edge guards
  • 1 set CRL2929 dropped ceiling adapter bracket
  • 1 CRL695SBK Softbrake kit

Shipping weights are approximate. For exact shipping weight or cost before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor.


Why choose CRL6951MBL? Smooth Softbrake operation, heavy-duty 330 lb capacity, and vertical roller adjustment make this an ideal frameless sliding door kit for commercial storefronts, office partitions, and residential glass doors.

Order CRL6951MBL or contact CRL Technical Sales for help selecting the right sliding door kit.
