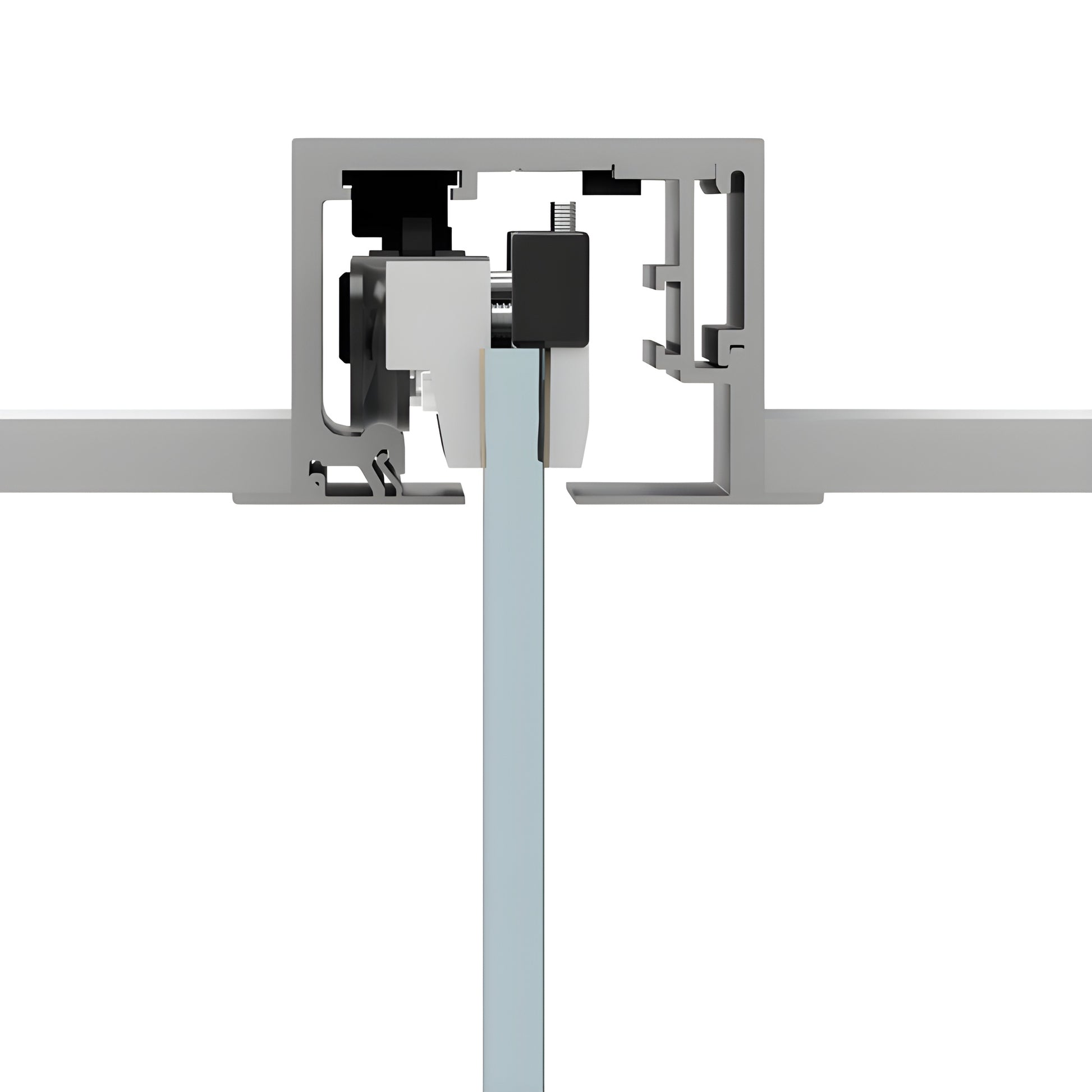

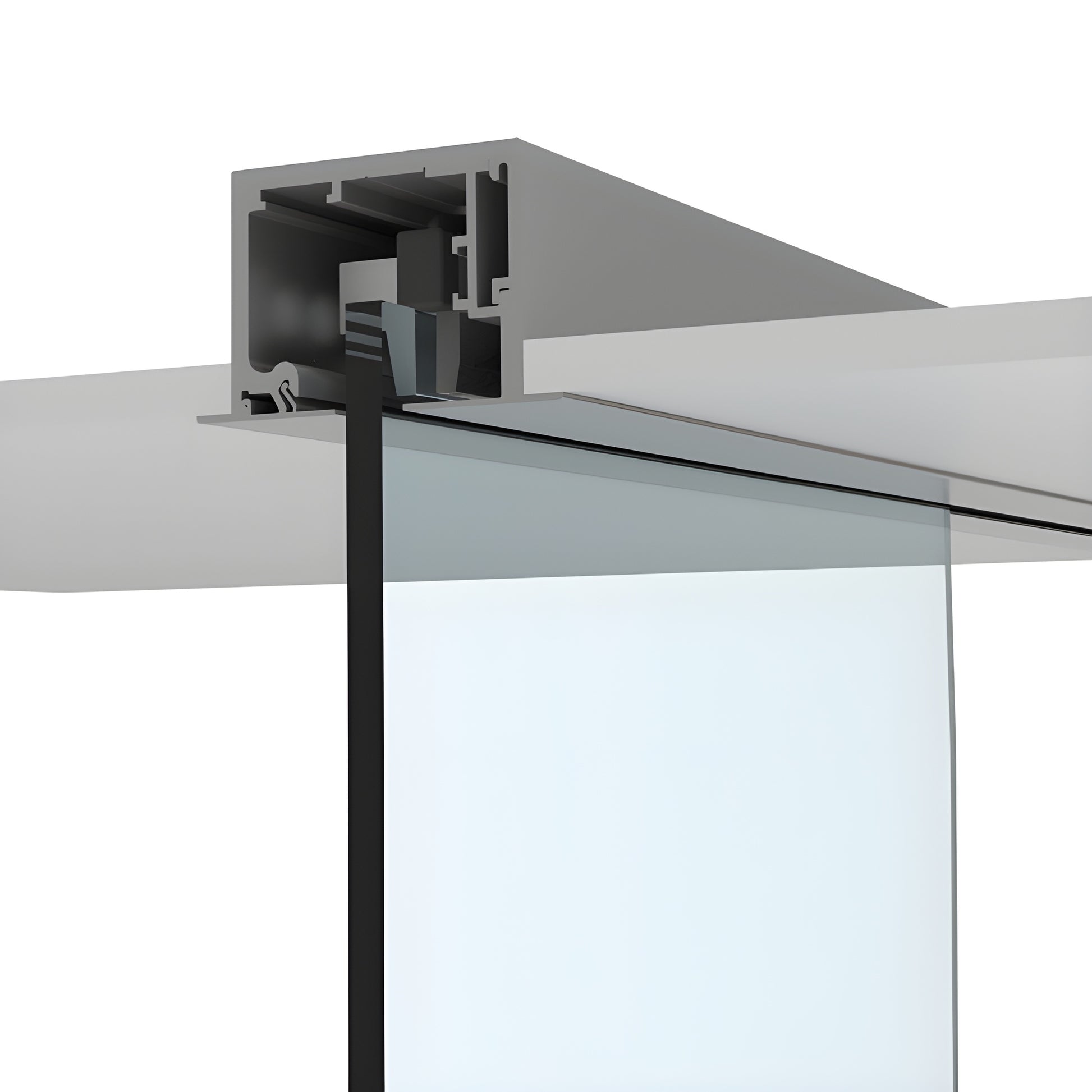

CRL 695 Satin Anodized Drop-Ceiling Sliding Door Kit w/ Softbrake
CRL 695 Satin Anodized Drop-Ceiling Sliding Door Kit w/ Softbrake
Regular price
$2,476.60 CAD
Regular price
Sale price
$2,476.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL695D
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (3000 mm)
Overview
- Kits intended for 3/8" to 1/2" (10 to 12 mm) monolithic tempered glass
- Supports properly installed doors weighing up to 330 lb (150 kg)
- Rollers provide up to 1/4" (6 mm) vertical adjustment for post-install alignment
- Track length: 118" (3 m)
CRL 690 Series sliding door kits are purpose-built for commercial tempered glass sliding doors and are available in wall-mount, ceiling-mount, and dropped-ceiling-mount configurations. Models are offered with or without a sidelite and with or without the Softbrake braking system. Kits include all hardware except the tempered glass and pull hardware. Available finishes: satin anodized, brushed stainless anodized, and matte black; special-order cladding or powder-coating in many architectural finishes is also available. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.
Minimum sliding panel width: 34-1/4" (800 mm) for control in single or both directions.
Kit contains:
- 118" (3 m) CRL4933EXT track kit
- 118" (3 m) CRL6979A bottom channel
- Glazing vinyl for 3/8" to 1/2" (10 to 12 mm) glass
- 1 set CRL6939 top hangers
- 1 set CRL6942 roller stops
- 1 each CRL2940 bottom guide
- 1 set CRL2945 door edge guards
- 1 set CRL2929 dropped ceiling adapter bracket
- 1 each CRL695SBK Softbrake kit
Reference SKU: CRL695D
Order or request assistance from CRL Technical Sales to select the right commercial tempered glass sliding door kit for your project.
