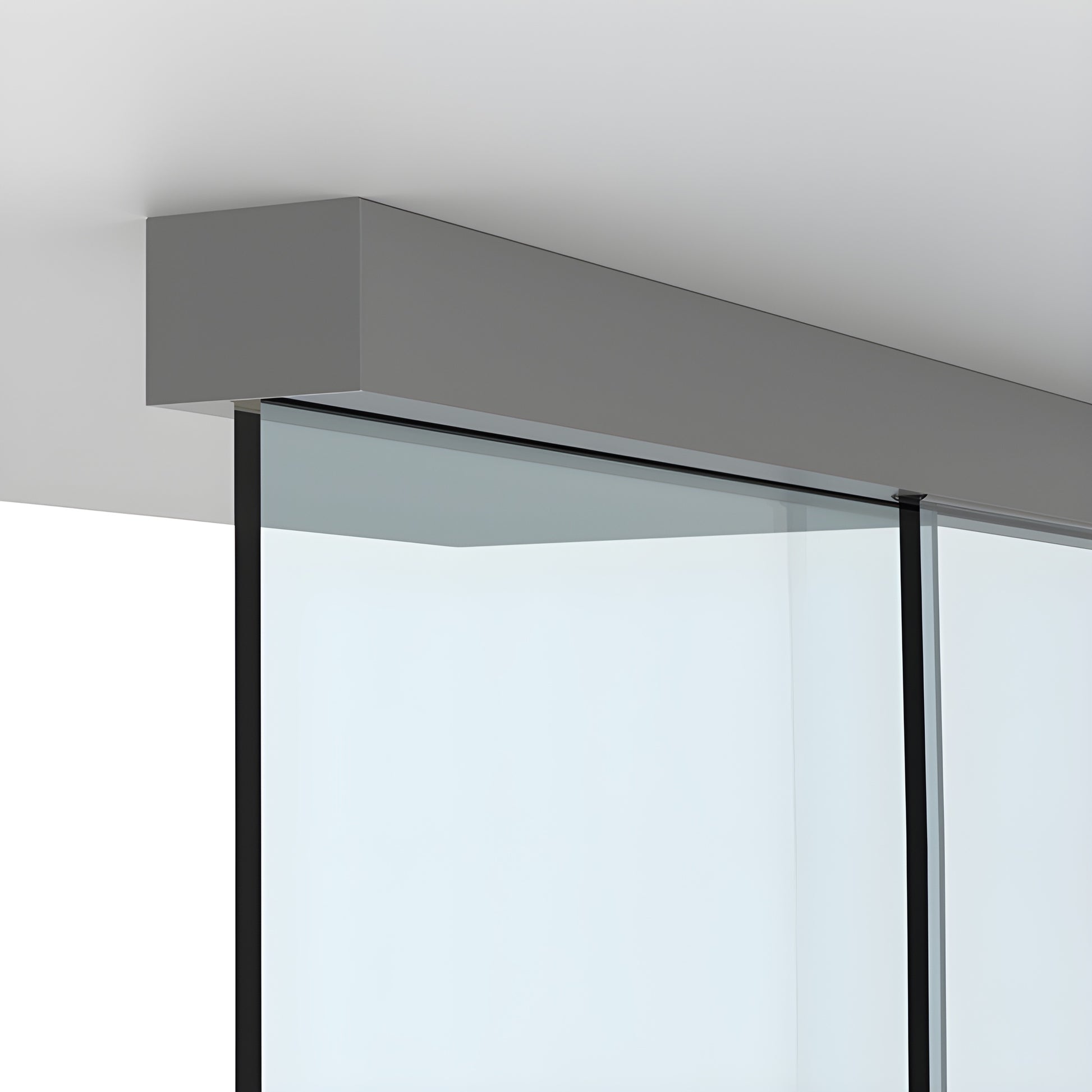

• Satin anodized CRL6951 sliding door track and top hangers with tempered glass panel, 118 in kit
  • Satin anodized CRL6951 sliding door track and top hangers with tempered glass panel, 118 in kit
  • Satin anodized CRL6951 sliding door track and top hangers with tempered glass panel, 118 in kit
1 3

CRL

CRL 695 Satin Anodized Sliding Door Kit w/ Fixed Panel & SoftBrake

CRL 695 Satin Anodized Sliding Door Kit w/ Fixed Panel & SoftBrake

$2,666.19 CAD
$2,666.19 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL6951
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Track Length
118 in. (3000 mm)

Overview

  • Kits intended for 3/8" to 1/2" (10 to 12 mm) tempered glass
  • Supports properly installed doors up to 330 lb (150 kg)
  • Rollers provide up to 1/4" (6 mm) vertical adjustment for post‑installation alignment
  • Track length: 118" (3 m)
  • For use with monolithic tempered glass

CRL 690 Series Sliding Door Kits are available in wall‑mount, ceiling‑mount, and dropped‑ceiling models, with or without a sidelite and with or without the CRL695SBK "Softbrake" braking system. Kits include all necessary hardware except tempered glass and pull hardware. Finish options: satin anodized, brushed stainless anodized, and matte black; special order cladding or powder‑coat finishes are available. For commercial tempered glass sliding door kit selection or installation assistance, contact CRL Technical Sales. SKU: CRL6951.


  • Minimum sliding panel width: 34-1/4" (800 mm) for controlled single- or bi‑directional operation.

Kit contains:
  • 118" (3 m) CRL4931EXT track kit
  • 118" (3 m) CRL6979A bottom channel
  • Glazing vinyl for 3/8" to 1/2" (10 to 12 mm) glass
  • 1 set CRL6939 top hangers
  • 1 set CRL6942 roller stops
  • 1 each CRL2940 bottom guide
  • 1 set CRL2945 door edge guards
  • 1 set CRL2929 dropped ceiling adapter bracket
  • 1 each CRL695SBK Softbrake kit

Most shipping weights are approximate. If exact weight is required to calculate shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor settings.
