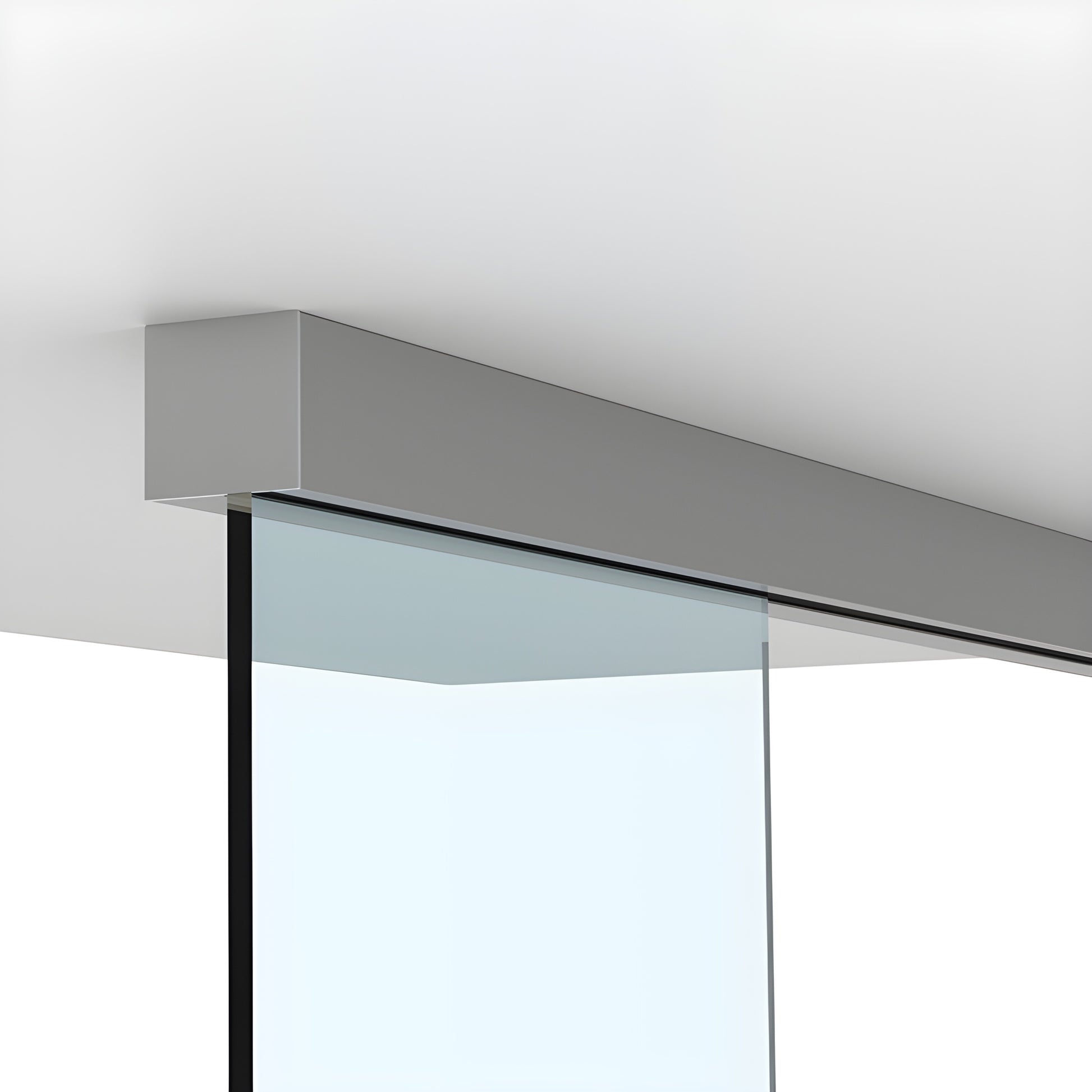

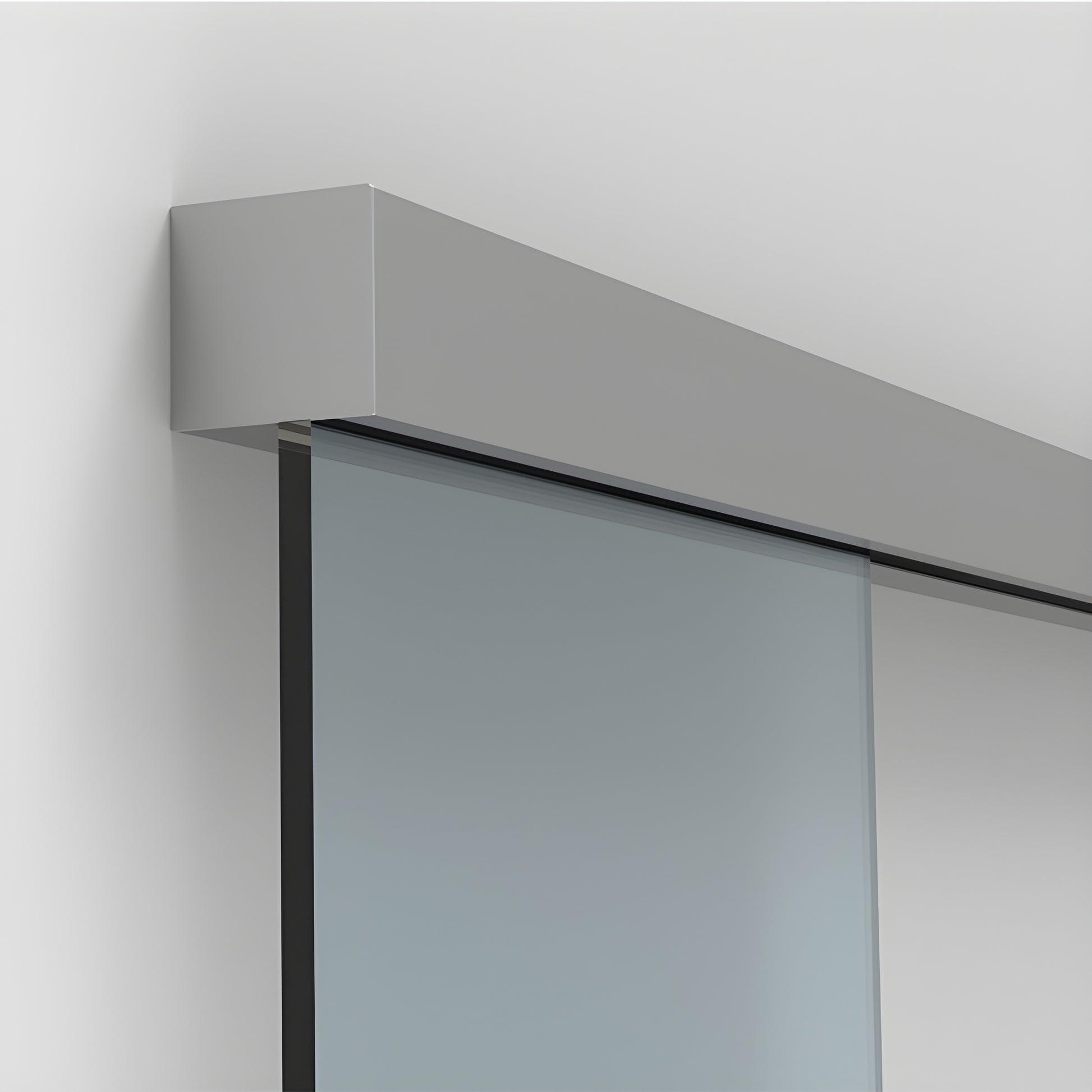

CRL 695 Series Satin Anodized Wall/Ceiling Mount Sliding Door Kit with Softbrake Braking System
Item# CRL695
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Finish/Color:Satin Anodized
- Glazing Thickness3/8 in. To 1/2 in. (10 mm To 12 mm)
- Track Length118 in. (3000 mm)
- Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
- Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
- Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
- Track Length is 118" (3 m)
- Use Monolithic Tempered Glass
CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.
Minimum sliding panel width of 34-1/4" (800 mm) for control in single or both directions.
Kit Contains:
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
Specifications

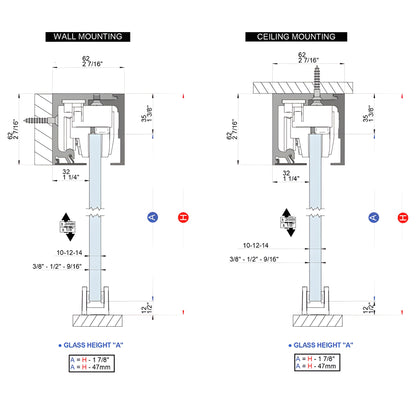

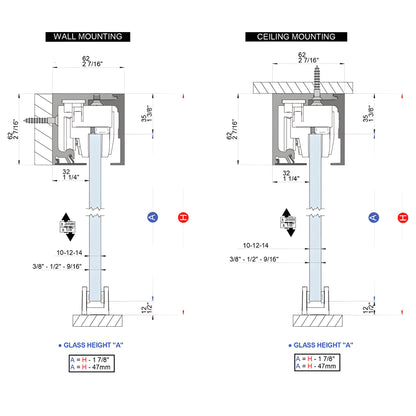

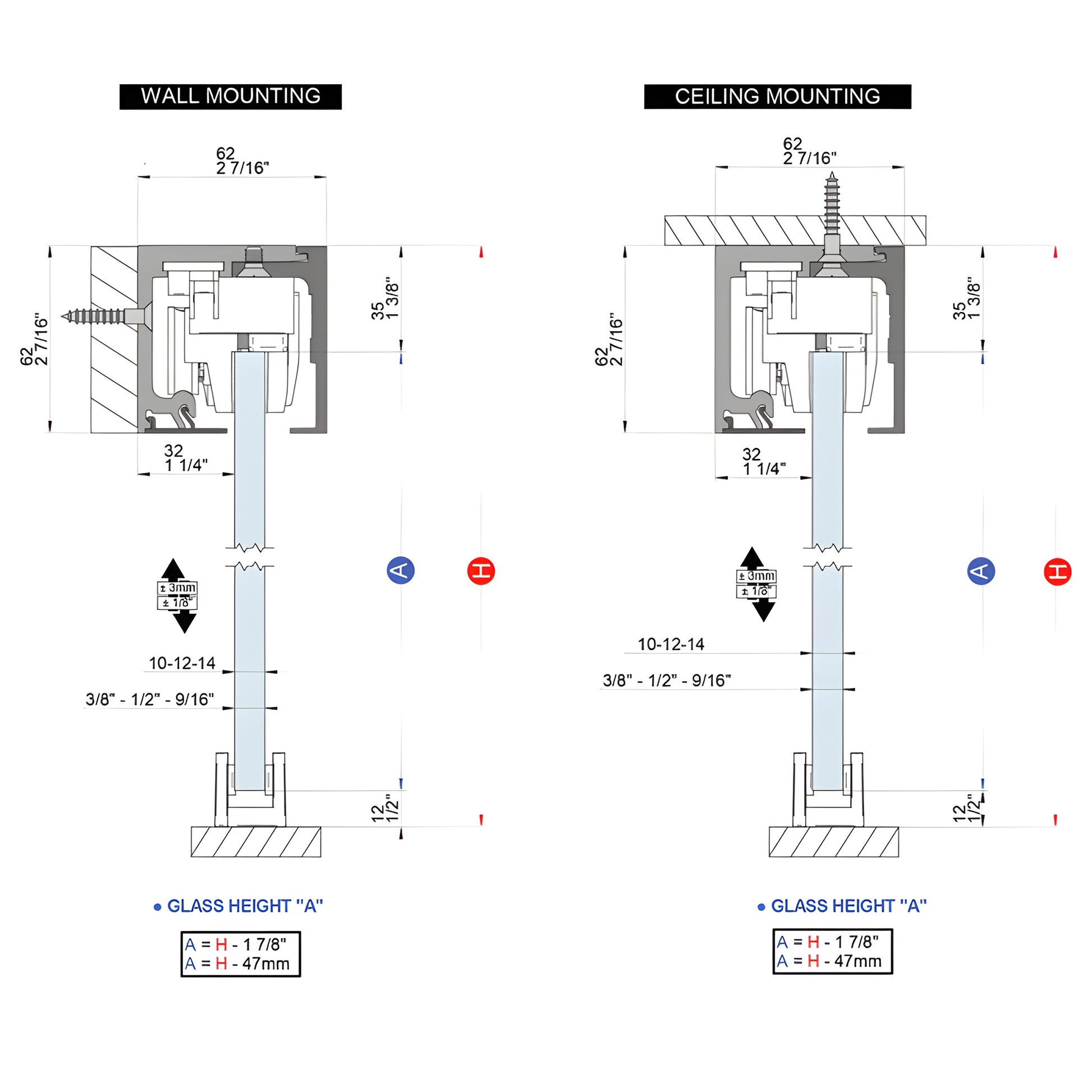

CAD Drawings - dwg
