CRL 7" x 22" Door Vision Lite

Product Details

• Beveled Vision Lite Frame Available in Several Sizes
• Fire Rated
• Available with or without Wire Glass
• Bronze Powder Coat Finish
• For Glazing Thickness of 3/16" to 1/4" (5 to 6 mm)
• You Supply the Glass

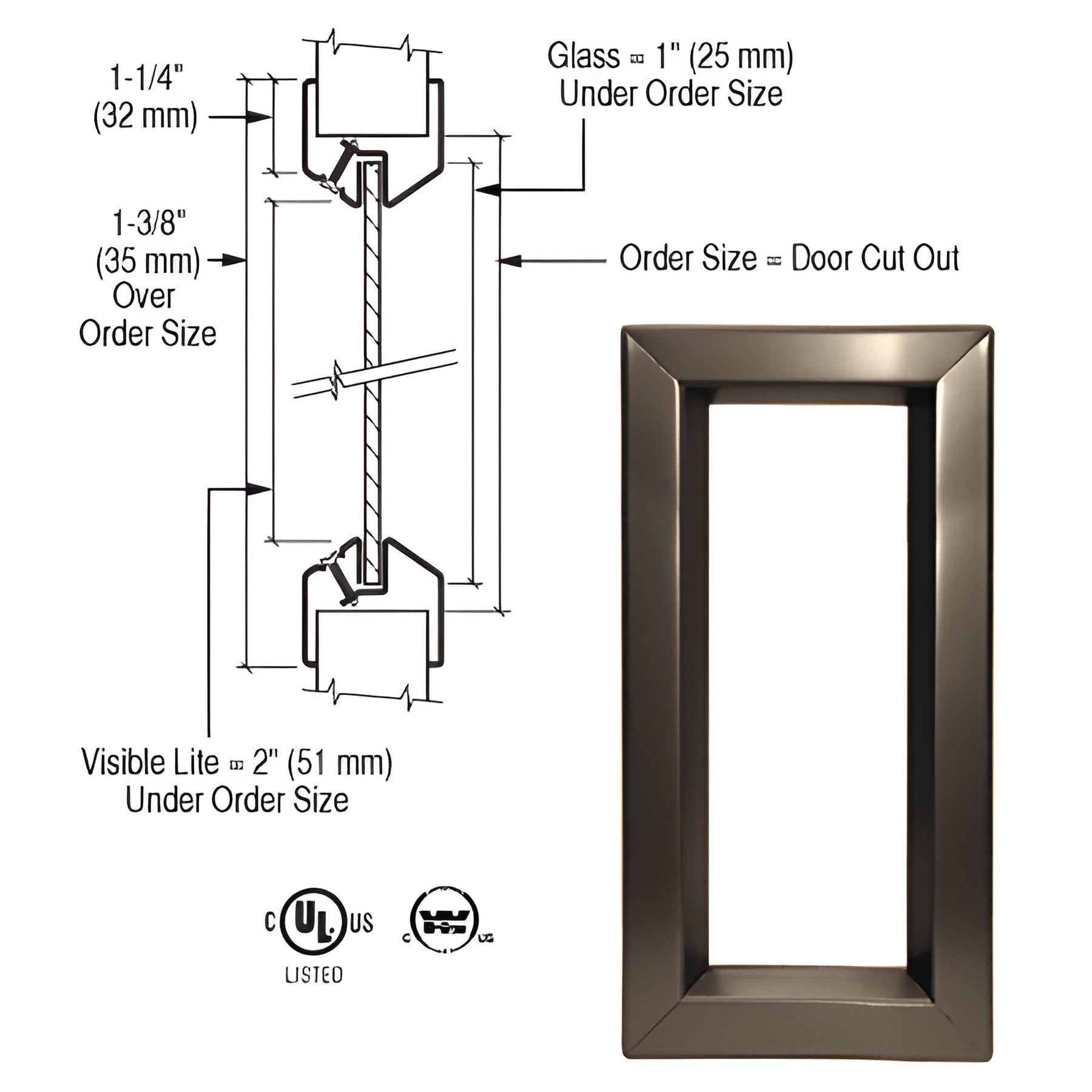

CRL's Door Vision Lites are constructed from 20 gauge CRS bronze powder coated frames. They are designed for 1-3/4" (44 mm) thick doors in sizes from 5" x 35" (127 x 889 mm) to 24" x 60" (610 mm x 1.52 m). Vision Lites include mitered and welded corners, a continuous glass retainer, and countersunk mounting holes in the bevel on the non-corridor side. These Vision Lites are listed with both UL and WHI. Custom sizes and finishes are available upon request.
