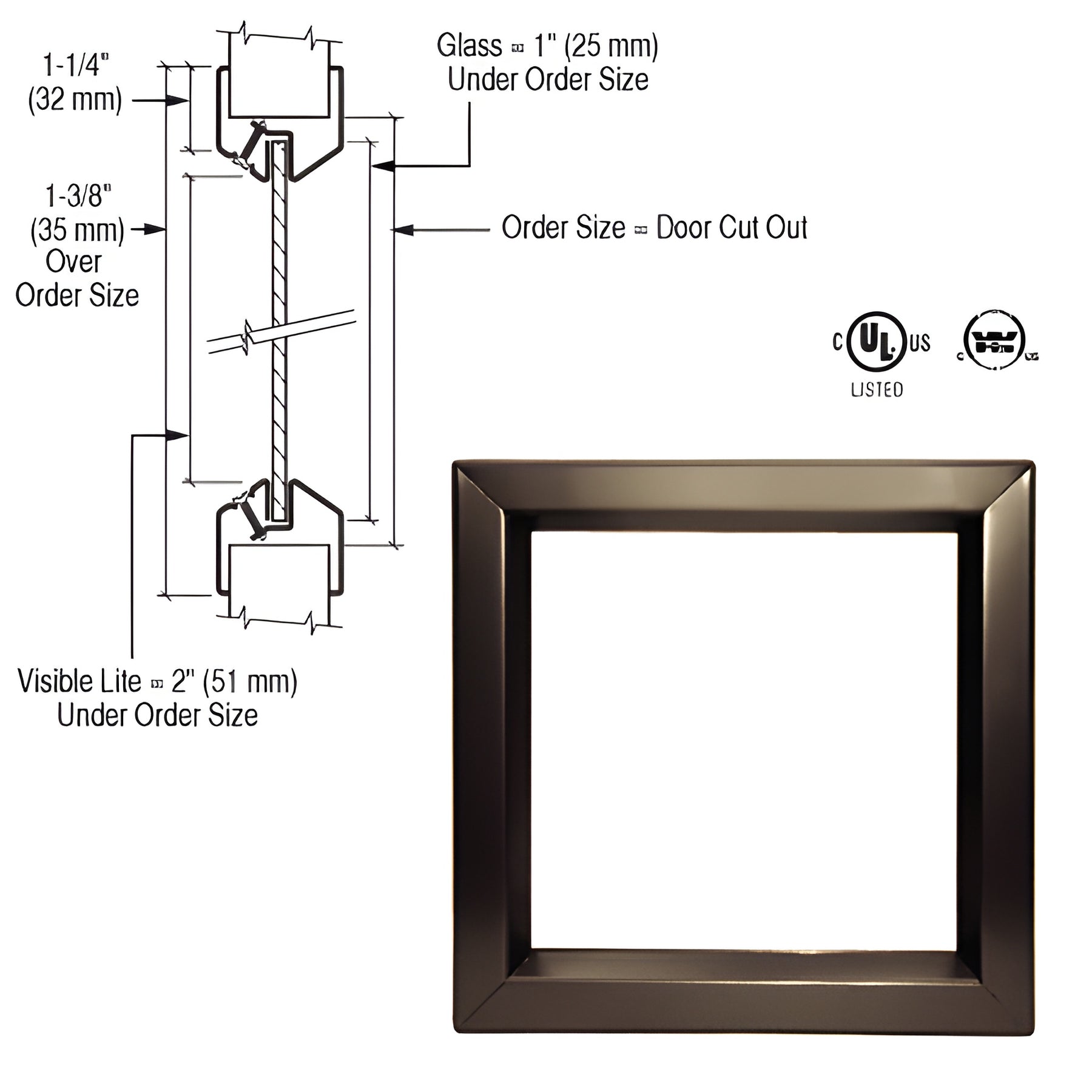

CRL 12x12 Door Vision Lite Window - Tempered Glass

• Beveled Vision Lite frame in multiple sizes
• Fire-rated door vision lite
• Available with or without wire glass
• Bronze powder coat finish
• For glazing thickness 3/16" to 1/4" (5–6 mm)
• Customer-supplied glass
• SKU: VLFEZ12X12

CRL's Door Vision Lites are built from 20 gauge CRS with a durable bronze powder coat finish and are specifically designed for 1-3/4" (44 mm) thick doors. Sizes range from 5" x 35" (127 x 889 mm) up to 24" x 60" (610 x 1,524 mm). Key construction features include mitered, welded corners, a continuous glass retainer, and countersunk mounting holes located in the bevel on the non-corridor side. These vision lites are listed with both UL and WHI. Custom sizes and finishes available upon request — ideal for contractors and architects specifying fire-rated beveled vision lites for commercial doors.
