CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer
CRL 90Β° Hold-Open Adjustable Spring Overhead Concealed Door Closer
Regular price
$275.50 CAD
Regular price
Sale price
$275.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8760S
Shipping Weight: 11.982 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.982 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL6760, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8760GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- For doors with 1/2" (13 mm) top rail depth
- 5 Year Limited Warranty
- UL Listed

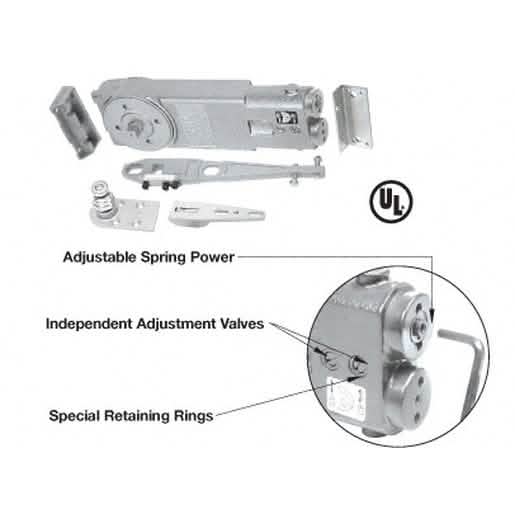

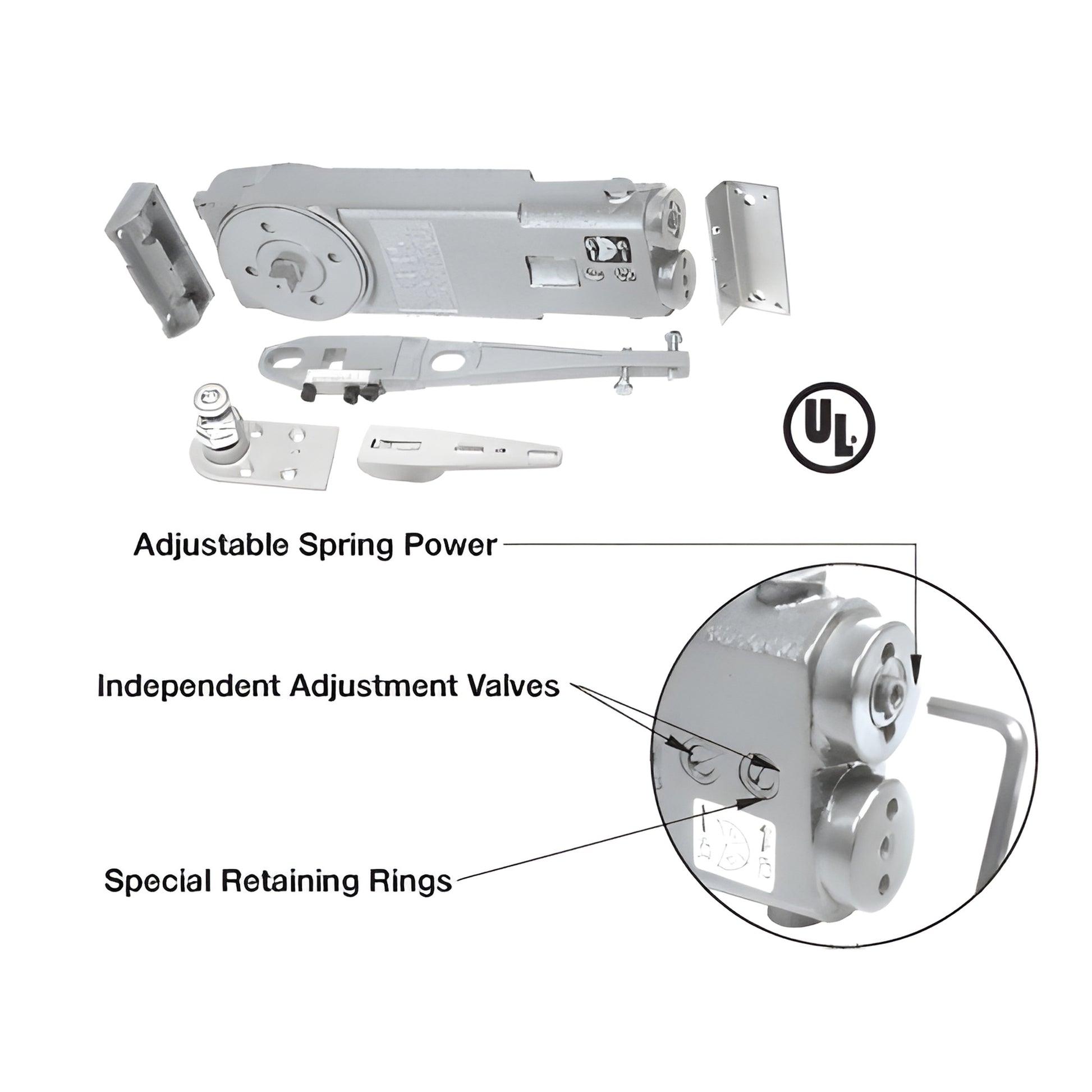

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8760S) is a concealed overhead door closer designed to meet A.D.A. opening force requirements. Available as a body-only retrofit with mounting clips or as complete packages that include the closer body, mounting clips, Type S side-load arm or Type A end-load arm, and a DP-adjustable dual-purpose bottom pivot set or GE-pivot set. Features independent dual-action valves for separate closing and latching speed control. Models offered with 90Β° and 105Β° hold-open or no hold-open. Body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Closer bodies are compatible with different spring sizes and hardware options to suit site needs.
Adjustable Spring Power
Adjust spring tension from a minimum of 8-1/2 lbs. opening force up to a medium spring size to accommodate site conditionsβuseful when installing an ADA door closer or an adjustable spring power concealed closer.
Independent Adjustment Valves
Non-critical valves independently adjust closing speed and latching speed for precise control on heavy traffic doors.
Special Retaining Rings
Retaining rings prevent valve screws from being backed completely out of the door closer body, reducing maintenance issues.
Note: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces may not provide adequate spring power to control and close the door under all site conditions and door sizes.
Highlight: concealed overhead design, adjustable spring power, independent dual-action valves, and retrofit-ready mounting clips. Order the CRL8760S concealed overhead door closer today to meet ADA requirementsβcontact CRL or your distributor for pricing and availability.
