CRL Adjustable Top Door Patch Insert for Use with 19/32" Diameter Top Pivot Pin

• For Use with PH20 and PH21 Top Door Patch Fittings
• Suitable for Use with Top Pivot Diameters of 19/32" (15 mm)

The

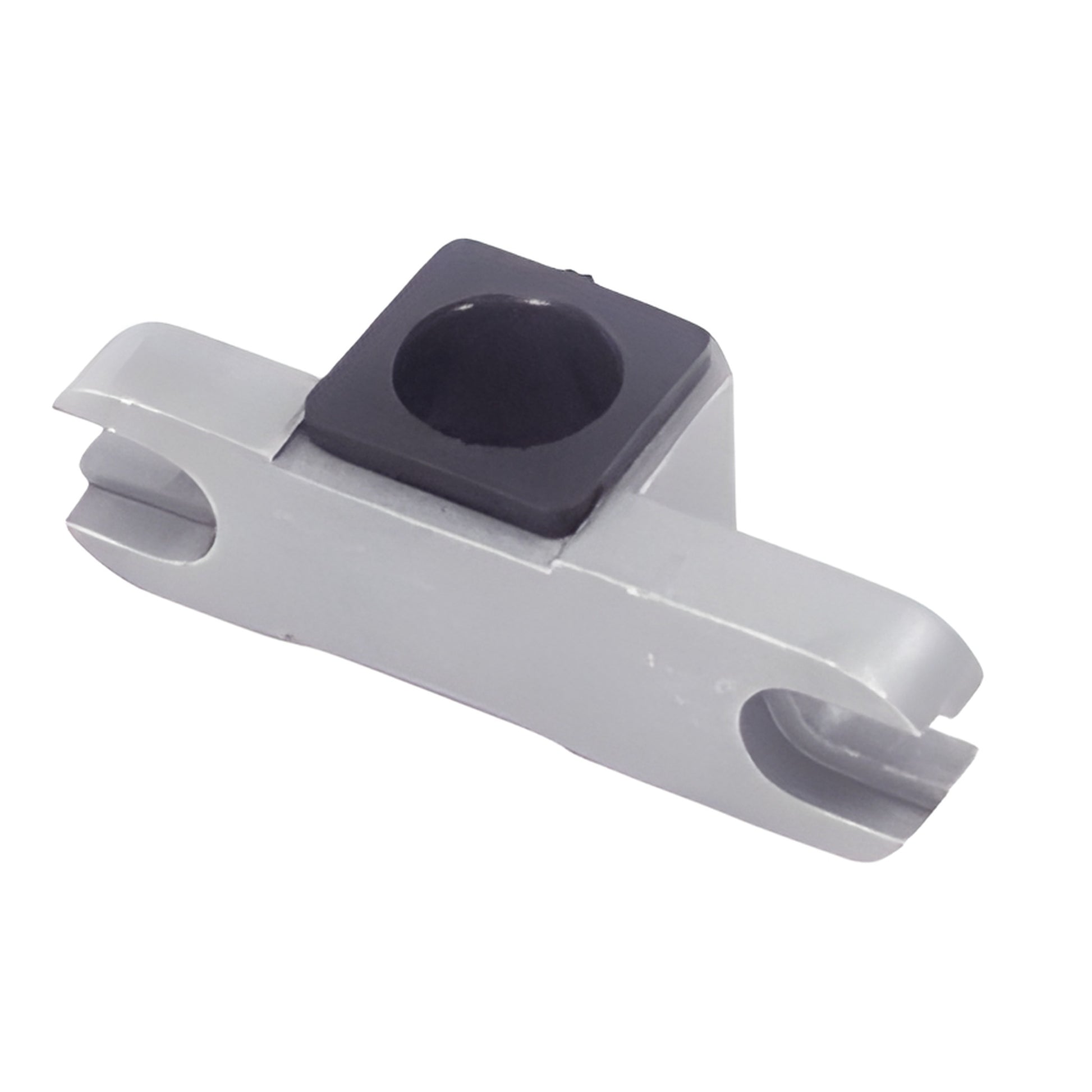

CRL Adjustable Top Door Patch Insert

is suitable for use with all Transom Patch Fittings with No.

Top Pivot Insert, No.

Surface Mounted Top Pivot

Threaded Top Pivot and

Walking Beam Pivot. This insert will accept any circular pivot with 19/32" (15 mm) diameter.

1 Each: 1NT303 Adjustable Top Door Patch Insert;

2 Each: Hex Head Cap Screws for Attaching Insert to the Top Door Patch

PH20 and PH21 Top Door Patch Fittings

Do not use with PH20C

All Transom Patch Fittings with

1NT300 Top Pivot Insert;

1NT401 Surface Mounted Top Pivot;

1NT405 Threaded Top Pivot;

CRL9040WBP Walking Beam Pivot

Pivot Diameter of 19/32" (15 mm)

If using this insert with the Rixson® 340 Center-Hung Walking Beam Pivot, or any 1/2" (13 mm) diameter pivot pin, use insert 1NT303R.
