CRL Aluminum 135 Degree Left Hand Sidelite Patch With 1NT300 Insert
CRL Aluminum 135 Degree Left Hand Sidelite Patch With 1NT300 Insert
Regular price
$357.70 CAD
Regular price
Sale price
$357.70 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH43LA
Shipping Weight: 1.92 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.92 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Left Hand |
| Insert Type | 1NT300 |
| Mounting | Type Sidelite |
| Profile | 135° |
| With | Insert Yes |
Overview

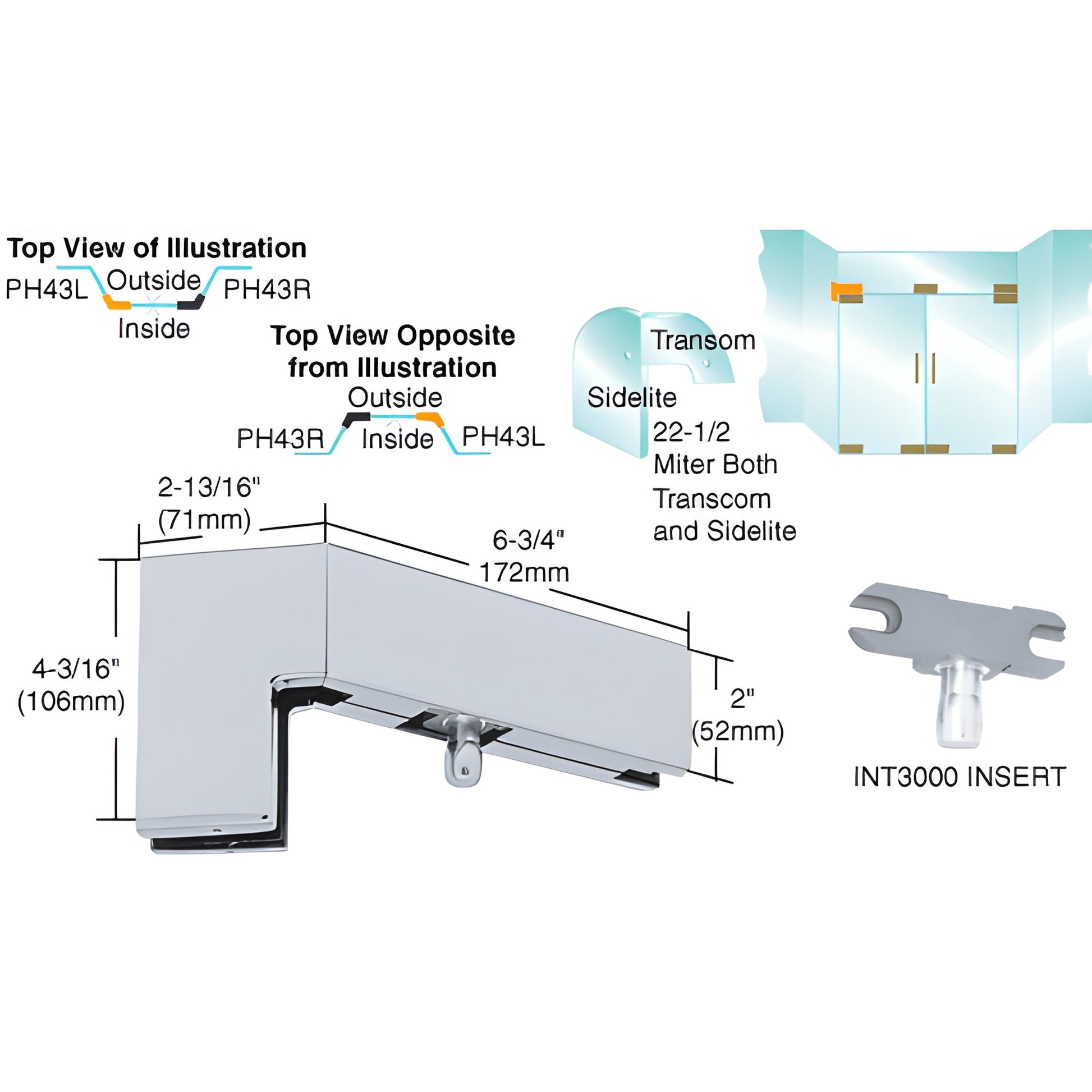

The CRL 135 Degree Left Hand Sidelite Mounted Transom Patch is expertly designed to support a transom from a sidelite glass panel and works seamlessly with 2-9/16" (65 mm) Pivot Setback Door Patch Fittings.
Ideal for 3/8" (10 mm) glass, this versatile product is suitable for both left and right-handed applications.
It includes an INT300 Insert for mounting doors with CRL's PH21A Top Door Patch Fitting, and can be adjusted for double swing doors or transformed into a one-way door using the INT306 Transom Patch Door Stop Insert.
Note that glass fabrication requires three 3/4" (19 mm) diameter holes, one corner notch, and 22-1/2 degree miters for sidelite and transom, and the fitting is not compatible with laminated glass.
Ideal for 3/8" (10 mm) glass, this versatile product is suitable for both left and right-handed applications.
It includes an INT300 Insert for mounting doors with CRL's PH21A Top Door Patch Fitting, and can be adjusted for double swing doors or transformed into a one-way door using the INT306 Transom Patch Door Stop Insert.
Note that glass fabrication requires three 3/4" (19 mm) diameter holes, one corner notch, and 22-1/2 degree miters for sidelite and transom, and the fitting is not compatible with laminated glass.
