CRL 9" Aluminum Left-Hand Teardrop Casement Window Operator

• Teardrop back style — fits most metal casement windows

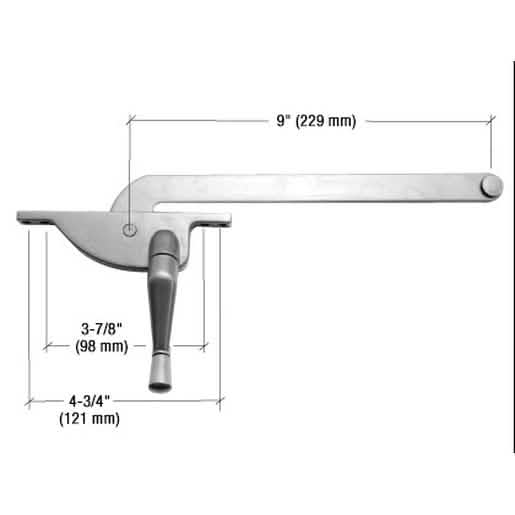

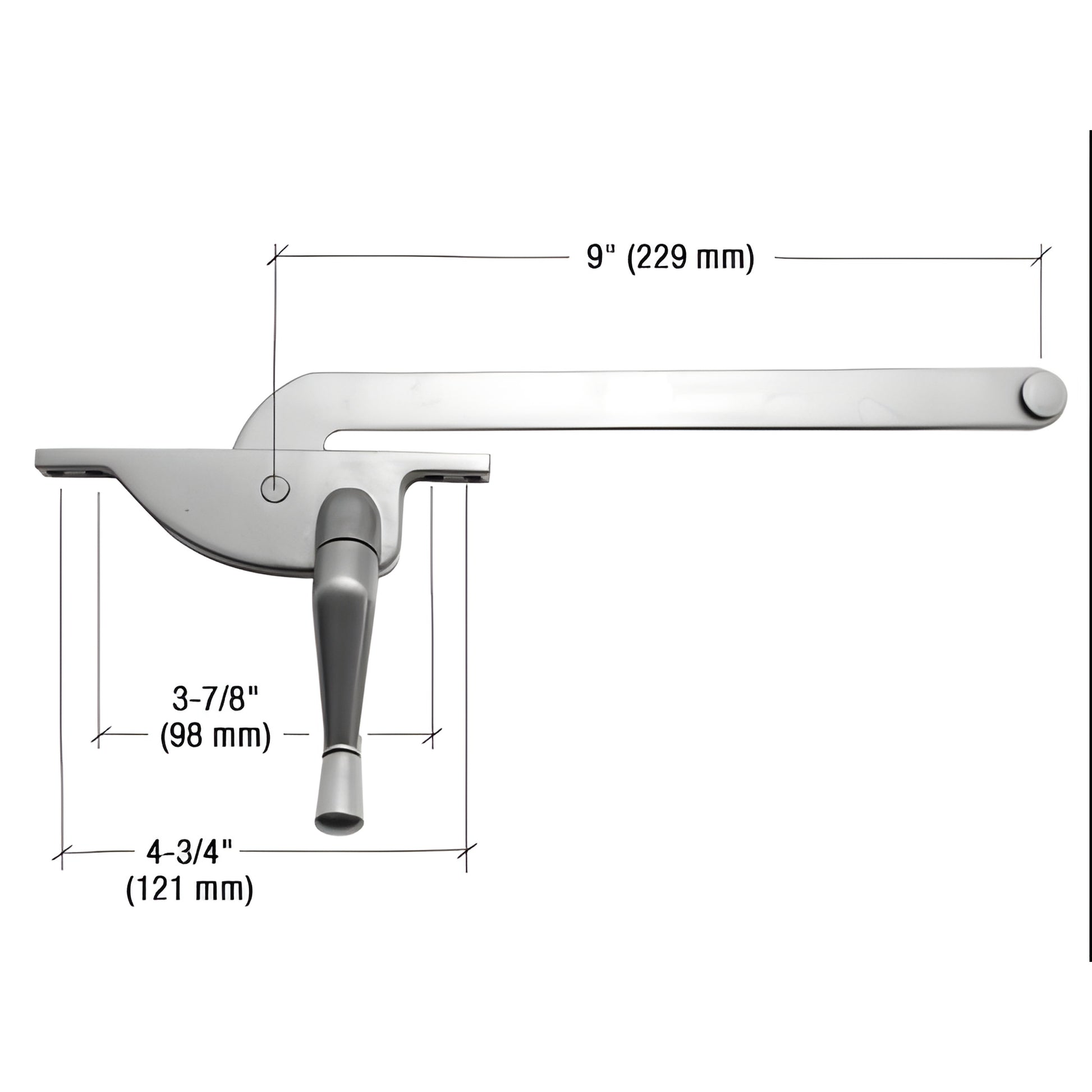

• Arm lengths: 6", 7", 8", 9" (152, 178, 203, 228 mm)
• Available finishes: Aluminum, Bronze, White
• Crank handle and fasteners included

CRL Casement Window Operator (SKU: 5009LHAL) is a durable replacement operator engineered for most obsolete metal casement window models. The operator body and crank handle are die-cast zinc for corrosion resistance, while the gear arm is stamped steel for reliable operation. Smooth movement, solid steel pivots, and a 5/16" (7.9 mm) spline make this an ideal casement window operator replacement for long-lasting performance. Mounting screws are included.

When measuring arm length, measure from the center of the operator body pivot to the center of the pivot at the arm end. These operators use solid steel pivots that match Cat. No. H3529 casement track. If your old casement has a roller pivot or brass slide, track replacement may be required.

Note: Operator handing (left or right) is determined by the hinged side of the window when viewed from the inside looking out.

Order the 5009LHAL casement window operator now to replace obsolete models and restore smooth, secure operation.
