CRL 9" Aluminum Right-Hand Teardrop Casement Window Operator

• Teardrop back style — fits most metal casement windows
• Available arm lengths: 6", 7", 8", 9" (152, 178, 203, 228 mm)
• Available finishes: Aluminum, Bronze, White
• Crank handle and mounting fasteners included

This CRL Casement Window Operator (SKU: 5009RHAL) is a direct replacement option for many obsolete metal casement operators. Constructed with a diecast zinc operator body and crank handle plus a stamped steel gear arm, it delivers smooth operation and long-lasting durability for casement window repair and replacement projects. The operator features teardrop styling and a 5/16" (7.9 mm) spline size. Each unit includes mounting screws for straightforward installation.

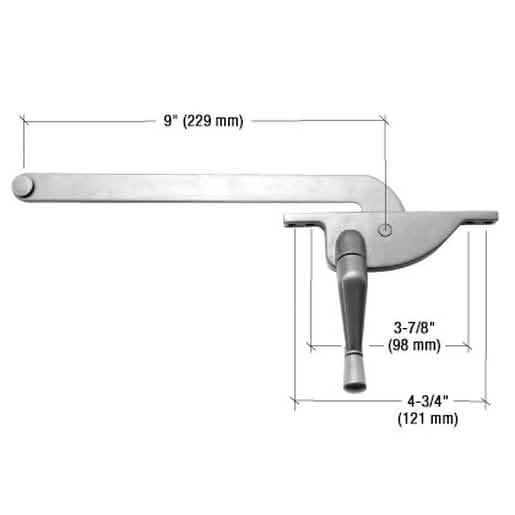

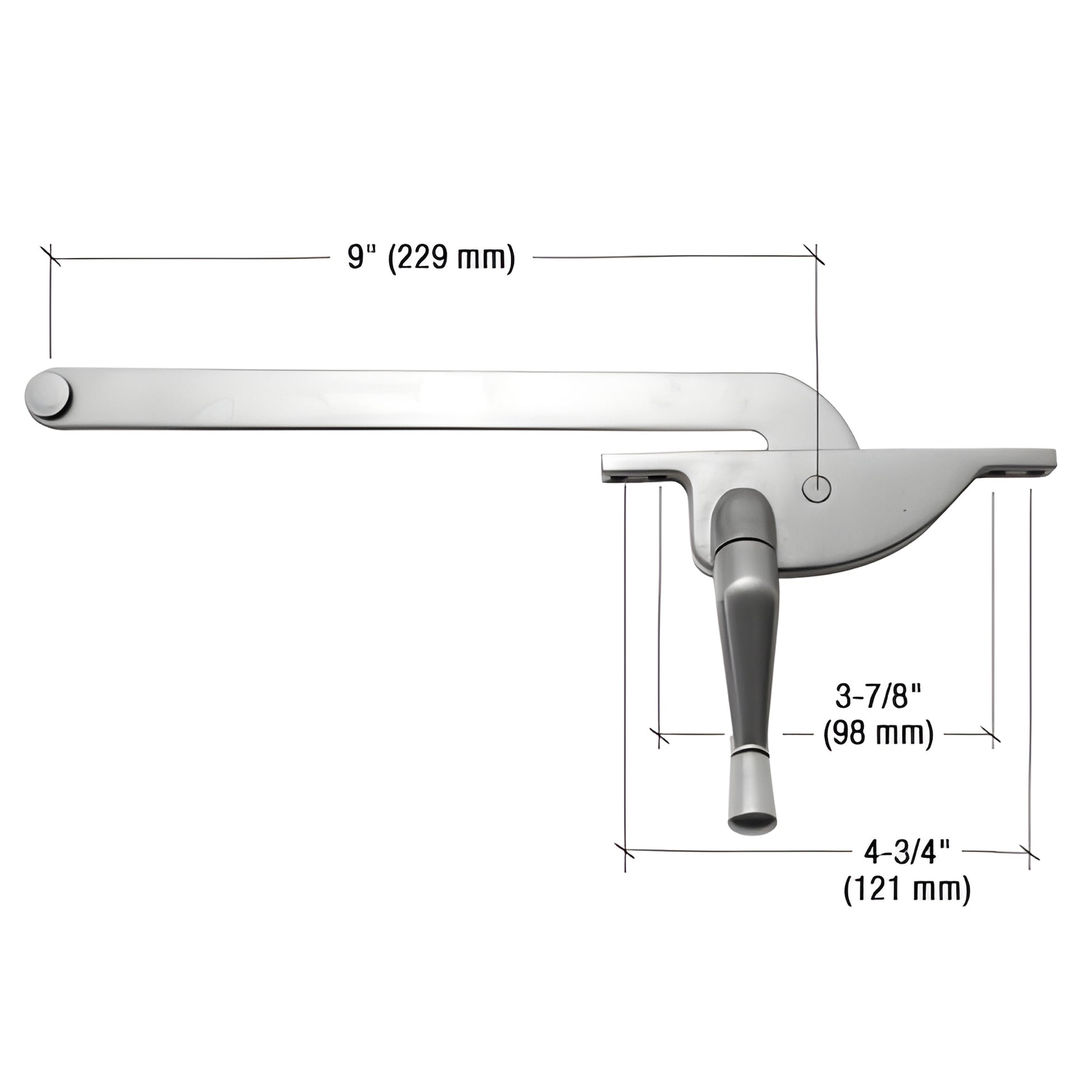

When measuring arm length, measure from the center of the operator body pivot to the center of the pivot at the arm end. These operators use solid steel pivots that match Cat. No. H3529 casement track; if your old casement used a roller pivot or brass slide you may need to replace the track.

NOTE: Operator handing is determined by the hinged side of the window when viewed from the inside out.

Replace worn casement operators with this durable metal casement window crank — select your arm length and finish to order now.
