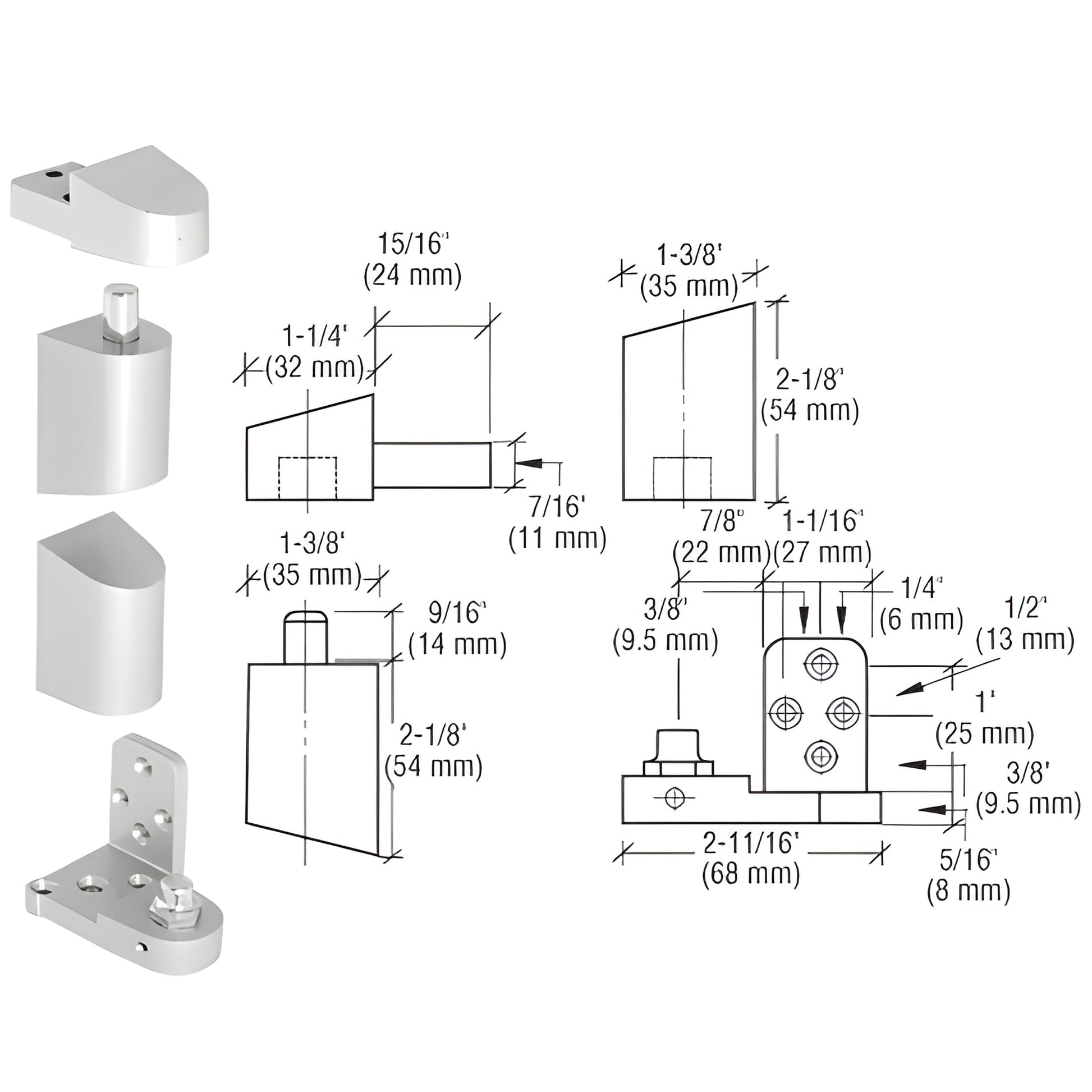

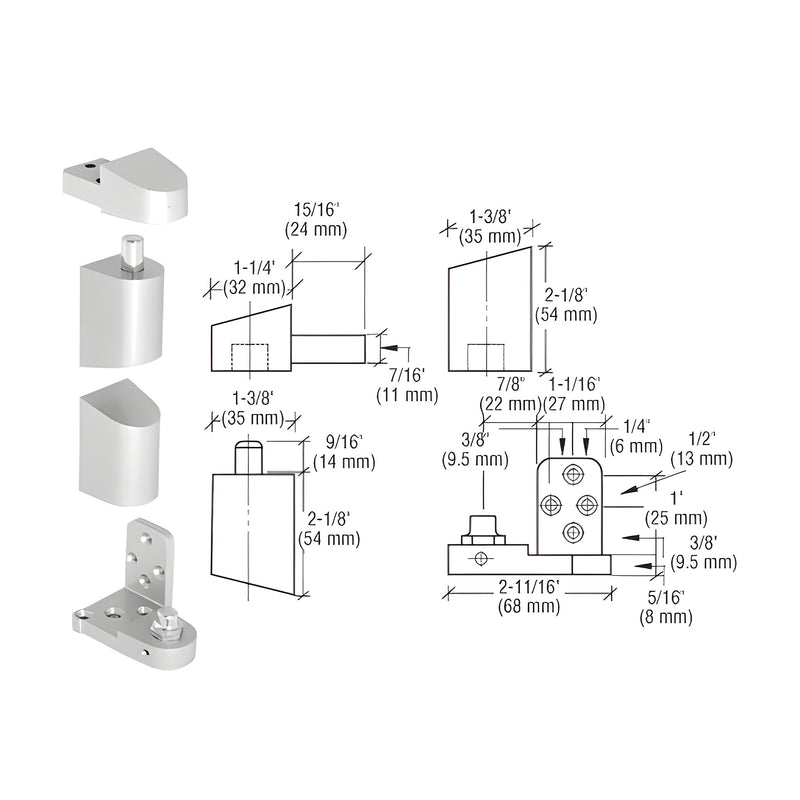

• CRL offset pivot set (left hand, aluminum) with photos of diecast components and technical dimensional drawings. SKU 0P41LHA
1 1

CRL

CRL Aluminum Left-Hand Offset Pivot Set 3/32" Recess for Glass Doors

CRL Aluminum Left-Hand Offset Pivot Set 3/32" Recess for Glass Doors

$36.91 CAD
$36.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P41LHA
Shipping Weight: 8.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Aluminum
Handing
Left Hand
Material
Aluminum
Pivot Series
OP41
Pivot Set
Yes
Pivot Style
3/32 in. Recess (2 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front

Overview

  • 1/8" (3.2 mm) vertical adjustment
  • Diecast aluminum construction
  • Suitable for aluminum frames and commercial doors weighing up to 125 lbs (57 kg)
  • Handed — not reversible
  • Used on: Pittco®, PPG®
CRL Offset Pivot Sets (SKU: 0P41LHA) — Heavy-duty commercial offset pivot sets engineered for aluminum-framed doors. Includes all door fasteners and anchors in one box for faster installation. Precision machined and diecast components provide durable performance; available left- or right-hand in satin aluminum and dark bronze finishes. One set per package.

Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor and video card settings.

Shop CRL offset pivot sets for reliable commercial door hardware and fast, complete installation — add SKU 0P41LHA to your cart today.
