CRL Dark Bronze Left-Hand Offset Glass Door Pivot Set 3/32"
CRL Dark Bronze Left-Hand Offset Glass Door Pivot Set 3/32"
Regular price
$36.91 CAD
Regular price
Sale price
$36.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P41LHDU
Shipping Weight: 7.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Left Hand
Material
Aluminum
Pivot Series
OP41
Pivot Set
Yes
Pivot Style
3/32 in. Recess (2 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3.2 mm) vertical adjustment
- Diecast aluminum construction
- Suitable for aluminum frames and doors weighing up to 125 lbs (57 kg)
- Handed (not reversible) — available left or right hand
- Used on: Pittco®, PPG®

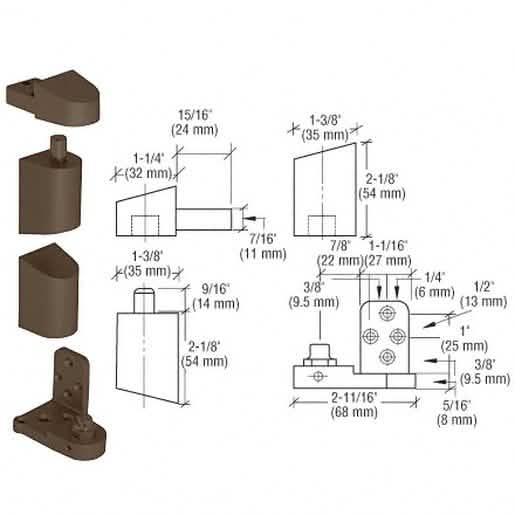

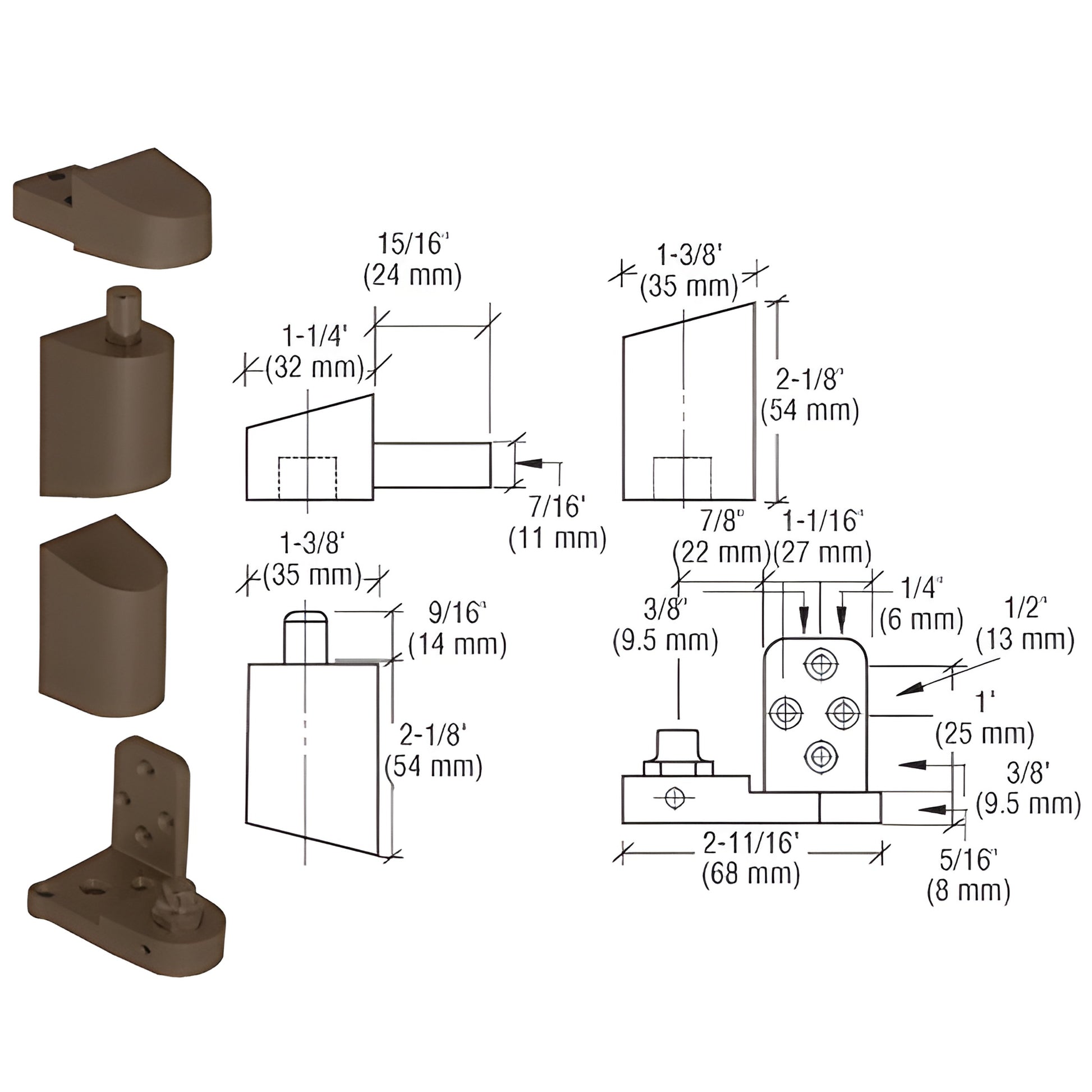

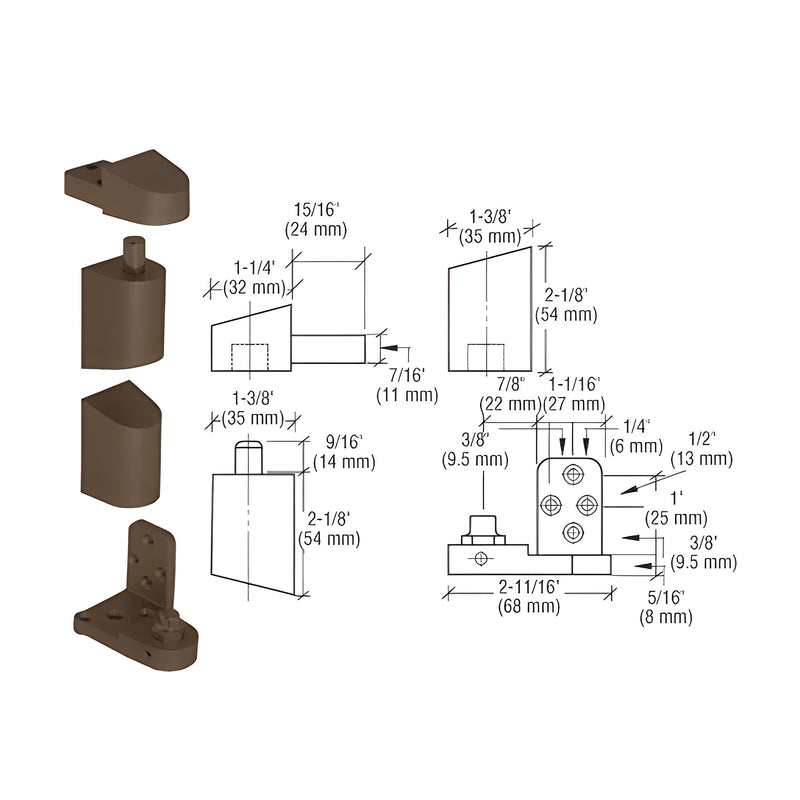

CRL Offset Pivot Sets are commercial-grade offset pivot sets engineered for aluminum frame doors. Each kit includes machined and diecast components, door fasteners, and anchors—everything needed in one box for quick installation. Illustrated dimensions simplify selection. Available finishes: satin aluminum and dark bronze. One set per package. SKU: 0P41LHDU.
Order this commercial aluminum door offset pivot set today to ensure smooth, reliable operation—contact CRL Customer Service for assistance.
