CRL Black Bronze Anodized European Patch Kit for Double Doors w/ Lock

CRL Black Bronze Anodized European Patch Kit for Double Doors w/ Lock

$1,290.70 CAD
$1,290.70 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE8LDU
Shipping Weight: 14.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (kit option)
CRL PHE8 European Double Door Kits (SKU: PHE8LDU)

Complete hardware kit for a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional structural supports not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for frameless glass door installations requiring European-style pivot hardware and sidelites.

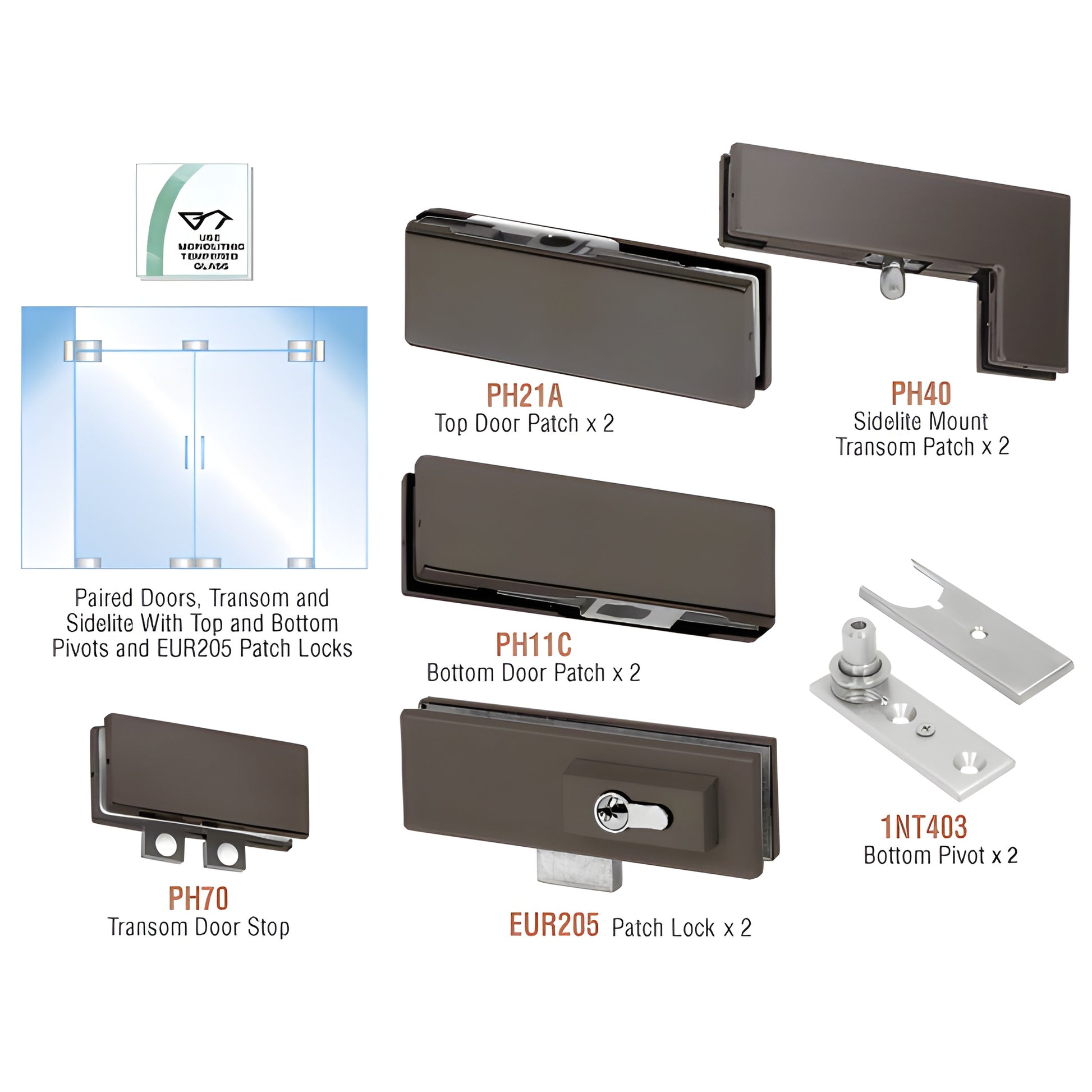

Kit contains:
  • 2 × PH40 sidelite mount transom patches
  • 2 × PH21A top door patches
  • 2 × PH11C bottom door patches
  • 1 × PH70 transom door stop
  • 2 × 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be drilled/notched per template)

Kits with locks include two EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes and safe use, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, please request this information from CRL Customer Service before placing your order. Product images are representative; actual appearance and colors may vary by monitor.

Key differentiators: Complete European-style double door hardware kit for frameless tempered glass, pivot-setback specification (65 mm) for consistent installation, optional lock configuration (EUR205), and gasket set for both 10 mm and 12 mm glass.

Order SKU PHE8LDU now or contact CRL Customer Service for quotes, glass templates, and installation guidance.
