• PHE8MBL matte black European double-door hardware kit with patch fittings, pivots and transom stop for 3/8" or 1/2" tempered
1 1

CRL

CRL Matte Black European Patch Kit for Glass Double Doors w/ Lock

CRL Matte Black European Patch Kit for Glass Double Doors w/ Lock

$593.94 CAD
$593.94 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE8MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-9/16 in. (65 mm)

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks

CRL PHE8 European Double Door Kits (SKU PHE8MBL) include all hardware to complete a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites not included). Designed for 3/8" or 1/2" tempered glass, the kit uses a 2-9/16" (65 mm) pivot setback. A compatible floor closer with tapered spindle (ordered separately) may be used with this kit.

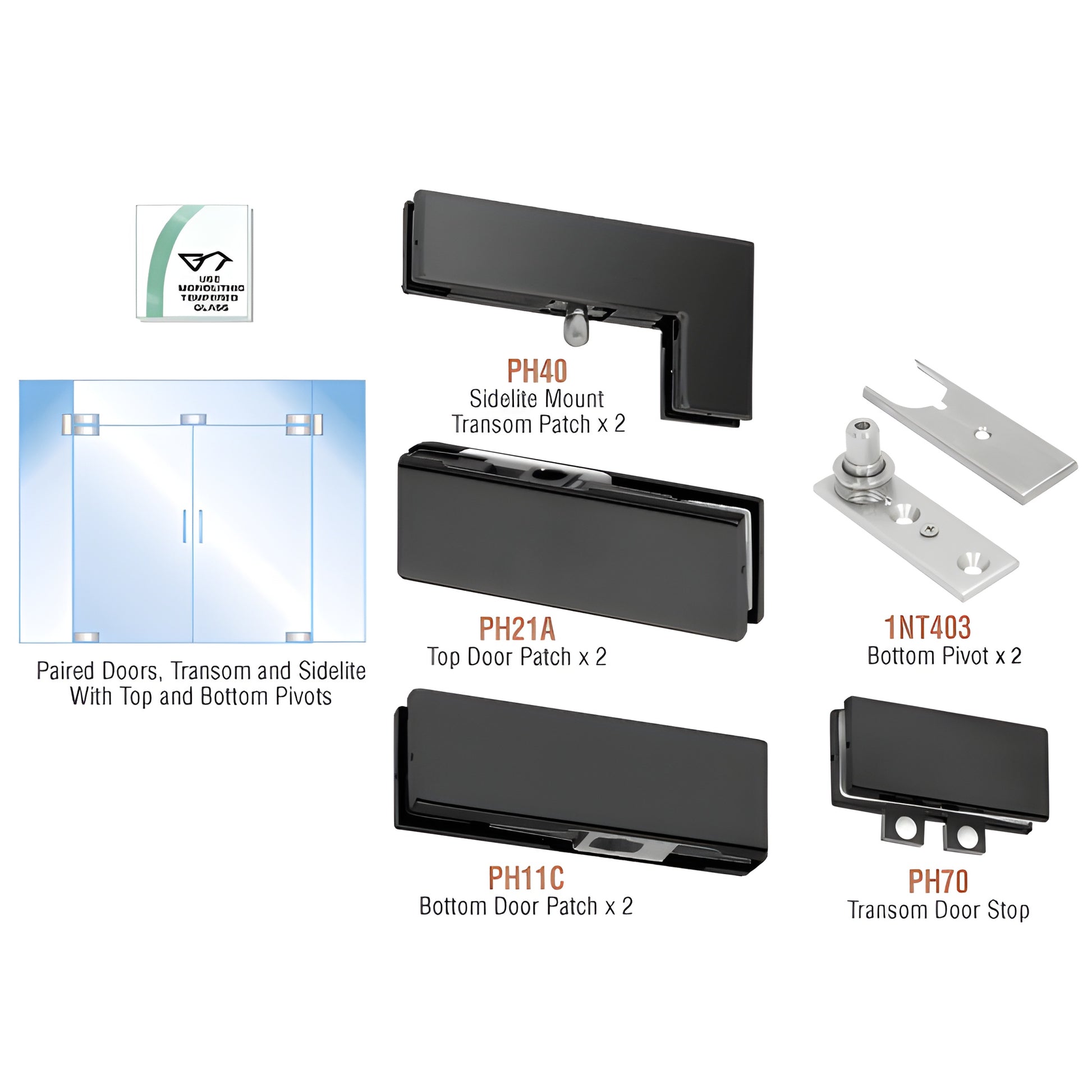

Kit contains:
  • 2 - PH40 sidelite mount transom patches
  • 2 - PH21A top door patches
  • 2 - PH11C bottom door patches
  • 1 - PH70 transom door stop
  • 2 - 1NT403 bottom pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and may not be verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor settings.

Ideal for commercial and residential glass entryways, this European double door hardware kit provides durable patch fittings and pivot hardware for tempered glass doors. Order the PHE8MBL kit today to complete your frameless glass double door installation.
