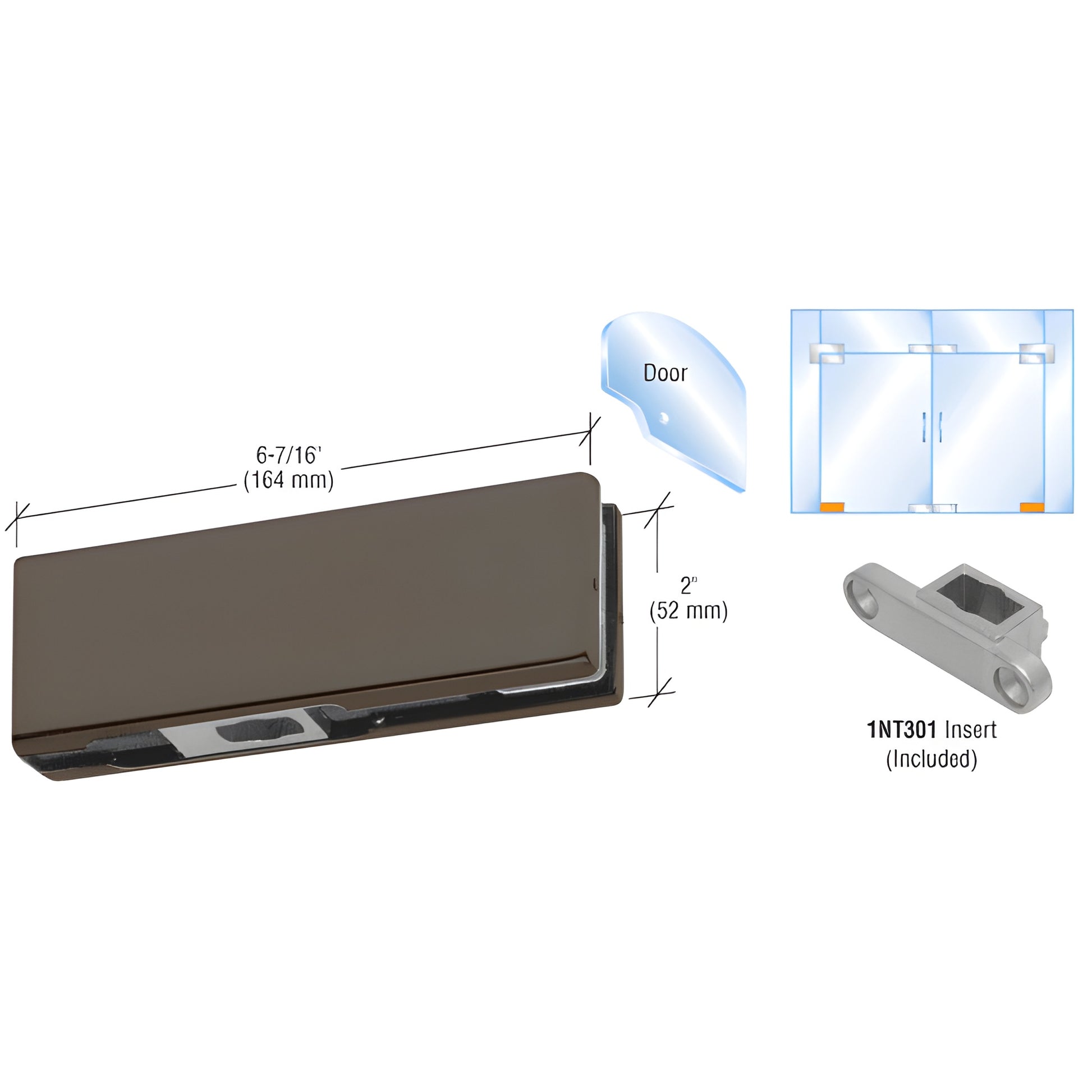

CRL Black Bronze Bottom Patch for Glass Doors 1NT301 Insert

• 2-9/16" (65 mm) Pivot Setback
• For 3/8" or 1/2" (10 or 12 mm) glass

The CRL Bottom Door Patch Fitting (SKU: PH11CDU) includes Catalog Number 1NT301 insert for use with tapered-style spindle floor closers or free-swing pivots. Gaskets permit use with either 3/8" or 1/2" (10 or 12 mm) glass. Covers are offered in four standard finishes. Template and instructions are included.

Performance Guidelines
Use the following when fabricating a frameless glass door with this patch fitting:

• Maximum Height: 102" (2.59 m)
• Maximum Weight: 194 lbs (88 kg)
• Maximum Width: 42" (1.09 m)

If the door exceeds any of these limits, full door rails should be used.

Glass Fabrication Required
One 3/4" (19 mm) diameter hole and corner notch required.

Compatibility Note
Not for use with laminated glass.

Additional 1/2" Glass Guidelines
For 1/2" glass doors using this hardware, follow the same dimensional limits: maximum height 102" (2.59 m), maximum weight 176 lbs (80 kg), maximum width 42" (1.09 m). If exceeded, specify full rails.
