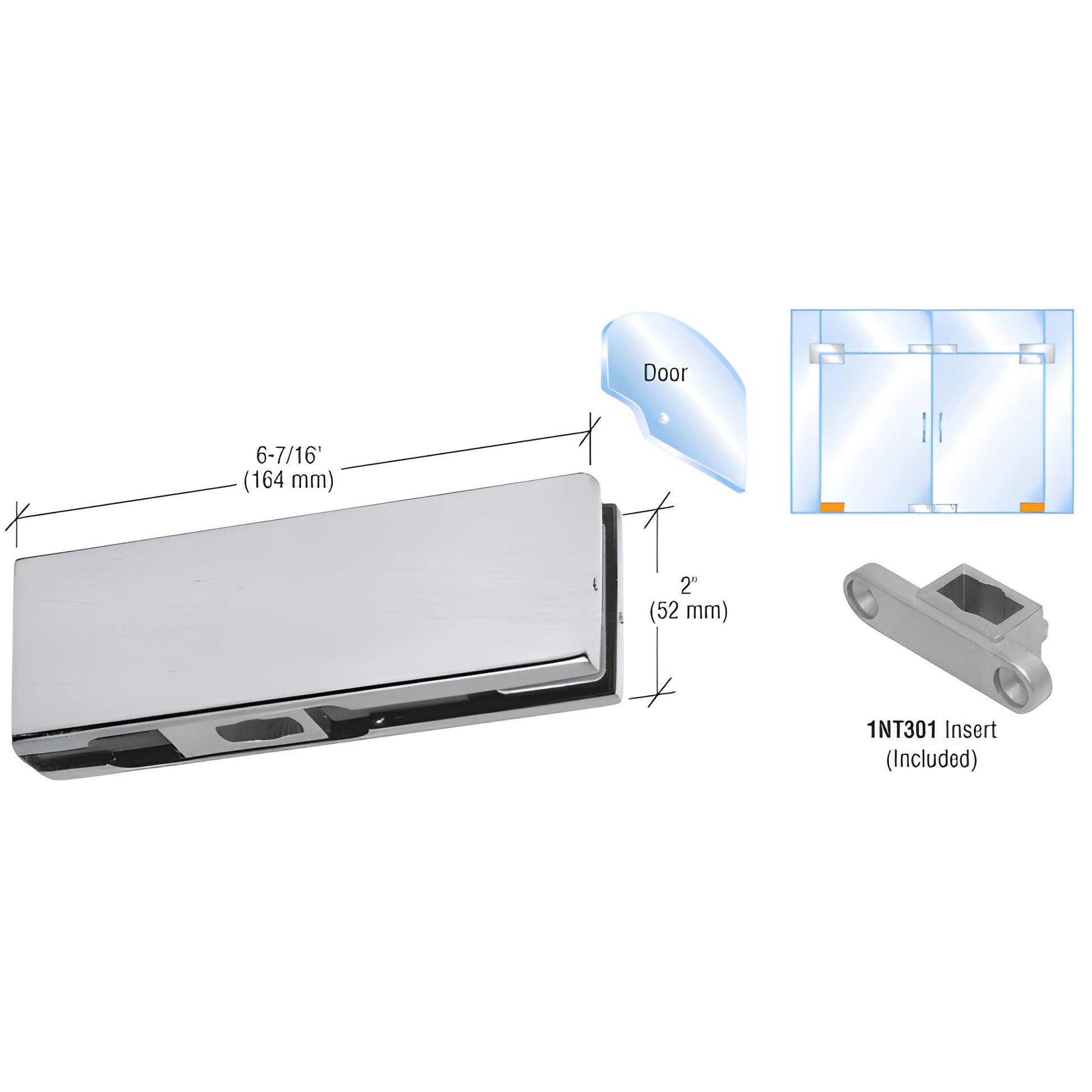

• PH11CBS brushed stainless bottom patch fitting for 3/8" or 1/2" glass - includes 1NT301 insert.
1 1

CRL

CRL Brushed Stainless Glass Door Bottom Patch w/ 1NT301 Insert

CRL Brushed Stainless Glass Door Bottom Patch w/ 1NT301 Insert

$89.93 CAD
$89.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH11CBS
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type
1NT301
Pivot Setback
2-9/16
Type
Bottom
With Insert
Yes

Overview

  • 2-9/16" (65 mm) Pivot Setback
  • For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Bottom Door Patch Fitting (SKU: PH11CBS) includes Catalog Number 1NT301 Insert for use with tapered-style spindle floor closers or free swing pivots. Covers are available in four standard finishes. Supplied gaskets allow this patch fitting to be used with either 3/8" or 1/2" (10 or 12 mm) glass—ideal for frameless glass door installations and commercial glass entry systems.

Guidelines for use with this patch fitting:

  • Maximum Height: 102" (2.59 m)
  • Maximum Weight: 194 lbs. (88 kg)
  • Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Glass fabrication required:
One 3/4" (19 mm) diameter hole and corner notch.

Comes with:
Template and instructions.

Product warning:
These fittings are not for use with laminated glass.

Guidelines for a 1/2" (12 mm) glass door using this hardware:

  • Maximum Height: 102" (2.59 m)
  • Maximum Weight: 176 lbs. (80 kg)
  • Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary by monitor and video settings.

Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more details.
