CRL 3 ft P-Style Dry-Glazed Frameless Door Kit Black Bronze w/ Lock

• Door Only or Complete Entrance Kits Available
• 3'-0" Single Door or 6'-0" Double Door Kits for use with 1/2" (12 mm) tempered glass
• Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes — Net Door Width: 35-3/4" (908 mm)

CRL offers Dry Glazed Frameless Glass Door Kits for single or double commercial entrances in Door Only or Complete Entrance configurations. All kits are designed for 1/2" (12 mm) fully tempered glass.

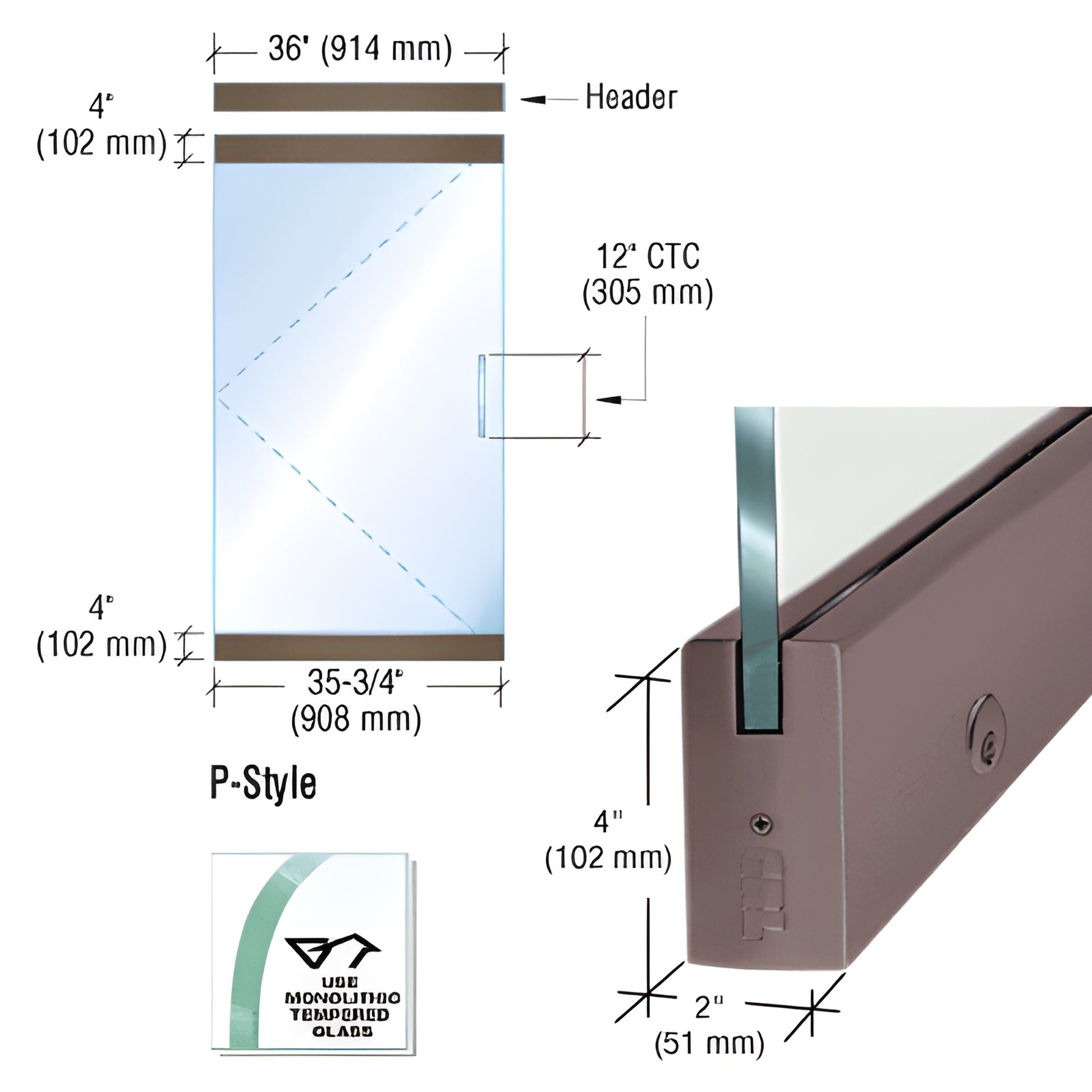

This kit uses our patented dry glaze rails and is a 'P' Style Door Type available in brushed or polished stainless steel, and clear or black/bronze anodized finishes. Requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).

Door Only Kits include rails, Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer. All kits can be ordered with locks in the bottom rails. Thresholds are available separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

With Lock Kits Include:

• One DR4S Series Dry Glaze Rail Without Lock
• One DR4S Series Dry Glaze Rail With 777S Lock
• One Model DRA1020 Cylinder/Thumbturn Combo
• One Model 777SP Strike Plate
• One Model 20104M20 Jackson® Overhead Door Closer
• One CRL8010AS Closer Arm
• One CRL8010DP Bottom Pivot
• One CRL8010FS Mounting Clip
• One Model CM12X12 Pull Handle
• One Model DCH4 36" Header

SKU: P4DU12SEL — Frameless glass door
