Product Details
- Door Only or Complete Entrance Kits Available
- 3'-0" Single Door or 6'-0" Double Door Kits for Use with 1/2" (12 mm) Tempered Glass
- Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes Net Door Width is 35-3/4" (908 mm)
- One DR4S Series Dry Glaze Rail Without Lock
- One DR4S Series Dry Glaze Rail With 777S Lock
- One Model DRA1020 Cylinder/Thumbturn Combo
- One Model 777SP Strike Plate
- One Model 20104M20 Jackson® Overhead Door Closer
- One CRL8010AS Closer Arm
- One CRL8010DP Bottom Pivot
- One CRL8010FS Mounting Clip
- One Model CM12X12 Pull Handle
- One Model DCH4 36" Header
CRL offers Dry Glazed Frameless Glass Door Kits for single or double door entrances in Door Only or Complete Entrance kits. All you supply is the 1/2" (12 mm) tempered glass.

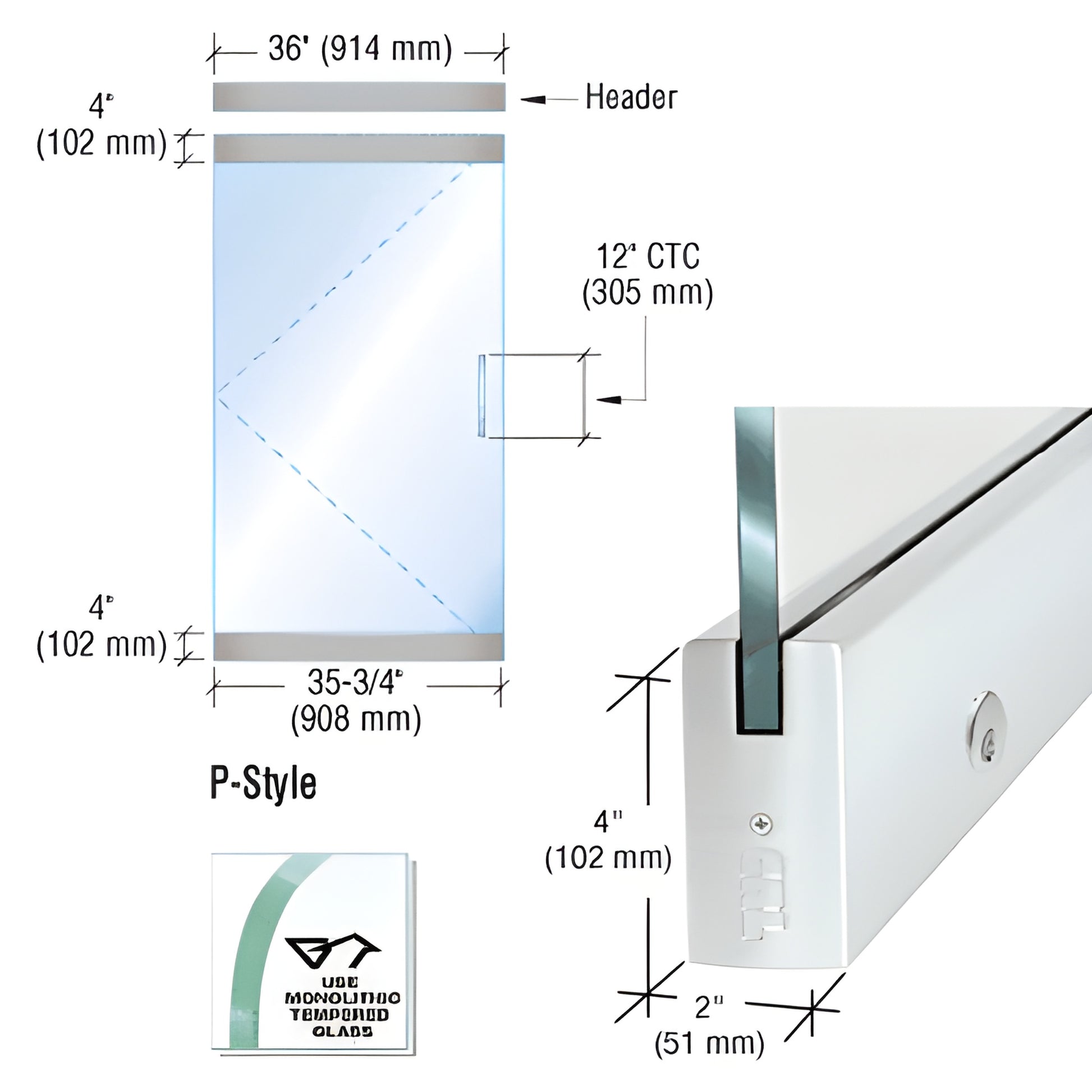

This kit utilizes our patented dry glaze rails. It is a 'P' Style Door Type in brushed or polished stainless steel, clear or black/bronze anodized finishes. It works with 1/2" (12 mm) fully tempered glass, and require only two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).
Door Only Kits include Rails, Jackson® Overhead Concealed Door Closer with Bottom Pivot, and a Pull Handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) Header prepped for a Jackson® Overhead Concealed Door Closer. All Kits are also available with locks in the bottom rails. Thresholds are also available, but must be ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
With Lock Kits Include:
One DR4S Series Dry Glaze Rail Without Lock
One DR4S Series Dry Glaze Rail With 777S Lock
One Model DRA1020 Cylinder/Thumbturn Combo
One Model 777SP Strike Plate
One Model 20104M20 Jackson® Overhead Door Closer
One CRL8010AS Closer Arm
One CRL8010DP Bottom Pivot
One CRL8010FS Mounting Clip
One Model CM12X12 Pull Handle
One Model DCH4 36" Header
