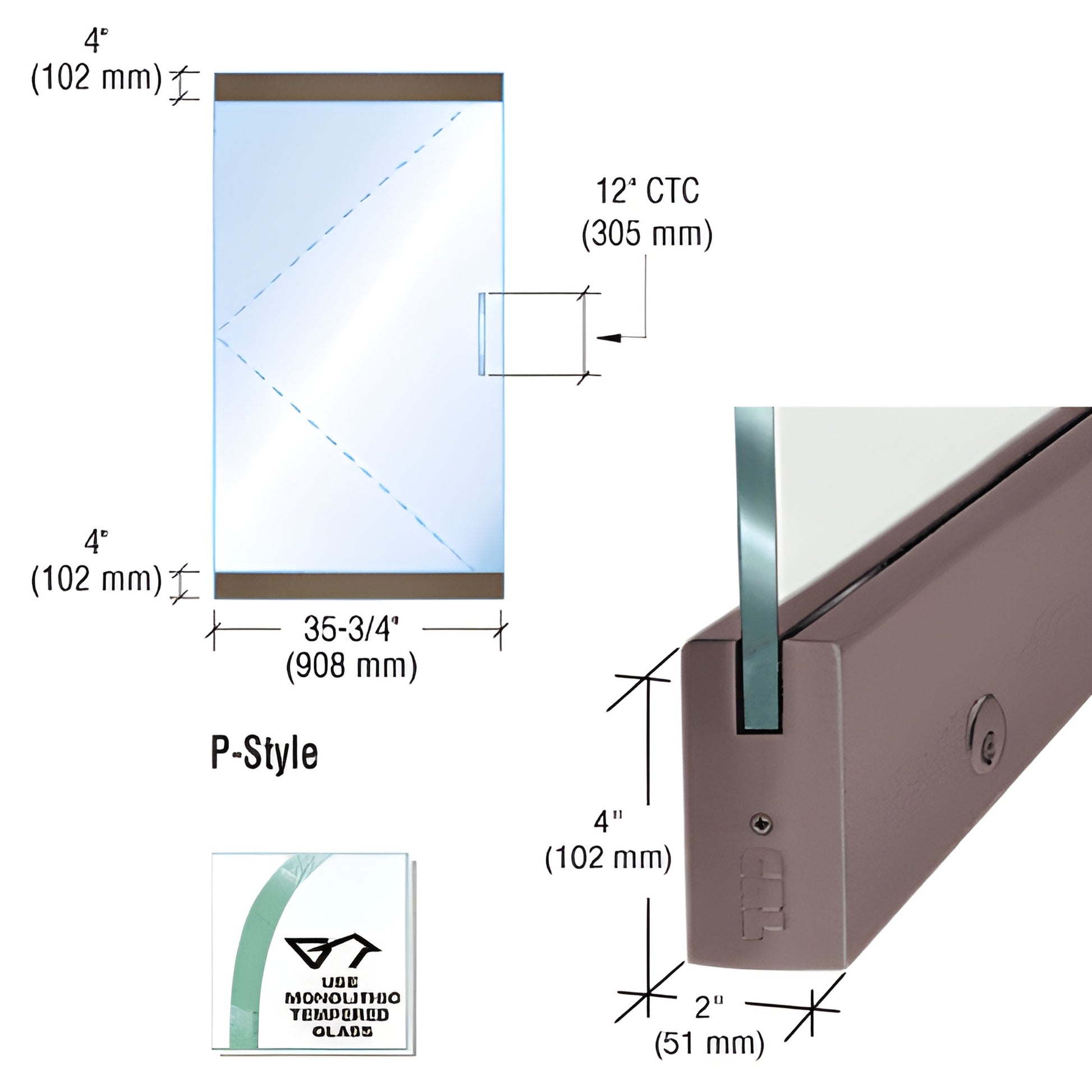

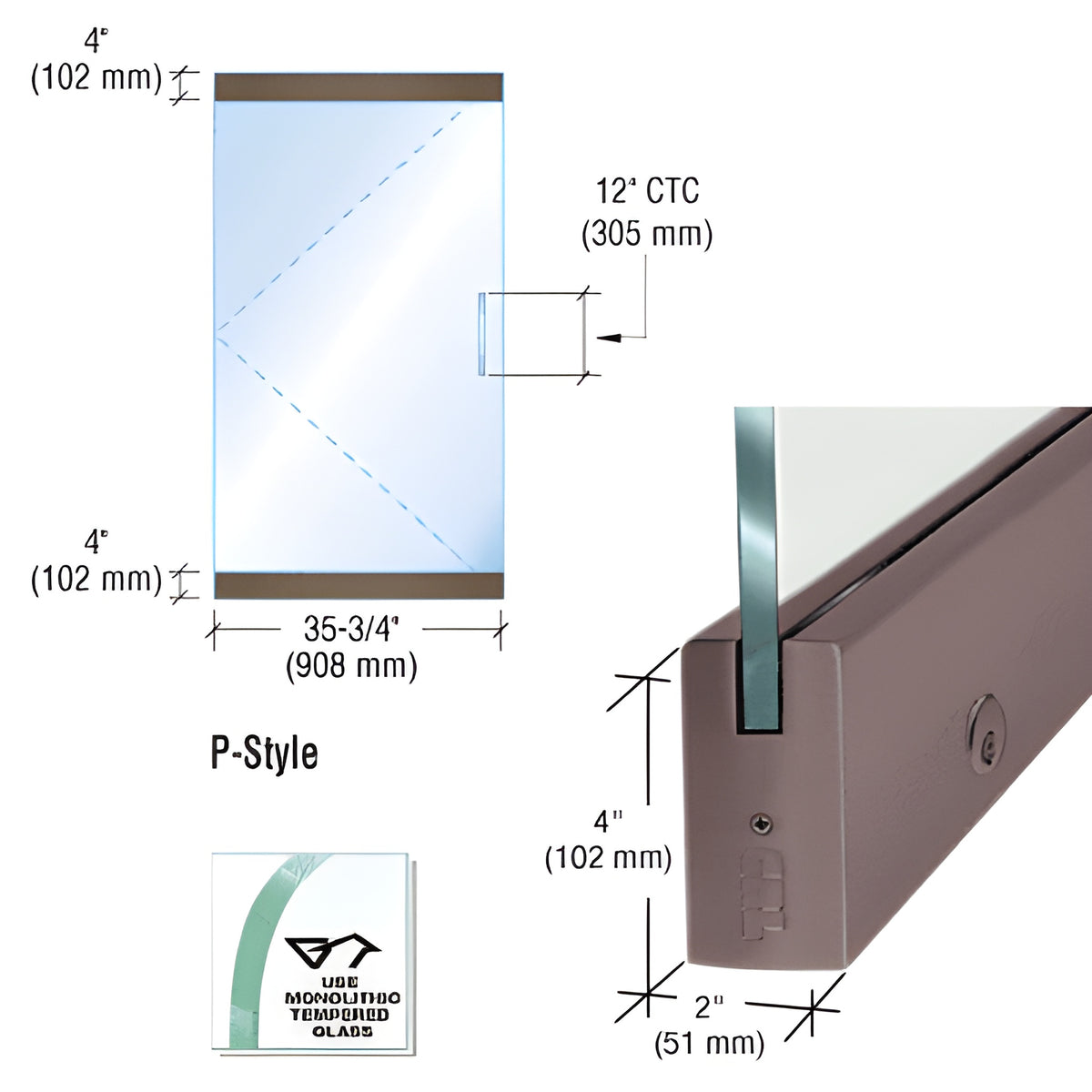

CRL P-Style 3'0" Black Bronze Dry-Glazed Frameless Door Kit w/ Lock

• Door Only or Complete Entrance Kits Available (SKU: P4DU12SL)
• 3'-0" single door or 6'-0" double door kits for use with 1/2" (12 mm) tempered glass
• Brushed or polished stainless steel, clear or black/bronze anodized finishes — net door width 35-3/4" (908 mm)

CRL Dry Glazed Frameless Glass Door Kits provide a low-profile, modern solution for commercial and retail entrances. Available as door only kits or complete entrance kits, these systems accept 1/2" (12 mm) fully tempered glass that you supply and install.

This kit uses CRL’s patented dry glaze rails for a clean, seal-free appearance. It is a 'P' Style Door Type offered in brushed or polished stainless steel or clear/black/bronze anodized finishes. The design requires only two 5/8" (16 mm) holes drilled 12" (305 mm) on center for the pull handle.

Door Only Kits include rails, Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete Entrance Kits also include a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer. Optional bottom rail locks and thresholds are available (thresholds ordered separately).

Note: For maximum door sizes, CRL follows GANA guidelines.

With Lock Kits Include:

• One DR4S Series dry glaze rail without lock
• One DR4S Series dry glaze rail with 777S lock
• One Model DRA1020 cylinder/thumbturn combo
• One Model 777SP strike plate
• One Model 20104M20 Jackson® overhead door closer
• One CRL8010AS closer arm
• One CRL8010DP bottom pivot
• One CRL8010FS mounting clip
• One Model CM12X12 pull handle
