CRL 3' Frameless P-Style Shower Door Kit Brushed Stainless w/ Lock

• Door Only or Complete Entrance Kits Available

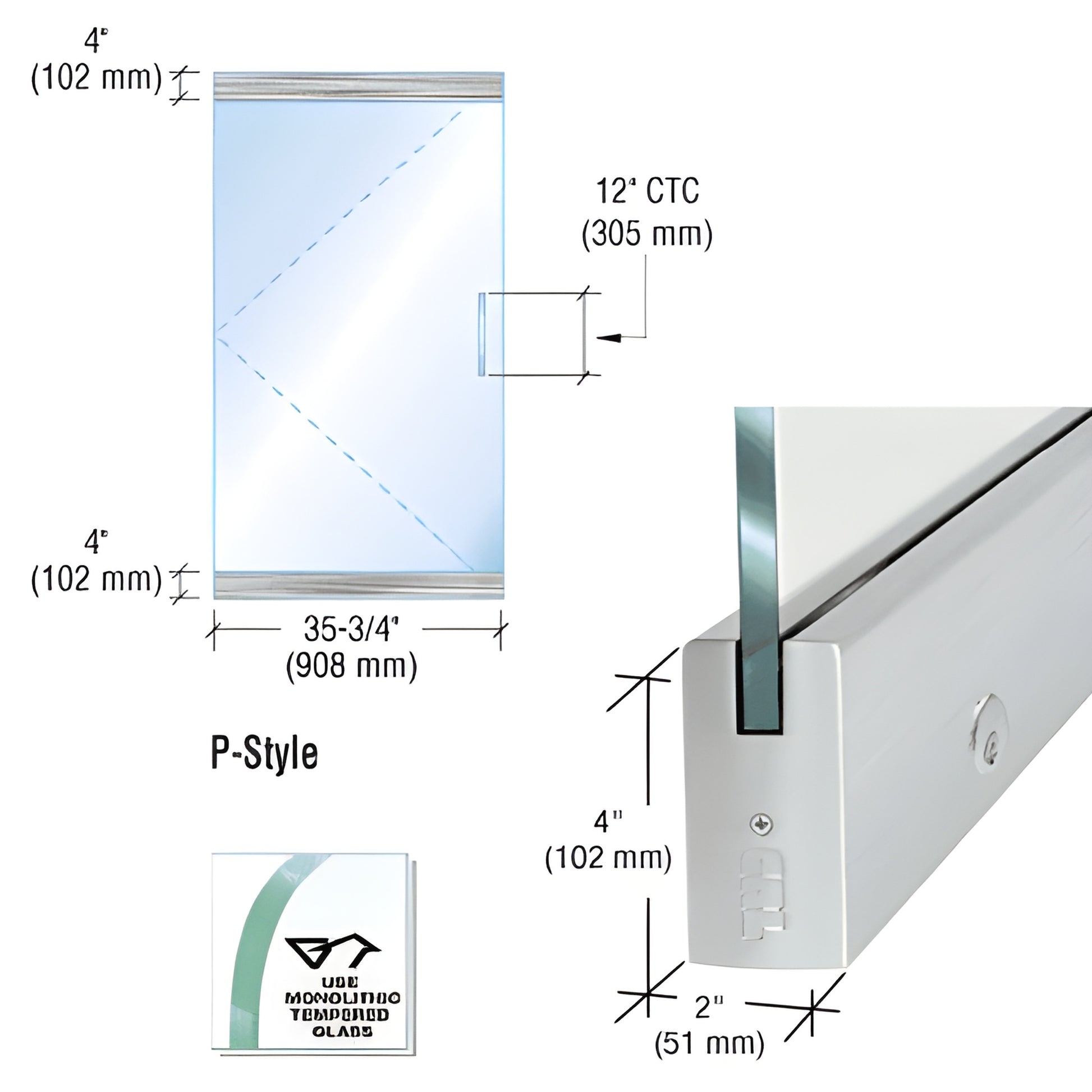

• 3'-0" Single Door or 6'-0" Double Door Kits for use with 1/2" (12 mm) tempered glass
• Brushed or polished stainless steel, clear or black/bronze anodized finishes — net door width 35-3/4" (908 mm)

CRL P4BS12SL dry glazed frameless glass door kits are available as door-only or complete entrance kits. These kits are designed to work with 1/2" (12 mm) fully tempered glass; you supply the glass. The system uses our patented dry glaze rails for a clean, modern frameless appearance and simplified installation.

This is a 'P' Style Door Type available in brushed or polished stainless steel, or clear or black/bronze anodized finishes. It requires only two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle. Net door width is 35-3/4" (908 mm).

Door Only Kits include dry glaze rails, a Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete Entrance Kits add a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer. Optional locks are available in the bottom rails and thresholds are available separately.

NOTE: For maximum door sizes, CRL follows GANA guidelines.

With Lock Kits include:

• One DR4S Series dry glaze rail without lock
• One DR4S Series dry glaze rail with 777S lock
• One Model DRA1020 cylinder/thumbturn combo
• One Model 777SP strike plate
• One Model 20104M20 Jackson® overhead door closer
• One CRL8010AS closer arm
• One CRL8010DP bottom pivot
• One CRL8010FS mounting clip
• One Model CM12X12 pull handle

Stainless Steel Advisory:
