CRL Black Outside Pull and Locking Unit with Multiple 7 Screw Hole Patterns

Overview

SKU	C1139
Sold as	1 Pack
Body Length	7-1/4
Body Width	1
Field Sizeable	Yes
Finish/Color:	Black
Handing	Non Handed
Keyed	Yes
Material	Aluminum
Mortise Mounted	No
Mounting Holes	4-15/16 Inches, 3-1/2 Inches, 2-11/16 Inches,3 Inches, 3-15/16 Inches, 5-5/8 Inches, 6-7/8 Inches
Mounting Type	Surface
Protrudes	1
Pull Only	No
Weight Capacity	Not Rated

Description

Product Details

Allows Application to a Variety of Handle Sets
Comes Complete with Key Cylinder
Compatible with Adam Rite and W & F

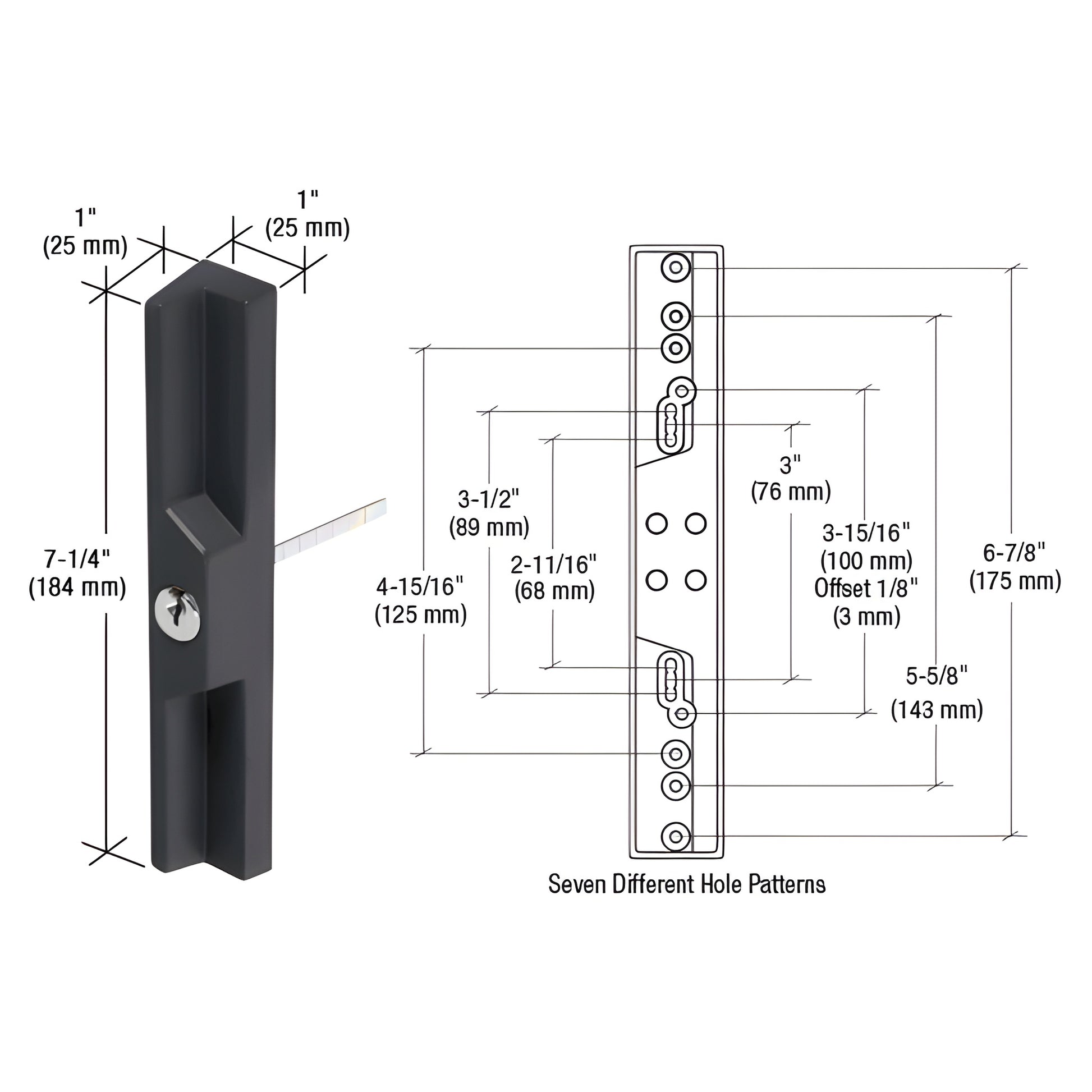

This unique product is the most versatile CRL Outside Pull with or without Key Cylinder available. It will accommodate seven different hole spacing patterns. The 3-15/16" (100 mm) hole spacing is designed for use with mortise lock installations using Adams Rite® and W&F mortise locks, these holes are offset 1/8" from that of the locking cylinder hole. Each package contains one outside pull and key locking cylinder; two keys and installation fasteners.

NOTE: For units with Cat. No. E2000 Key Cylinder, center plug has been bored out.
