- Featuring 4" (102 mm) Square DR4S Series Door Rails
- Panels Hung from End Point, Minimizing Obstruction
- Custom Built to Your Specifications for Fit and Finish
- Use Monolithic Tempered Glass

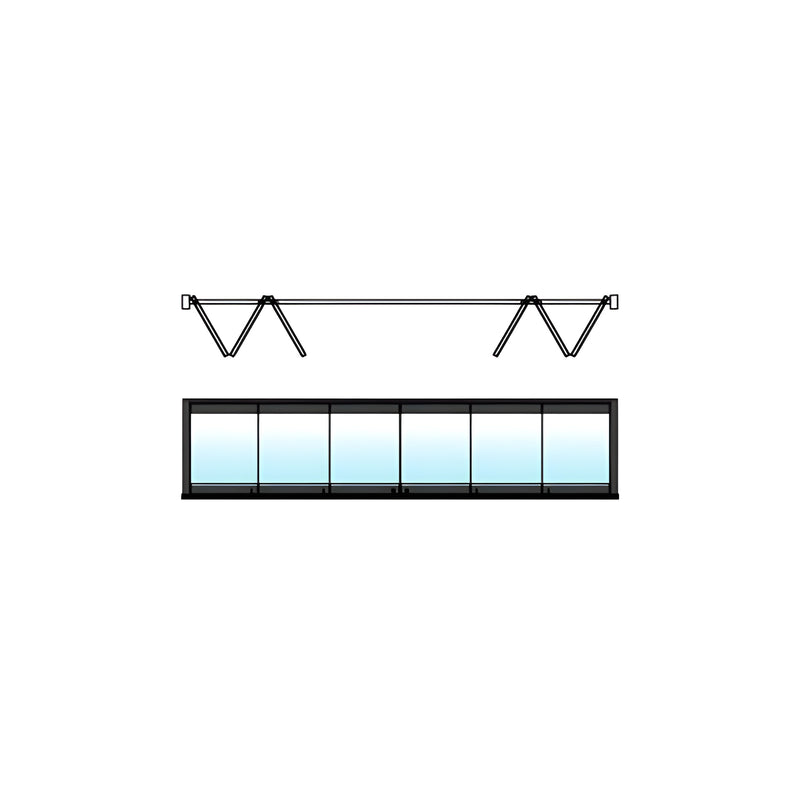

CRL Overhead Track Full Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The panels are joined by hinged end caps, and are hung from a single Cat. No. 0TCA Carriage Assembly at the panel's end point.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 39" (990 mm). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Product Warning
IMPORTANT
Maximum panel width allowed for 0TB6BP system is 34" (864 mm), not 39" as noted in some catalogs. Overall opening widths cannot exceed 205-1/8" (5.21 m) to meet the 34" (864 mm) maximum panel width.
