CRL OXXO 4-Panel Bi-Part Overhead Double-Track Sliding Door - Black
CRL OXXO 4-Panel Bi-Part Overhead Double-Track Sliding Door - Black
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0TS202BL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration

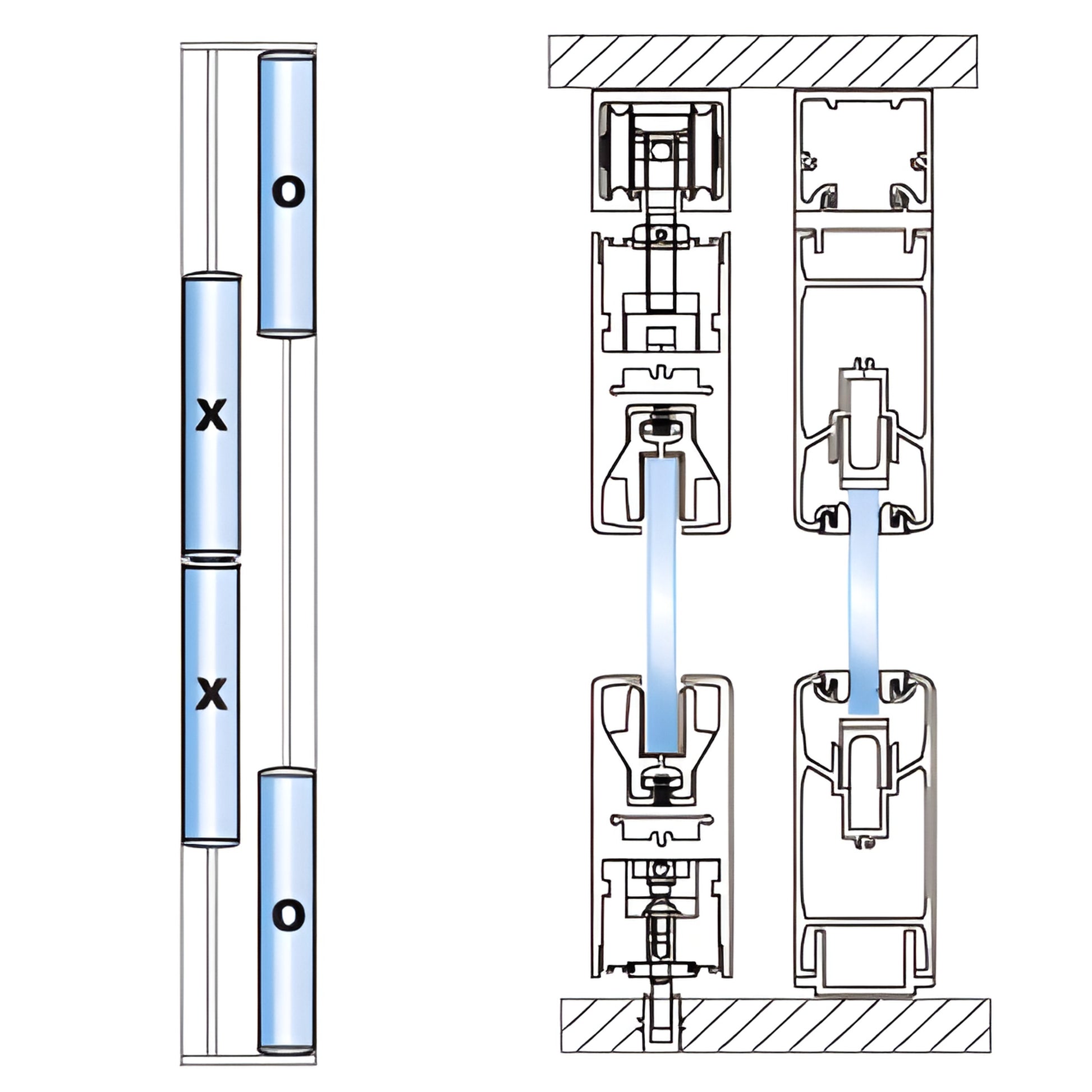

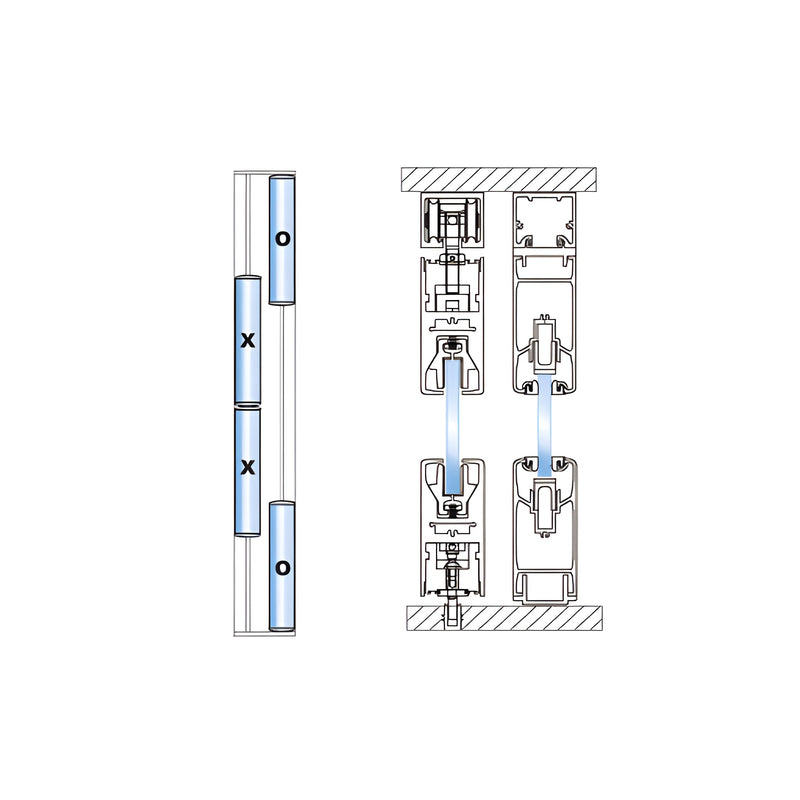

Double Track 2 Panel Bi-Pass 2 Panel Fixed
Finish/Color
Gloss Black
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Profile
Square
Series
OT Overhead Track Slider
Overview
- Silent moving four-roller carriage assemblies for smooth, low-noise operation
- Custom built in eight standard sliding configurations and eight standard bi-fold configurations
- For use with 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available in six architectural finishes; custom finishes available on special order
The CRL Overhead Track Sliding and Bi-Fold Door Systems (SKU: 0TS202BL) are engineered for commercial and residential glass applications requiring reliable overhead track hardware. The universal track and roller design supports Sliding, Half-Panel Bi-Fold, or Full-Panel Bi-Fold configurations, allowing flexible door layouts for interior glass partitions, storefronts, and room dividers.
Each unit is custom built to your specified opening size, glass thickness, and locking hardware. Cat. No. 0TCA top roller carriage assemblies adjust easily for height and alignment. Their compact profile lets the top track and door rail widths match for a clean, even sight line. A pile weatherstrip fills the gap between the top track and door rail. An optional recessed 0TBR Series guide channel is included with each system for increased performance and enhanced security.
CRL overhead track sliding door systems are available in eight standard sliding configurations. Each sliding panel is hung from two Cat. No. 0TCA carriage assemblies. Maximum panel weight: 225 pounds (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). Available by custom order only. Standard with 4" (102 mm) square rails; other rail combinations (4", 6", or 10" — 102, 152, or 254 mm) can be specified.
Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. For technical assistance, custom finish requests, or to confirm lead times, contact the CRL Technical Sales Department.
Buy or request a quote for SKU 0TS202BL — contact CRL today to specify your tempered glass overhead track sliding or bi-fold door system.
Specifications
Installation Instructions
