CRL Black Rigid 1/2 in Vinyl U-Channel Cap Rail for Glass 120in

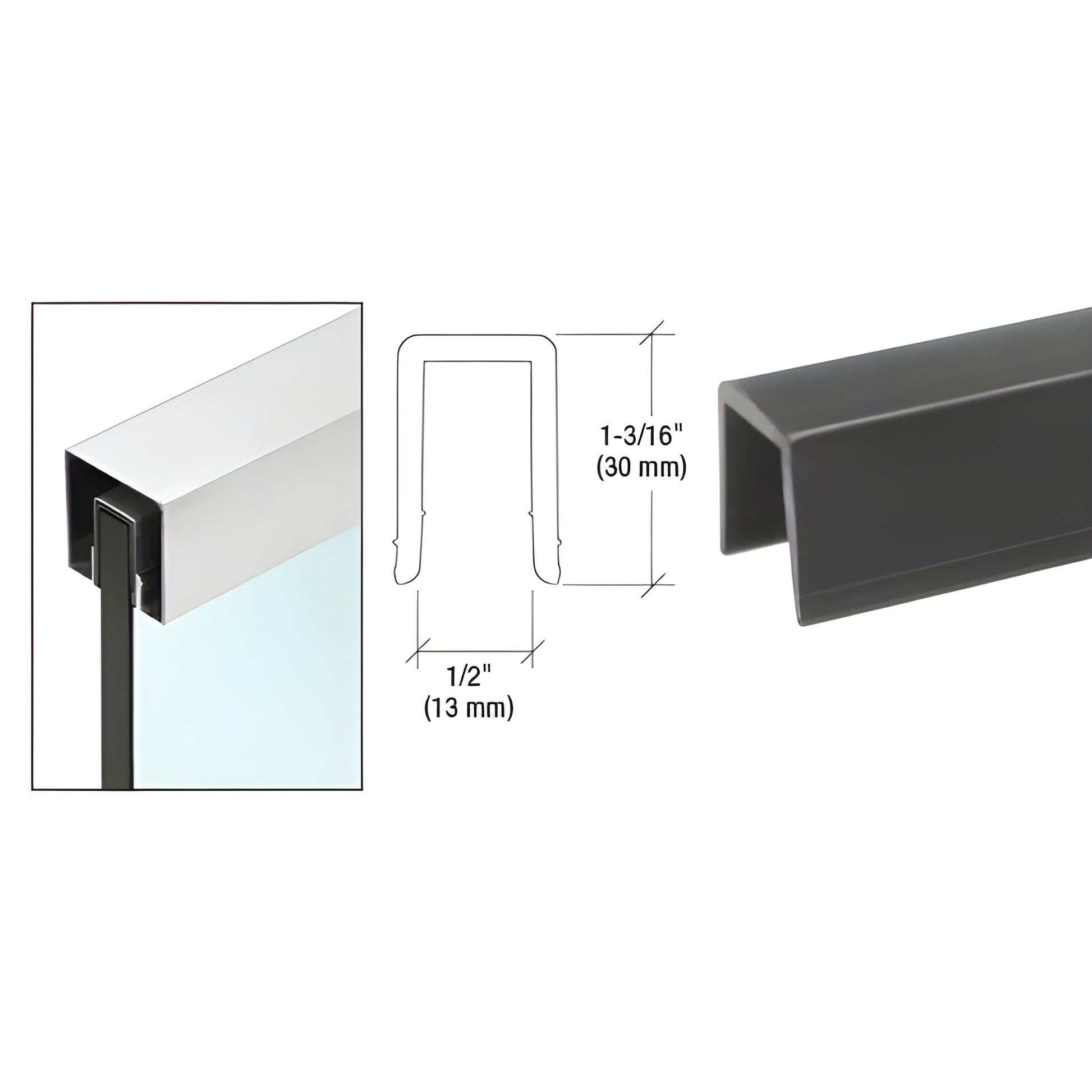

• Rigid black vinyl cap rail insert provides a protective barrier between metal cap and glass
• Designed for 1/2" (12 mm) monolithic glass
• Ready-to-install vinyl insert
• Compatible with square, low-profile, and crisp-corner low-profile 11-gauge cap rails
• Fits GRUC5, GRCF5, and GRCR5 series U-channel caps (SKU: GR5PV)

CRL Cap Rail Vinyl (GR5PV) creates a durable, rigid protective layer between metal cap rails and monolithic glass to prevent metal-to-glass contact and reduce stress points. Ideal for glazing applications requiring a ready-to-install vinyl insert for 1/2" glass, this product works with common U-channel cap rail systems and 11-gauge low-profile rails.

Installation: Use 95CBL silicone to secure the vinyl inside the cap rail pocket and to bond to the glass for a permanent, vibration-resistant fit.

Important: Do not use GR5PV in CRS systems — use CR5PVT for CRS applications. Contact CRL Technical Sales for compatibility confirmation or quotes.

Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Need help selecting the right cap rail vinyl for your project? Contact CRL Technical Sales or order GR5PV today.
