CRL Black Single Glass Shelf Support Bracket - Wall Mount
CRL Black Single Glass Shelf Support Bracket - Wall Mount
Regular price
$5.89 CAD
Regular price
Sale price
$5.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 3110BL
Shipping Weight: 0.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black
Material
Brass
Overview
- Supports adjacent tempered glass shelves with center support panel
- Available in three finishes
- Rubber rings cushion and prevent glass slippage

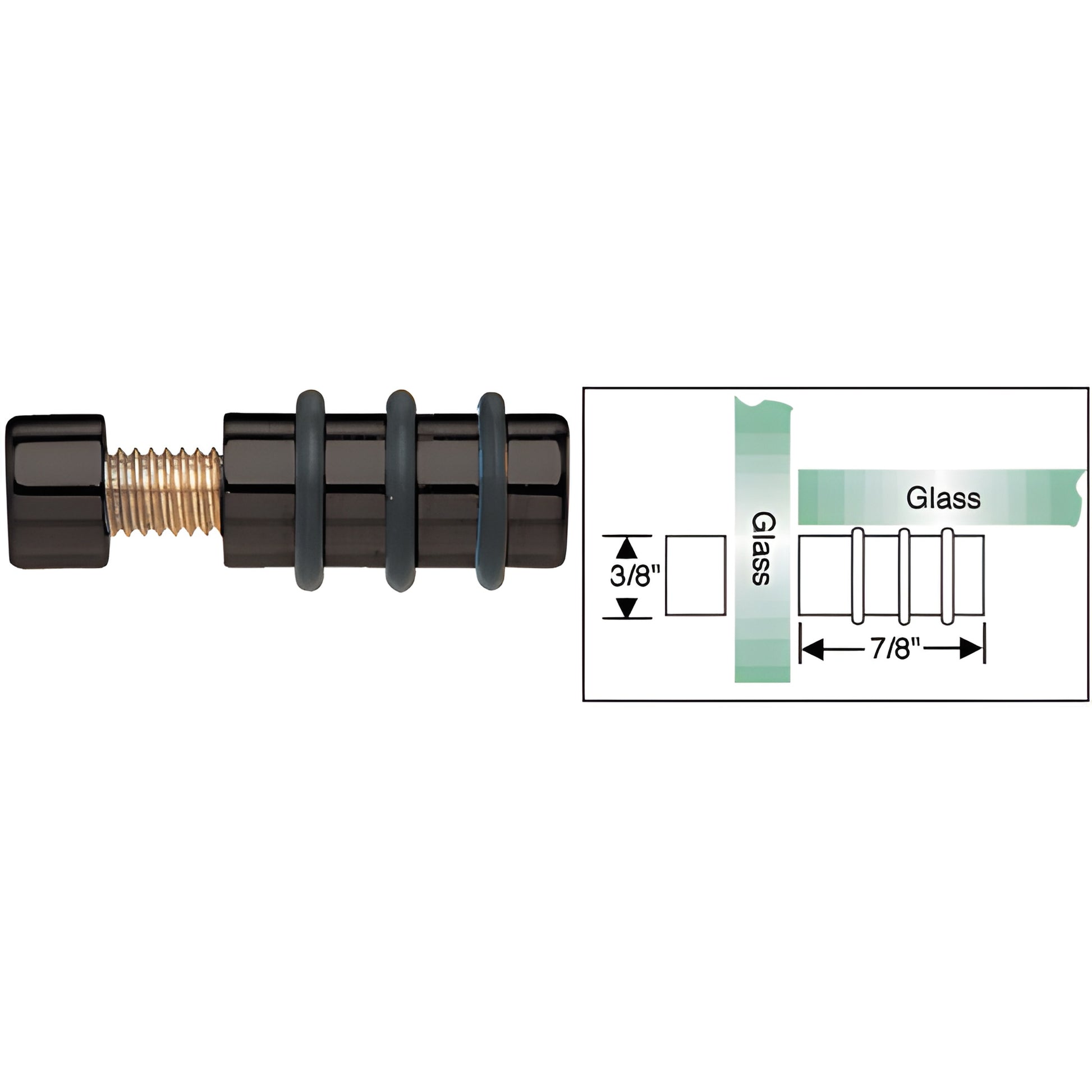

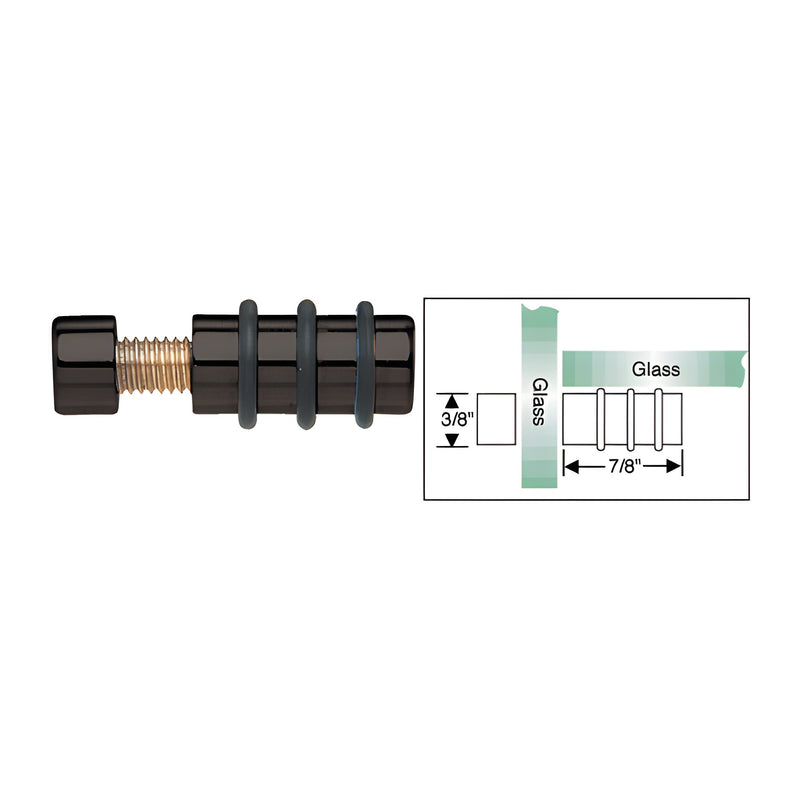

CRL Double Glass Shelf Support (SKU: 3110BL) — engineered for cabinets, retail displays, and showcase units with side-by-side glass, acrylic, or wood shelves. Two 7/8" (22 mm) supports are joined by a 1/4"-20 threaded stud through the center panel. Included rubber cushion rings stabilize 3/16" to 1/4" (5–6 mm) tempered glass and reduce vibration. For thicker non-glass substrates, replace the rod with a longer 1/4"-20 rod (AS14 Series).
Substrates require a 5/16" (8 mm) diameter thru-hole to accept the threaded stud.
Note: Intended for 3/16" to 1/4" (5–6 mm) tempered glass, or metal or wood center panels.
Product Warning: Weight limit: 110 lbs. (50 kg) per set of 4.
Reliable, low-profile double glass shelf support for cabinets and display cases — order SKU 3110BL today.
