CRL Chrome Single Glass Shelf Bracket - Wall Mount Support

• CRL Double Glass Shelf Support (SKU: 3110CH) for supporting adjacent tempered glass shelves with center support panel
• Available in three finishes for cabinet and display shelves
• Rubber cushion rings secure glass and prevent slippage

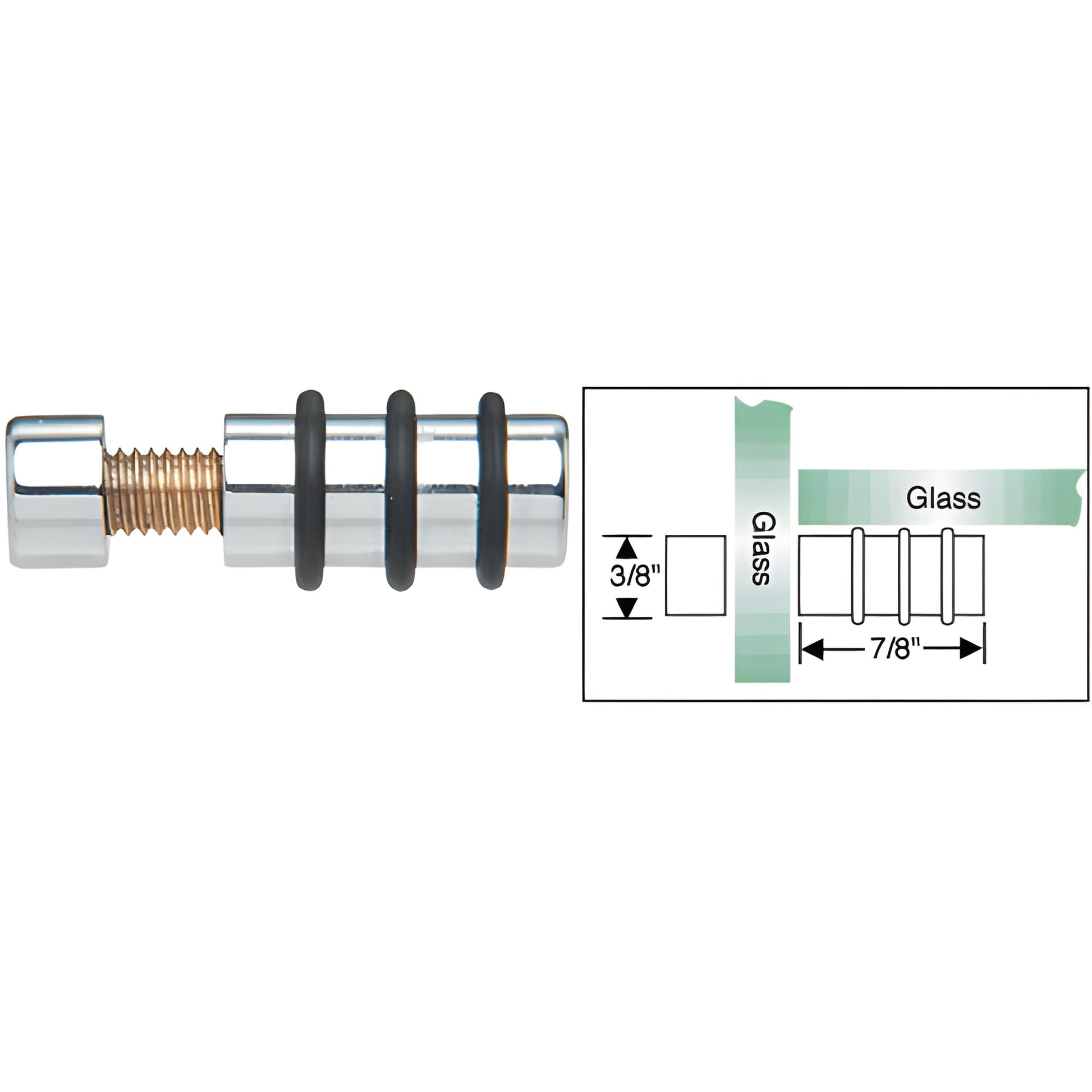

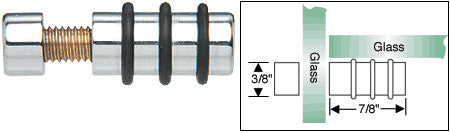

This CRL Double Glass Shelf Support is designed for cabinets, retail displays, and museum cases that use side-by-side glass, acrylic, or wood shelves. Two 7/8" (22 mm) supports are joined by a threaded stud through a center panel to create a stable double-shelf mounting. Rubber cushion rings protect and grip the glass to reduce movement and vibration. Fits tempered glass thicknesses from 3/16" to 1/4" (5–6 mm). The included 1/4"-20 threaded rod can be replaced with longer rods (AS14 Series) to accommodate thicker non-glass substrates.

Substrates require a 5/16" (8 mm) diameter thru-hole to accept the threaded stud of the shelf support.
Note: Intended for use on 3/16" to 1/4" (5–6 mm) tempered glass, or metal or wood center panels.

Product Warning Weight limit: 110 lbs. (50 kg) per set of 4.

Order the 3110CH double glass shelf support today to secure adjacent tempered glass shelving in displays and cabinets.
