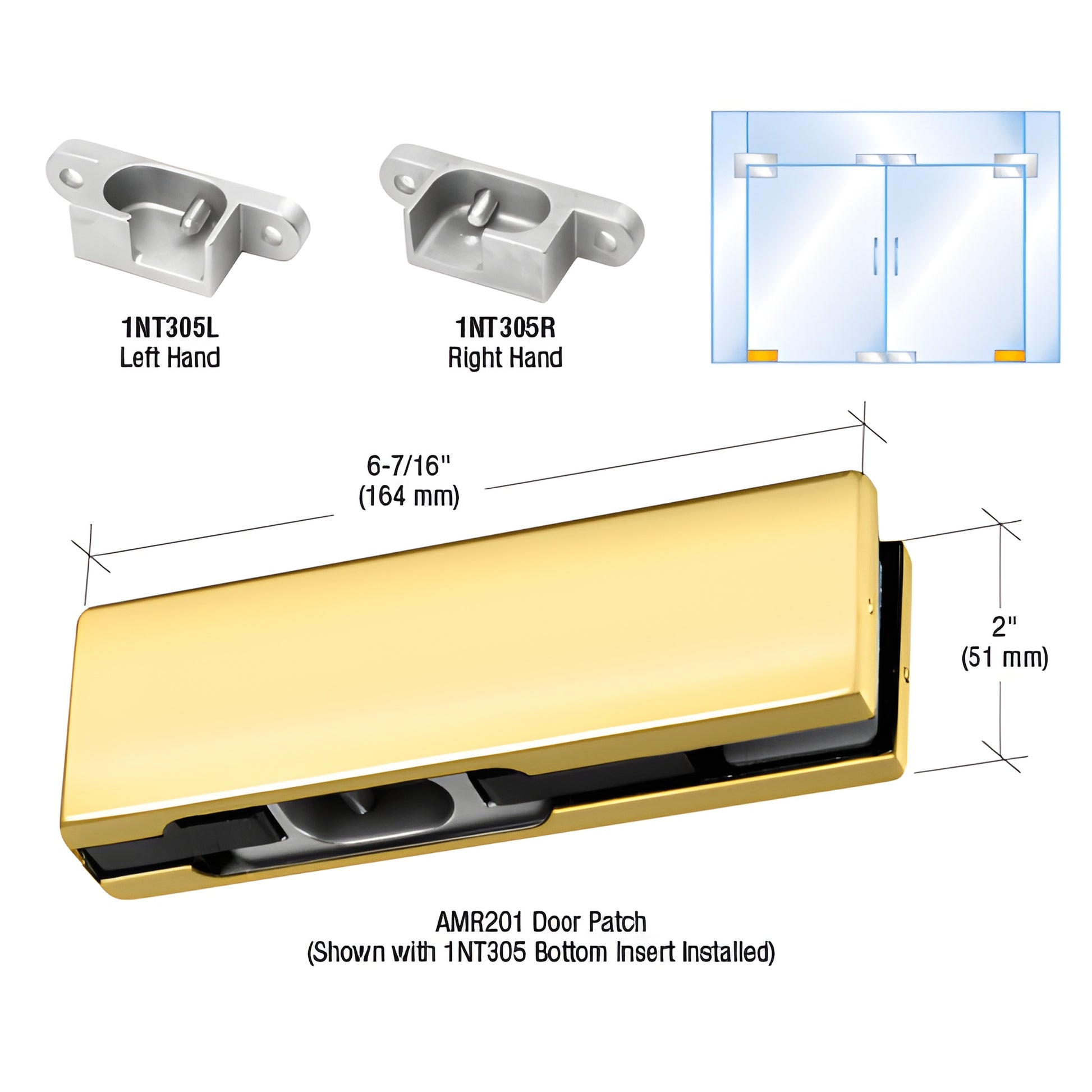

• PH11ERBR polished brass AMR201 bottom door patch for 3/8 or 1/2 inch tempered glass, 65mm pivot setback (right-hand kit)
1 1

CRL

CRL Brass Right-Hand European Bottom Patch Fitting for Glass Door

CRL Brass Right-Hand European Bottom Patch Fitting for Glass Door

$111.35 CAD
$111.35 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH11ERBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Insert Type
1NT305R
Pivot Setback
2-9/16
Series
European
Type
Bottom
With Insert
Yes

Overview

  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • 2-9/16" (65 mm) pivot setback for Herculite™+ style doors
  • Designed for Herculite™+ style commercial glass doors

For Use With:

  • 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
  • Glass template available at crlaurence.com

Includes:

  • 1 × AMR201 door patch
  • 1 × 1NT305L and 1 × 1NT305R bottom door patch insert
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) glass

Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.

Brass Finish Advisory:

Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References section for more details.

SKU: PH11ERBR — heavy-duty Herculite door patch kit for tempered glass with 65 mm pivot setback. Order now to get precise glass hardware and fabrication guidance.
