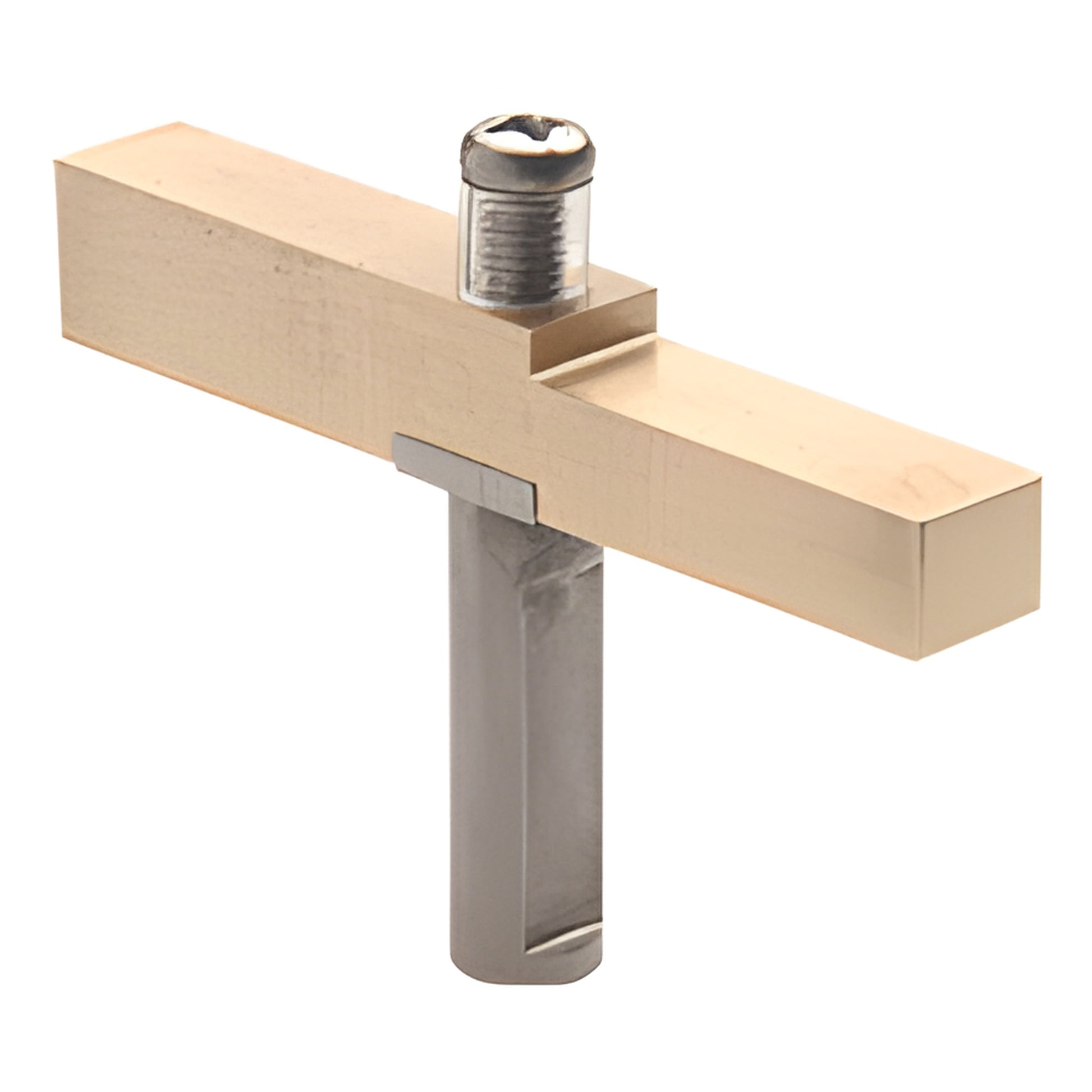

CRL Brite Gold Anodized Adaptor Block Used with Senior Prima Hinges
Item # SRHAB01BGA
Finish (6)
-
Oil Rubbed Bronze -
Brite Anodized -
Brite Gold Anodized -
Brushed Nickel -
Matte Black -
Satin Brass
Overview
| SKU | SRHAB01BGA |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Brite Gold Anodized |
| Glazing Thickness | 1/2 in. (12 mm) |
| Material | Brass |
Description
- Allows Hinges to be Mounted Into Deluxe Header Kits
- Use Monolithic Tempered Glass
- Fits Senior Prima, and Senior Cardiff Series Pivot Hinges
- Available in Several Finishes
This CRL Senior Adapter Block is commonly used with the Senior Prima (not Junior or Regular series), and Senior Cardiff Series of hinges. The Senior Adapter Block allows the hinge to be mounted directly into the Shower Deluxe Header Assembly and can be adjusted sideways to any position required. The Adapter Block has a clearance notch which allows it to fit under the wall bracket when the hinge is mounted close to a wall. A drilled 1/4" (6 mm) hole in the header is required for installation and the hinge base plate must be removed to mount the hinge to the header. Each Senior Adapter Block is individually packed with a screw and uses a M6X1 Pan Head screw, 1-1/8" long.
