CRL Bronze AWS 36" Corner Post Kit for Glass Panels 90° 2"x2-5/8"
CRL Bronze AWS 36" Corner Post Kit for Glass Panels 90° 2"x2-5/8"
Regular price
$176.86 CAD
Regular price
Sale price
$176.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S36CRKBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Corner
Degree
90
Depth
2-5/8 in. (67 mm)
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
36 in. (914 mm)
Material
Aluminum
Profile
Rectangular
Width
2-5/8 in. (67 mm)

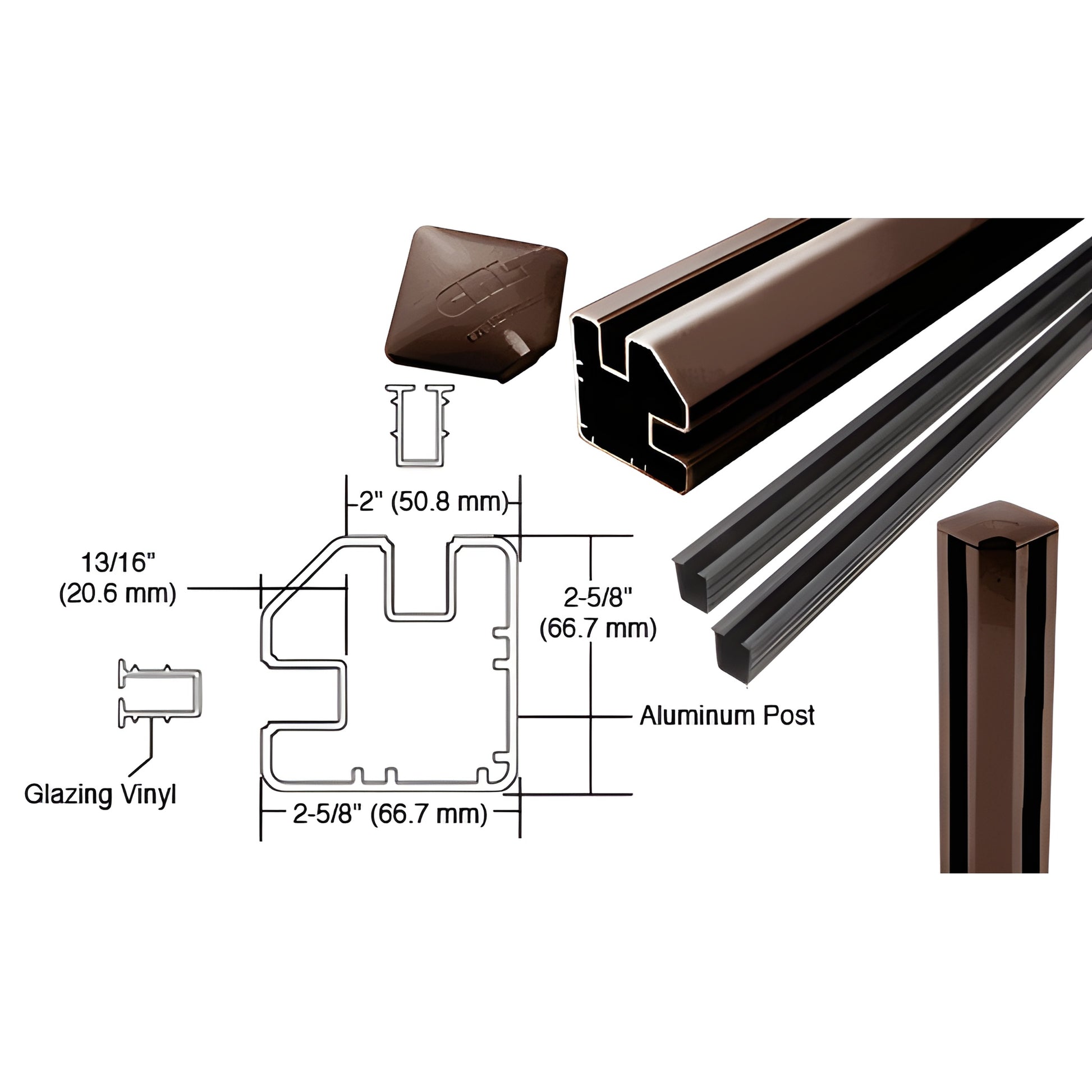

Overview
- Standard kit includes post, top cap, and vinyl
- Suitable for joining two panels at 90° (two-panel corner post)
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
- Available in several attractive colors; custom colors available upon request
These CRL Kits (SKU: S36CRKBRZ) are corner post kits designed for fabricating posts that join two panels at a 90-degree angle. Ideal for glass partition and divider projects, the kit supports both dry-glazed (vinyl) 6–10 mm glass and wet-glazed 12 mm glass. Available in multiple finish options with custom color matching on request—perfect for matching architectural glass framing.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Need help selecting the right 90-degree glass partition post kit or requesting custom colors? Contact CRL Customer Service to get started.
Specifications
CAD Drawings - pdf
