CRL Brushed Brite Anodized 10 ft Mechanical Glazing Channel 1/2 in

• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass
• Use with monolithic tempered glass
• Standard channel requires no holes in the glass — ideal for retrofit and field installations
• Two-piece front-load clamp-on design for easier installation where lift-and-drop is not possible
• Pre-drilled & tapped for channel clamps every 11-13/16" (300 mm) on center
• Available finishes: Satin Anodized and Brushed Brite Anodized
• Standard 10' (3.05 m) lengths

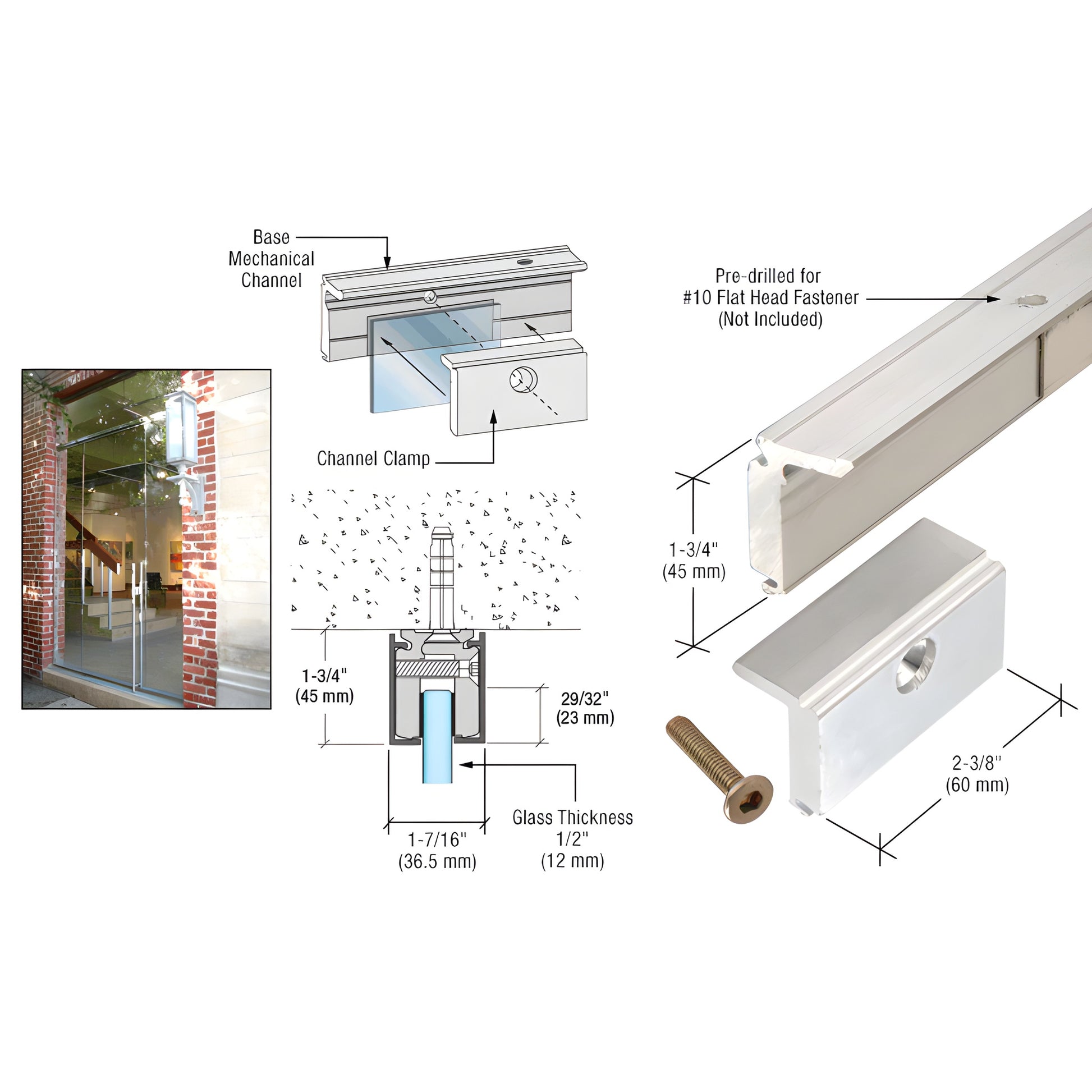

CRL Mechanical Glazing Channel (SKU MGC12BBA) is a dry-glazed, clamp-on channel system engineered for tempered glass applications that require no wet silicone glazing and no drilled holes in the glass. The two-piece front-load configuration and factory pre-drilled holes simplify installation for partition, storefront, and interior glass railing projects. Channel end caps provide a finished look (sold separately).

Kit includes: one base channel, ten channel clamps with screws, and two decorative snap-on covers. End caps sold separately.

Product Warning:

STRUCTURAL DISCLAIMER — All customers who utilize this product are solely responsible for consulting a structural engineer to determine suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety requirements, and proper fixing procedures.


For pricing and availability of the MGC12BBA mechanical glazing channel for tempered glass, contact CRL or add to your cart today.
