CRL Brushed Brite Anodized 10' Mechanical Glazing Channel for 3/4"
CRL Brushed Brite Anodized 10' Mechanical Glazing Channel for 3/4"
Regular price
$581.68 CAD
Regular price
Sale price
$581.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MGC34BBA
Shipping Weight: 16.33 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 16.33 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Brite Anodized |
| Glazing Thickness | 3/4 in. (19 mm) |
| Height 1-3/4 in. | (44 mm) |
| Length 120 in. | (3048 mm) |
Overview

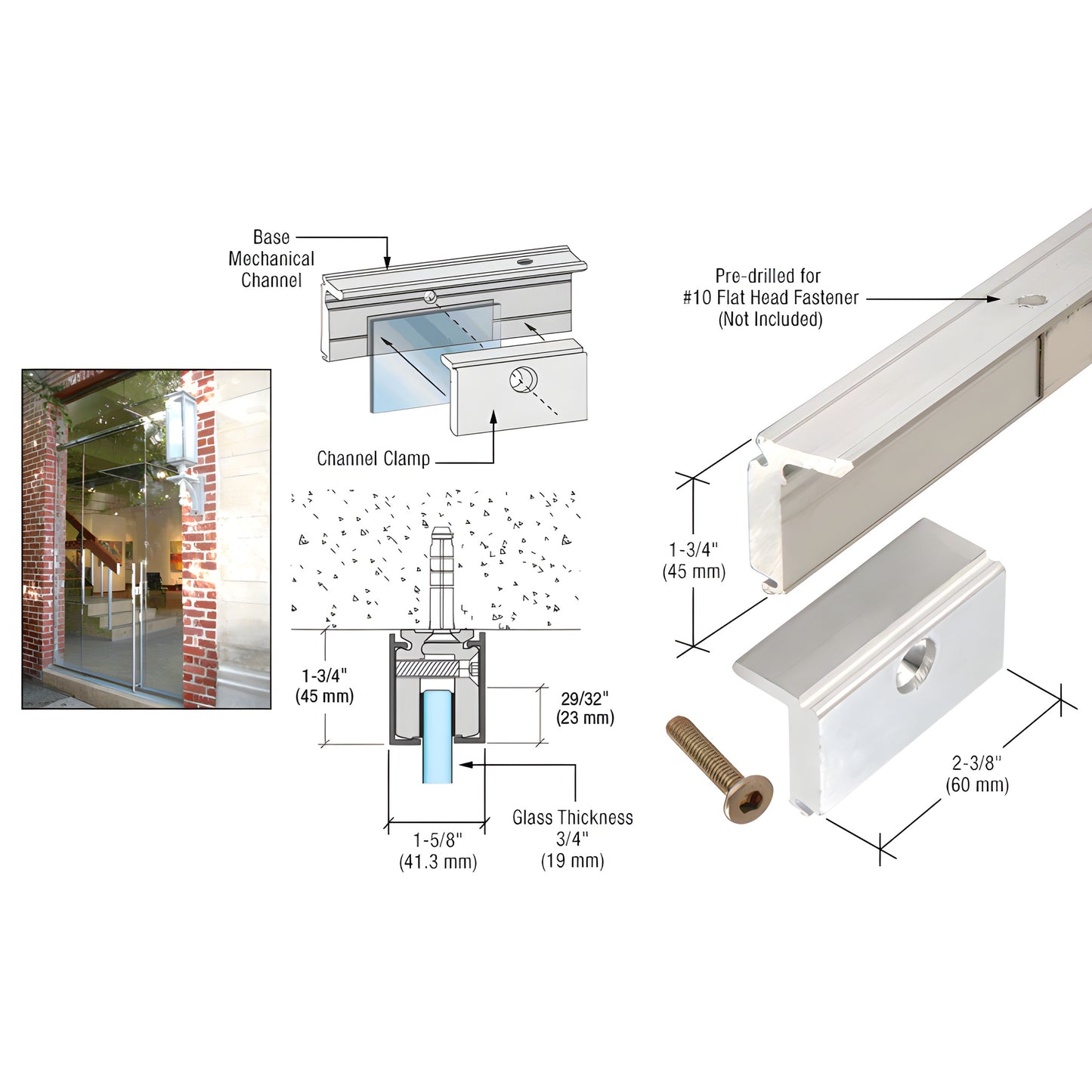

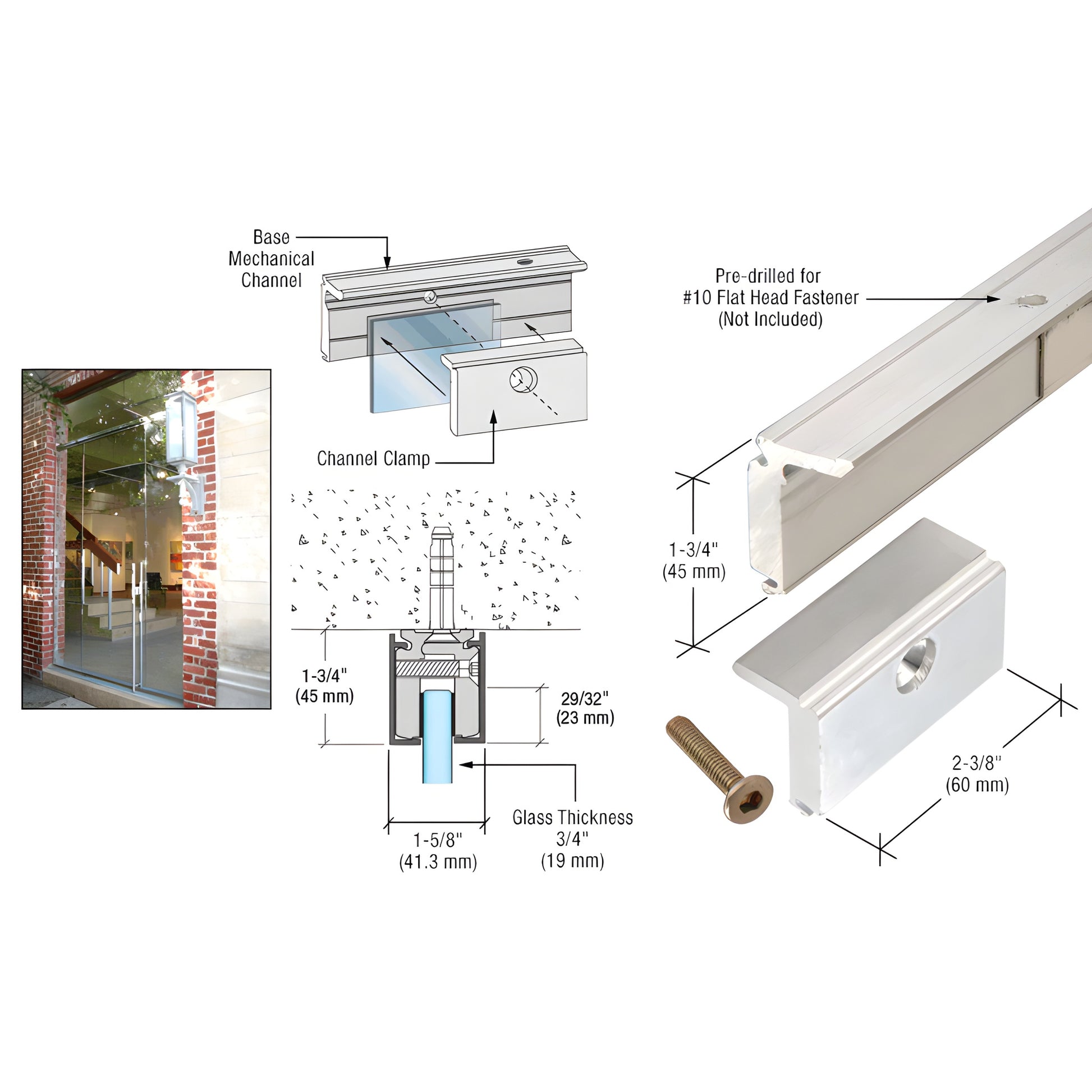

The CRL Mechanical Glazing Channel offers a versatile dry glazed system available in sizes for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass, utilizing monolithic tempered glass.
Designed for easy installation, this innovative two-piece front load clamp-on channel eliminates the need for holes in the glass and is ideal for spaces where lift and drop applications are not feasible.
Available in both Satin Anodized and Brushed Brite Anodized finishes, the standard 10' (3.05 m) lengths include pre-drilled and tapped holes for Channel Clamps every 11-13/16" (300 mm) on center.
Please note: Kits contain a Base Channel, ten Channel Clamps with Screws, and two Decorative Snap-On Covers, while Channel End Caps are sold separately.
Ensure your project complies with structural requirements by consulting a structural engineer and qualified installer.
Designed for easy installation, this innovative two-piece front load clamp-on channel eliminates the need for holes in the glass and is ideal for spaces where lift and drop applications are not feasible.
Available in both Satin Anodized and Brushed Brite Anodized finishes, the standard 10' (3.05 m) lengths include pre-drilled and tapped holes for Channel Clamps every 11-13/16" (300 mm) on center.
Please note: Kits contain a Base Channel, ten Channel Clamps with Screws, and two Decorative Snap-On Covers, while Channel End Caps are sold separately.
Ensure your project complies with structural requirements by consulting a structural engineer and qualified installer.
