CRL Brushed Brite Anodized 10' Mechanical Glazing Channel for 3/8"
CRL Brushed Brite Anodized 10' Mechanical Glazing Channel for 3/8"
Regular price
$574.00 CAD
Regular price
Sale price
$574.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MGC38BBA
Shipping Weight: 15.44 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 15.44 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Brite Anodized |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 1-3/4 in. | (44 mm) |
| Length 120 in. | (3048 mm) |
Overview

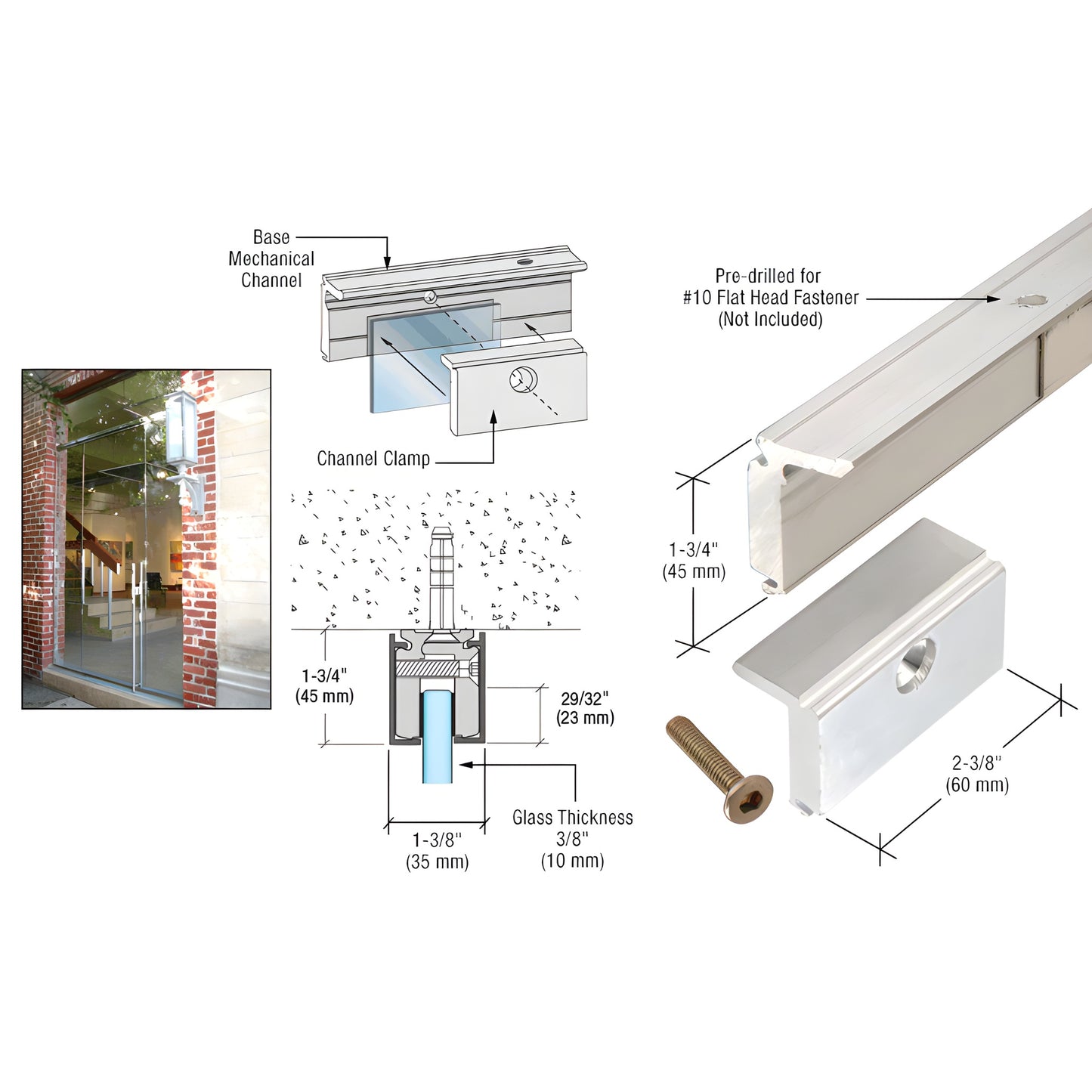

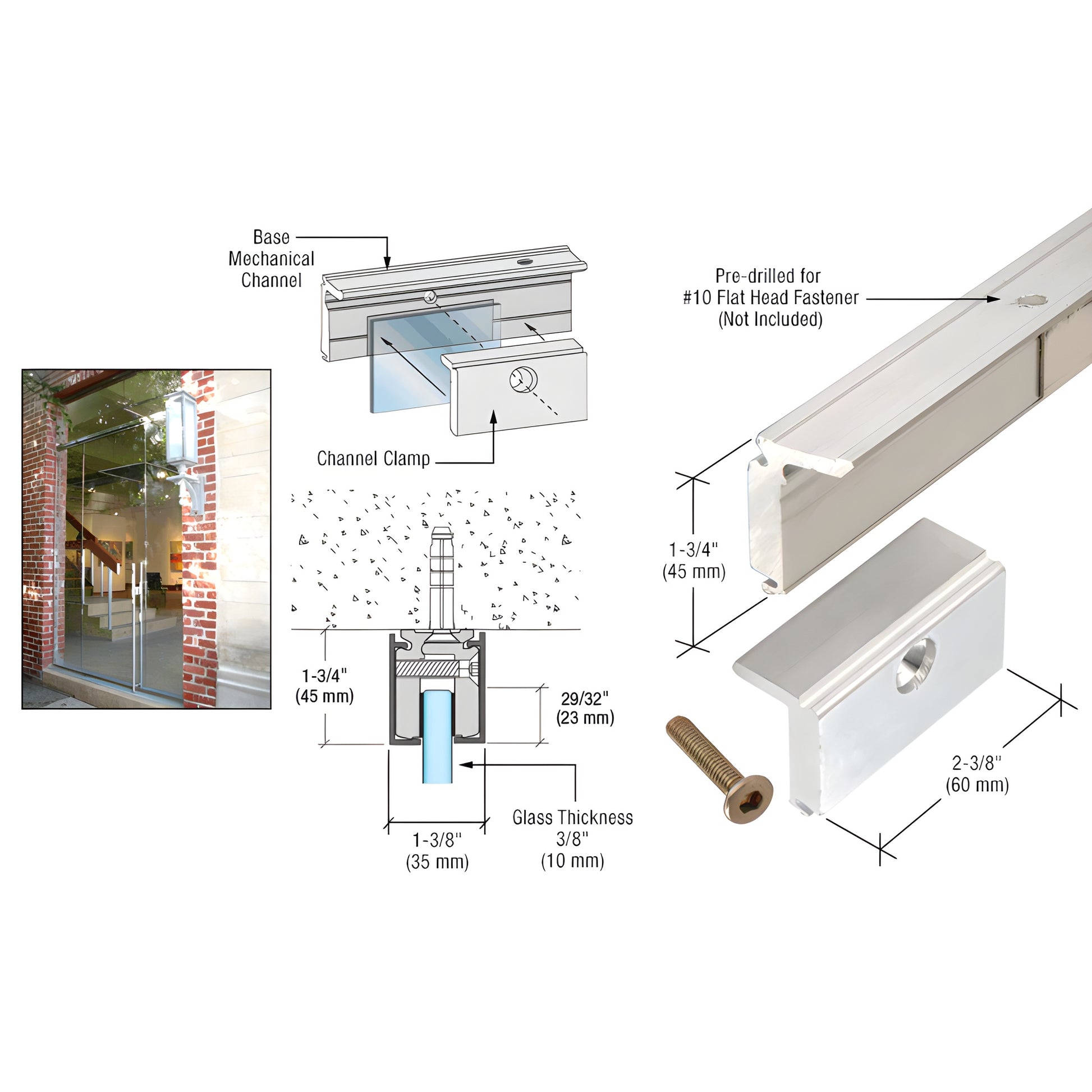

The CRL Mechanical Glazing Channel is a versatile and efficient dry glazed system perfect for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) glass, utilizing monolithic tempered glass for durability.
This innovative two-piece front load clamp-on channel eliminates the need for holes in the glass and simplifies installation, making it ideal for situations where lift and drop applications are impractical.
Available in both Satin Anodized and Brushed Brite Anodized finishes, the channel features pre-drilled and tapped holes for Channel Clamps every 11-13/16" (300 mm) on center, and comes in standard 10' (3.05 m) lengths.
While end caps are sold separately, kits include a base channel, ten channel clamps with screws, and two decorative snap-on covers.
Please consult a structural engineer to ensure suitability and compliance with all regulations.
This innovative two-piece front load clamp-on channel eliminates the need for holes in the glass and simplifies installation, making it ideal for situations where lift and drop applications are impractical.
Available in both Satin Anodized and Brushed Brite Anodized finishes, the channel features pre-drilled and tapped holes for Channel Clamps every 11-13/16" (300 mm) on center, and comes in standard 10' (3.05 m) lengths.
While end caps are sold separately, kits include a base channel, ten channel clamps with screws, and two decorative snap-on covers.
Please consult a structural engineer to ensure suitability and compliance with all regulations.
