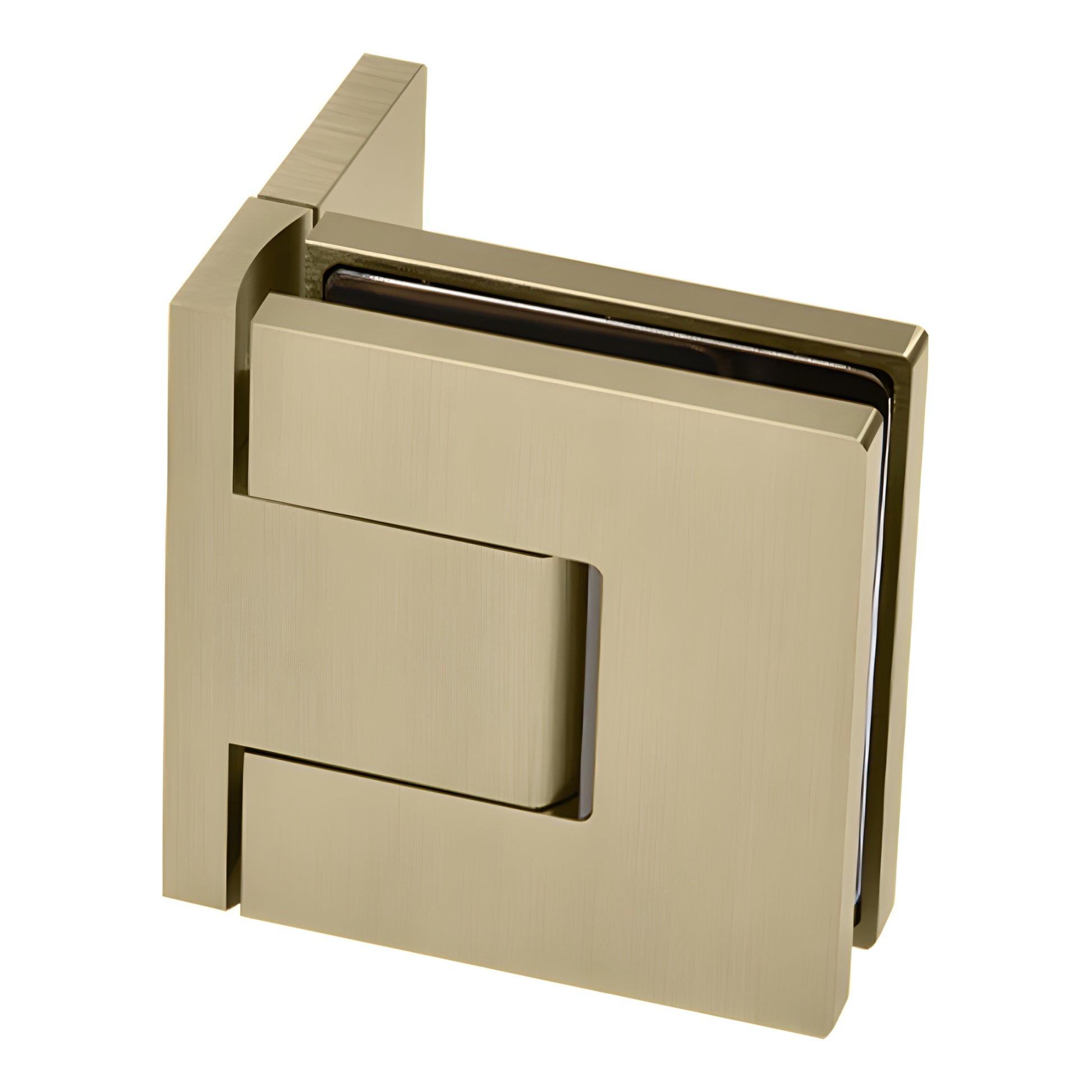

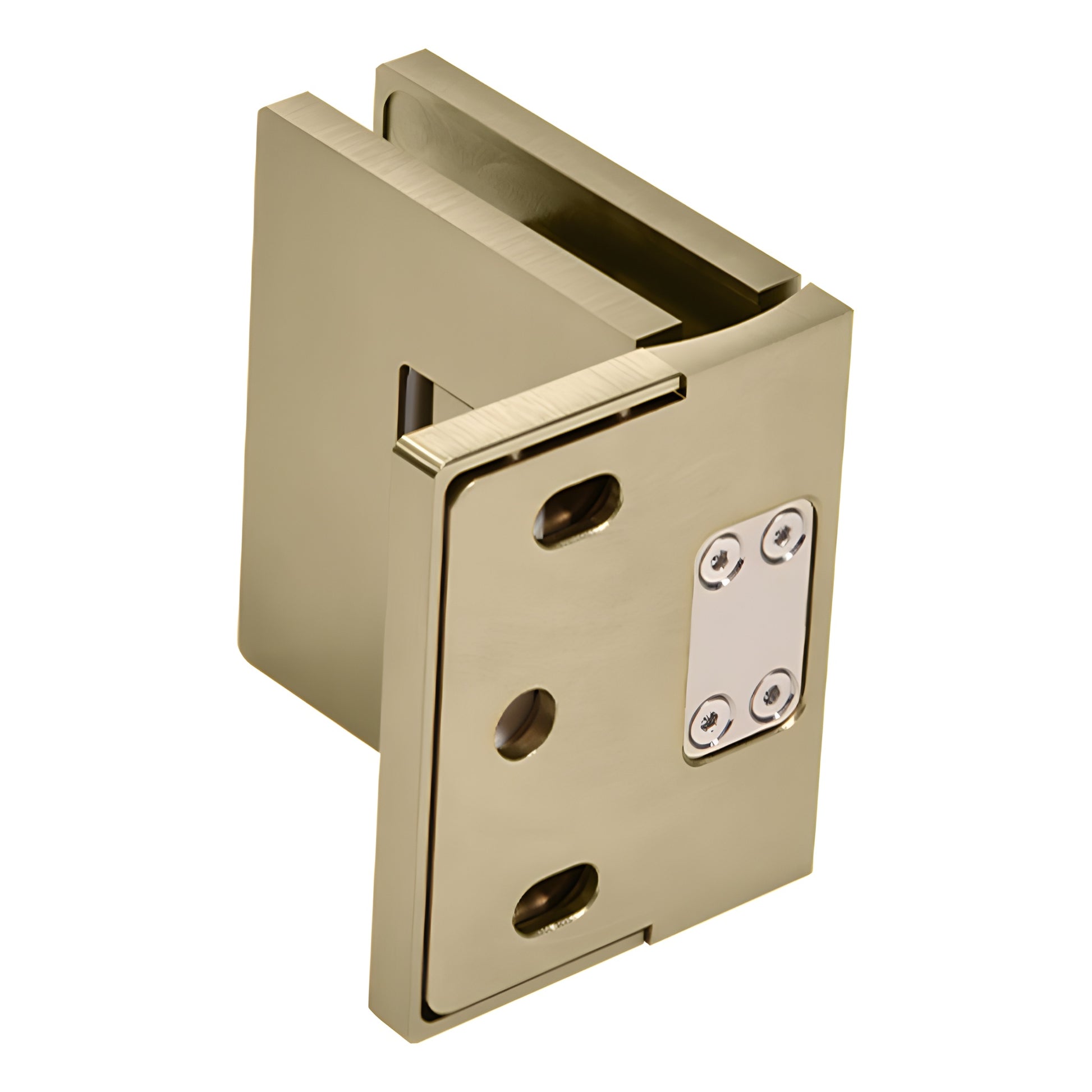

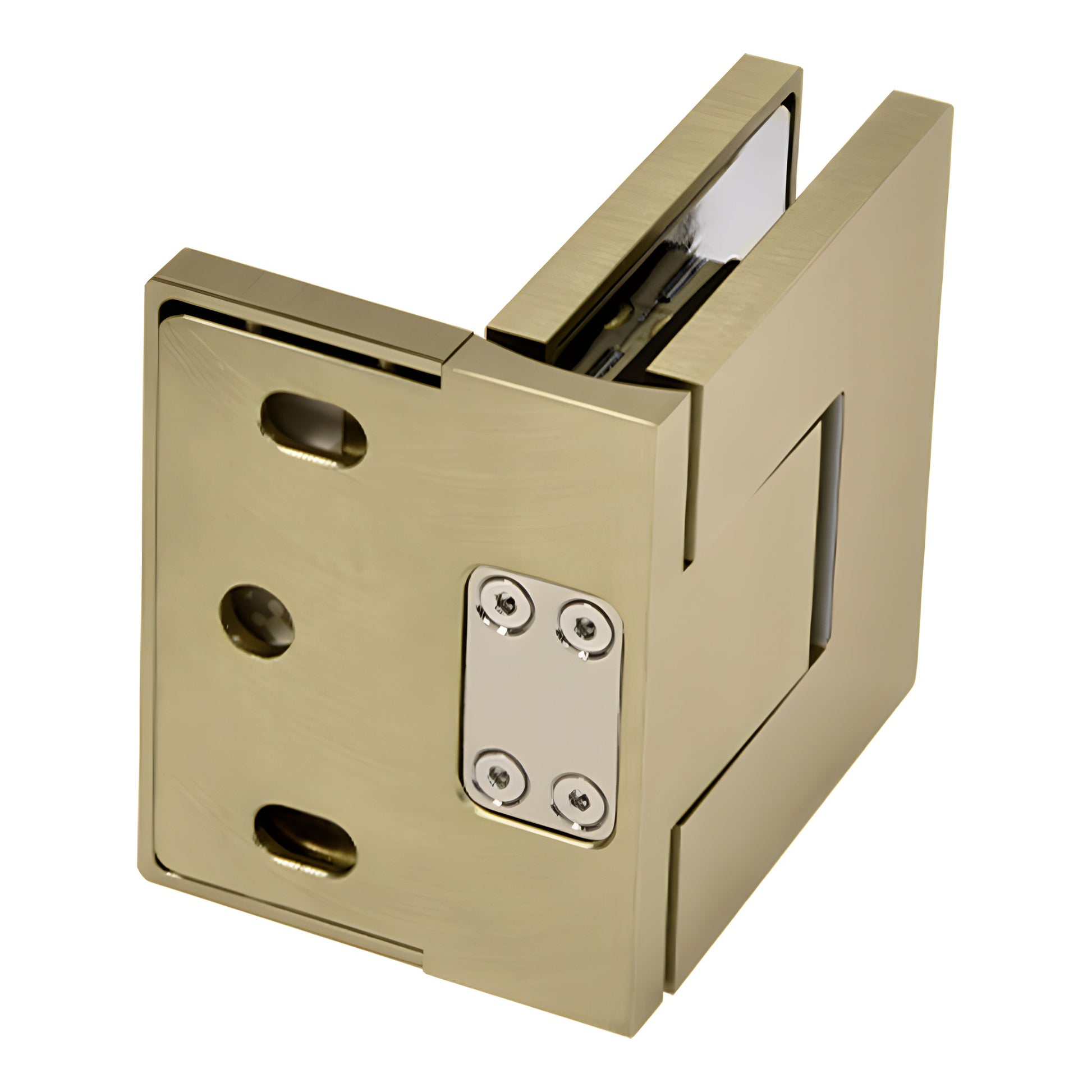

CRL Brushed Bronze Bellagio Adjustable Wall Mount Offset Back Plate Hinge
CRL Brushed Bronze Bellagio Adjustable Wall Mount Offset Back Plate Hinge
Regular price
$318.32 CAD
Regular price
Sale price
$318.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BEL344BBRZ
Shipping Weight: 1.75 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.75 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Back | Plate Offset |
| Design | Style Concealed/Premium |
| Edge | Profile Square |
| Enclosure | Type Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Brushed Bronze |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Height 2-15/16 in. | (75 mm) |
| Material | Brass |
| Maximum Door Weight | 110 |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Opening Style Swing | (side) |
| Series | Bellagio |
| Width 2-15/16 in. | (75 mm) |
Overview
The Bellagio Series Hinge offers unparalleled design and functionality for glass thicknesses ranging from 5/16” to 3/8” (8 mm to 10 mm).
Featuring tight gaps to prevent water infiltration and snap-on covers that conceal screws, this hinge ensures a sleek and modern appearance.
With self-centering capabilities up to 25 degrees and an adjustable positive closure, it’s built for precision and ease of use.
Tested rigorously to withstand 100,000 cycles, which is five times the industry standard, this hinge supports doors up to 39" wide and weighing up to 110 lbs.
Additionally, matching Bellagio Series Brackets are available to complete your installation.
Contact CRL Customer Service for precise shipping weights and costs, and note that product images may vary slightly in color due to monitor settings.
Featuring tight gaps to prevent water infiltration and snap-on covers that conceal screws, this hinge ensures a sleek and modern appearance.
With self-centering capabilities up to 25 degrees and an adjustable positive closure, it’s built for precision and ease of use.
Tested rigorously to withstand 100,000 cycles, which is five times the industry standard, this hinge supports doors up to 39" wide and weighing up to 110 lbs.
Additionally, matching Bellagio Series Brackets are available to complete your installation.
Contact CRL Customer Service for precise shipping weights and costs, and note that product images may vary slightly in color due to monitor settings.
