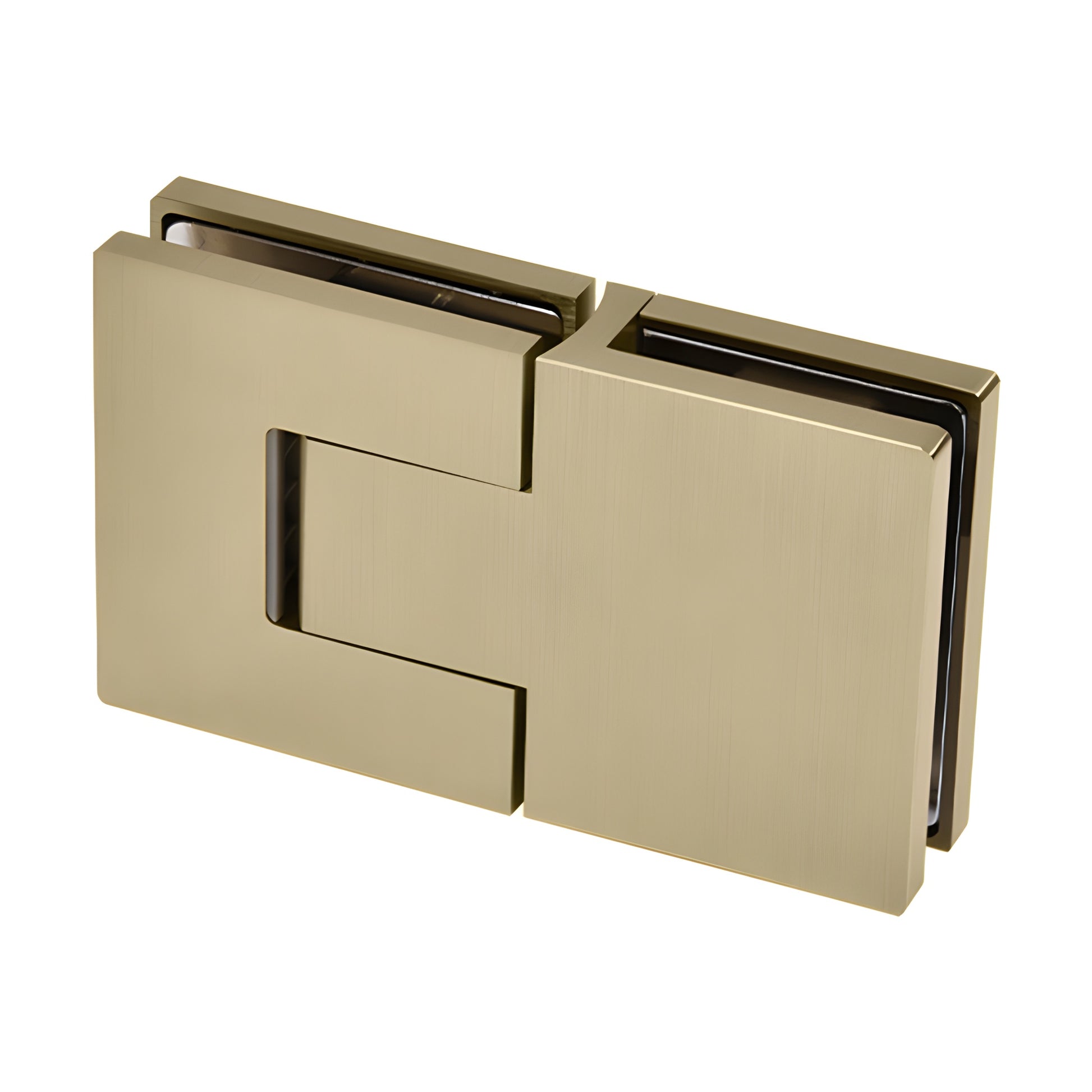

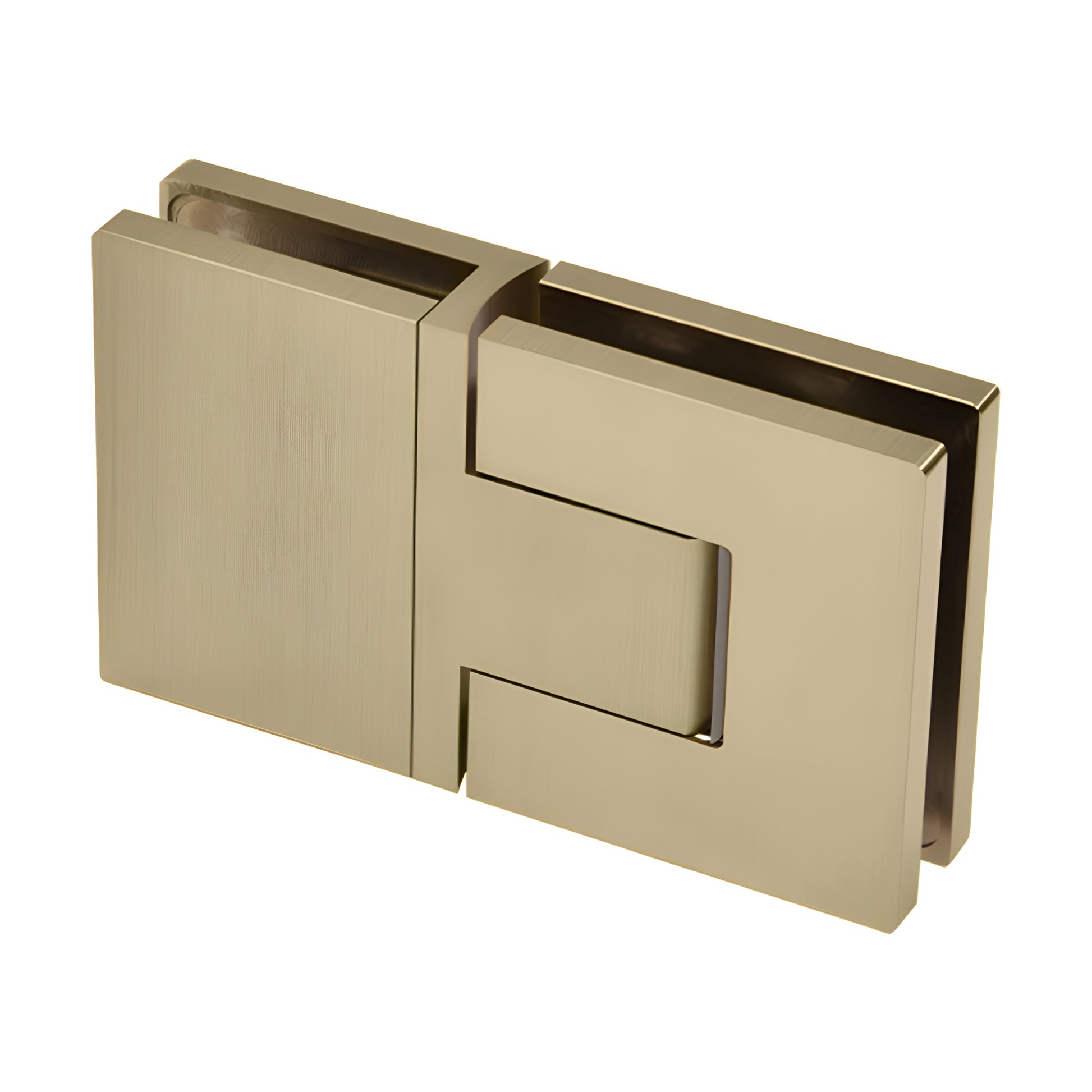

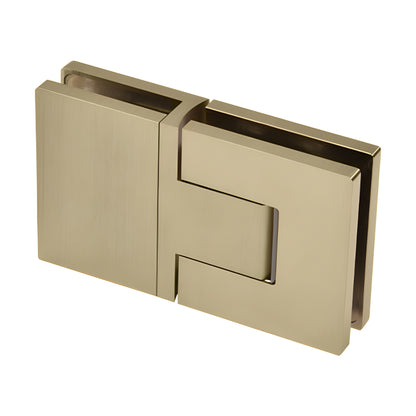

CRL Bellagio Brushed Bronze 180° Glass-to-Glass Shower Hinge
Item# BEL380BBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Design Style
Concealed/Premium
Edge Profile
Square
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Bronze
Glass To Glass Angle
180
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)

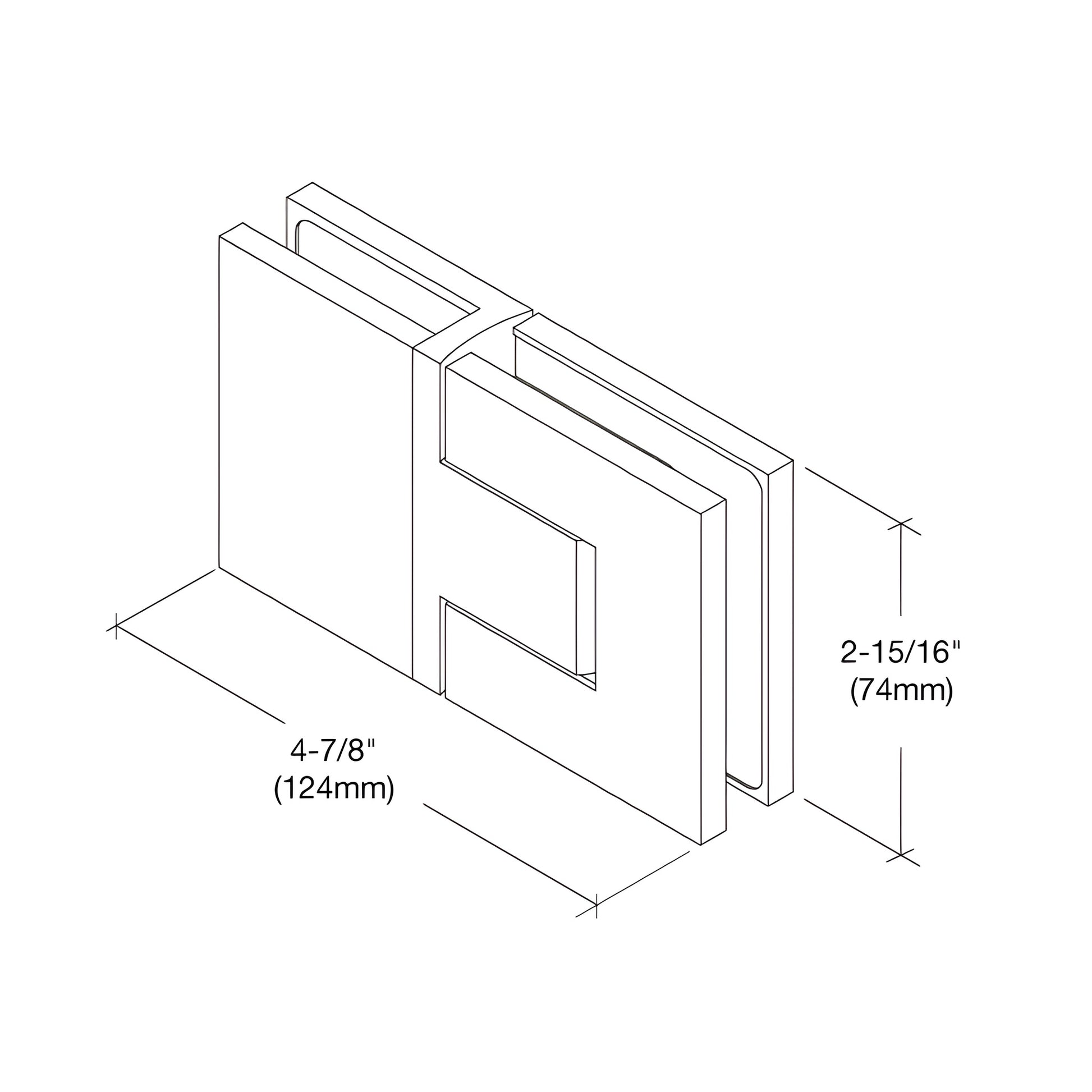

Height
2-15/16 in. (75 mm)
Material
Brass
Maximum Door Weight
110
Maximum Door Width
39 in. (991 mm)
Mounting Type
Glass To Glass
Opening Style
Swing(side)
Series
Bellagio
Width
4-7/8 in. (124 mm)
- Fits 5/16” to 3/8” (8 mm to 10 mm) glass
- Matching Bellagio Series brackets available
- Tight gaps minimize water infiltration for frameless glass shower doors
- Self-centers within 25° of the closed position
- Adjustable positive closure that is set after door installation
- Snap-on covers conceal mounting screws for a clean, modern look
- Rigorously tested to 100,000 cycles — 5× more than the industry standard
The modern Bellagio Series hinge delivers precision lines and concealed fasteners for a streamlined appearance on frameless glass shower doors. Designed for 5/16” to 3/8” (8 mm to 10 mm) glass, the hinge self-centers, offers an adjustable closing position accessible after hanging the door, and — when used in pairs — supports a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg). SKU: BEL380BBRZ.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor and video card settings.
Shop the Bellagio Series hinge (BEL380BBRZ) for durable, low-maintenance frameless shower door performance.
