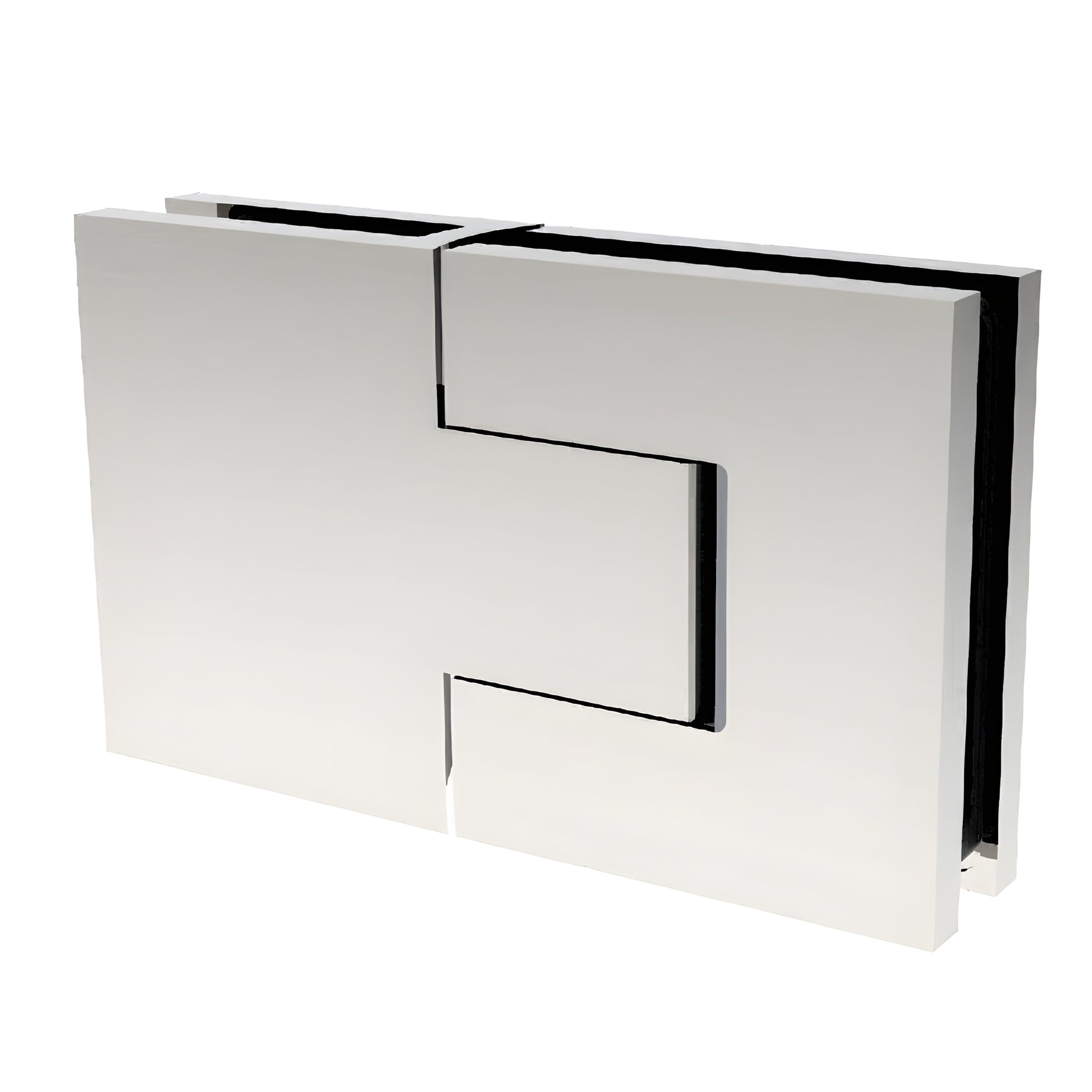

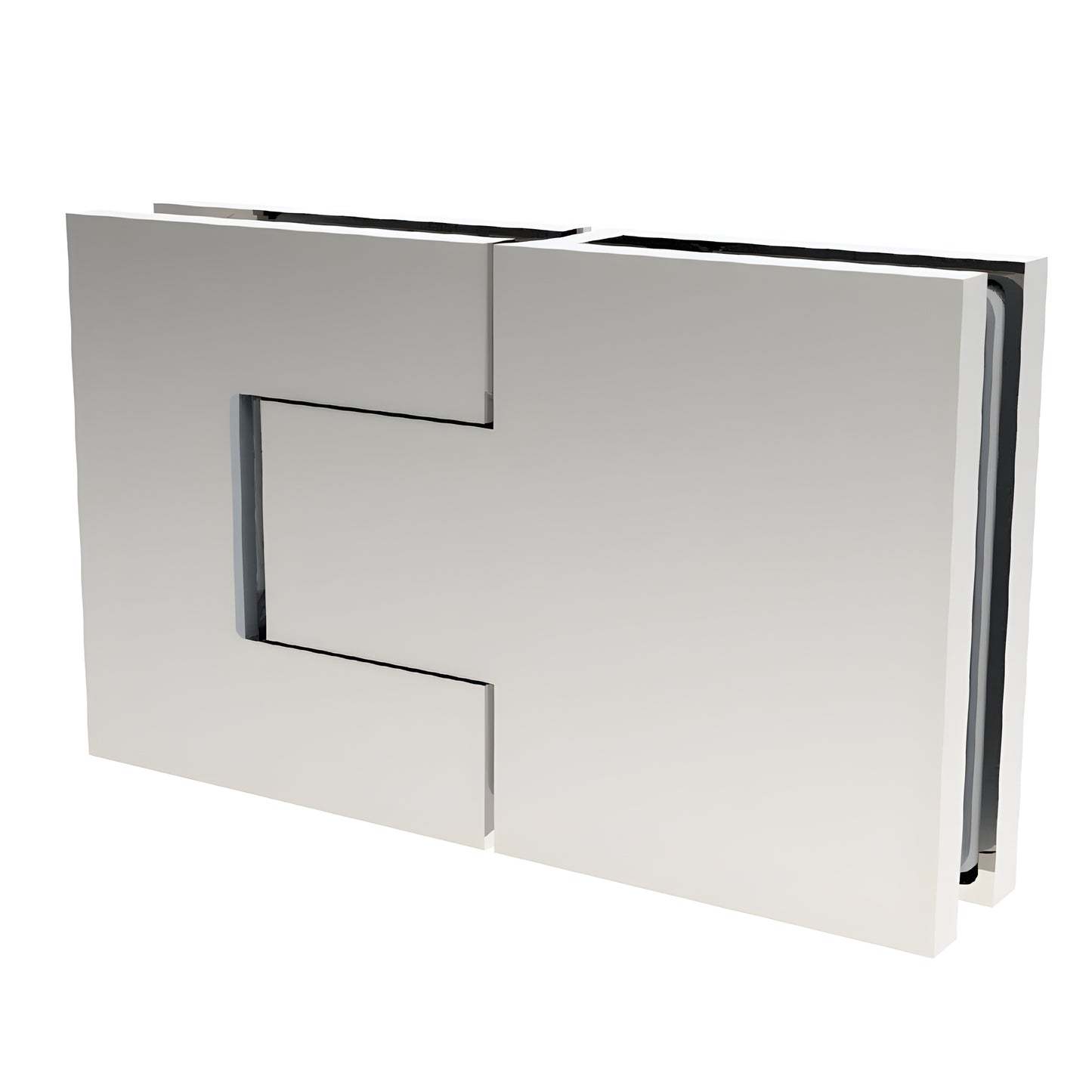

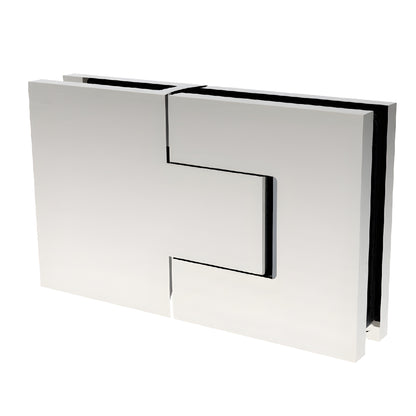

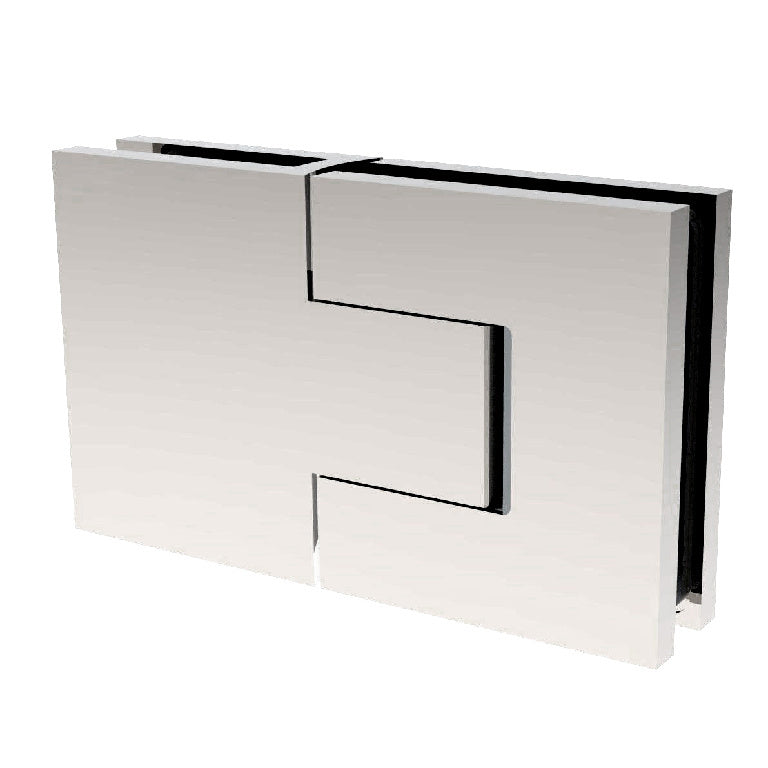

CRL Polished Chrome Bellagio Glass-to-Glass 180 Degree Hinge

Finish (5)

Mounting Type (2)

Glass To Glass
Wall Mount

Series (5)

Overview

SKU	BEL380CH
Sold as	1 Each
Design Style	Concealed/Premium
Edge Profile	Square
Enclosure Type	Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color:	Polished Chrome
Glass To Glass Angle	180
Glazing Thickness	5/16 in. To 3/8 in. (8 mm To 10 mm)
Height	2-15/16 in. (75 mm)
Material	Brass
Maximum Door Weight	110
Maximum Door Width	39 in. (991 mm)
Mounting Type	Glass To Glass
Opening Style	Swing(side)
Series	Bellagio
Width	4-7/8 in. (124 mm)

Description

Product Details

Works with 5/16” to 3/8” (8 mm to 10 mm) glass
Matching Bellagio Series Brackets Available
Tight Gaps Prevent Water Infiltration
Self-centers from 25 Degrees
Adjustable Positive Closure

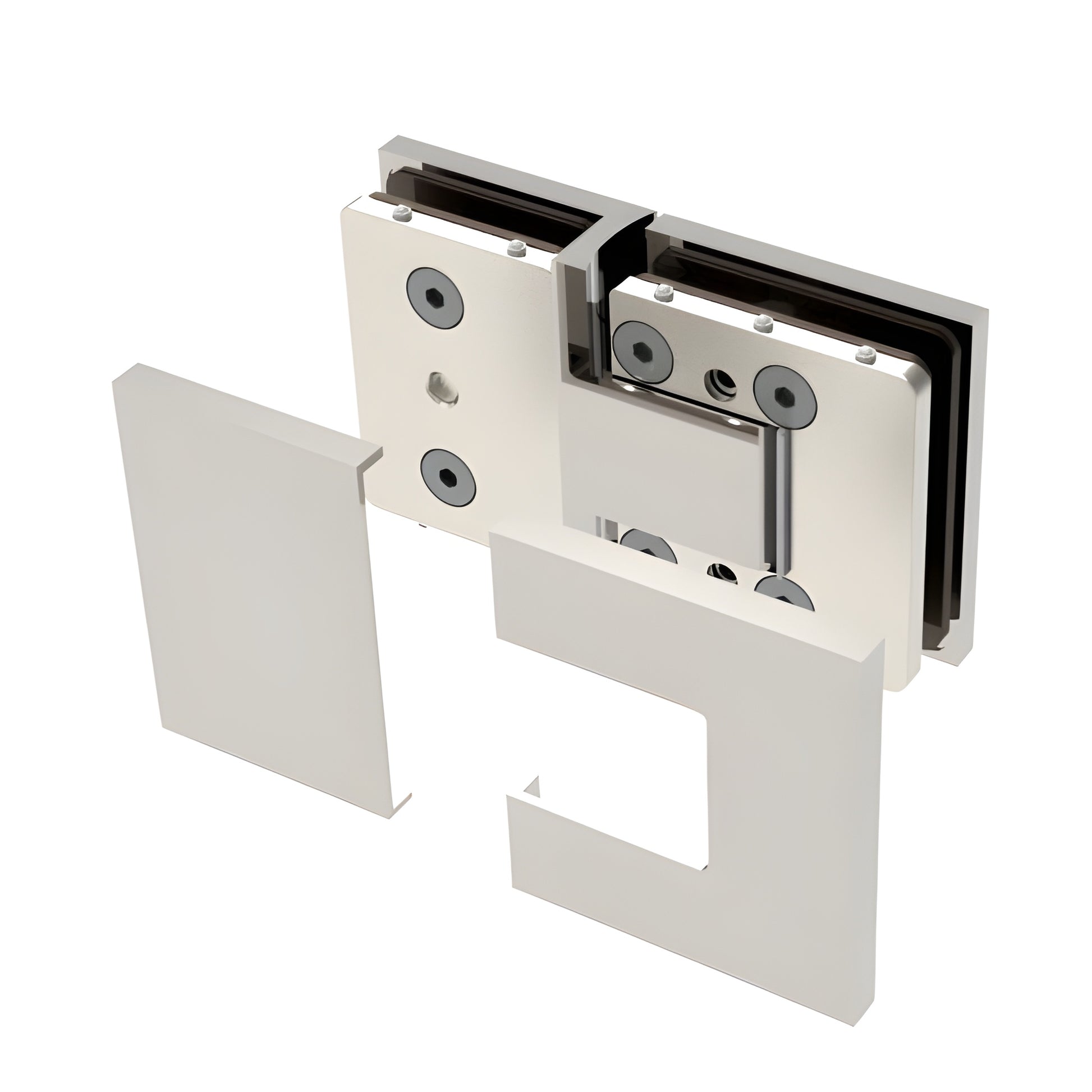

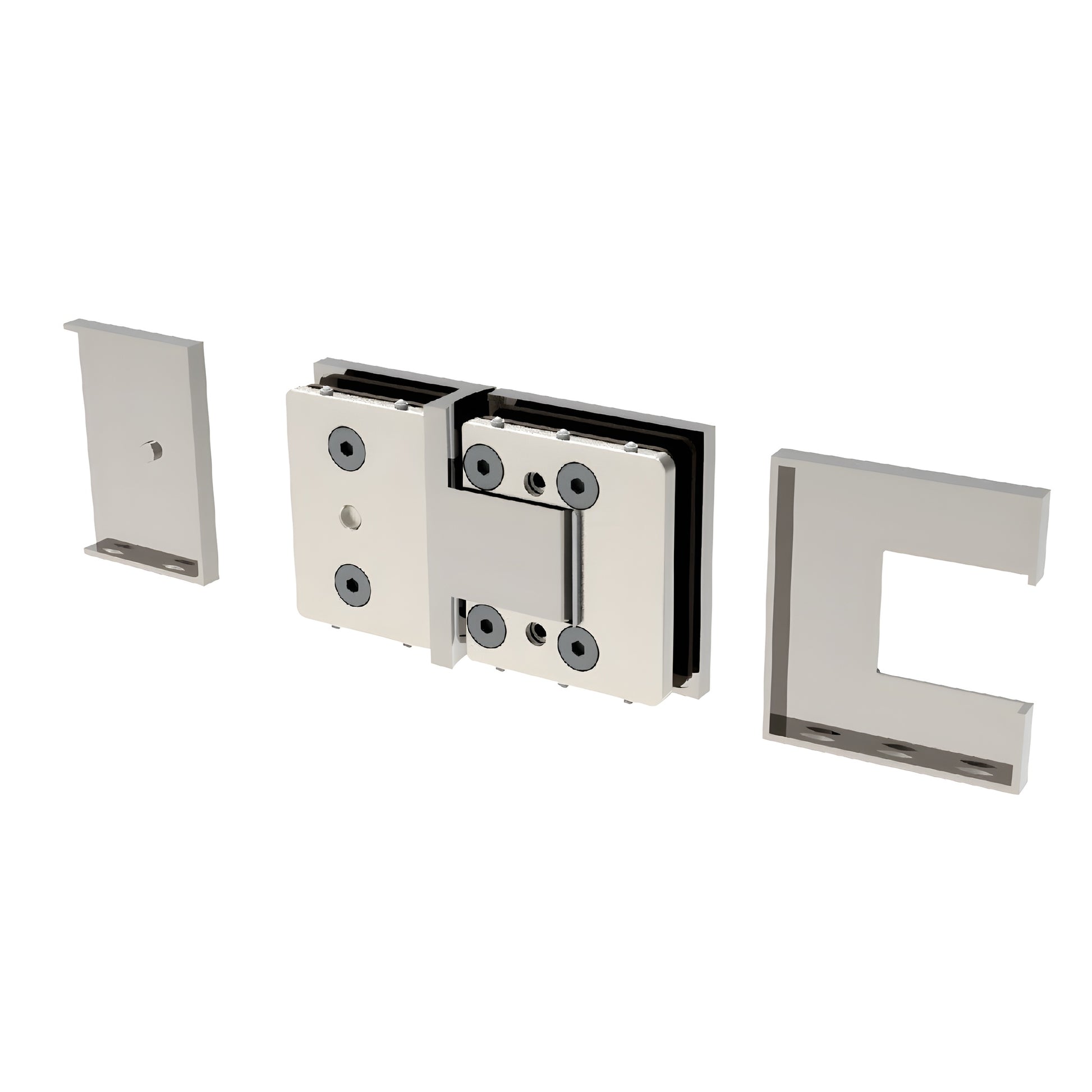

Snap-on Covers Conceal Screws
Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
