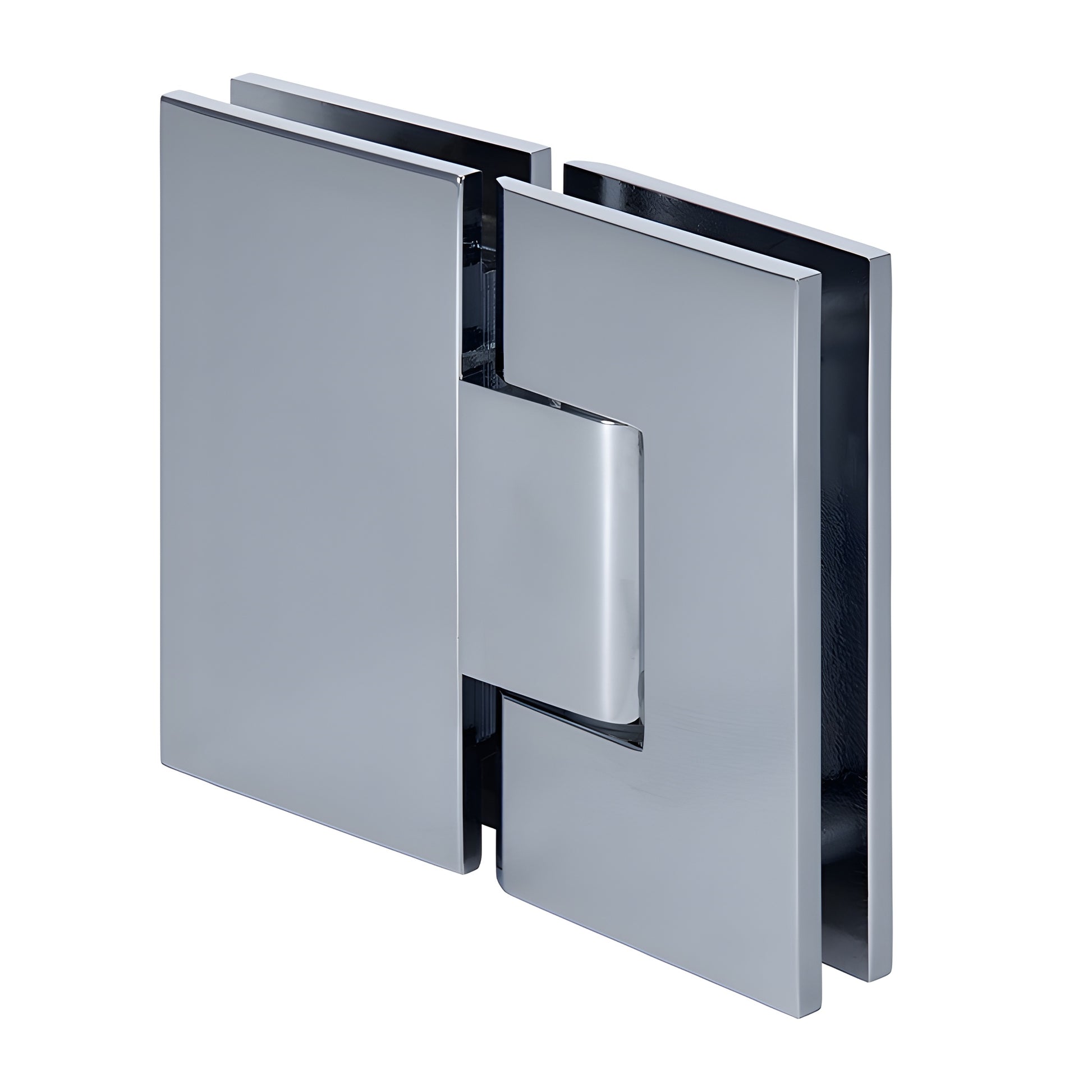

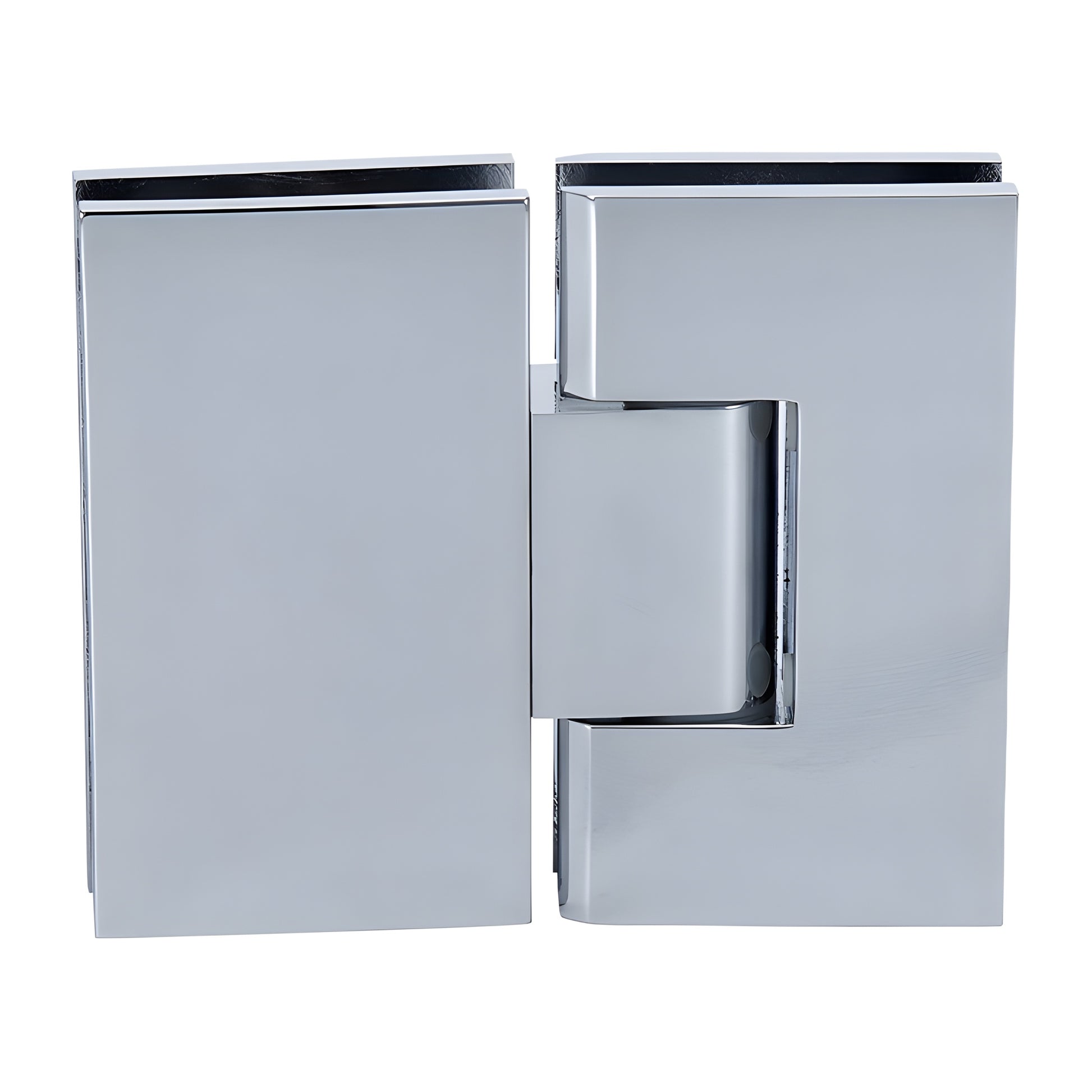

CRL Vienna 380 Polished Chrome 180° Adjustable Frameless Shower Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable 180° glass-to-glass option
• For monolithic tempered glass

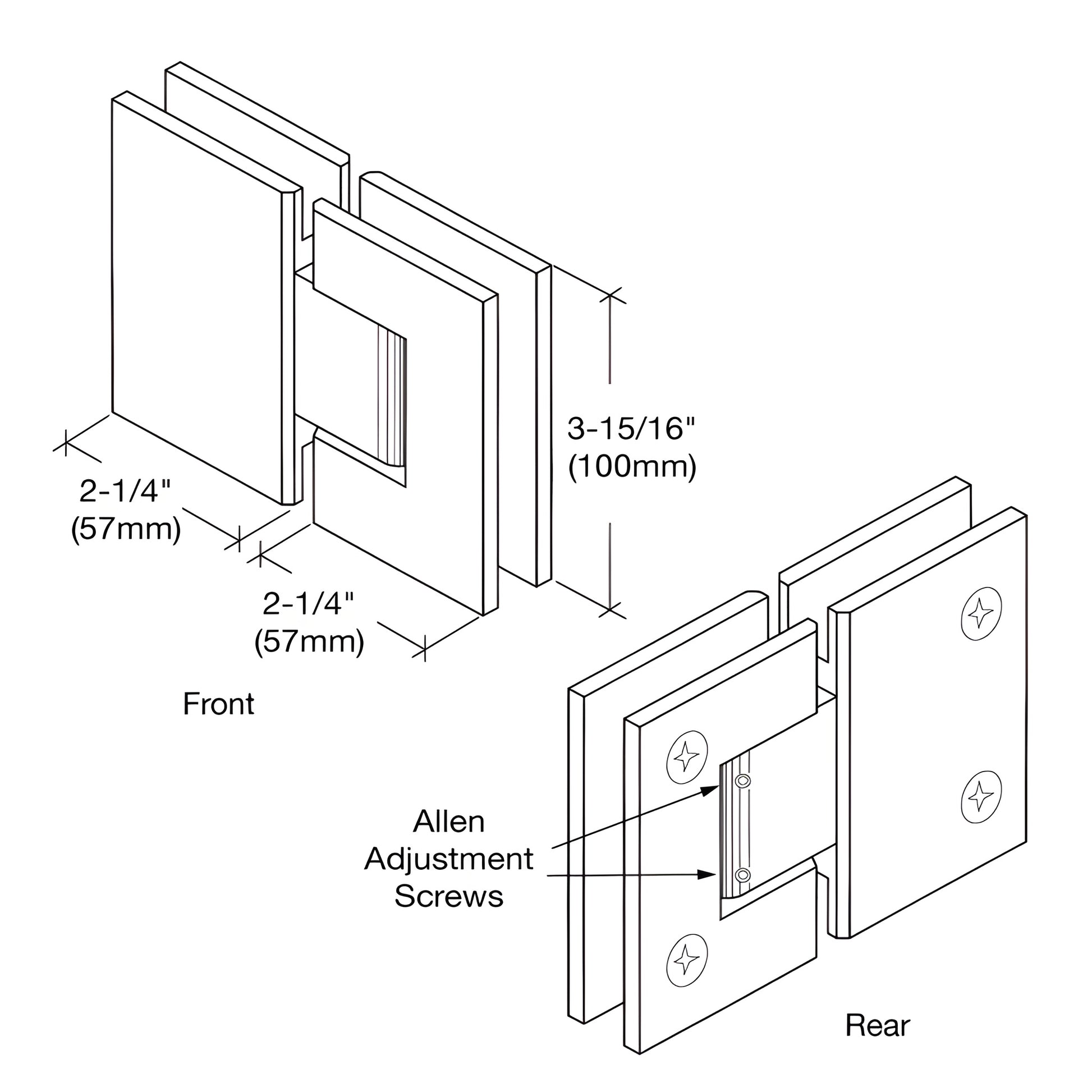

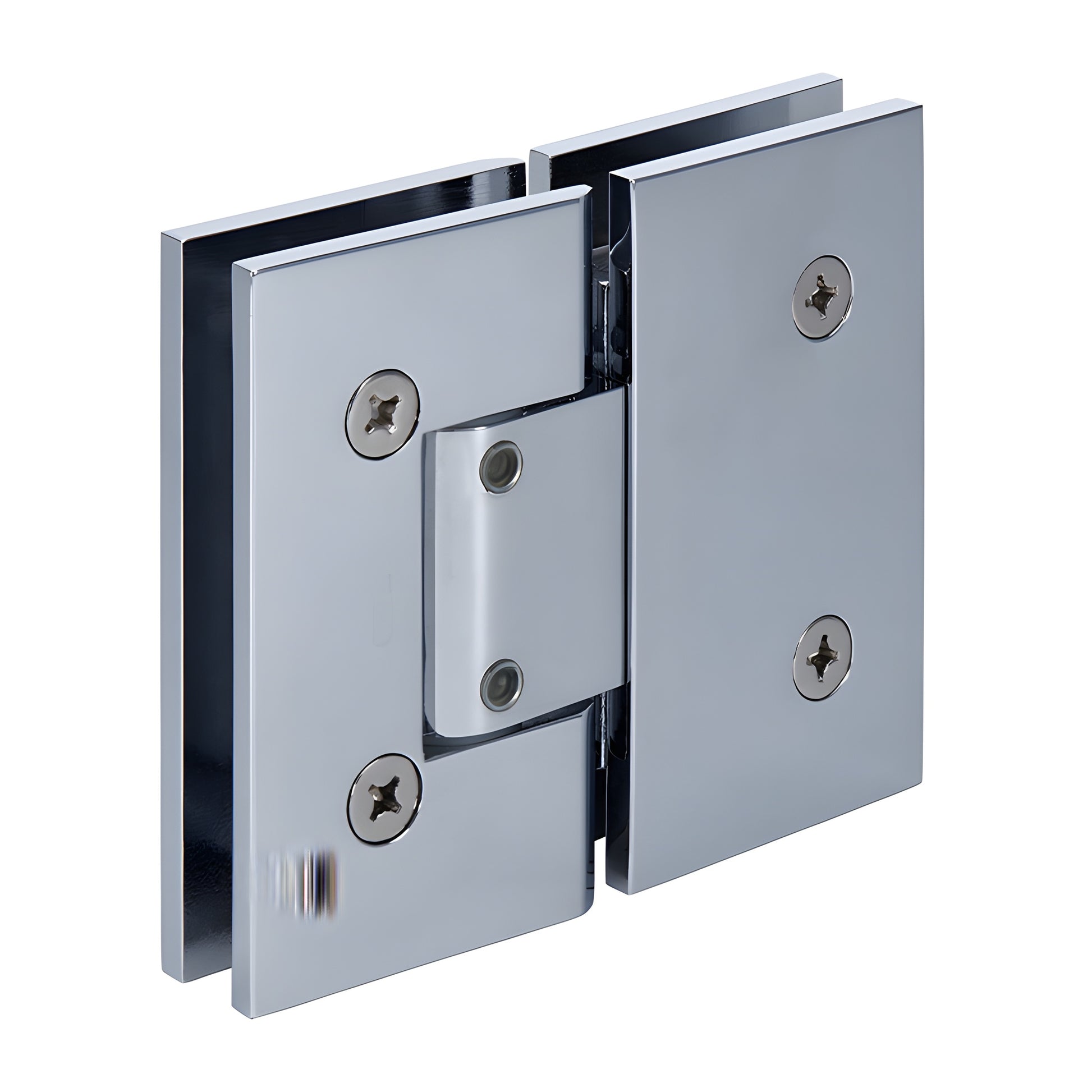

The CRL Adjustable Vienna Series upgrades the popular Vienna hinge into an easy-to-adjust shower door hinge. After the door is hung, loosen the Allen set screws, rotate the door to the desired closed position (up to 90°), then tighten the screws — the hinge self-centers to the set position. Doors can swing 90° inward and 90° outward (changing the factory set position reduces swing in that direction). For outward-pulling doors (clear door jamb), set the hinge to close 5° inside the shower for a snug jamb closure.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models ship with the 85° side active for a tighter 5° closure into the shower. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle walls. Specify the required angle (up to 45°) when the standard 5° pivot does not achieve the desired closure.

Load Capacity:

Using two hinges with 3/8"–1/2" glass (10–12 mm): holds up to 110 lbs (50 kg), max door width 36" (914 mm).

Using three hinges with 3/8"–1/2" glass (10–12 mm): holds up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Adjustable to any angle up to 90° without removing door

Construction: Solid brass

Hinge Swings: 90° in and 90° out (factory set position)

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions
