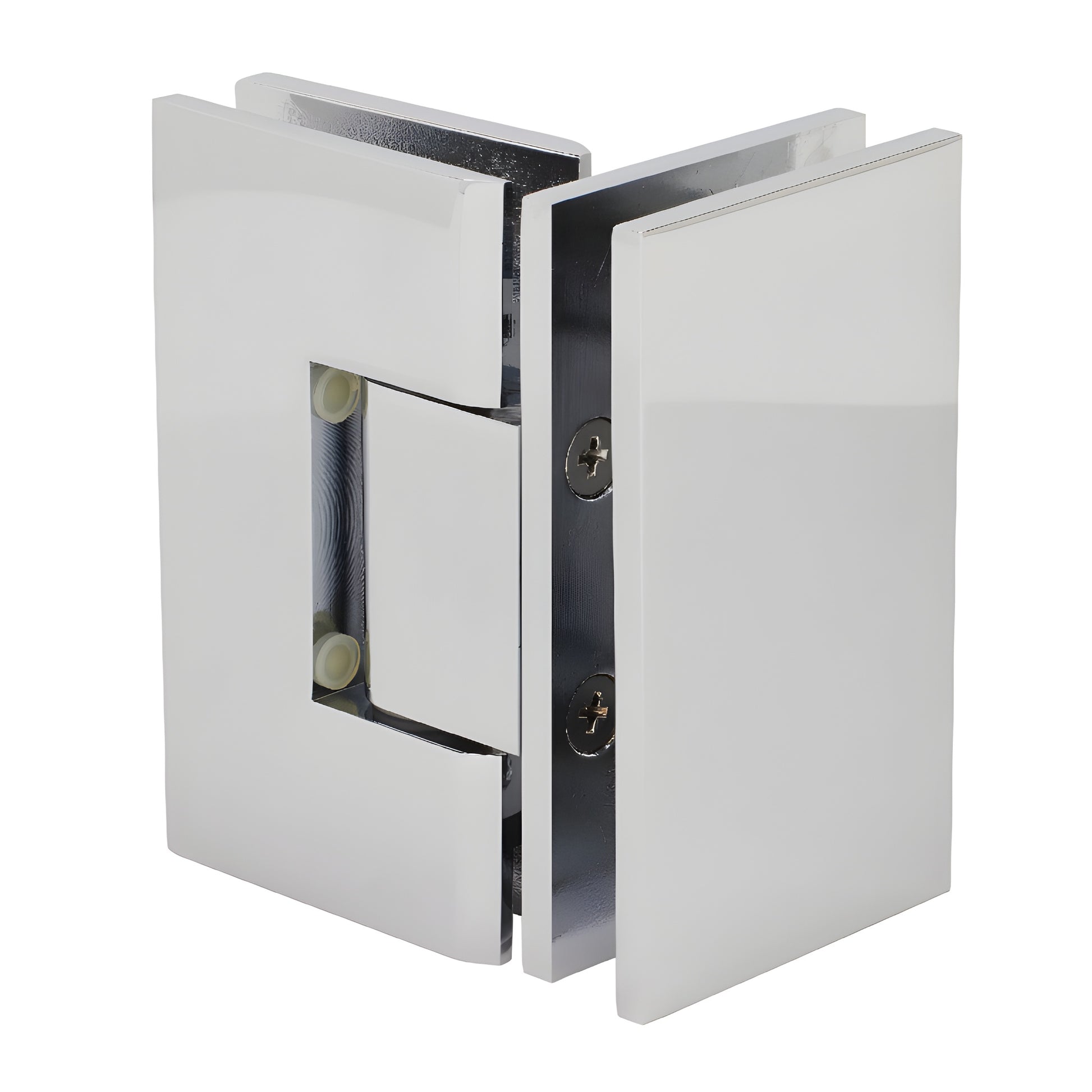

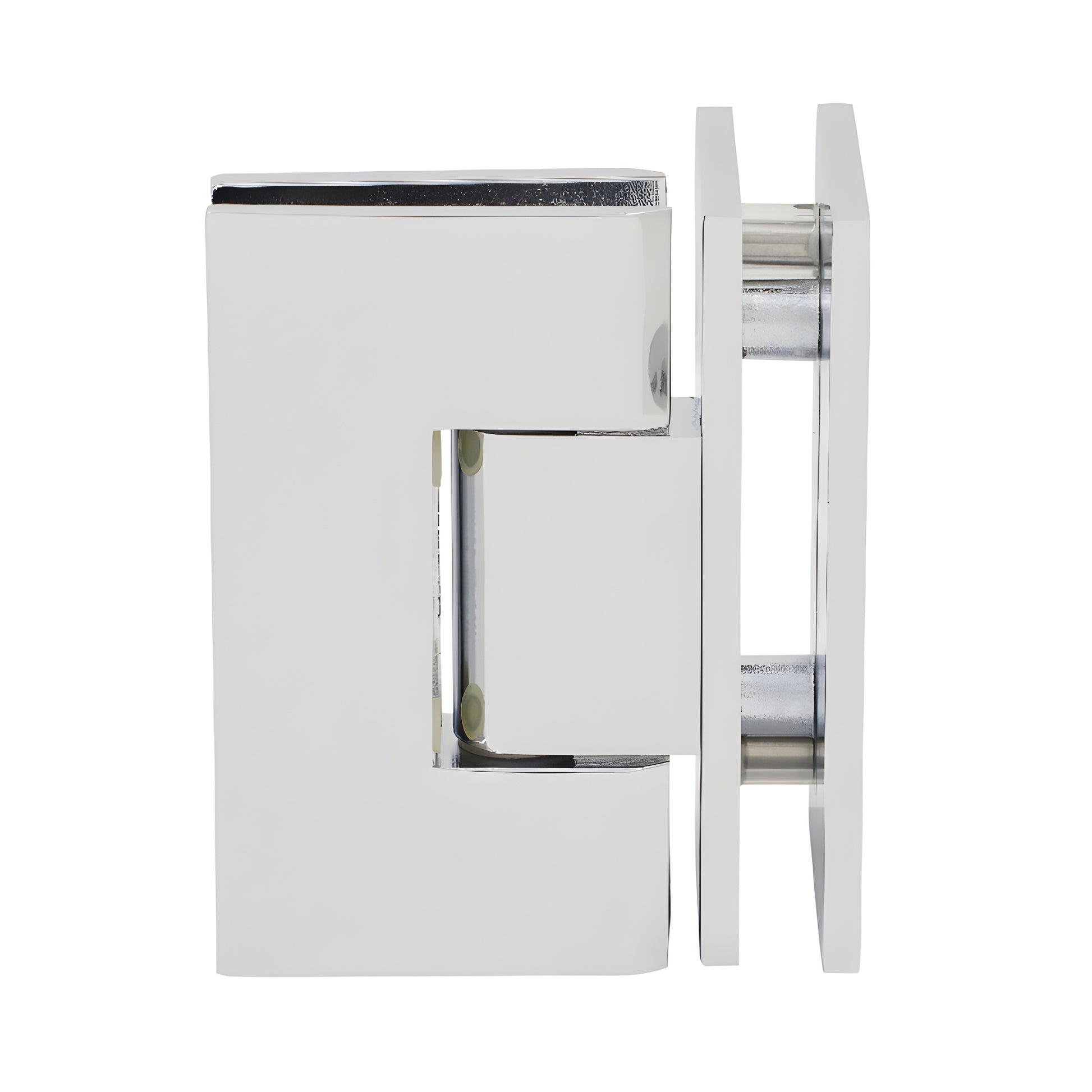

CRL Vienna 092 Polished Chrome 90° Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• 90° glass-to-glass shower door hinge for frameless installations
• Available in several durable finishes
• 3 Year Warranty
• Use with monolithic tempered safety glass

CRL Vienna Hinges are heavy-duty shower door hinges engineered for wider, heavier frameless shower doors that standard hinges can't reliably support. Dual internal steel pins provide two mounting templates: leave pins in place for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive cut-outs. These features make the Vienna Hinge a versatile brass shower hinge for custom glass shower doors and renovation projects.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models are factory set to 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to change the angle for improved door closing on frameless shower doors.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (up to 45°). Specify the required angle when wall or jamb conditions prevent a true 90° installation.

Load Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (glass-to-glass)
Closing Type: Self-centering when within 15° of the closed position
Cut-Out Required: Except V1E092 — requires cut-out for door plus two holes for fixed panel (SKU: V1E092CH)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales — Shower Door Department for finish options and custom pivot pins.
