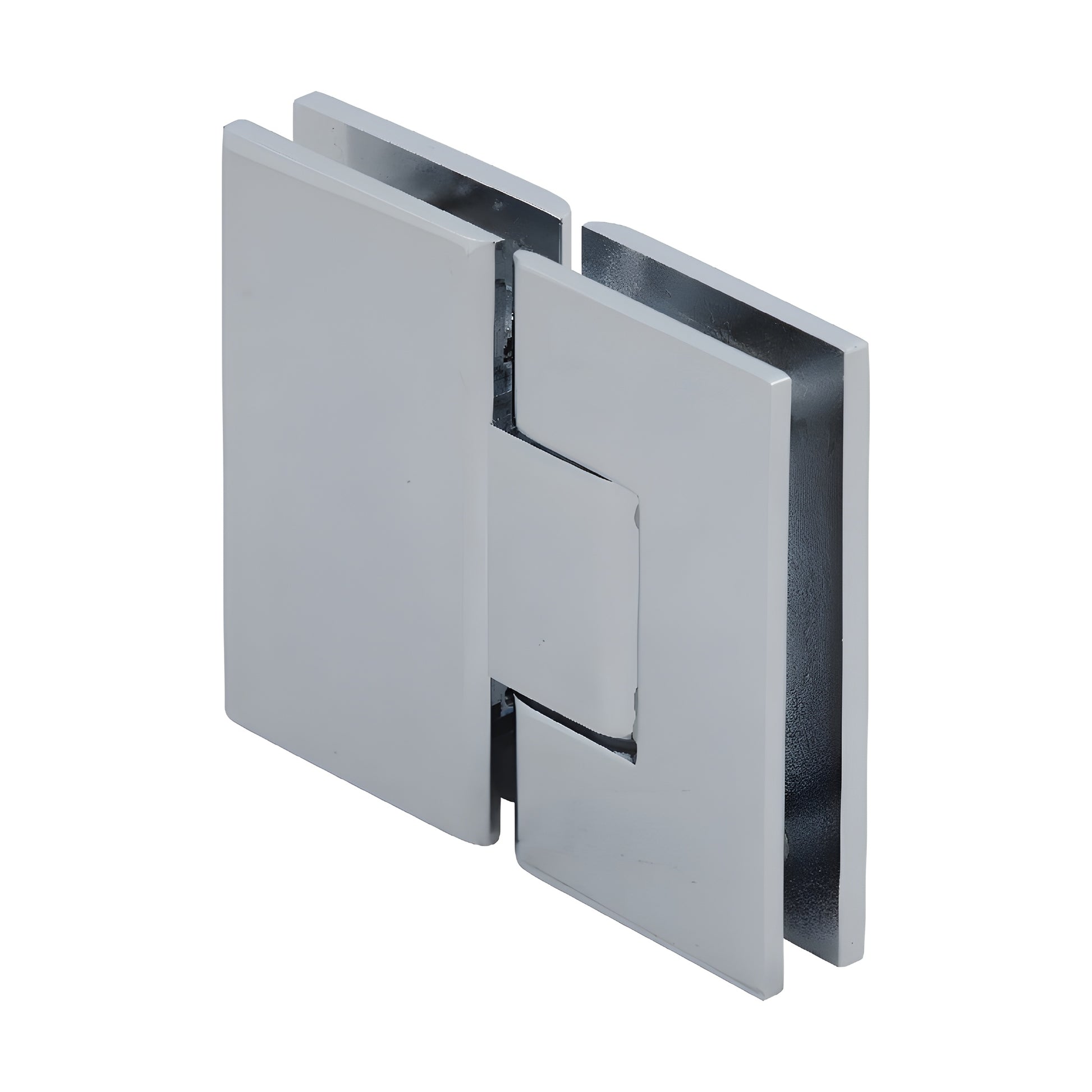

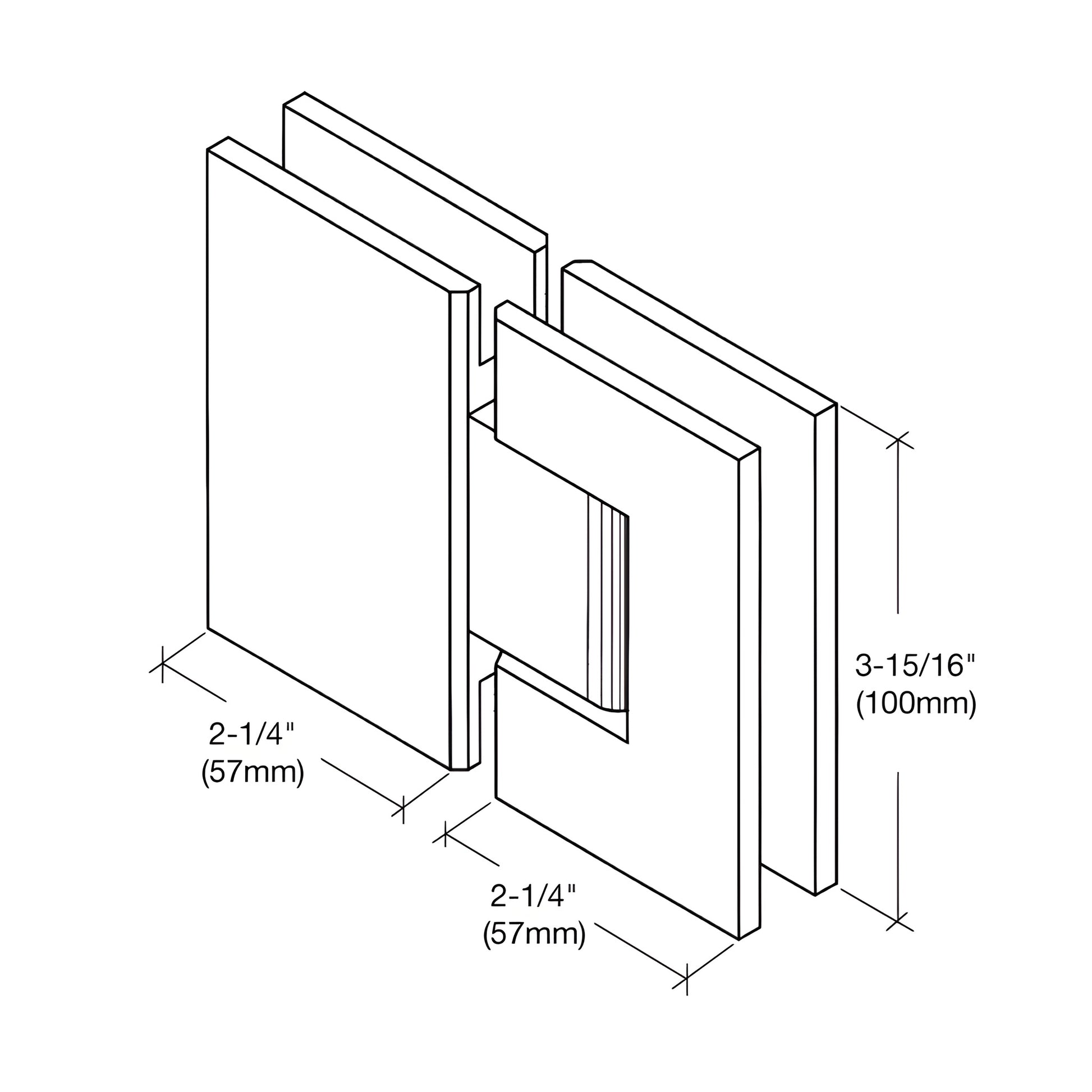

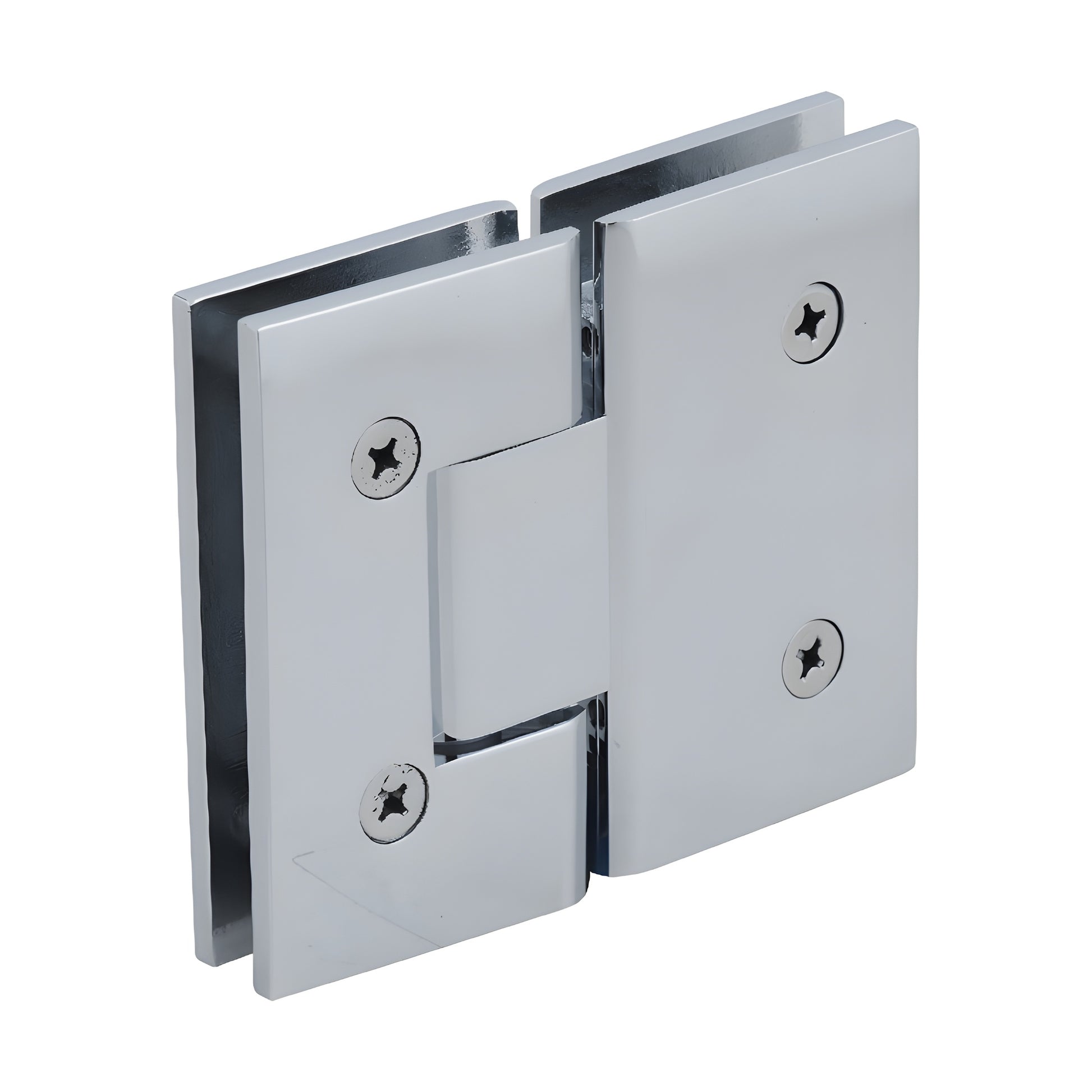

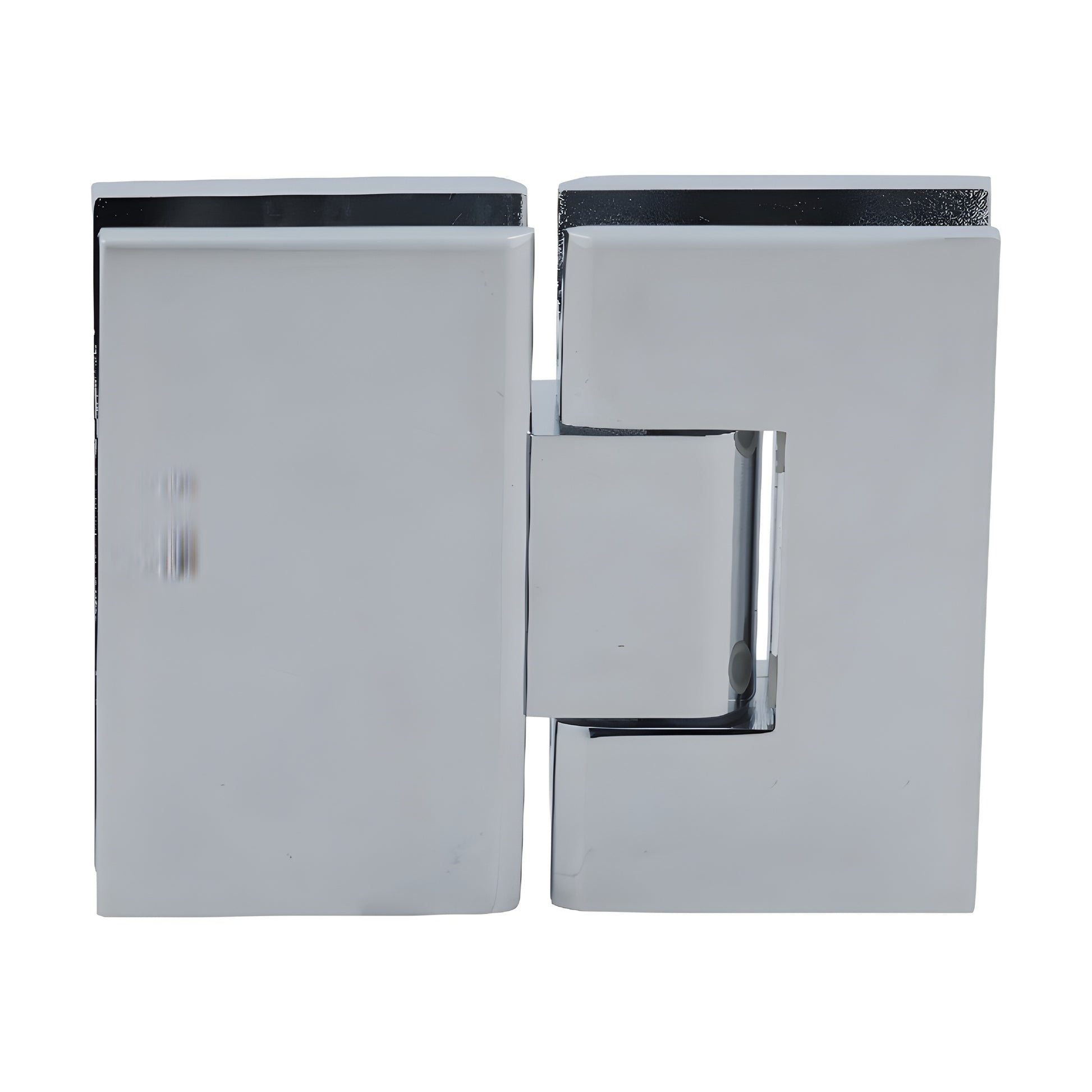

CRL Vienna 180° Chrome Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable finishes
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E180CH) provide a heavy-duty, long-lasting solution for wider or heavier shower doors when traditional hinges are insufficient. Built from solid brass, Vienna Hinges feature two internal steel pins that offer mounting template options: leave pins in for CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with CRL or some competitive rectangular, square-corner cut-outs.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; rotate the pin to enable the 85° side for a 5° tighter closure into the shower interior.

Custom Pivot Pins: Specify a custom pivot pin for off-angle installations (up to 45°) when the standard adjustment does not achieve the desired door closing position.

Load Capacity:

• Using two hinges with 3/8"–1/2" glass: holds up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: holds up to 140 lbs (63 kg); maximum door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See product template (except V1E092, which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales Shower Door Department for finish and customization options.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Always use the template provided with this hinge—CRL cut-out dimensions may differ from other
