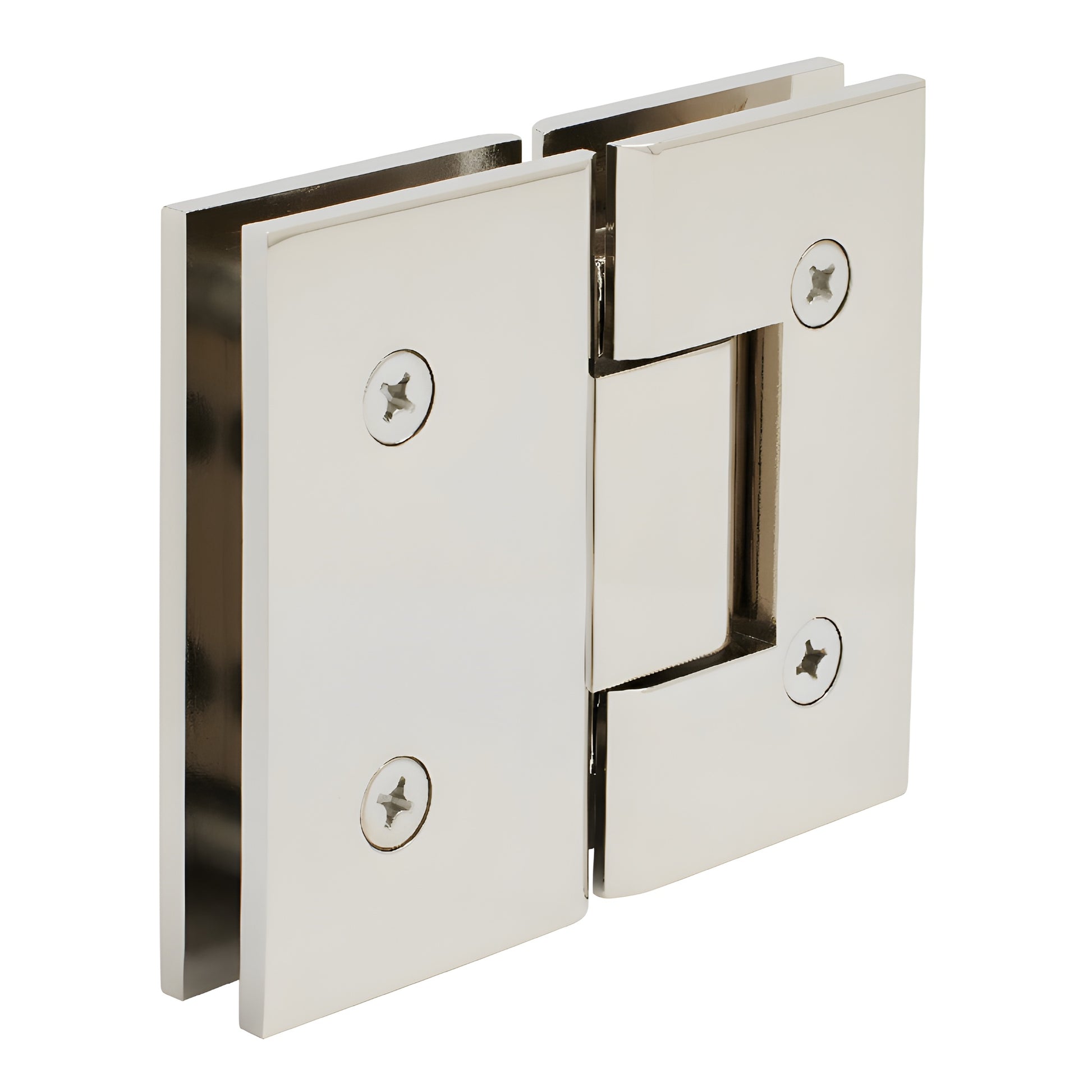

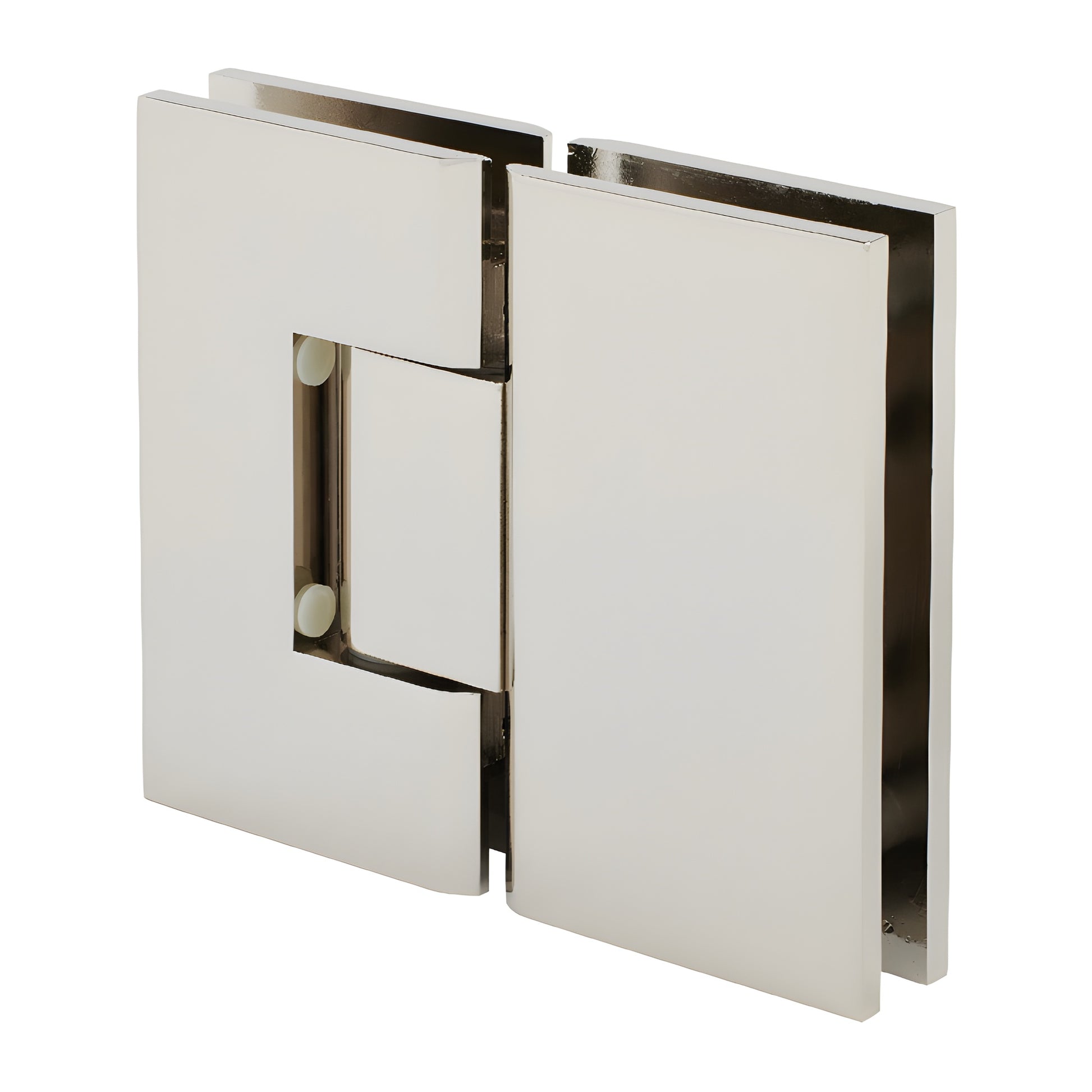

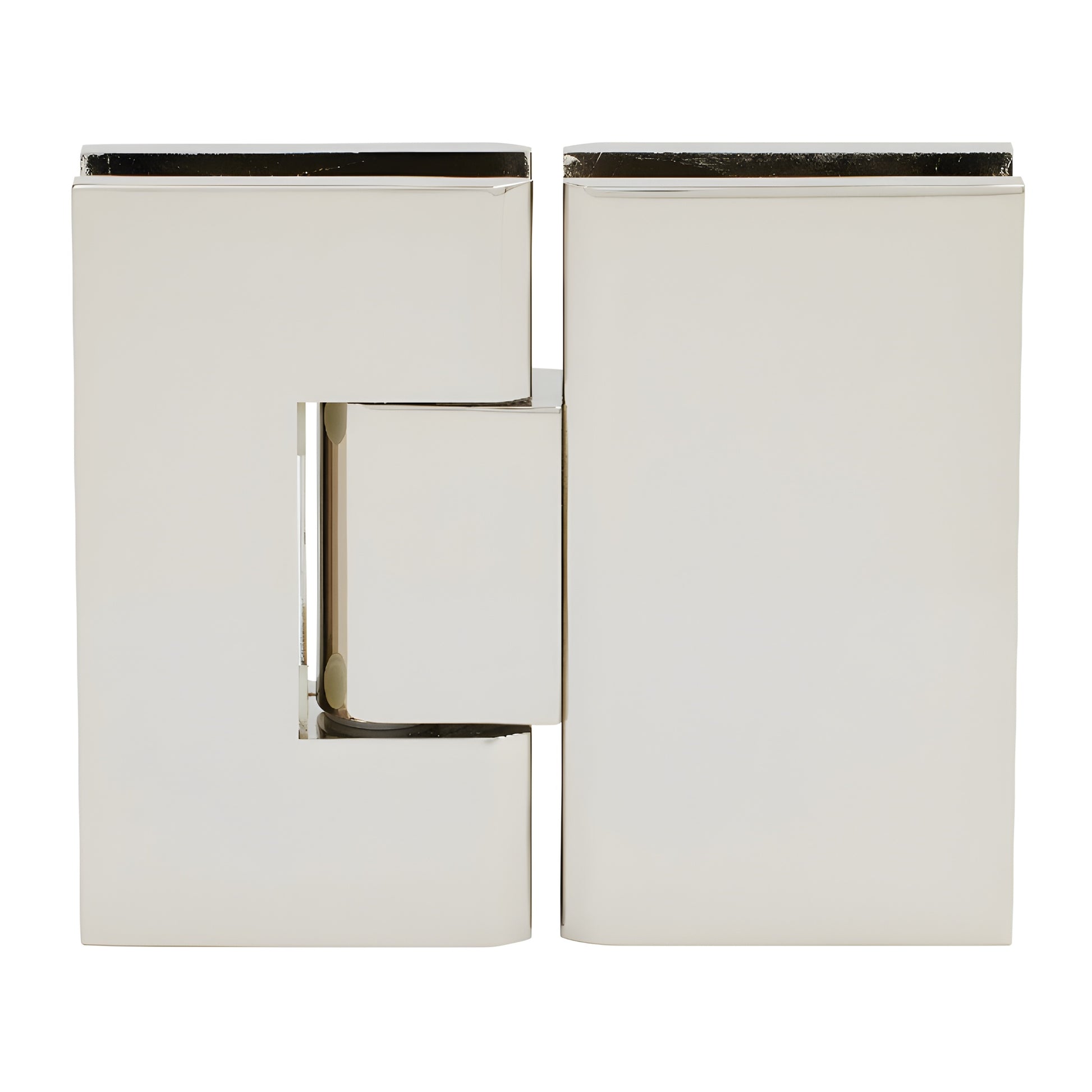

CRL Vienna 180 Series Glass-to-Glass Shower Hinge Polished Nickel

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 Year Warranty
• 180 Degree glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E180PN) are heavy-duty brass shower door hinges engineered for wider, heavier tempered glass doors where traditional hinges fail. Two internal steel pins provide template flexibility: leave pins in for CRL "mouse-ears" cut-outs or remove pins to fit CRL and some competitive rectangular, square-corner cut-outs—ideal for tempered glass shower enclosures and frameless shower door installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other. Standard models ship set to 90°; pre-set models ship at 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle walls—specify up to 45° when the standard 5° adjustment is insufficient.

Load Capacity:

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable brass shower door hinge)
Hinge Swings: 90° in and 90° out (180° glass-to-glass hinge)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See product template (except V1E092 — requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for specialty finishes or custom pivot pin angles.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door
