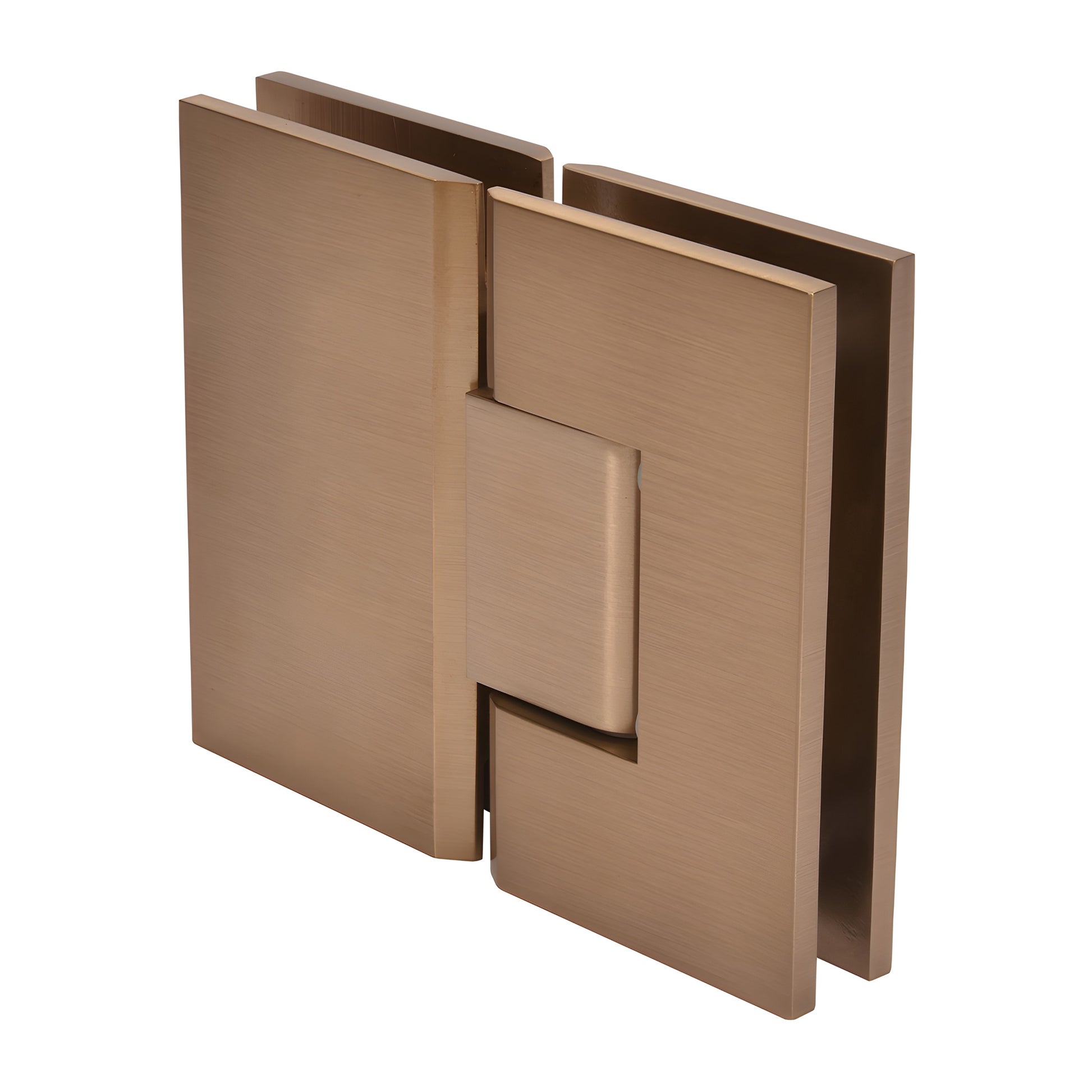

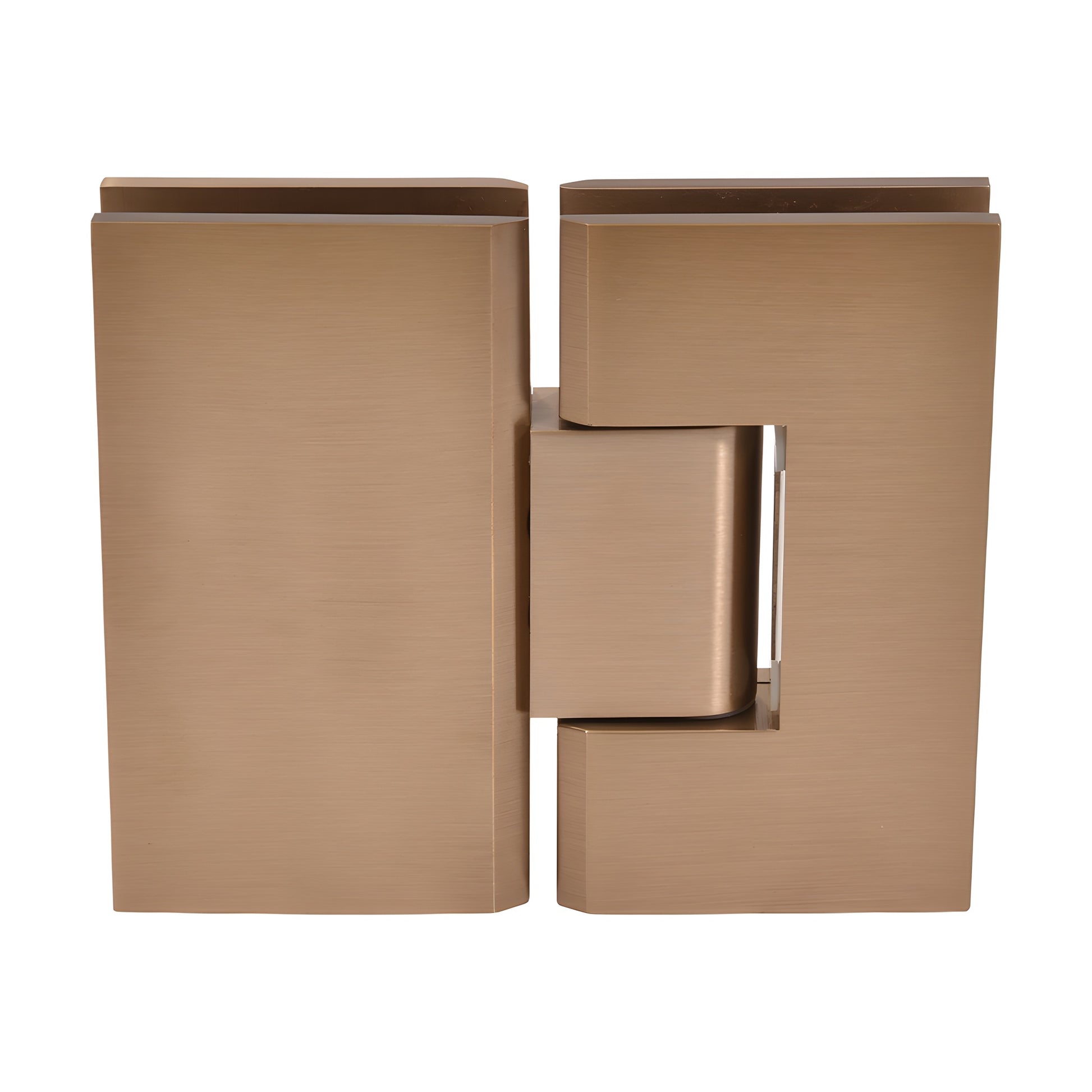

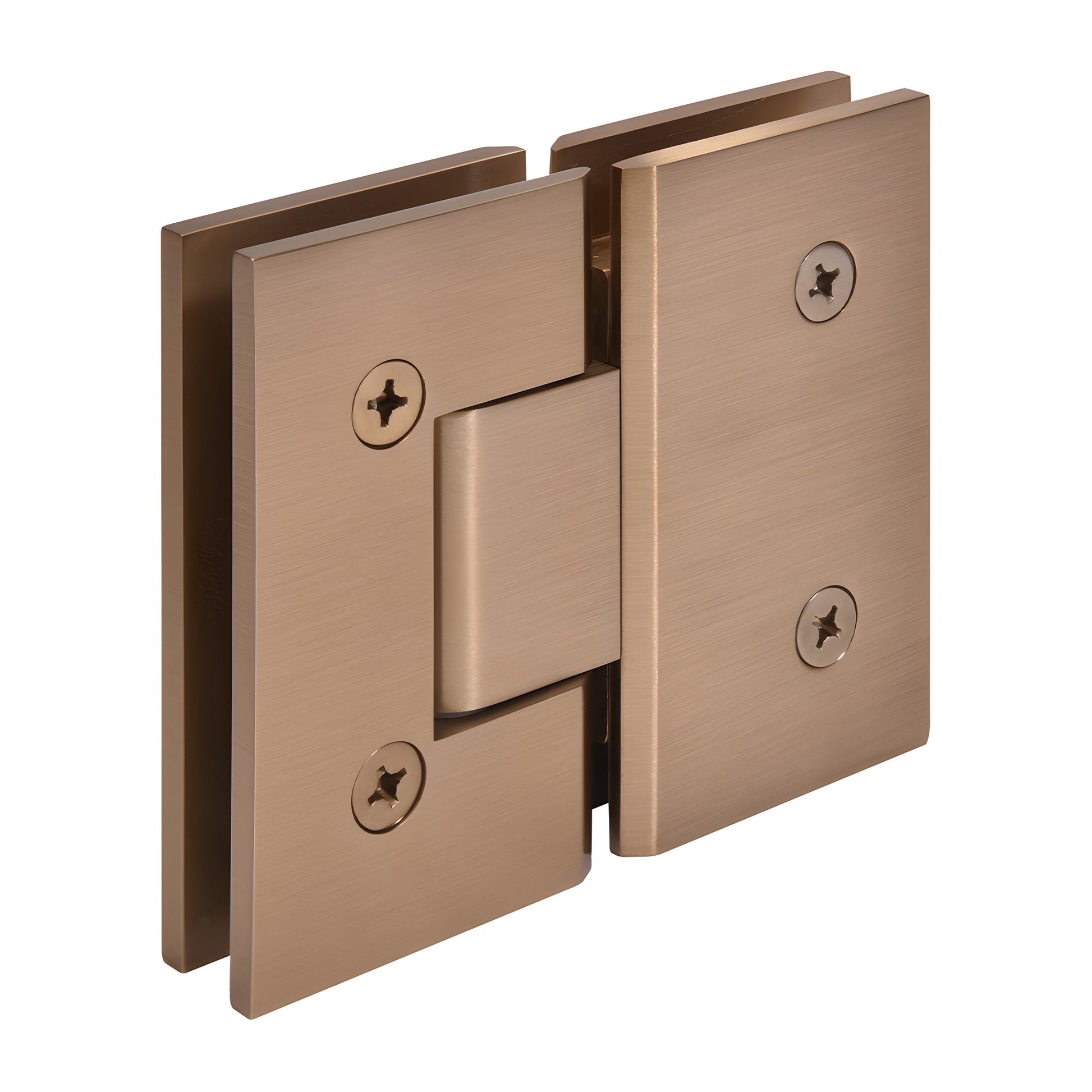

CRL Vienna 180° Glass-to-Glass Shower Hinge - Dark Brushed Bronze

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several durable decorative finishes
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges provide a heavy-duty shower door hinge solution for wider, heavier glass doors when standard hinges are insufficient. Two internal steel pins let you choose between safety-focused "mouse-ears" cut-outs (pins installed) or increased adjustability for rectangular/square corner cut-outs (pins removed). The Vienna Hinge can also fit some competitive rectangular cut-outs when pins are removed.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

Custom Pivot Pins: Available to accommodate off-angle installations (specify up to 45°) when the standard 5° adjustment is insufficient.

Load Capacity

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg), max door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg), max door width 36" (914 mm)

Specifications:

• Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering when within 15° of closed position
• Cut-Out: Cut-out required (except V1E092 — which requires cut-out for door and two holes for fixed panel)
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department for specialty finishes and lead times.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may not match
