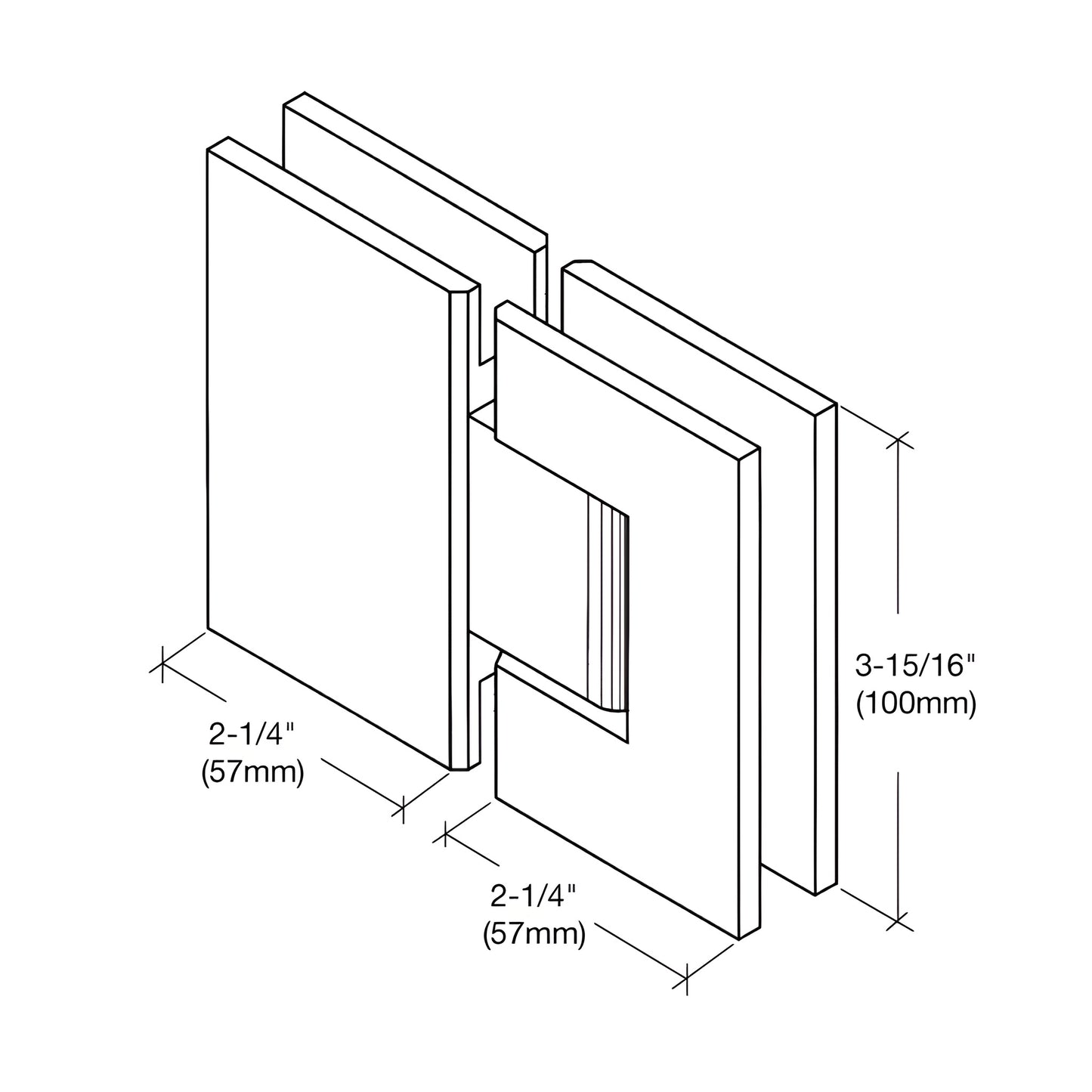

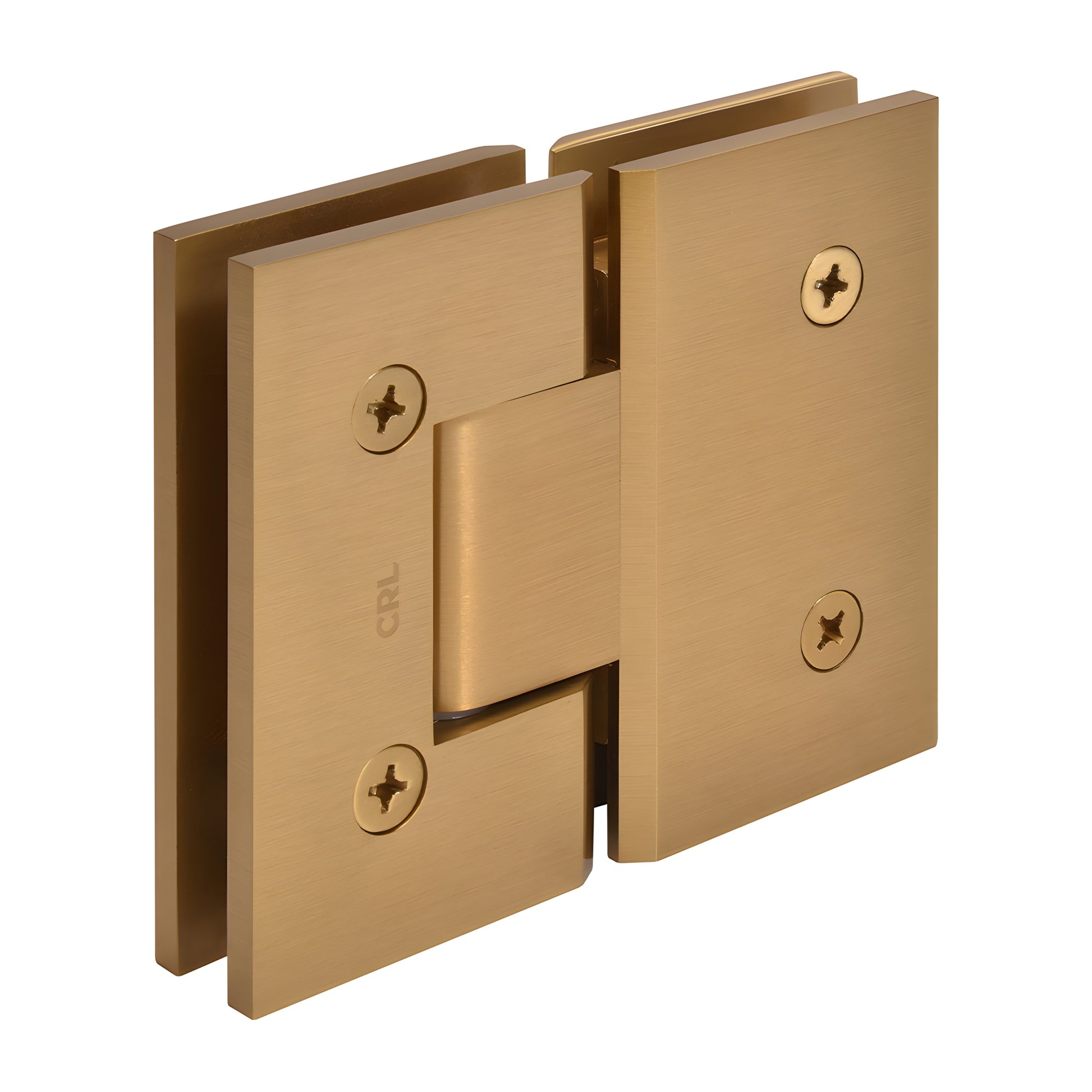

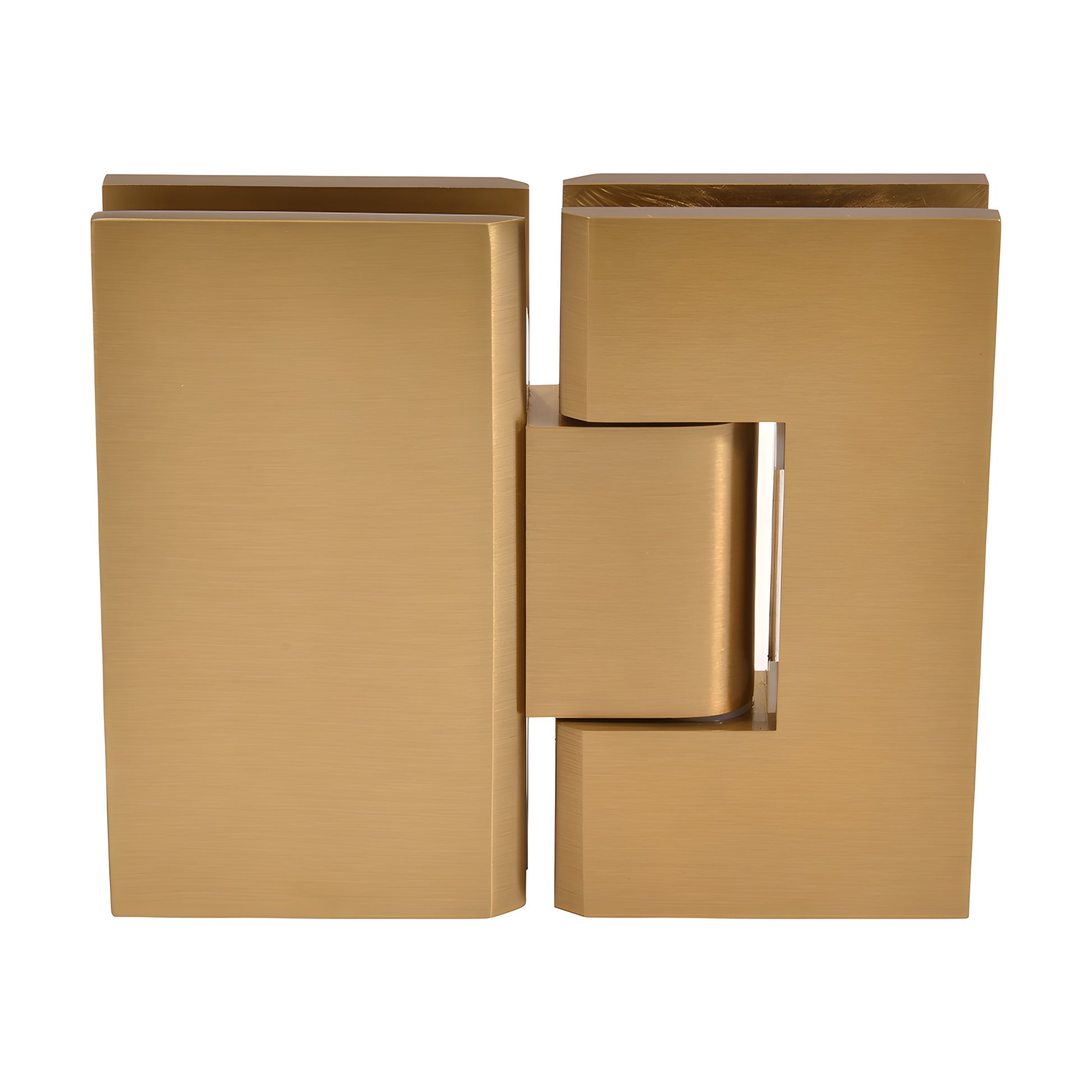

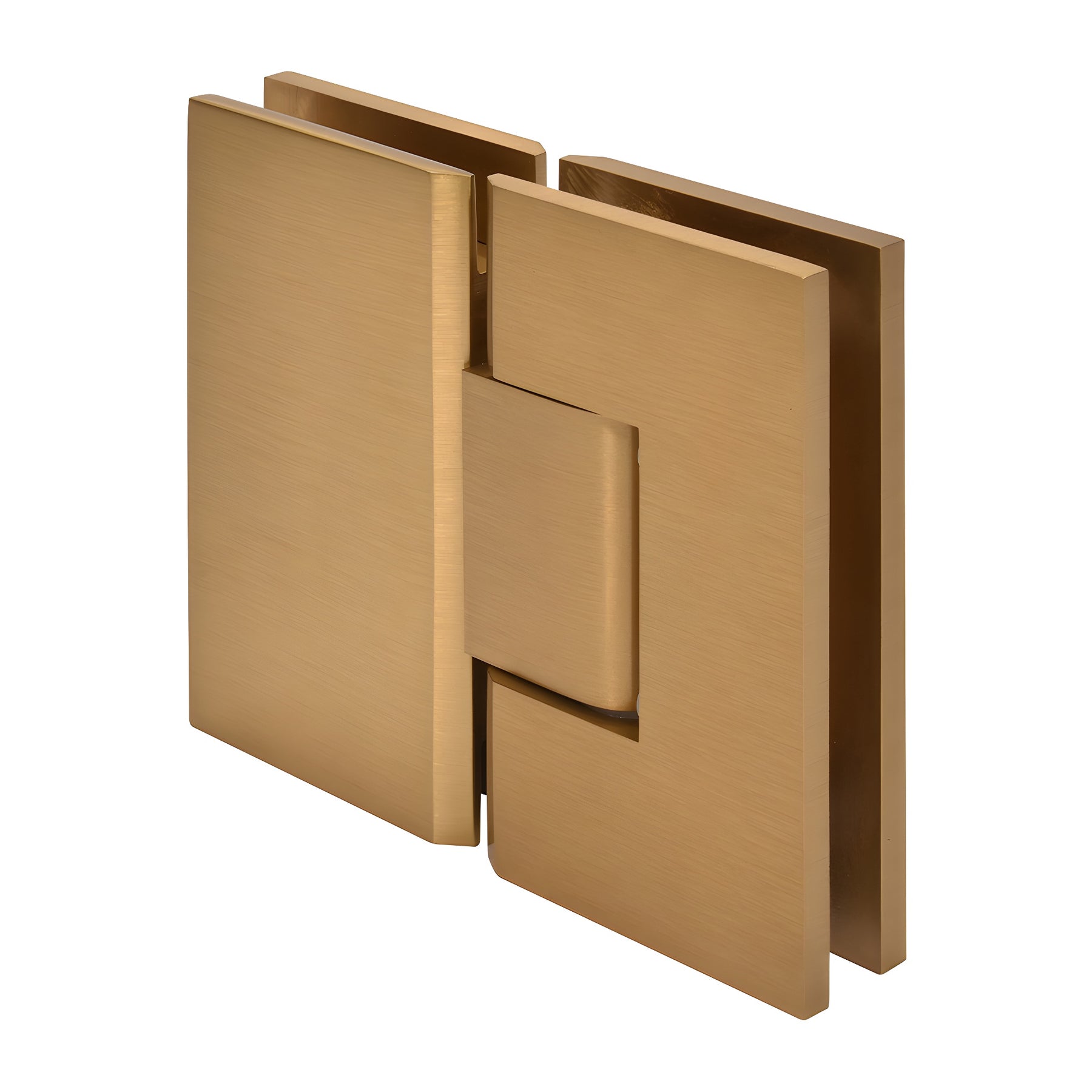

CRL Vienna 180 Gold Glass-to-Glass Hinge for Frameless Shower Door

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 Year Warranty
• 180 Degree glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU V1E180MG) are heavy-duty glass shower door hinges engineered for wider, heavier frameless shower doors that standard hinges can’t support. Two internal steel pins provide mounting template options: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and to fit CRL or some competitive rectangular, square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin with a 90° side and an 85° side. Standard models ship with the 90° side active. Pre-set models ship at 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to activate the alternate setting.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify the required angle up to 45°) — useful when walls or jambs are not a true 90°.

Load Capacity:

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg), maximum door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg), maximum door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long-life durability
Hinge Swings: 90° in and 90° out (180° total glass-to-glass swing)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request — contact CRL Technical Sales Shower Door Department for specialty solid brass finishes and matching hardware options.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge — cut-out dimensions for CRL hinges may not match other brands.
