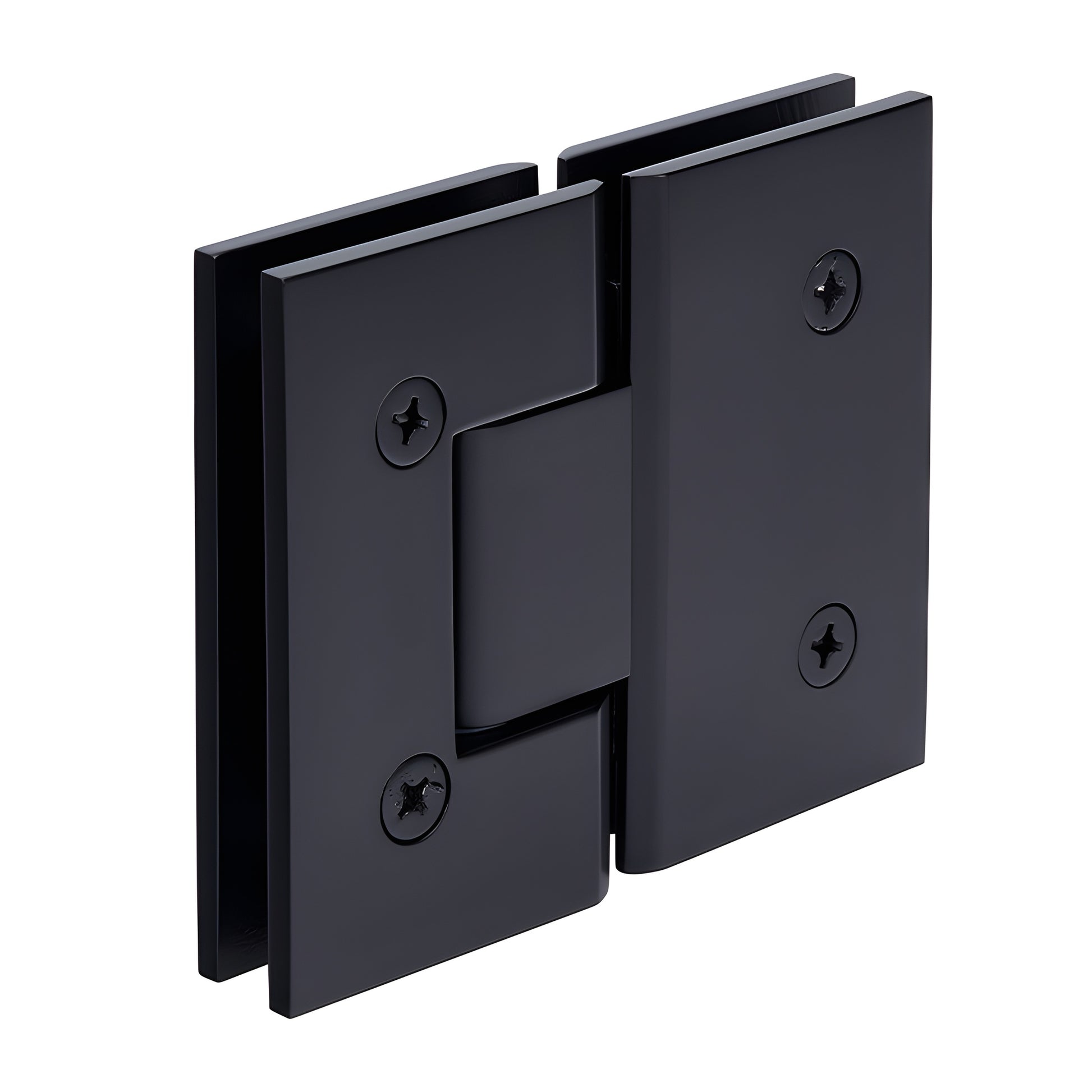

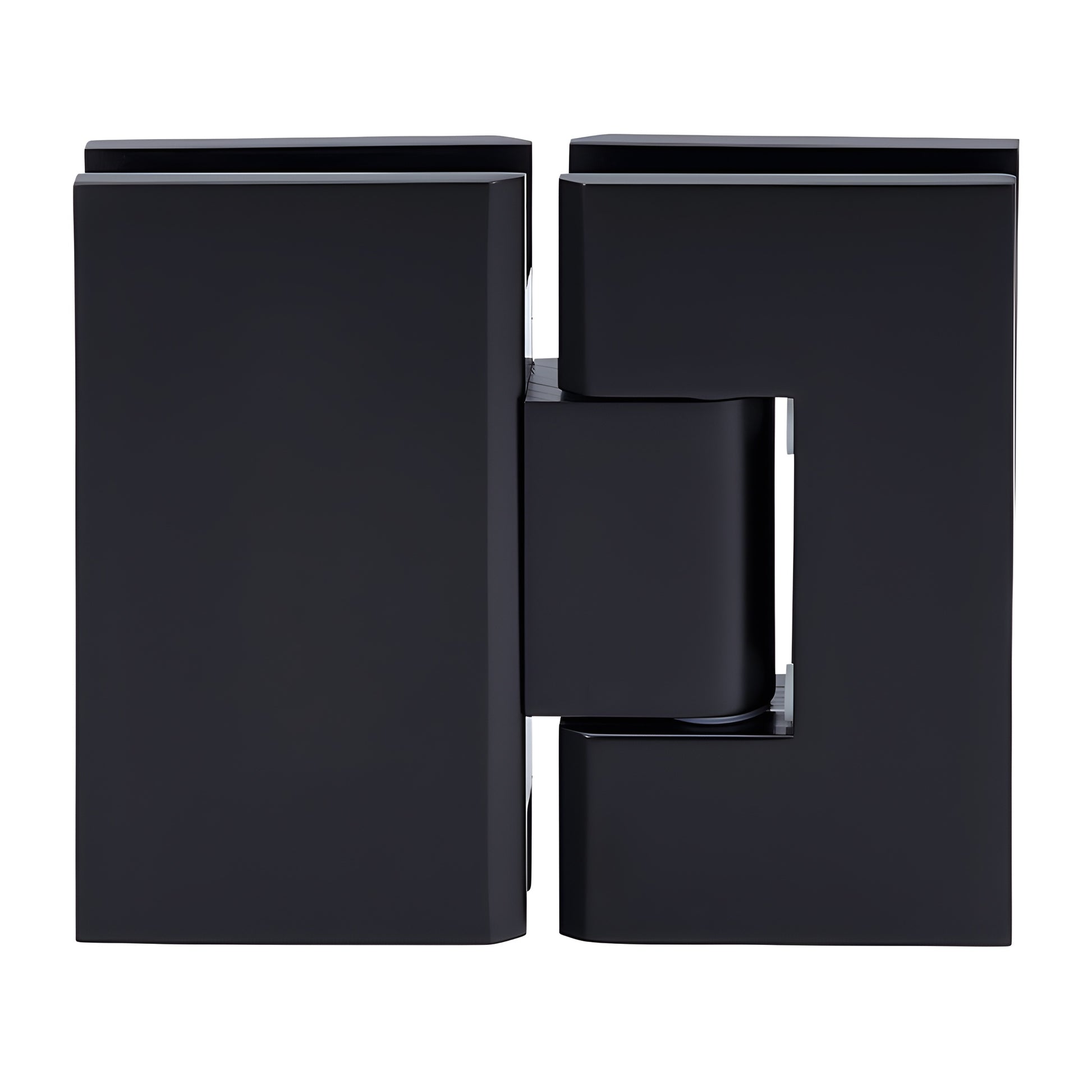

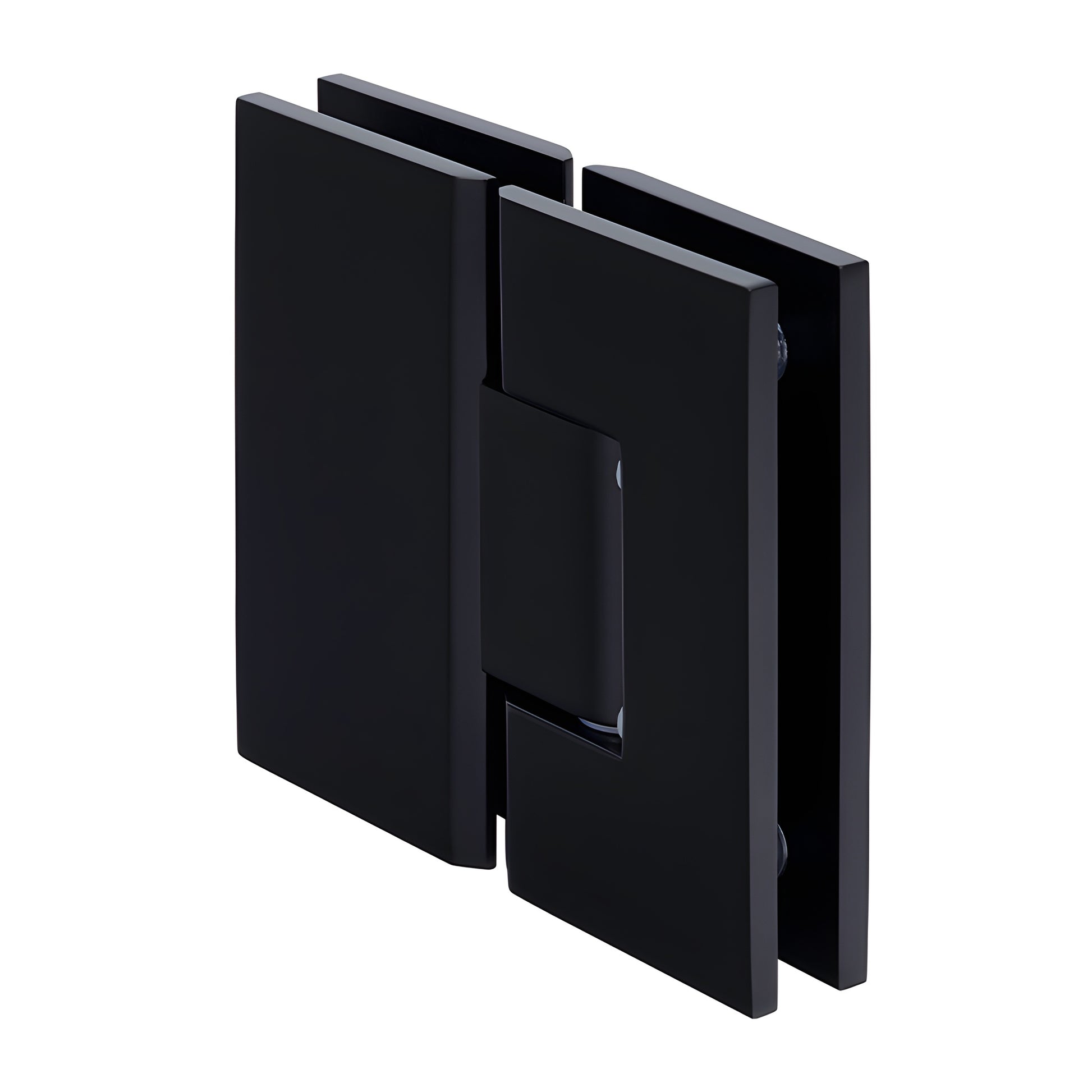

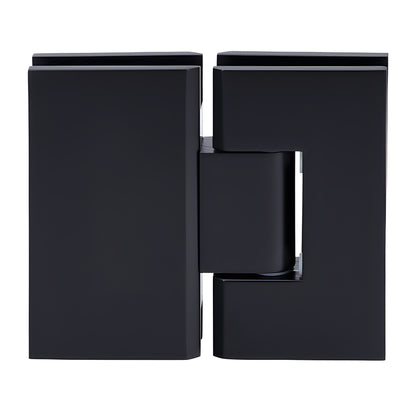

CRL Vienna 180 Matte Black Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E180MBL) are engineered for wider, heavier shower doors when traditional hinges are not strong enough. These 180-degree glass-to-glass shower door hinges feature dual internal steel pins for two template options: retain the pins for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and to fit CRL rectangular (square-corner) cut-outs — and in some cases, competitive rectangular cut-outs. The Vienna hinge is a premium, solid brass shower hinge designed for 3/8"–1/2" tempered glass and heavy-duty residential or hotel shower applications.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to activate the alternate angle.

Custom Pivot Pin: Custom pivot pins are available to accommodate off-angle installations (specify required angle up to 45°) when standard adjustment does not achieve the desired door closing position.

Weight & Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

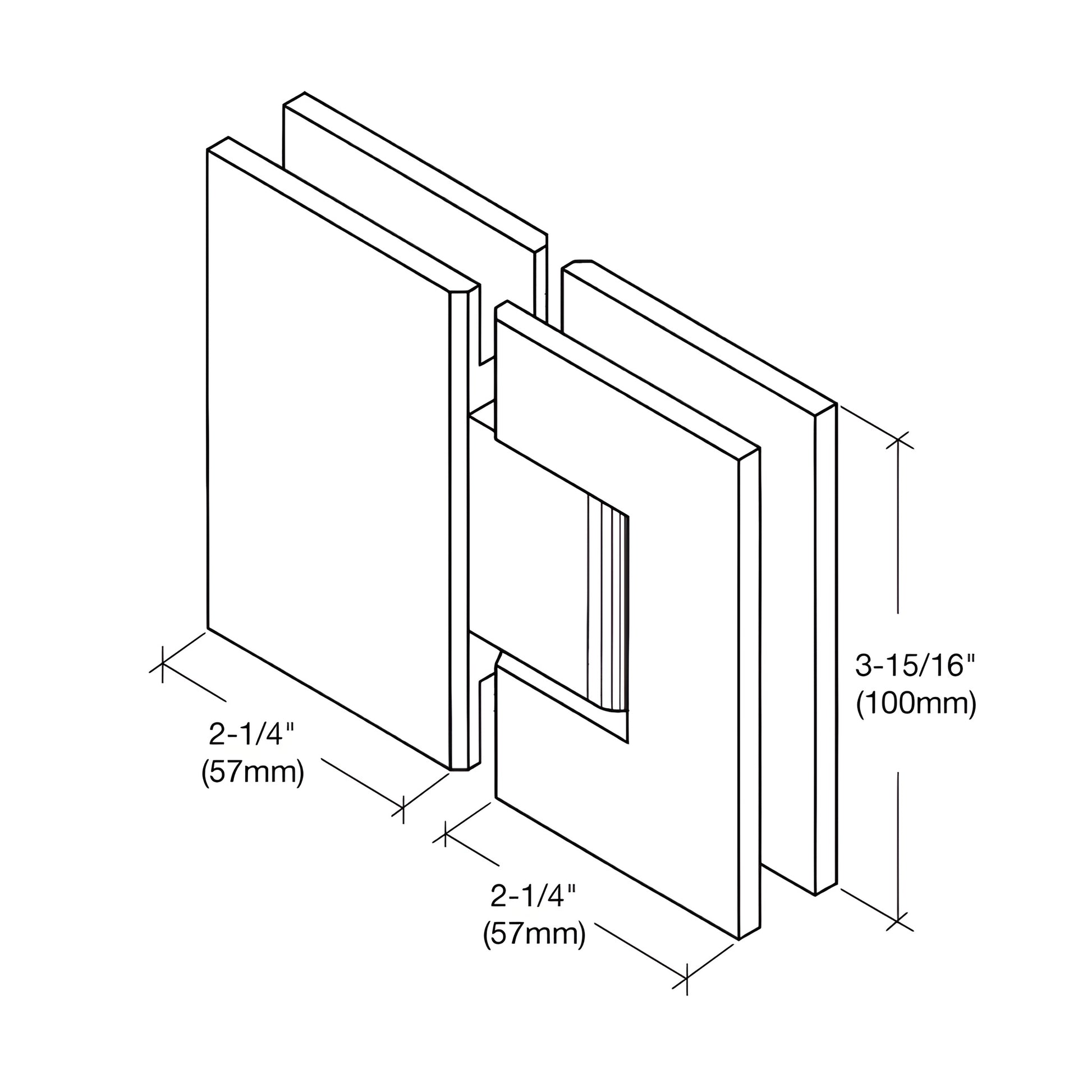

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (180° total) — ideal for frameless shower door installations
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN
