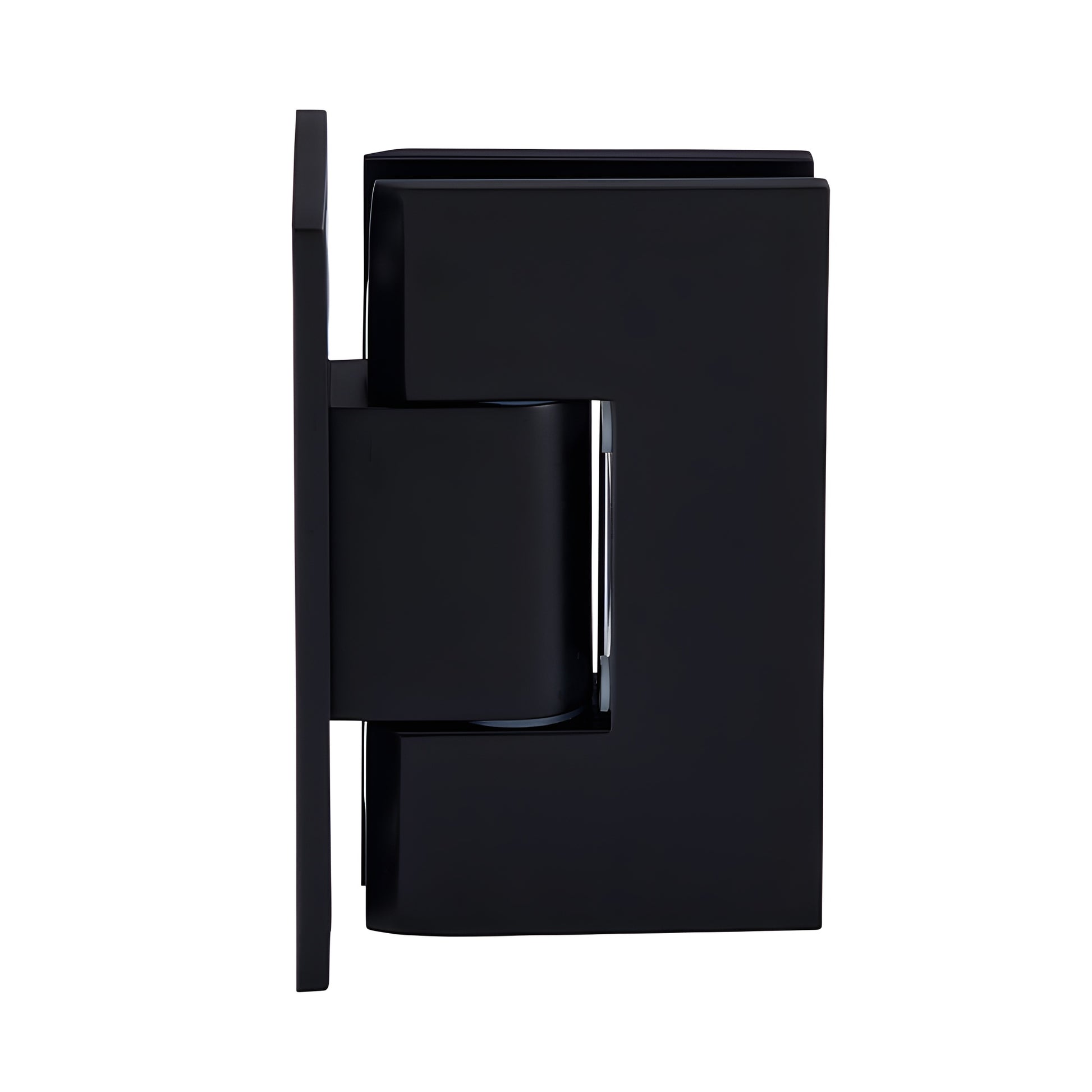

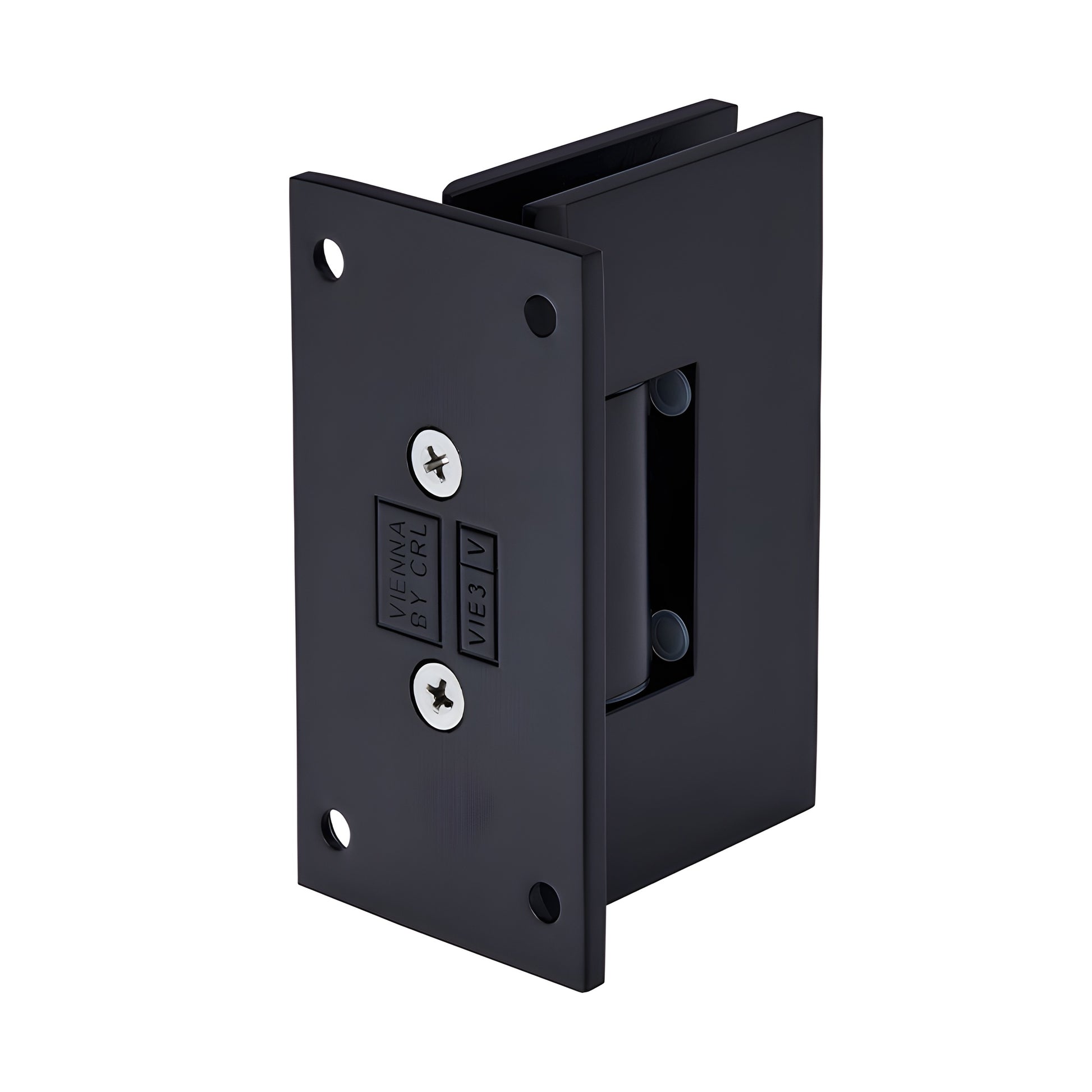

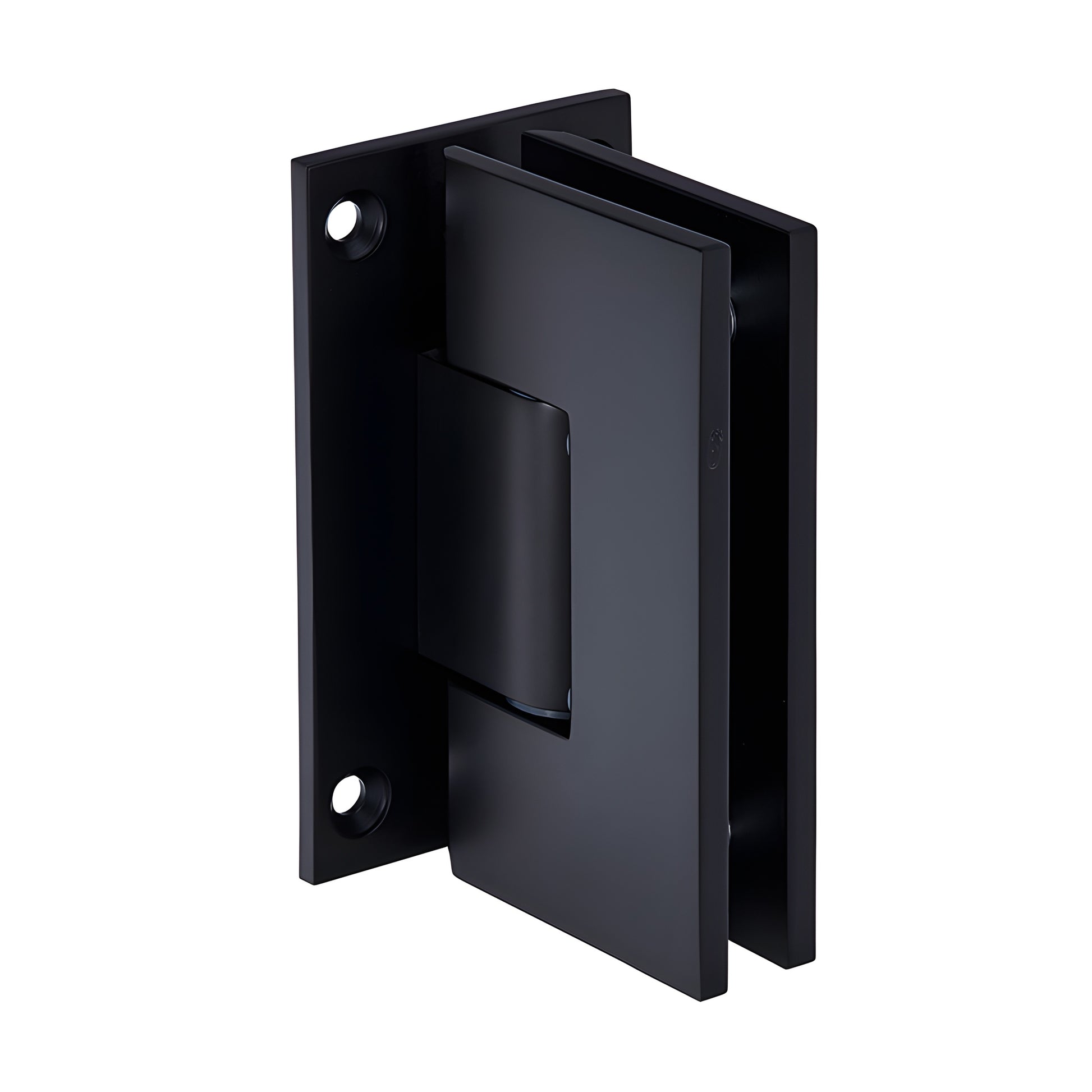

CRL Vienna 037 Matte Black Wall-Mount Shower Hinge Full Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering hinge with reversible 5° pivot pin for tighter closing
• Available in several beautiful finishes; custom finishes on request
• 3 Year Warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037MBL) are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors when traditional hinges are insufficient. Solid brass construction and two internal steel locating pins provide mounting flexibility: leave the pins in for CRL "mouse-ears" cut-outs or remove them for rectangular, square-corner cut-outs (may fit some competitive cut-outs). These features make the Vienna Hinge a durable choice for commercial-grade and residential frameless shower doors.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° and 85° sides; standard models ship set to 90°. Rotate the pin (do not flip) to activate the 85° side for a 5° tighter closure into the shower interior. This self-centering pivot is ideal for achieving reliable door closure without extra hardware.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when walls or layout prevent a 90° fit.

Capacity and Recommended Use:

• Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs (63 kg); maximum door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass heavy-duty hinge body
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical assistance are available from CRL Technical Sales — Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from CR
