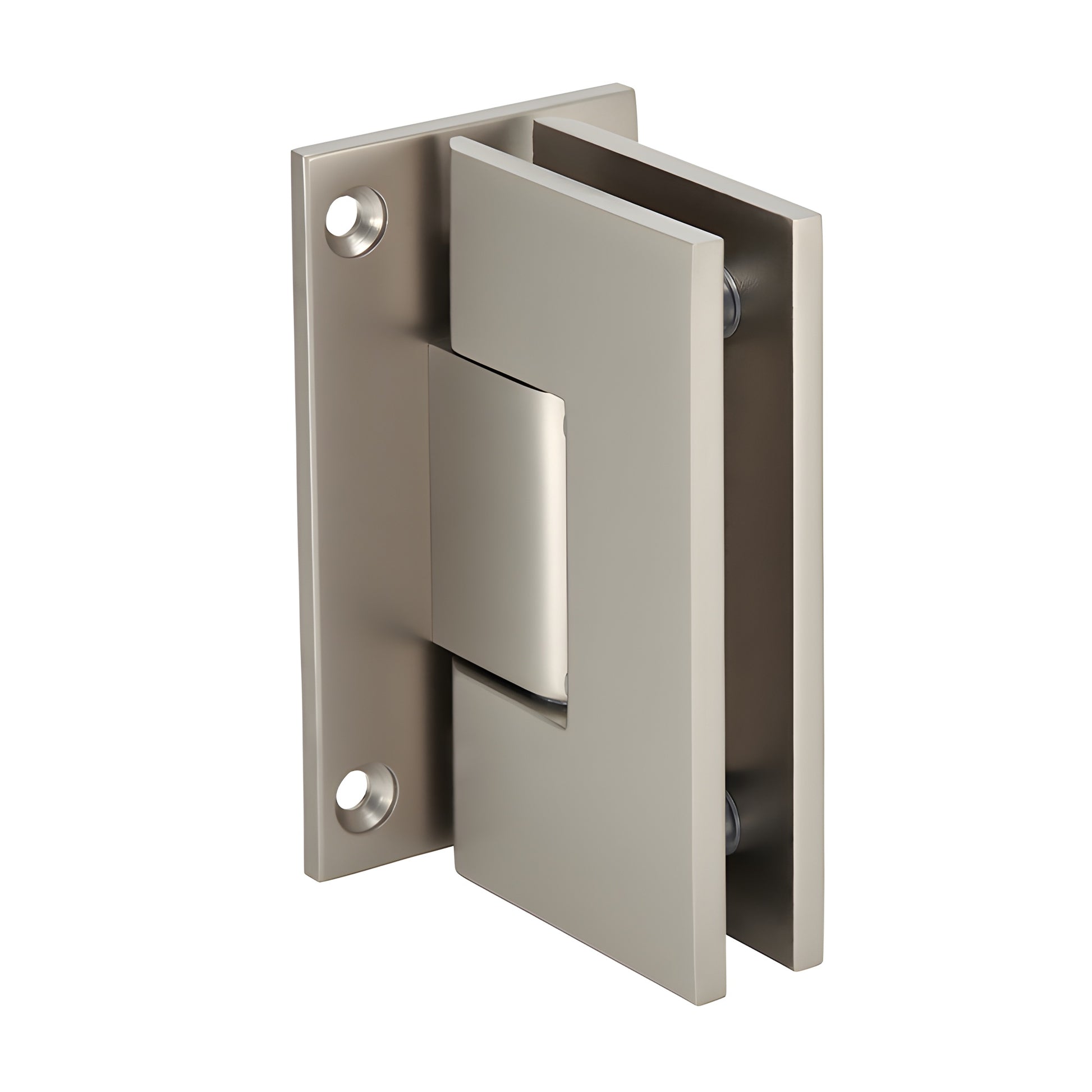

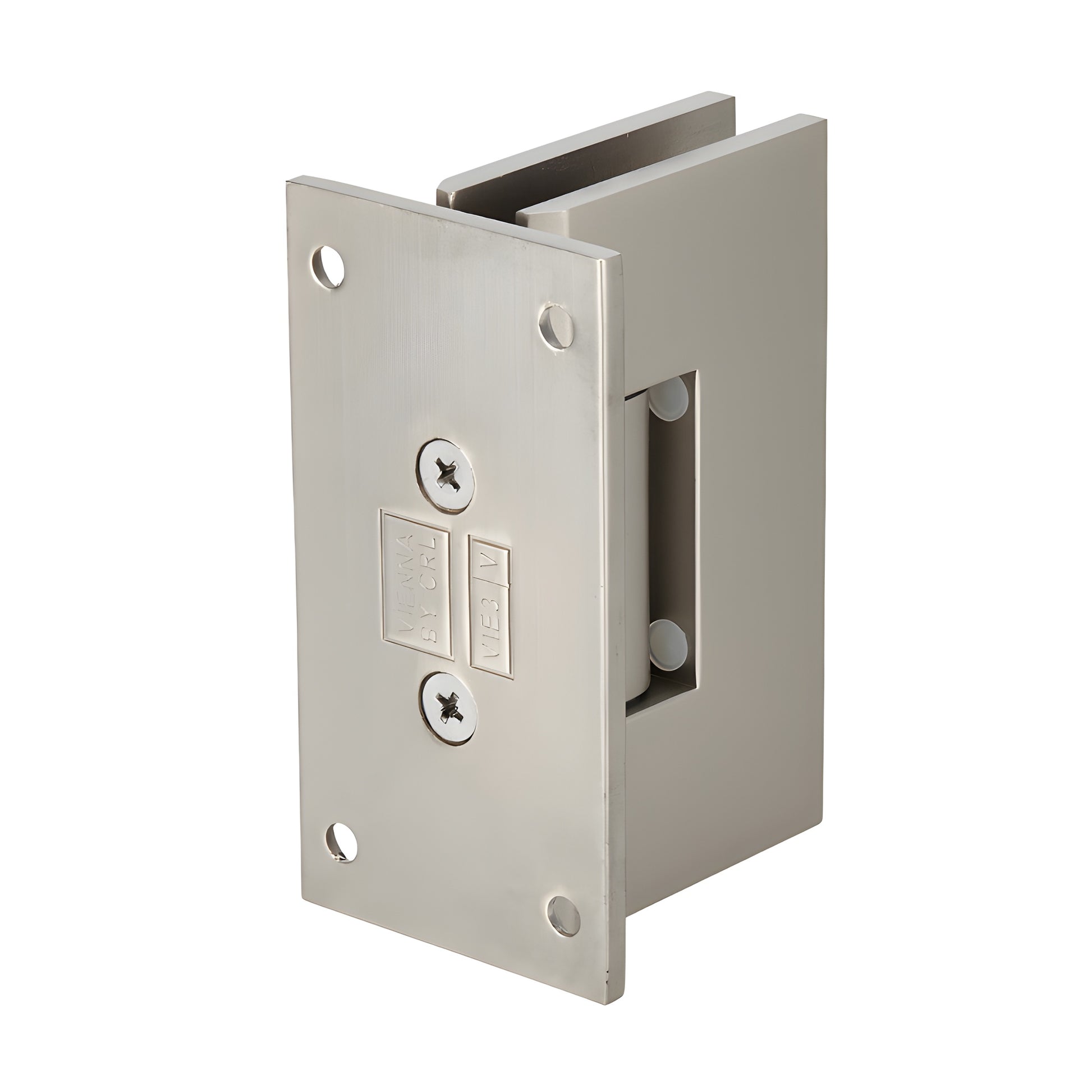

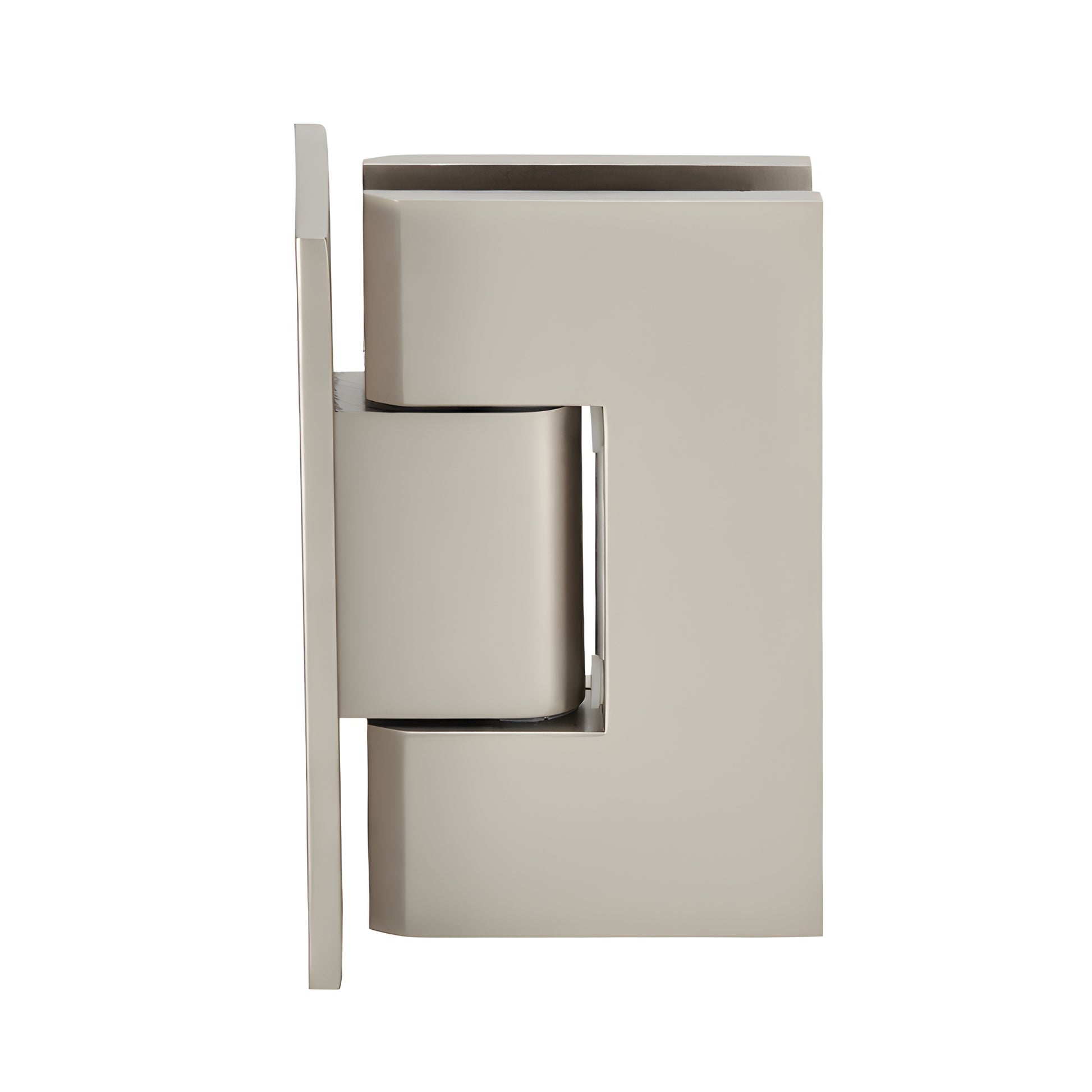

CRL Vienna 037 Satin Nickel Wall-Mount Full Back Plate Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• 3-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use with monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E037SN) are engineered for wider, heavier shower doors when standard hinges lack strength. The Vienna Hinge uses two internal steel pins to support either CRL "mouse-ears" cut-outs or removable-pin rectangular cut-outs for increased adjustability and compatibility with some competitive rectangular cut-outs. This design provides a durable, flexible solution for heavy glass shower doors and frameless shower enclosures.

Standard reversible pivot pin: Each hinge includes a pivot pin with two indexed positions — 90° (standard) and 85° (5° tighter closure). The pin is rotated (not flipped) to change the setting. Pre-set models ship with the 85° position for tighter closure into the shower interior.

Custom pivot pin: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

Load capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge swings: 90° in and 90° out
Closing type: Self-centering when within 15° of closed position
Cut-out required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.
