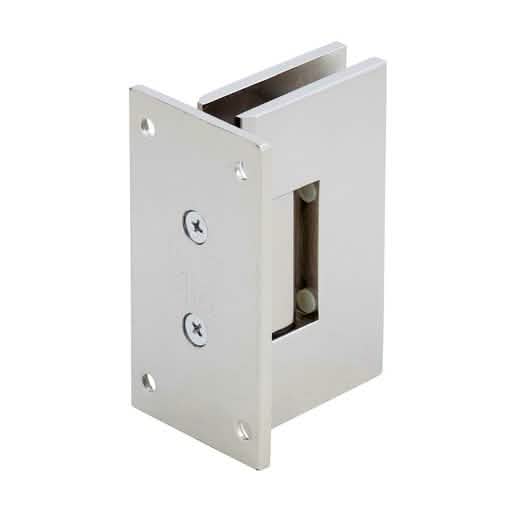

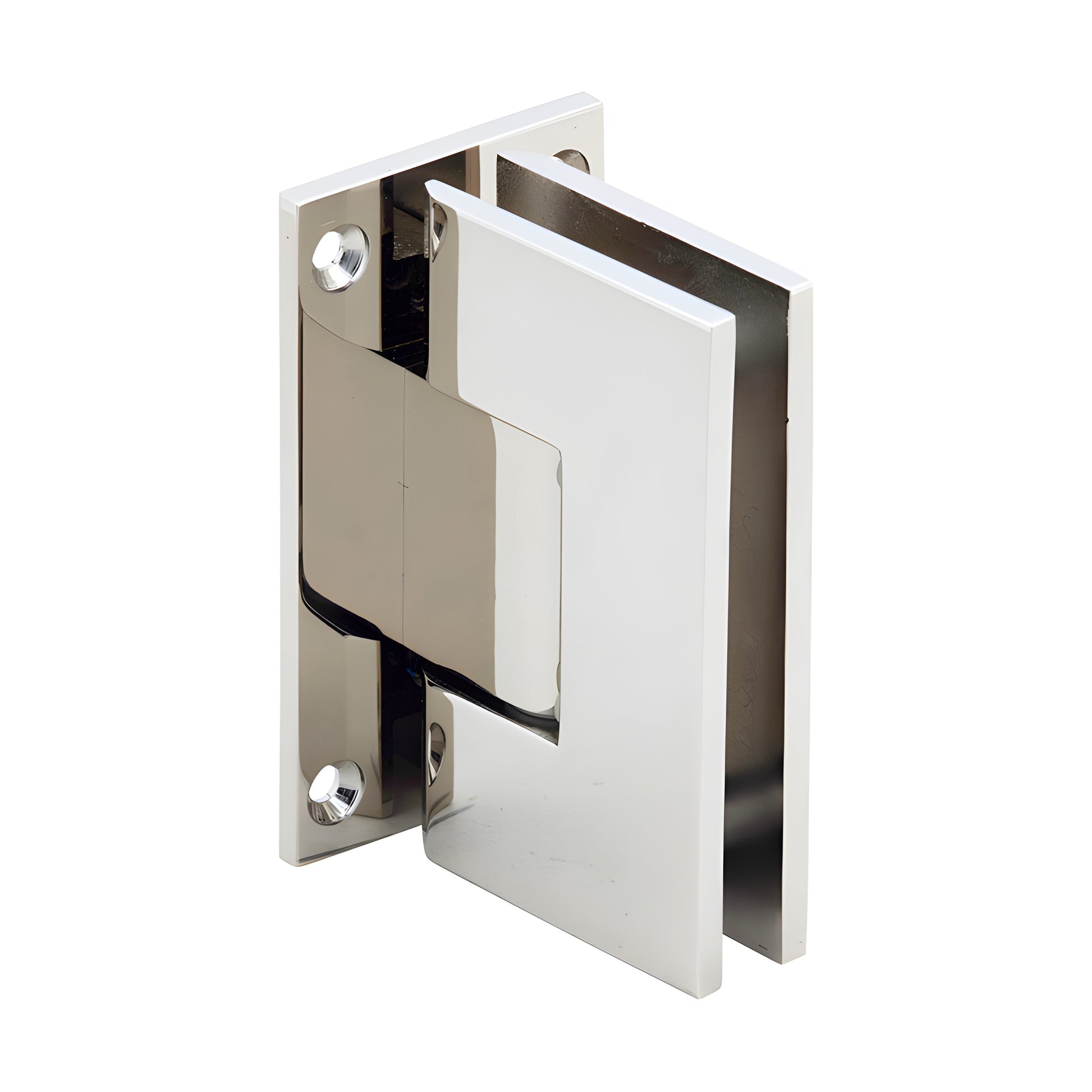

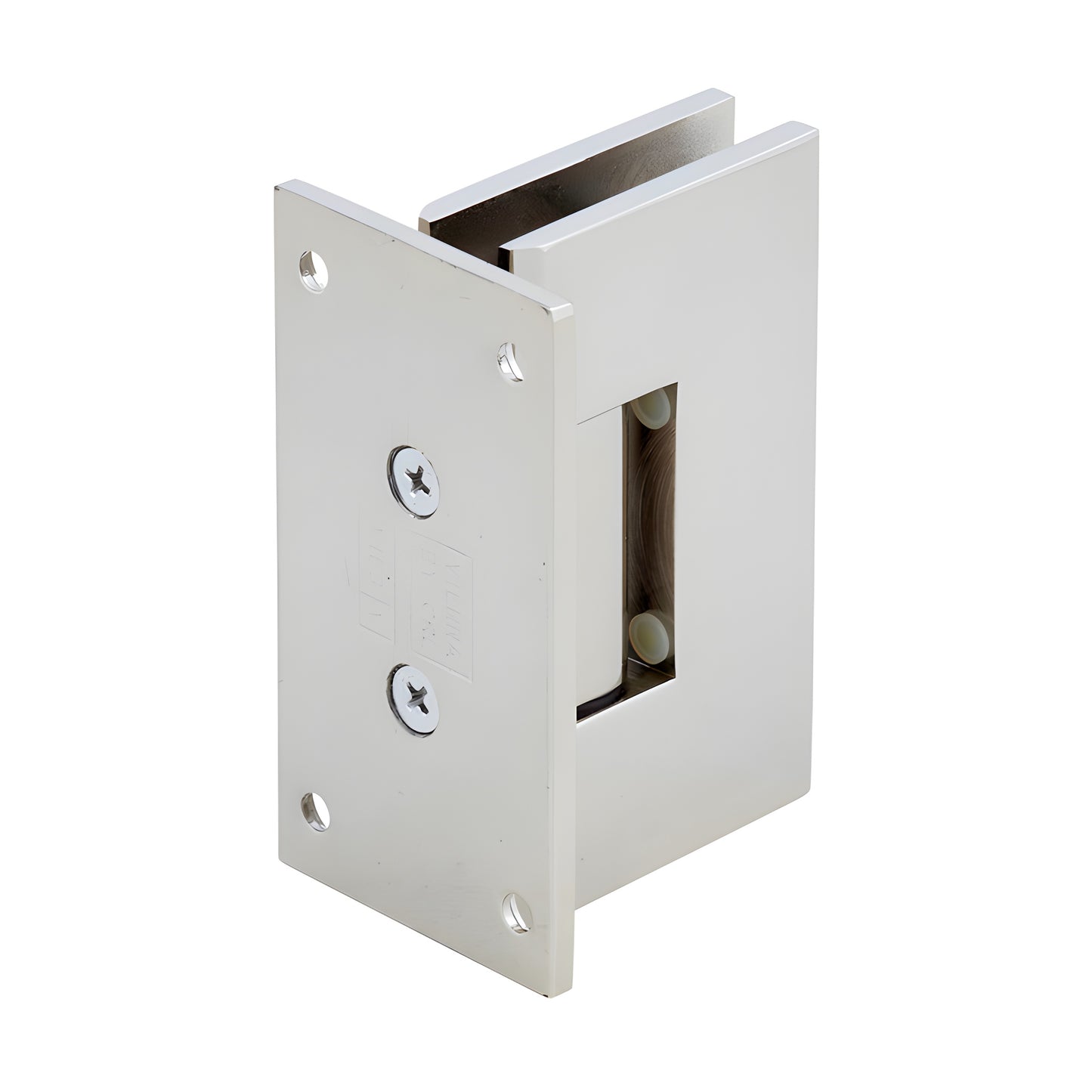

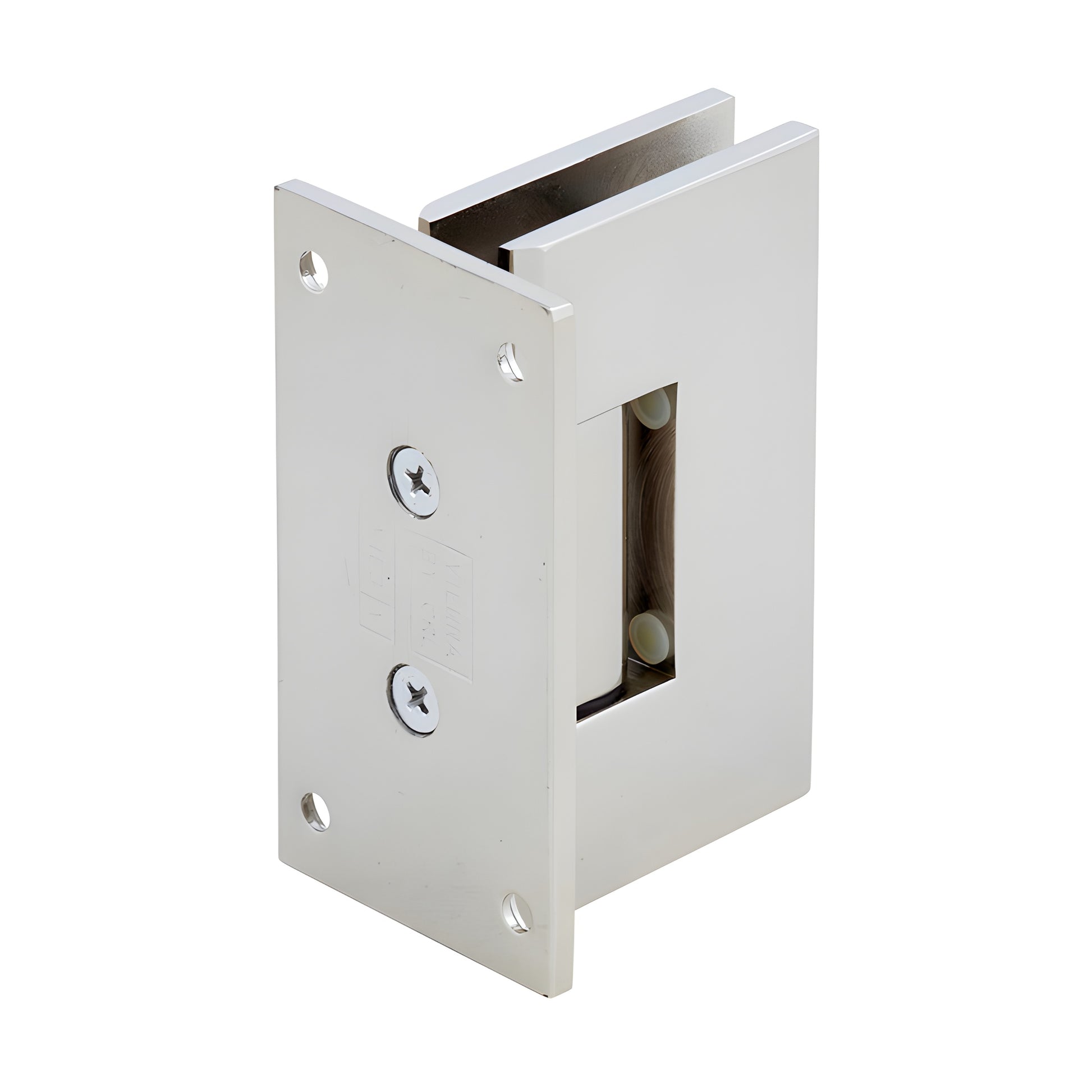

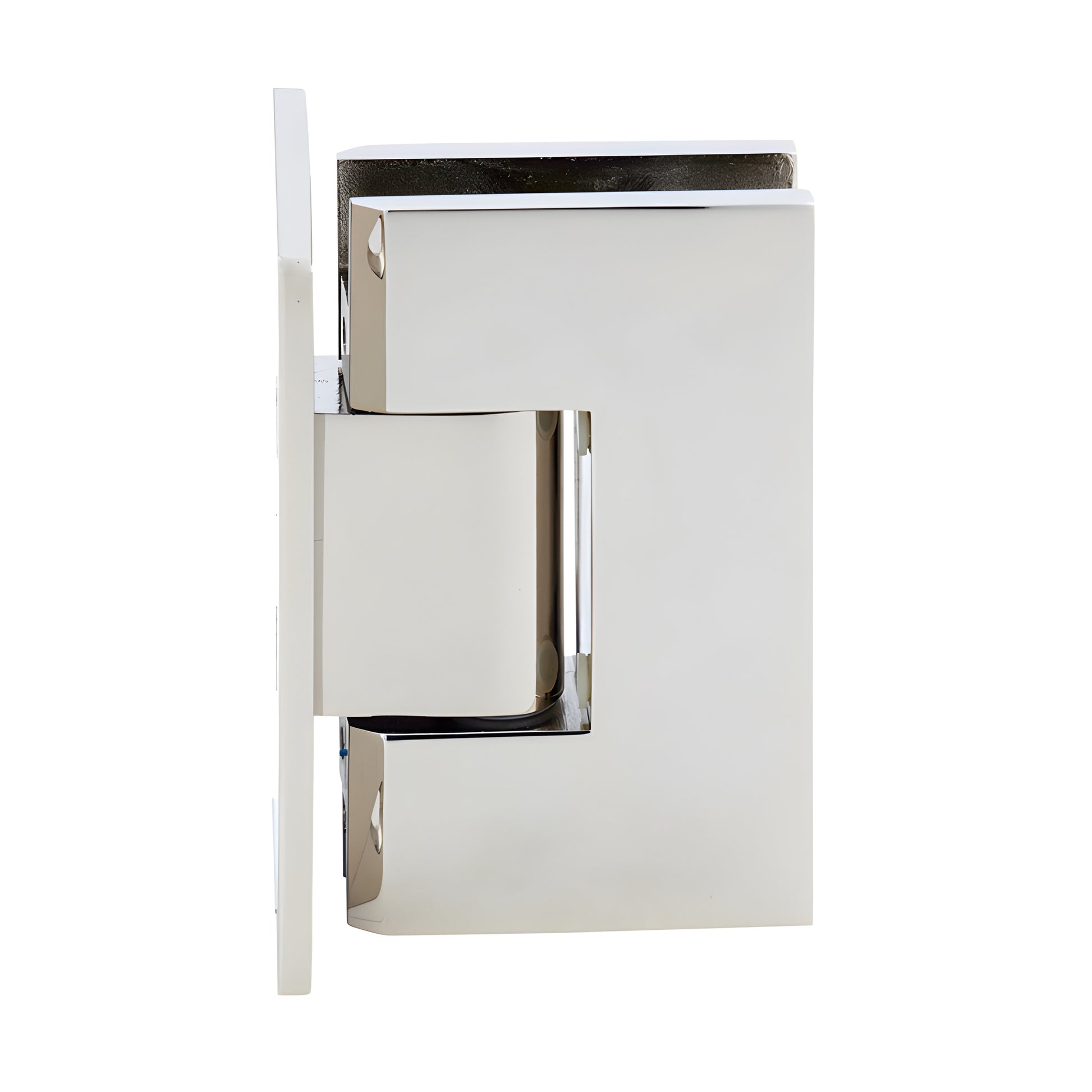

CRL Vienna 037 Polished Nickel Wall-Mount Full Backplate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several durable finishes
• 3 year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037PN) are heavy-duty shower door hinges engineered for wider, heavier glass doors that conventional hinges can't support. Designed for shower door installations, these solid-brass Vienna hinges include two internal steel template pins to accommodate either CRL "mouse-ears" cut-outs or rectangular, square-cornered cut-outs (pins removable for increased adjustability and some competitive cut-outs). Ideal long-tail keywords: shower door hinges for heavy glass, self-centering pivot hinge, Vienna hinge solid brass.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other. Standard models ship with the 90° side activated. Pre-set models are set to 85° for a 5° tighter closure toward the shower interior. Rotate (do not flip) the pin to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins up to 45° are available for off-angle walls or unique installations when the standard 5° adjustment is insufficient.

CAPACITY:

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg); maximum door width 36" (914 mm)

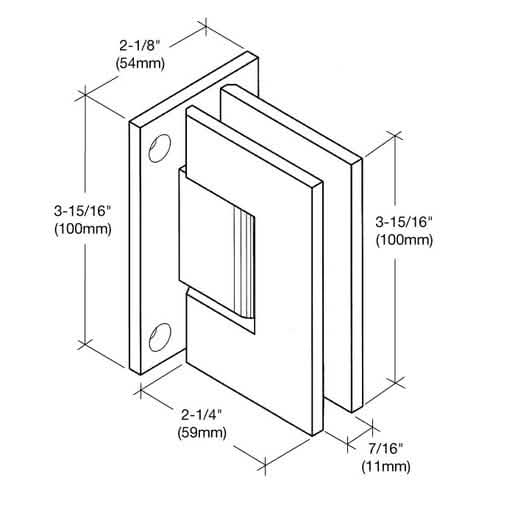

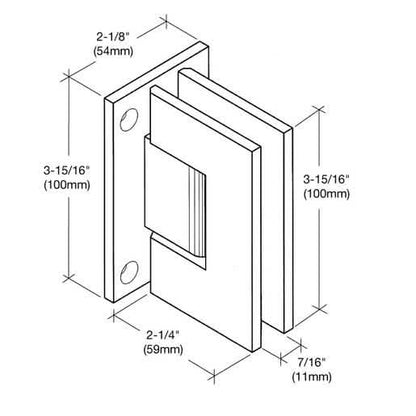

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Standard cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for finish and custom pivot options.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from
