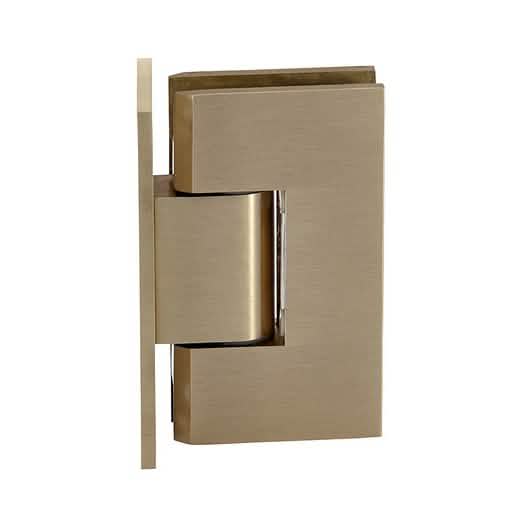

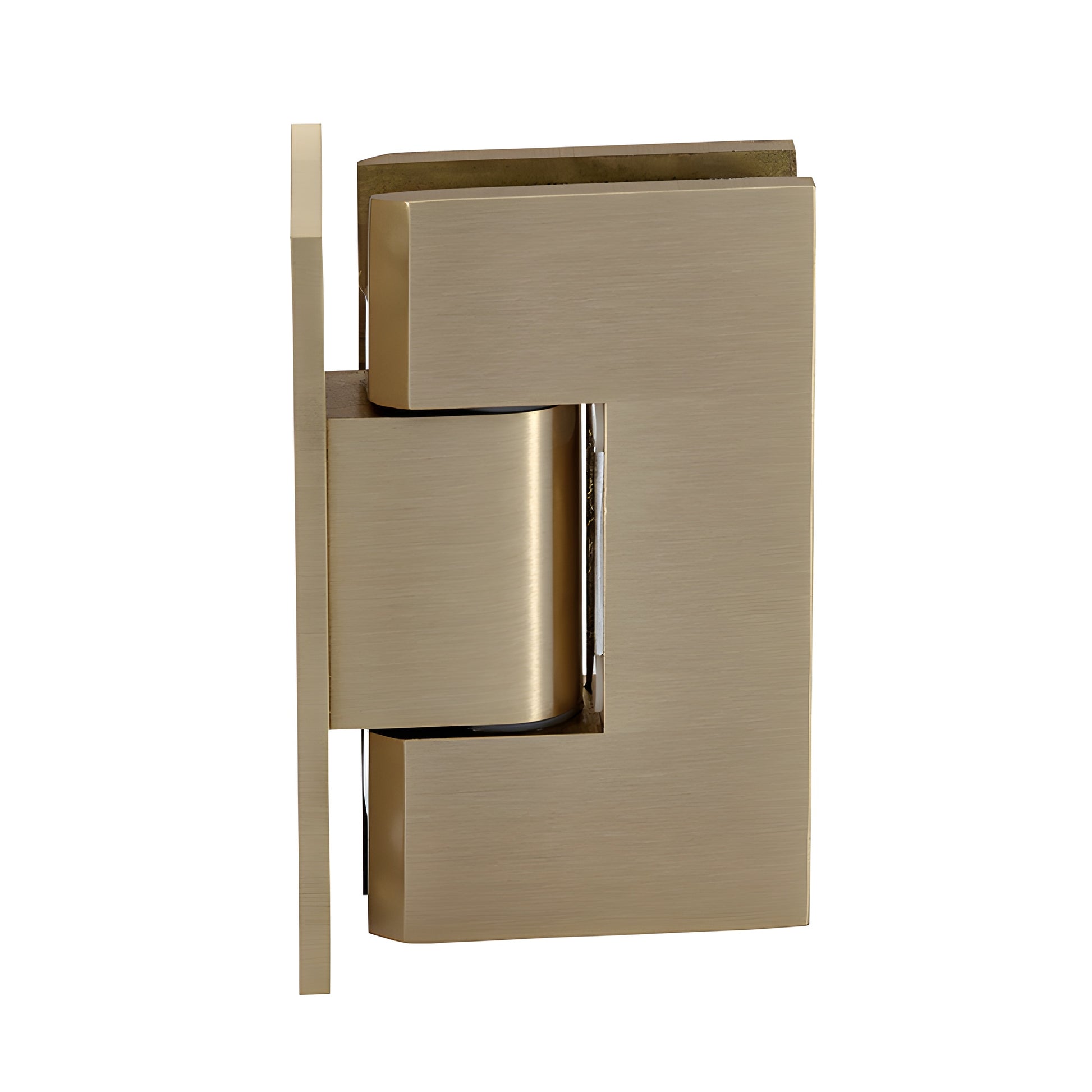

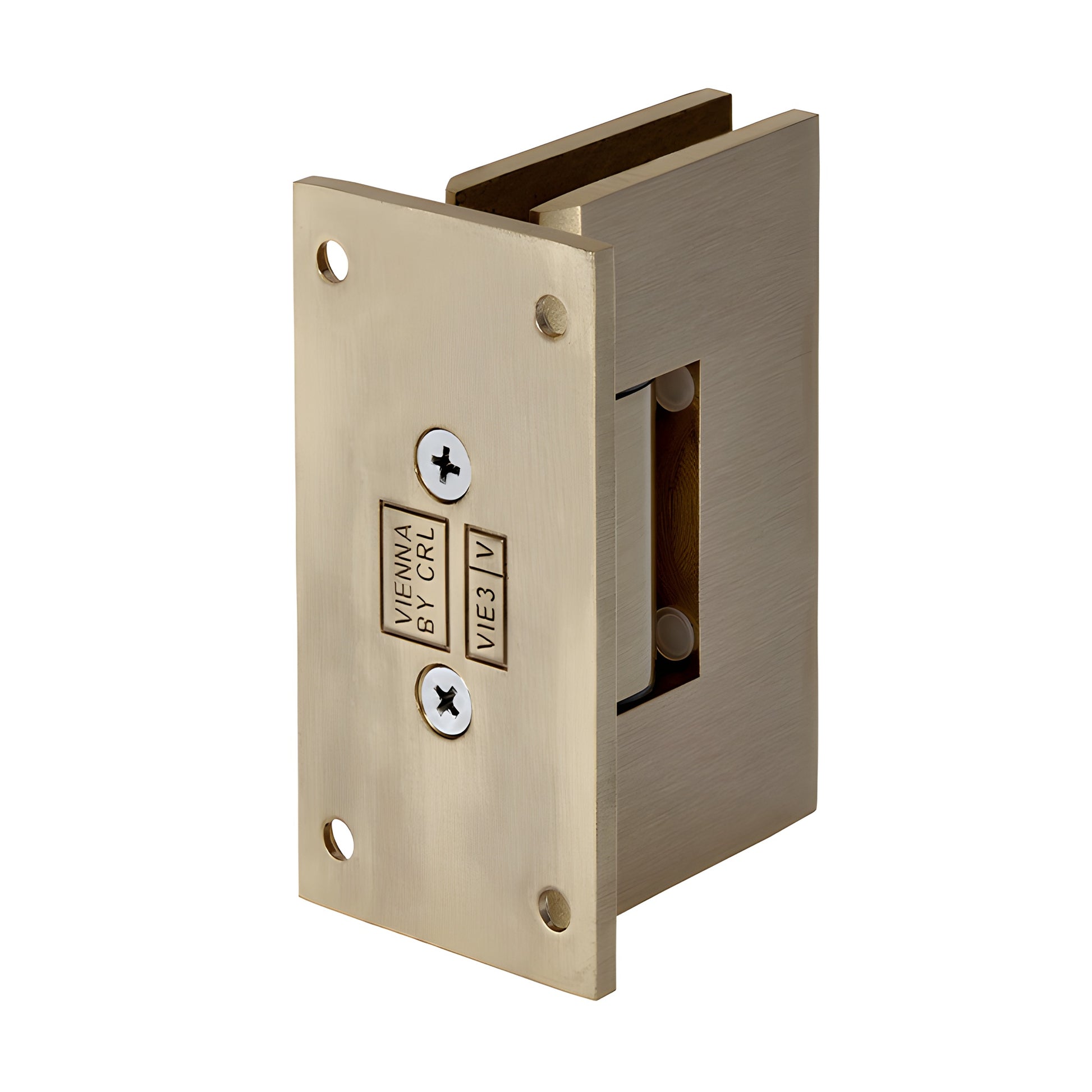

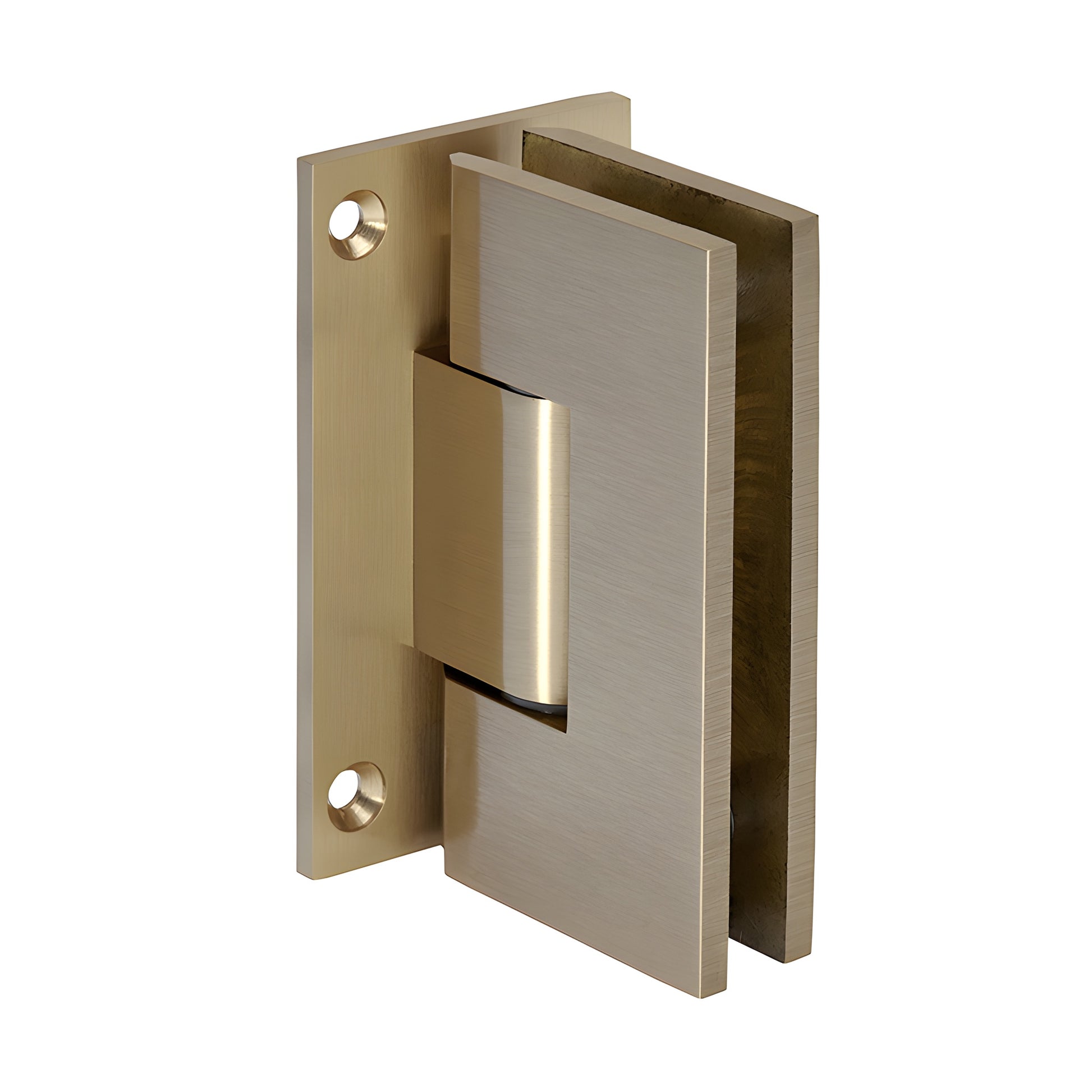

CRL Vienna 037 Brushed Bronze Wall-Mount Full Backplate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering with reversible 5° pivot pin (standard or pre-set 85° option)
• Available in several decorative finishes; custom finishes on request
• 3-year warranty
• Wall-mount with full back plate — standard model factory set for standard closing position
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037BBRZ) provide a heavy-duty solution for wider, heavier shower doors where standard hinges fail. Constructed from solid brass with internal steel guide pins, Vienna Hinges support robust, reliable performance and versatile cut-out compatibility for CRL "mouse-ears" or rectangular square-corner cut-outs when pins are removed. They also may fit some competitive rectangular cut-outs.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to switch sides.

Custom Pivot Pins: For off-angle installations, custom pivot pins are available up to 45° to accommodate walls or openings that are not square.

Load Capacity & Use:

• Using two hinges with 3/8"–1/2" glass: holds up to 110 lb (50 kg), maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: holds up to 140 lb (63 kg), maximum door width 36" (914 mm)

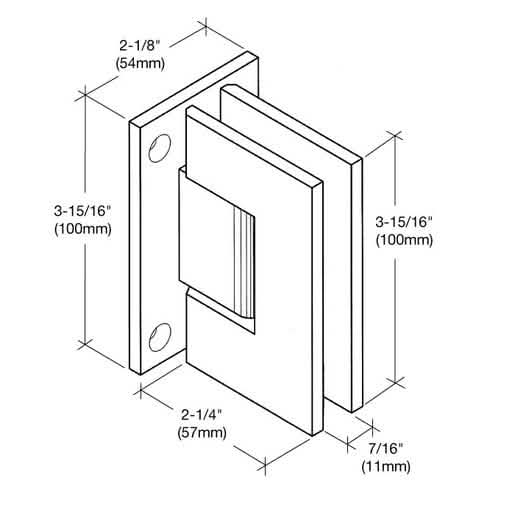

SPECIFICATIONS:

• Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering within 15° of closed position
• Cut-Out Required: Cut-out required except V1E092 (requires cut-out for door and two holes for fixed panel)
• Includes: Gaskets, screws, and glass fabrication dimensions
• Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and pivot-pin angles available — contact CRL Technical Sales Shower Door Department for orders and technical assistance.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel showers. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — CRL cut-out dimensions may differ from other brands
