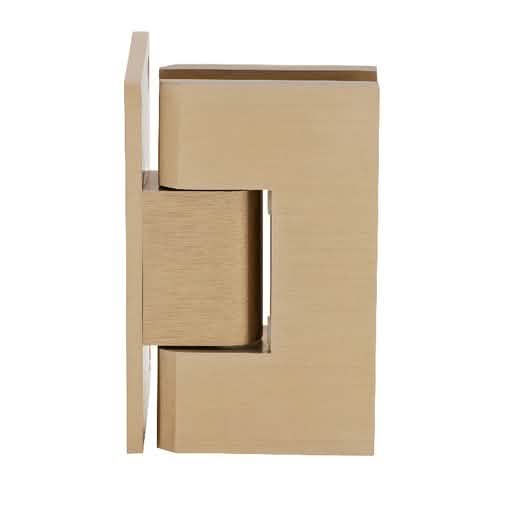

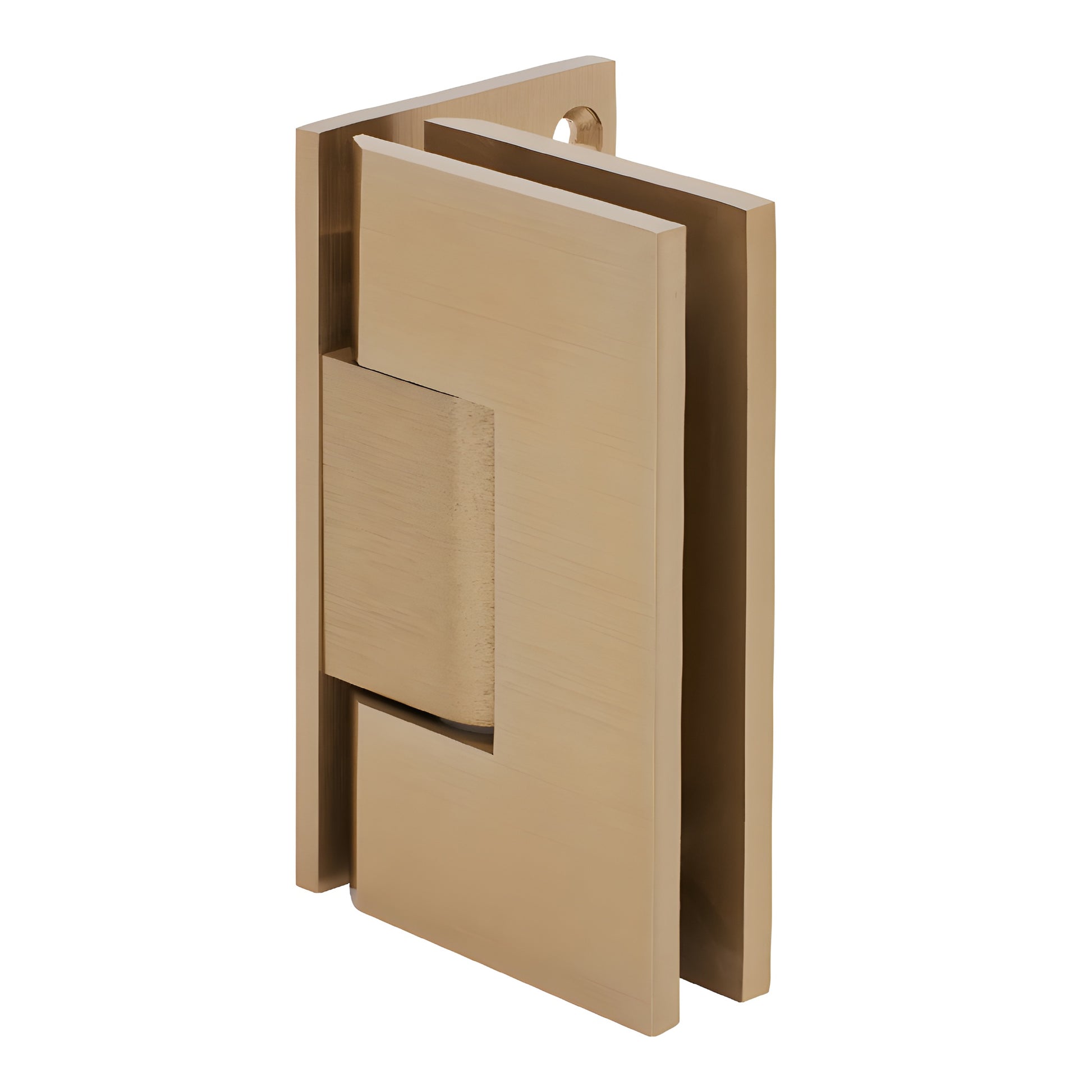

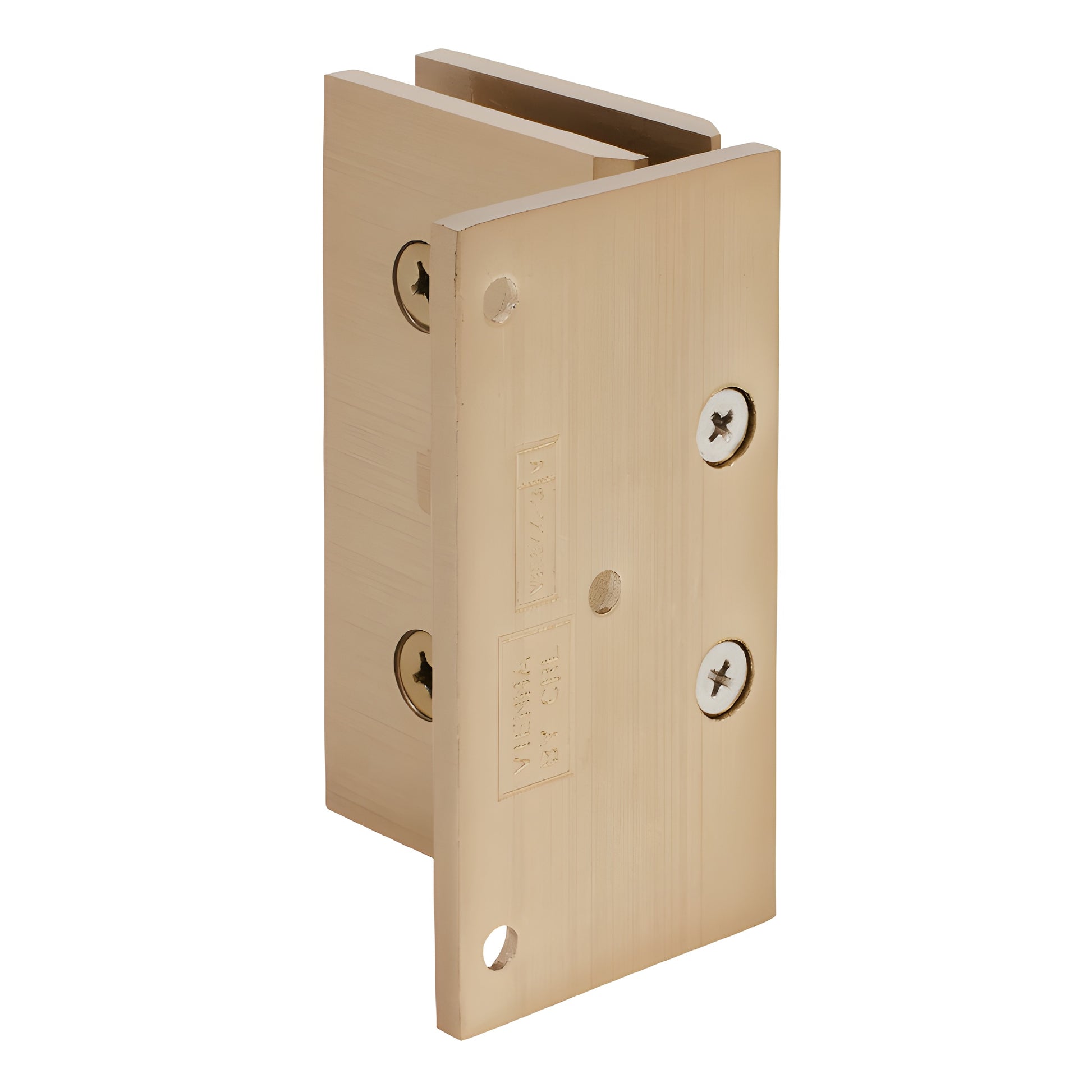

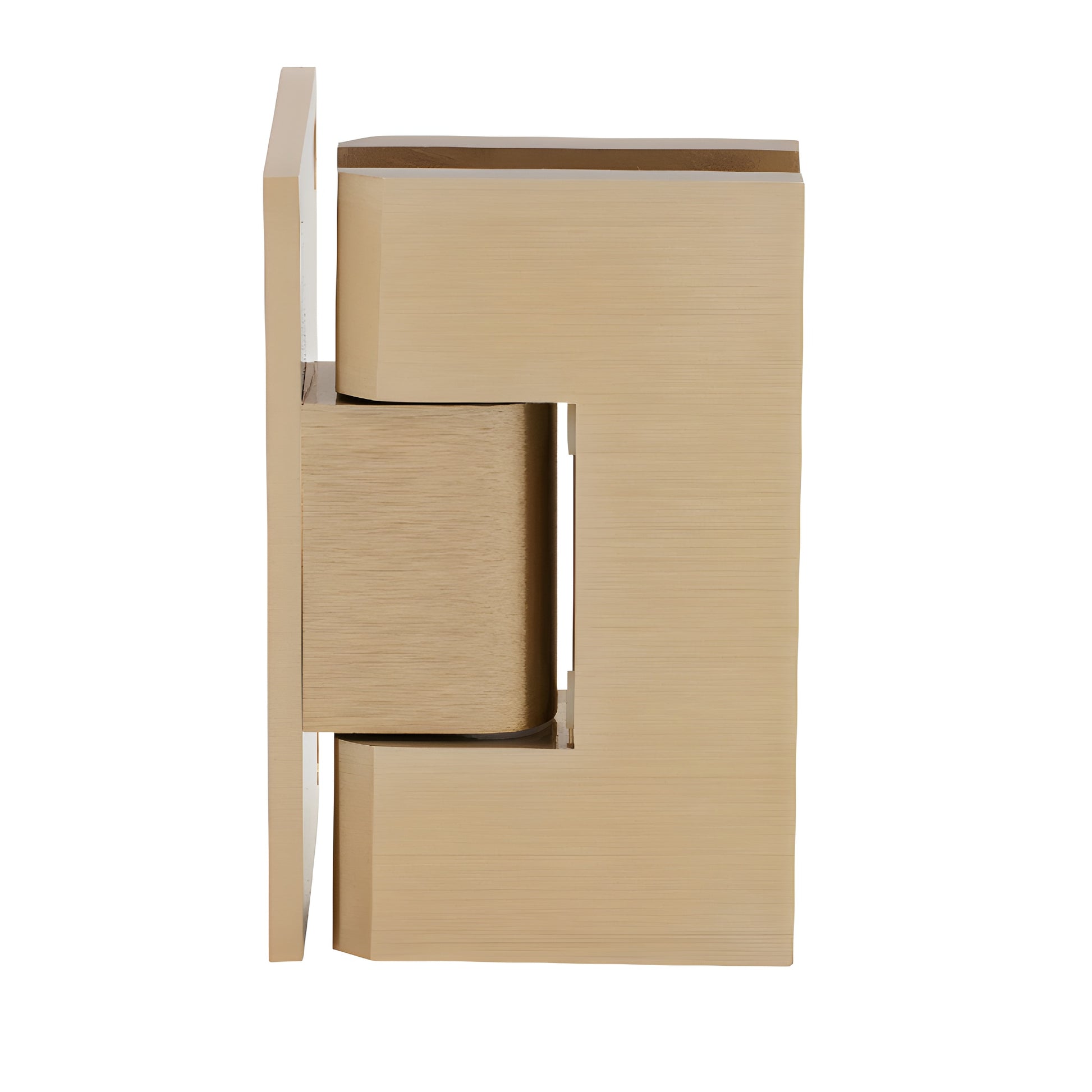

CRL Vienna 044 Brushed Bronze Wall-Mount Offset Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes
• 3-year warranty
• Wall-mount offset back plate (standard model)
• Designed for monolithic tempered glass

SKU: V1E044BBRZ

CRL Vienna Hinges are heavy-duty brass shower door hinges engineered for wider, heavier frameless glass doors that standard hinges cannot support. Internal dual steel pins provide two template options: leave the pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for greater adjustability and compatibility with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the setting.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations—specify an angle up to 45° when needed (contact CRL Technical Sales).

Load Ratings
Two hinges + 3/8" (10 mm) glass: holds up to 100 lbs (45 kg); max door width 34" (864 mm).
Two hinges + 1/2" (12 mm) glass: holds up to 100 lbs (45 kg); max door width 32" (813 mm).
Three hinges + 3/8" (10 mm) glass: holds up to 130 lbs (59 kg); max door width 34" (864 mm).
Three hinges + 1/2" (12 mm) glass: holds up to 130 lbs (59 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (
