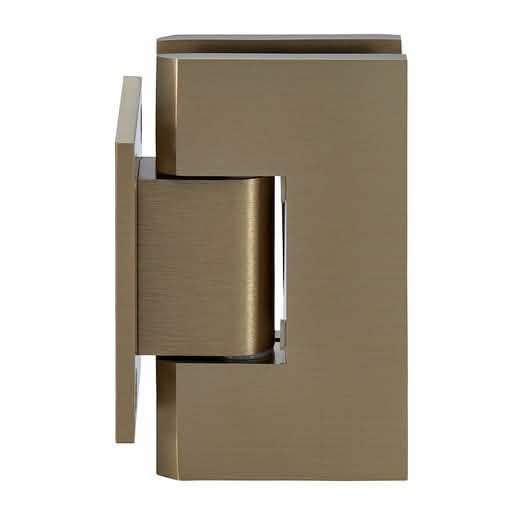

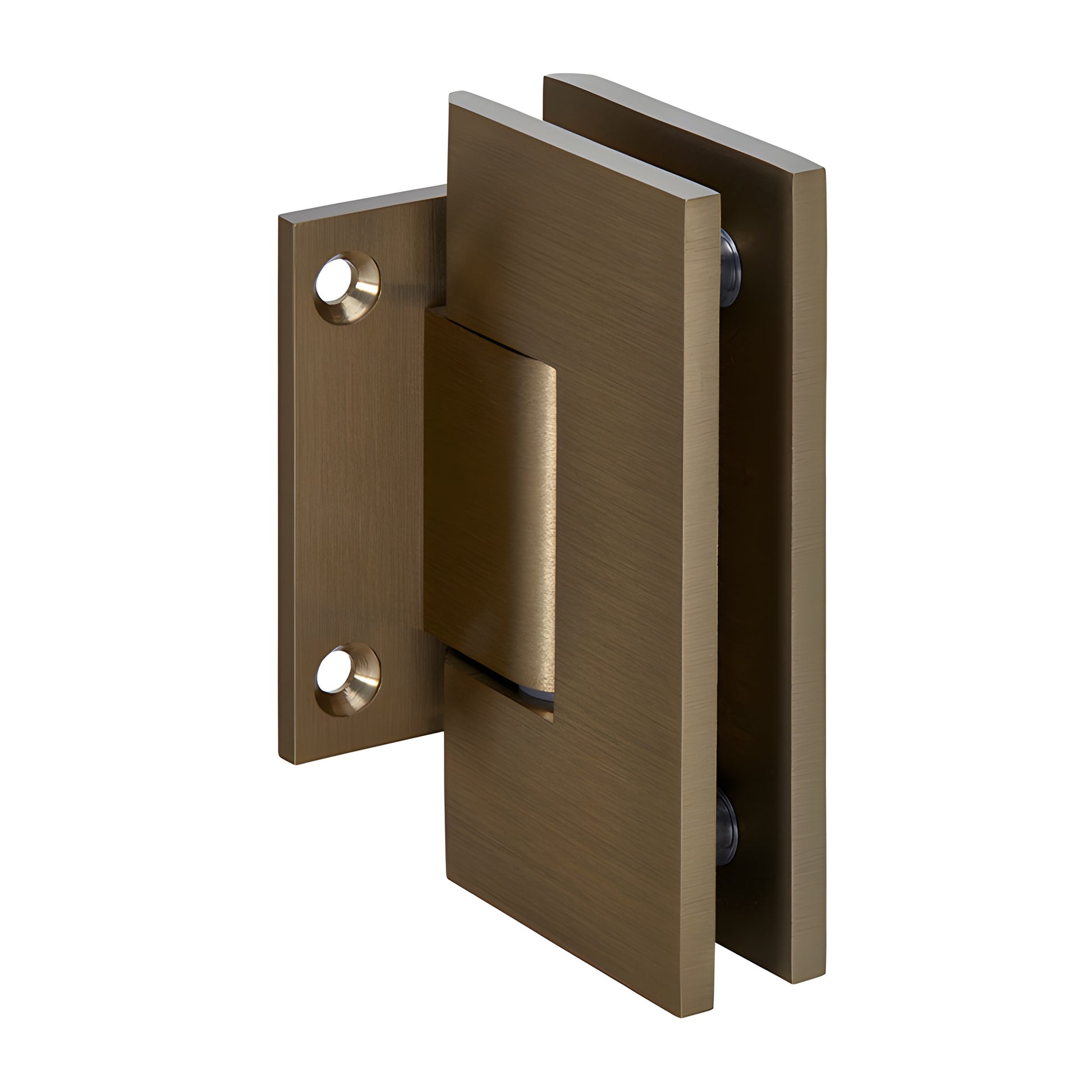

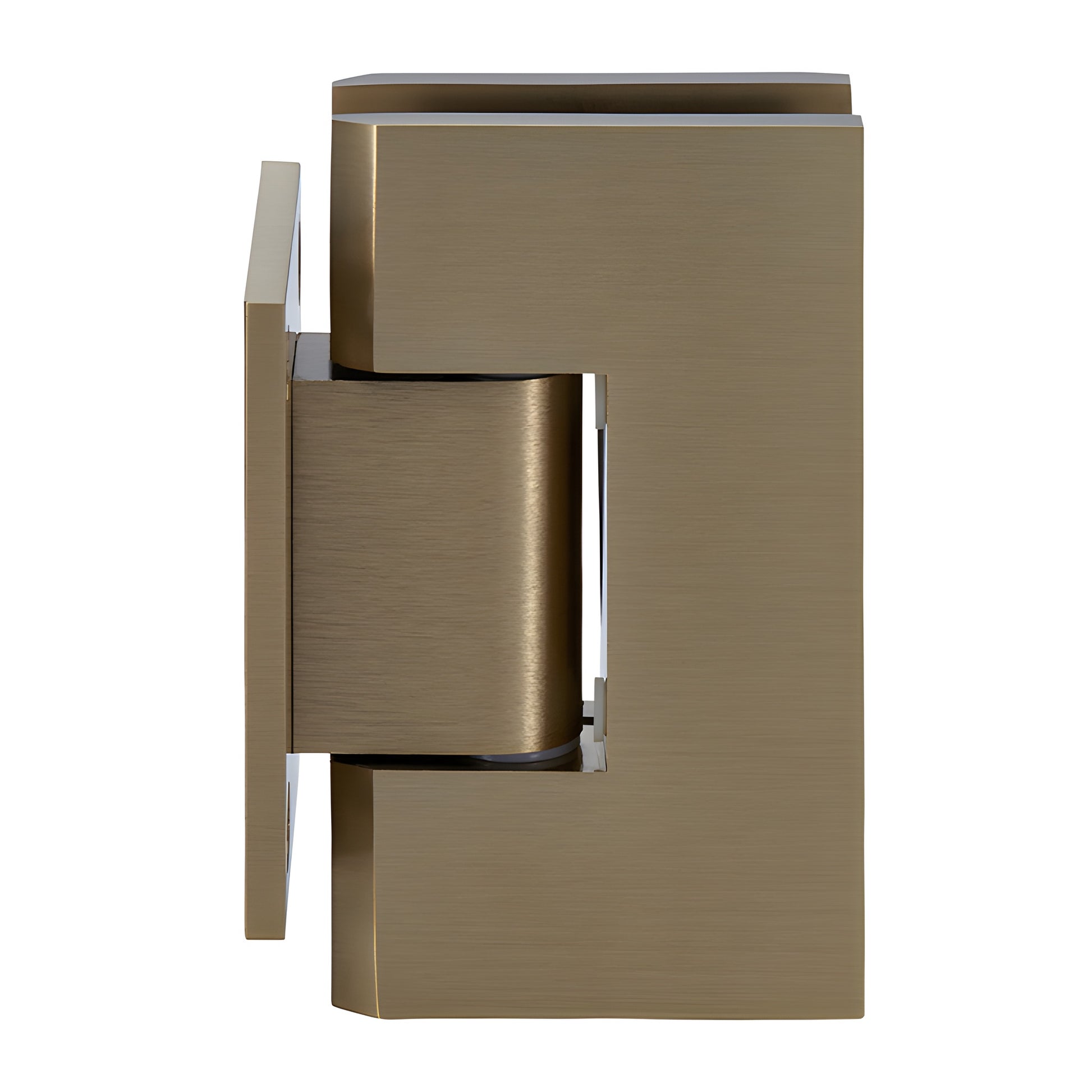

CRL Vienna 074 Brushed Bronze Glass Door Wall-Mount Short Back Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
• Available in several beautiful finishes
• 3 Year Warranty
• Wall mount short back plate
• Use monolithic tempered glass

SKU: V1E074BBRZ

CRL Vienna Hinges are heavy-duty, solid brass shower door hinges engineered for wider, heavier frameless glass doors where traditional hinges fail. Designed for monolithic tempered glass, Vienna Hinges offer unique mounting flexibility and enhanced durability for residential and hotel shower installations.

Key differentiators:

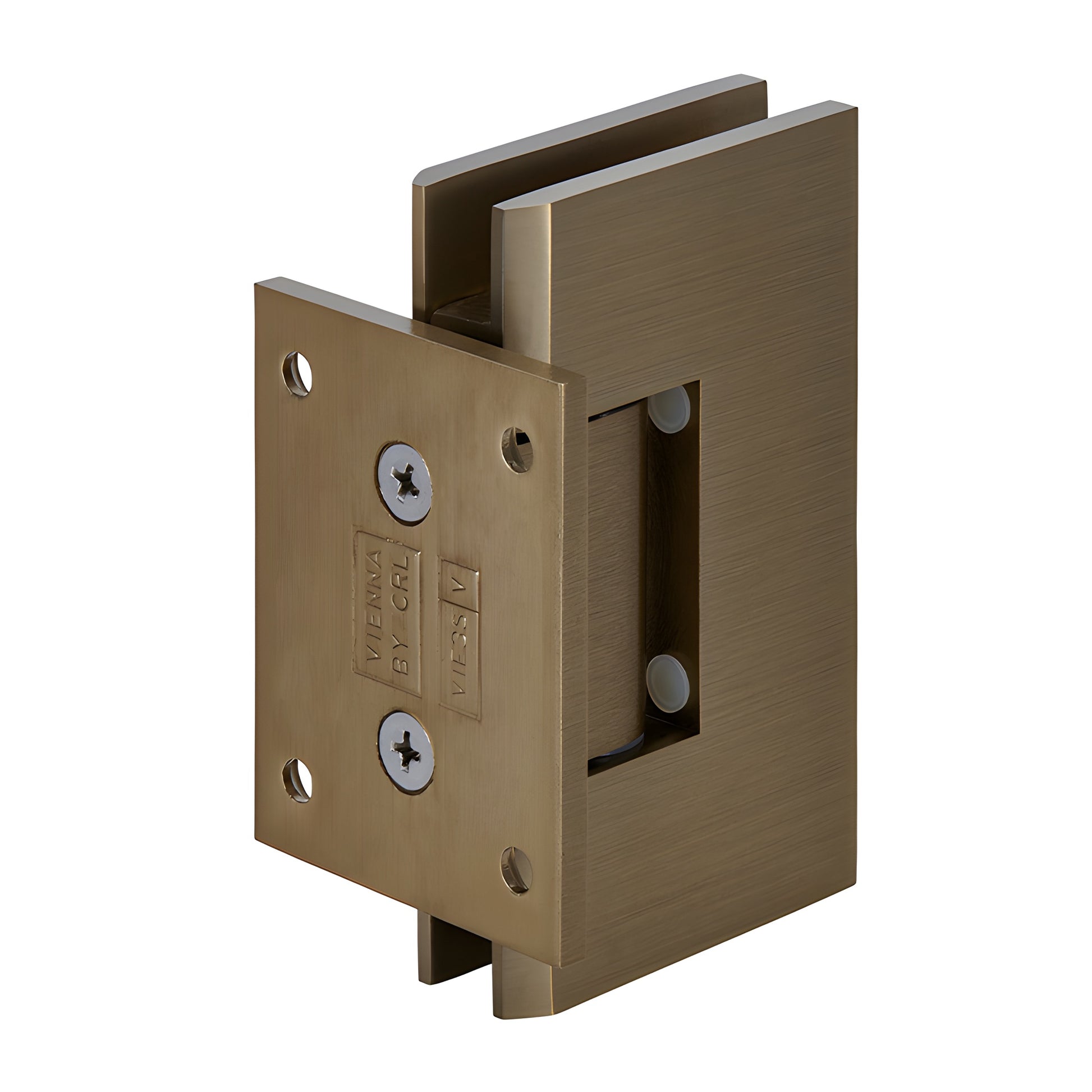

• Dual internal steel pins provide template compatibility: leave pins in for CRL "mouse-ears" cut-outs or remove pins for rectangular/square-corner cut-outs (including some competitive templates).
• Reversible Pivot Pin (standard 90° side activated; rotate to 85° for a 5° tighter closure). Pre-set models available at 85°.
• Custom Pivot Pins available up to 45° to accommodate off-angle walls or non-90° installations.
• High weight capacity: supports up to 100–130 lbs depending on glass thickness and hinge count.

Performance (glass hinge capacities):
Two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg); maximum door width 34" (864 mm).
Two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg); maximum door width 32" (813 mm).
Three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg); maximum door width 34" (864 mm).
Three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg); maximum door width 32" (813 mm).

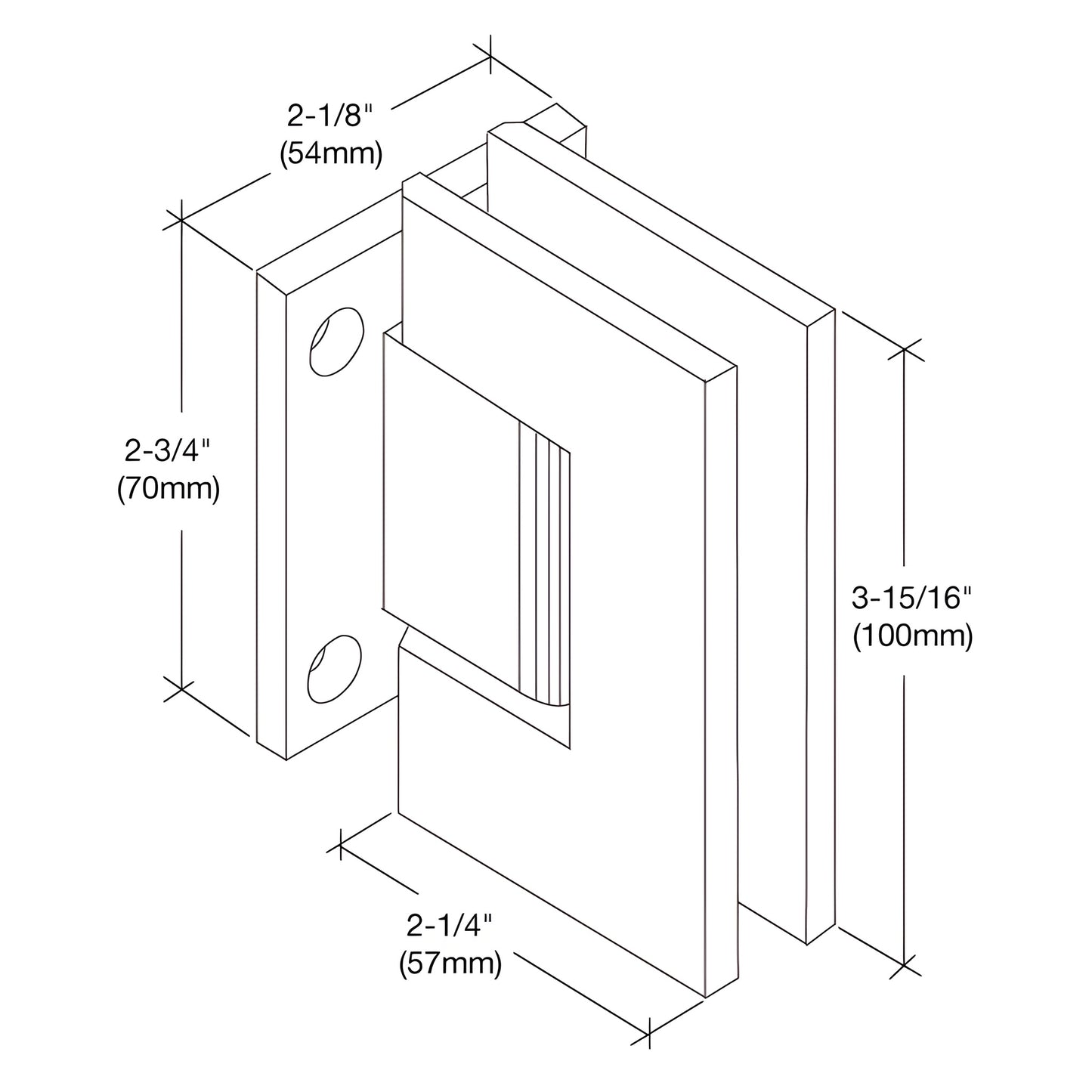

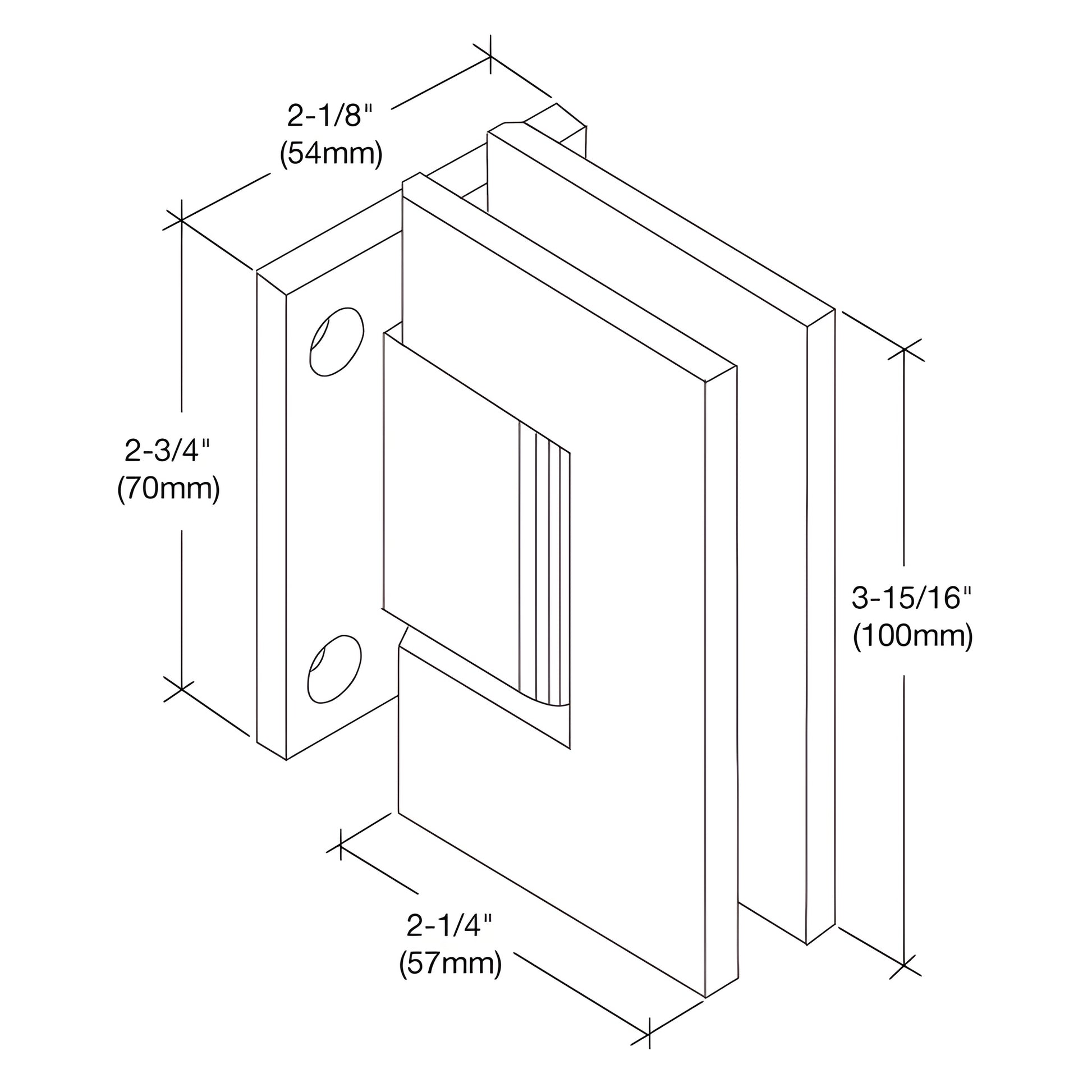

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN
